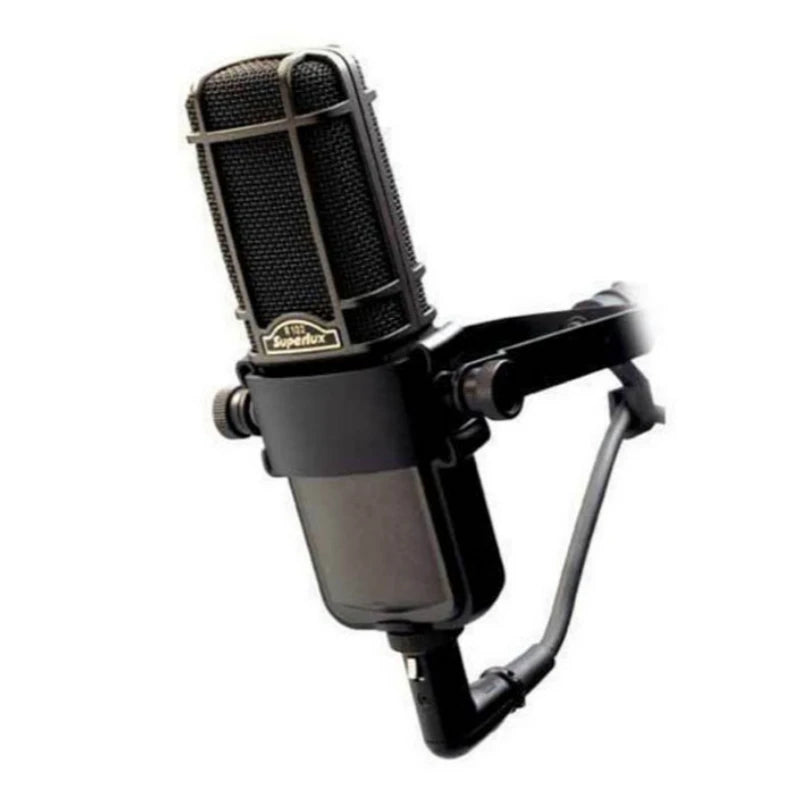

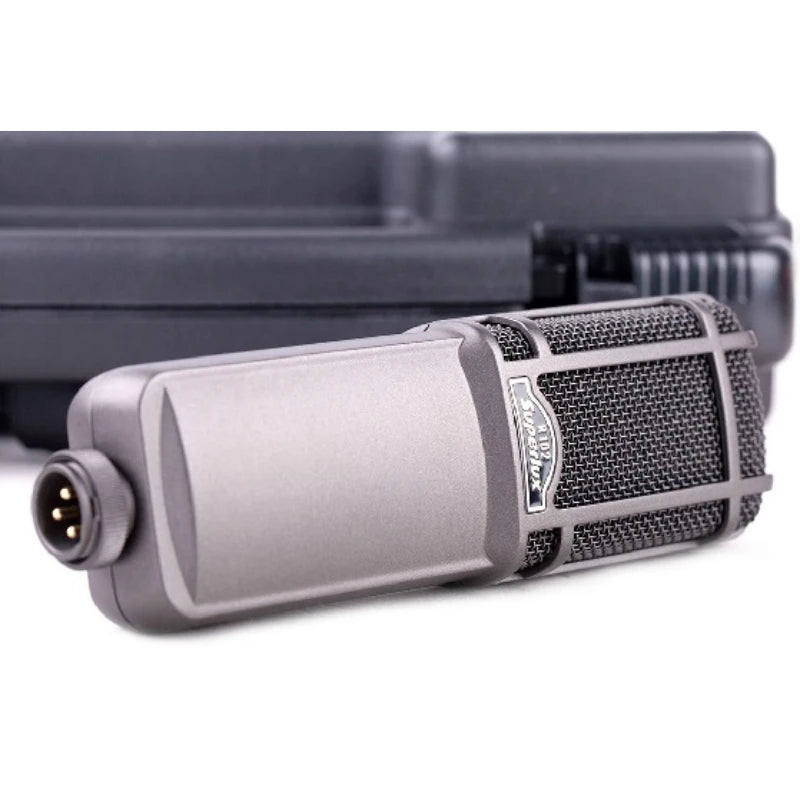

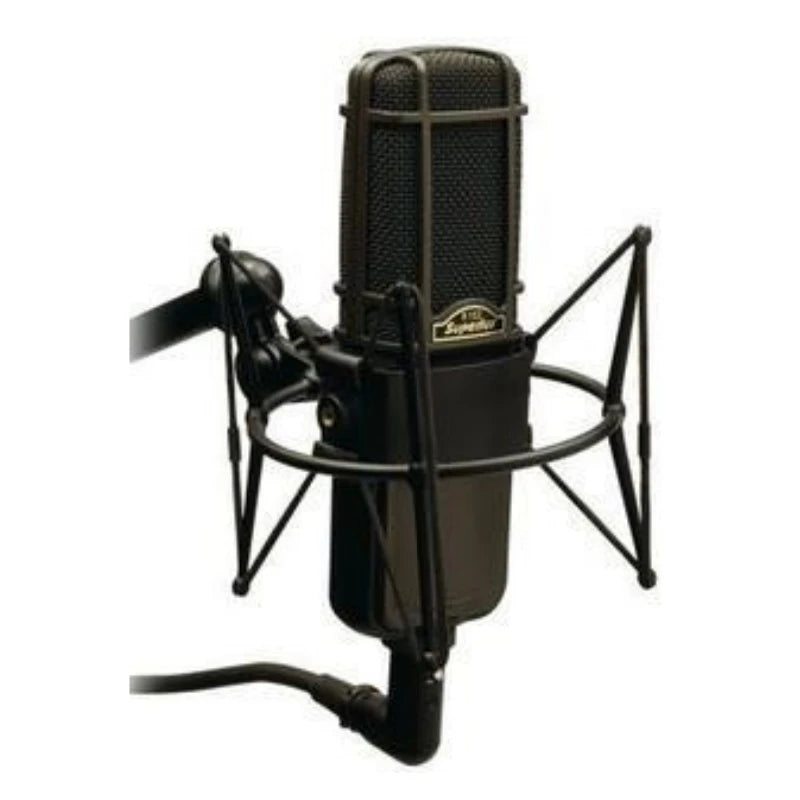

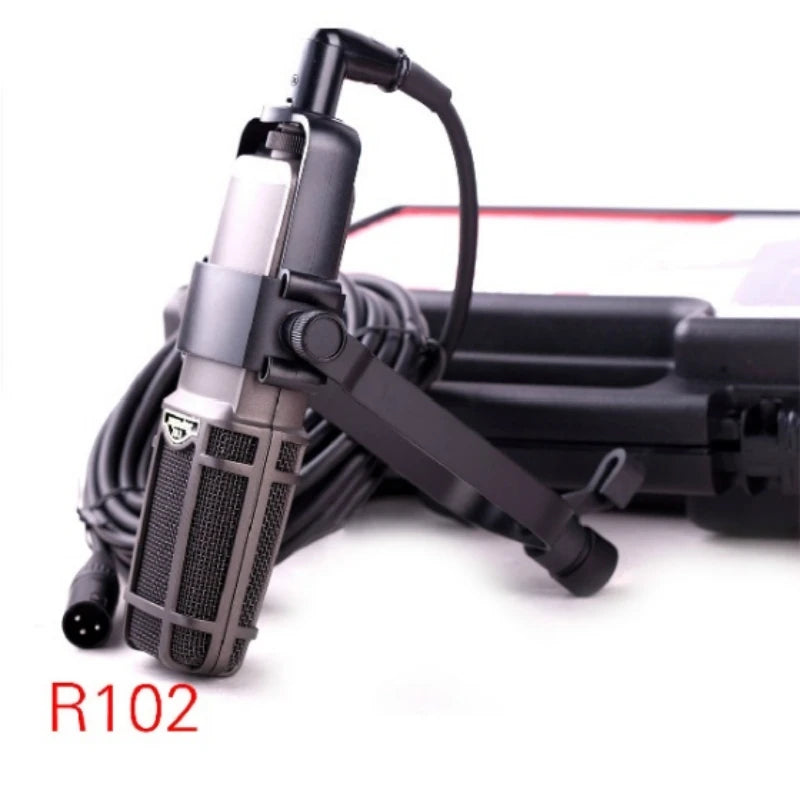

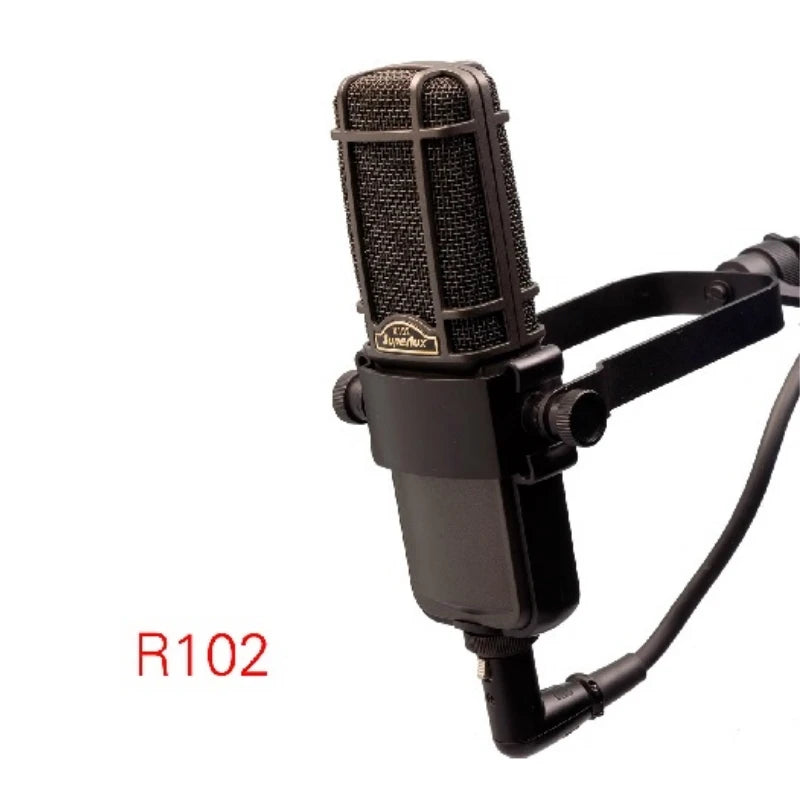

• Classical standard ribbon microphone
• +48 V Phantom powered
• Wide and extended frequency response
• High sensitivity, wide dynamic range, low distortion
• Min. noise, Stable performance
• Unaffected by the surrounding temperature and humidity
• Figure 8 polar pattern with identical sensitivity at the front and back
• Low output impedance
• Modular capsule design
Applications
• Recording
• Broadcast
• Live performance
Specifications
Frequency Response: 25~15,000 Hz
Rated Impedance: 2 5 0Ω
Sensitivity ( Hz open circuit voltage) : -40dBV/Pa (10 mV/Pa) 1Pa=94dB SPL
Polar Pattern: Figure 8
Acoustic Theory: Pressure gradient
Type: Ribbon microphone
Max. Sound Pressure Level: 1kΩ load) 138dB SPL (THD≦0.5% 1kHz)
Equivalent Noise Level: (A weighted) 18 dB
Minimum Load Impedance: 1000 Ω
Finish: Black grille
Connector: 3 pin XLR- male
Polarity: Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3.
Current Consumption: 4mA
Power Supply: 48V phantom power
Dynamic Range: ( 1 kΩ load) 120dB
Net Weight: 500g(17.6oz.)
Dimensions: WxHxD: 60mm(2.36in.) x 196mm (7.71in.) x 44mm(1.73 in.)
Environmental Conditions: The R102 operate between-10°C~50°C (14°F~122°F) with relative humidity between 0 to 95%.
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
