Limit price: 54.99 USD, 59.99 EUR, 6880 JPY
1. High quality 45 degree upright prism with phase coating, good contrast, and bright image.
2. All aluminum, black anodized eyepiece bracket, large chrome plated wing screws.
3. The interior is smoked black and equipped with a baffle to prevent the reflection of internal stray light.
4.1.25 "Eyepiece holder equipped with wearresistant brass compression ring.
5. Accept 1.25 "eyepiece, suitable for 1.25" focusing device.
6. For terrestrial or astronomical purposes, this diagonal can generate images with the correct orientation facing upwards and not reversed
7. Not recommended for use with Newtonian or DOB reflector telescopes
8. Tip: However, all prism diagonals no matter how good they are have a design feature: there is a line passing through the center of the image, where the two sides of the prism surface intersect. This may cause reflections or spikes. To some extent, this situation always occurs when viewing bright objects like stars in front of dark backgrounds such as the night sky. This should only be evident for very bright stars or planets.
Specifications:
1. Brand: SVBONY
2. Model: SV222
3. Size: 1.25 inches
4. Optical design: Prism diagonal
5. Internal connection (lens side): thread M28.5x0.6
6. External Connection (Lens Side): Tube 1.25 inches
7. Internal connection (eyepiece side): clip 1.25 inches
8. Coating: Full multilayer coating+phase coating
9. Image direction: positive image, non reversed
10. Optical length: approximately. 93 millimeters
11. Clamping system: screw clamp
12. Deflection angle: 45 °
13. Aperture: 16mm
14. Body material: CNC metal aluminum
15. Prism material: BK7
16. Net weight: 167 grams/5.87 ounces
The package includes:
SV222 1.25 "45 degree metal zenith mirror
1 M4 screw

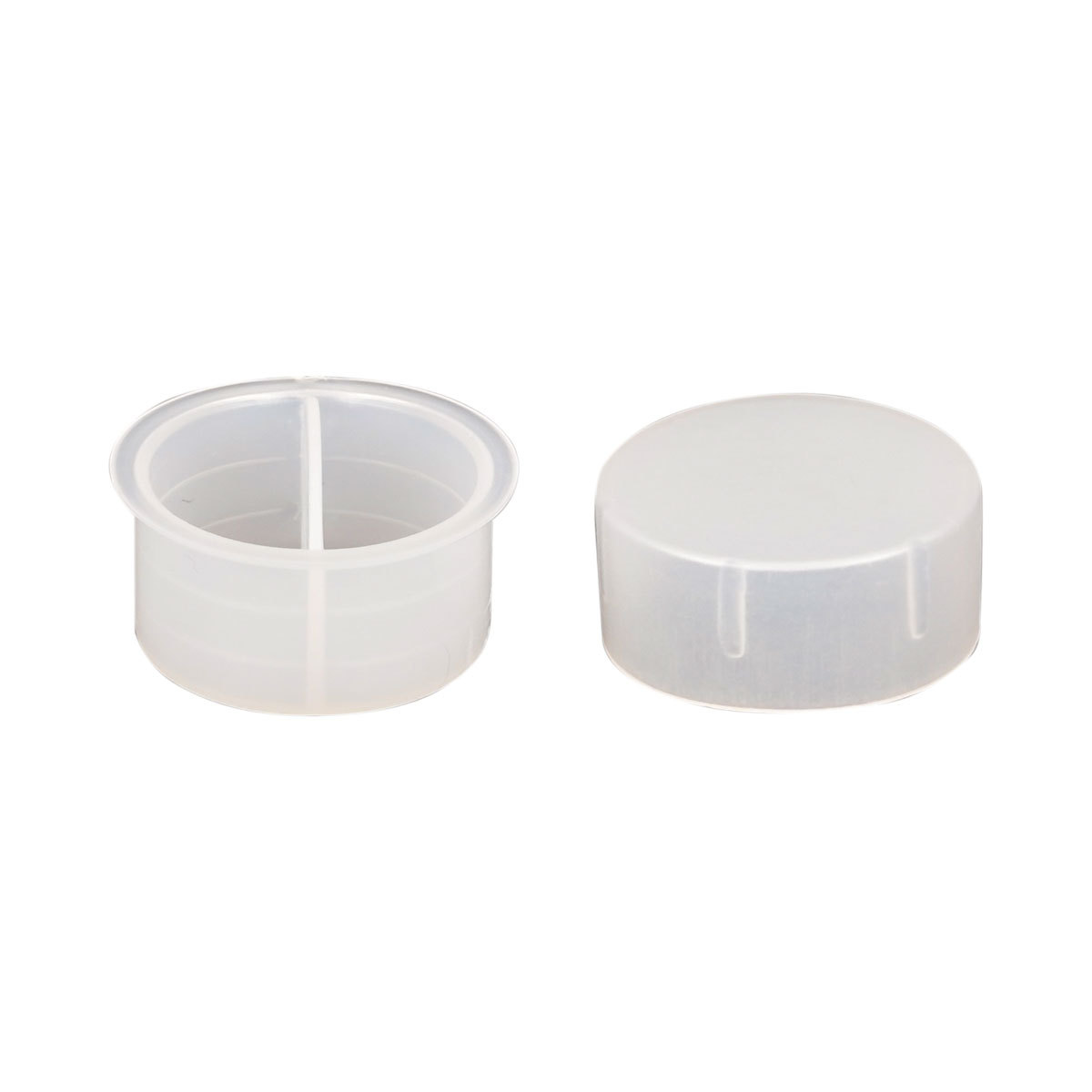

1PCS dust cap
1PCS dust plug
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
