Limit price 149.99 USD, 159.99 EUR, 18580 JPY

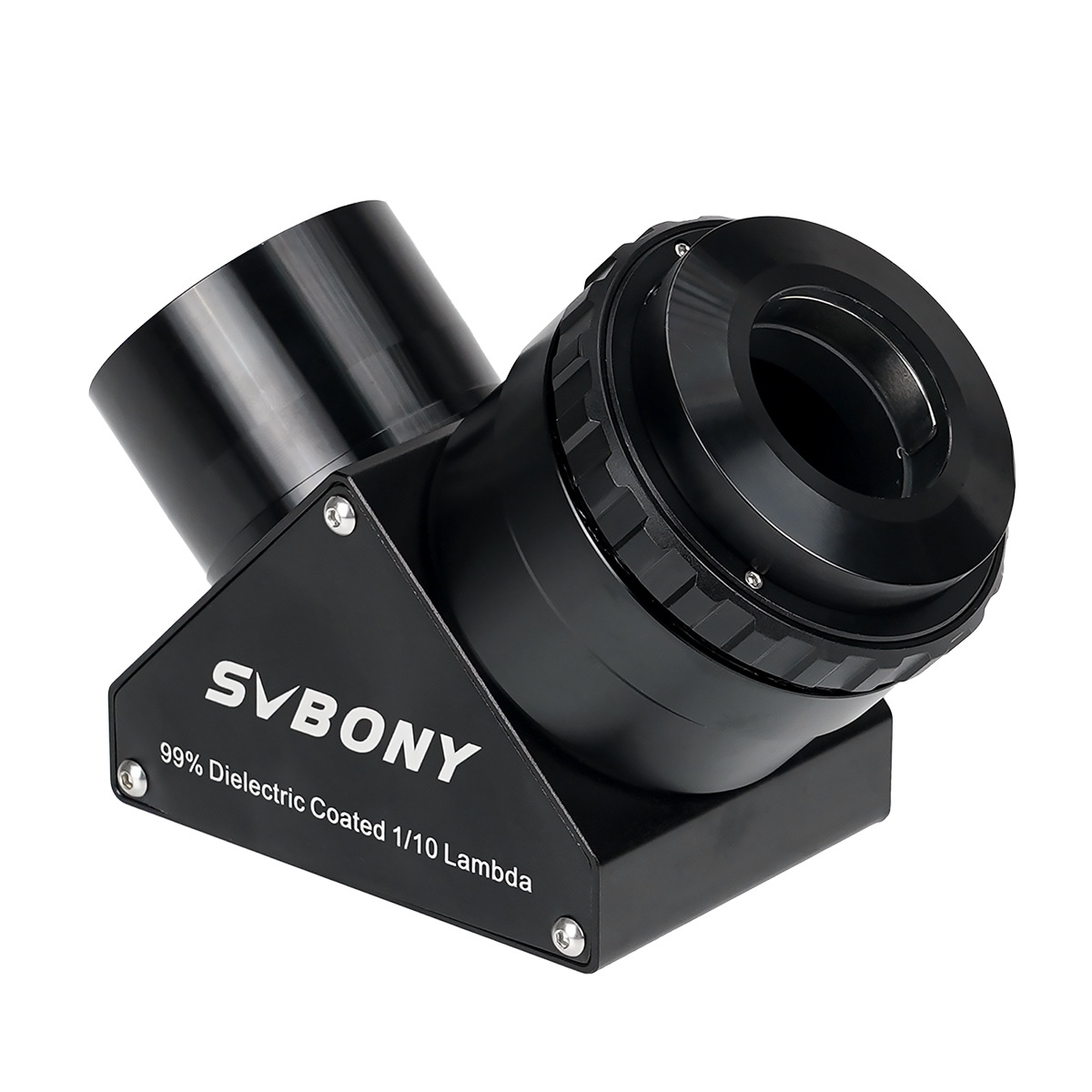

1. The diagonal is equipped with thick precision optical plane mirrors with an enhanced 99% reflective dielectric coating
2. Dielectric 1/10 lambda level substrate, optical length 109.1mm (118.6mm with 2 "-1.25" adapter)
3. The snap on fixture can achieve ultra fast clamping action
5. The internal safety block can prevent the tube from hitting the mirror

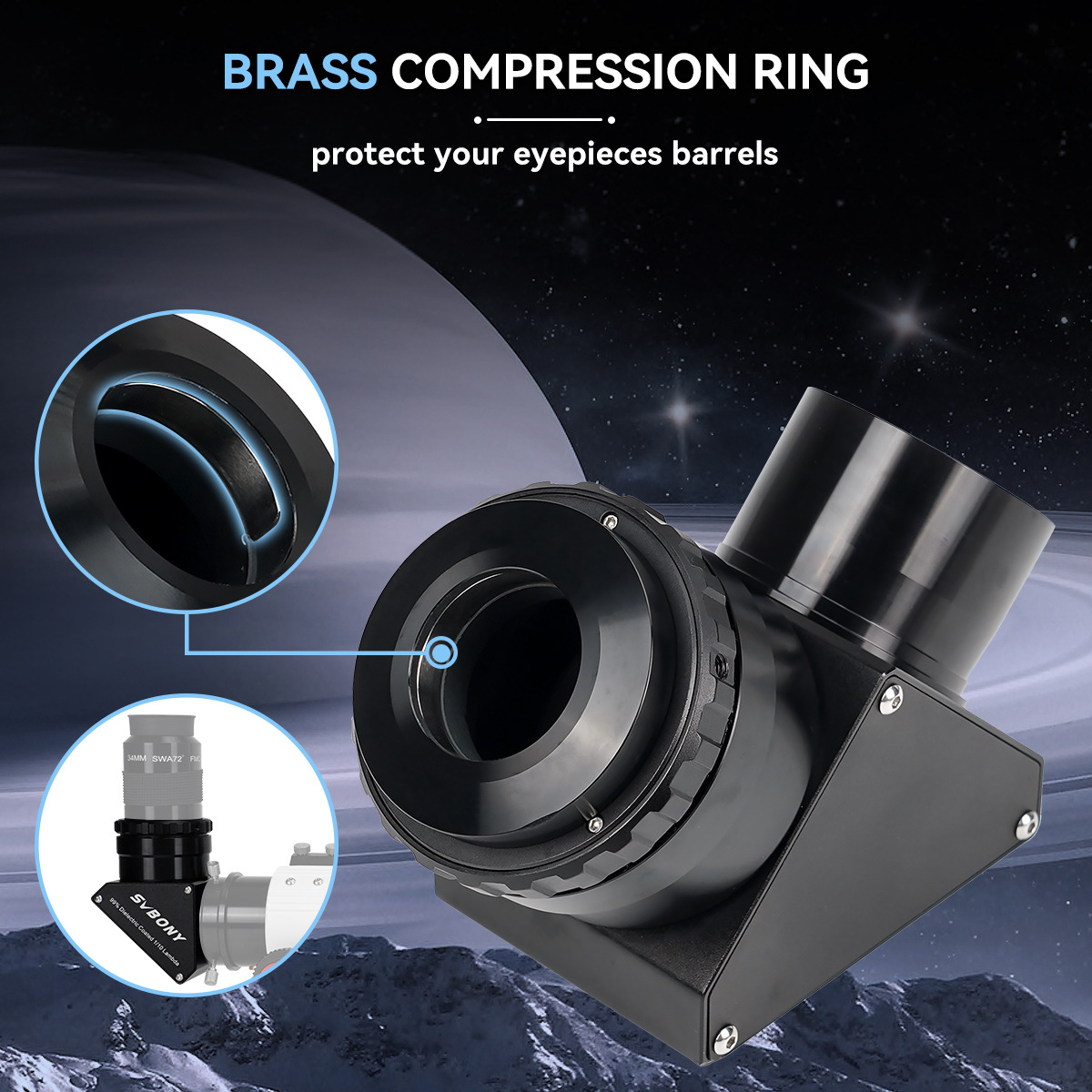

6. Stainless steel compression ring (on diagonal and adapter) can prevent damage to the barrel
Specifications:
1. Brand: SVBONY
2. Model: SV223
3. Size: 2 inches
4. Optical design: Mirror diagonal
5. Internal connection (lens side): thread M48x0.75
6. External connection (lens side): 2inch barrel
7. Internal connection (eyepiece side): clamp 2 inches

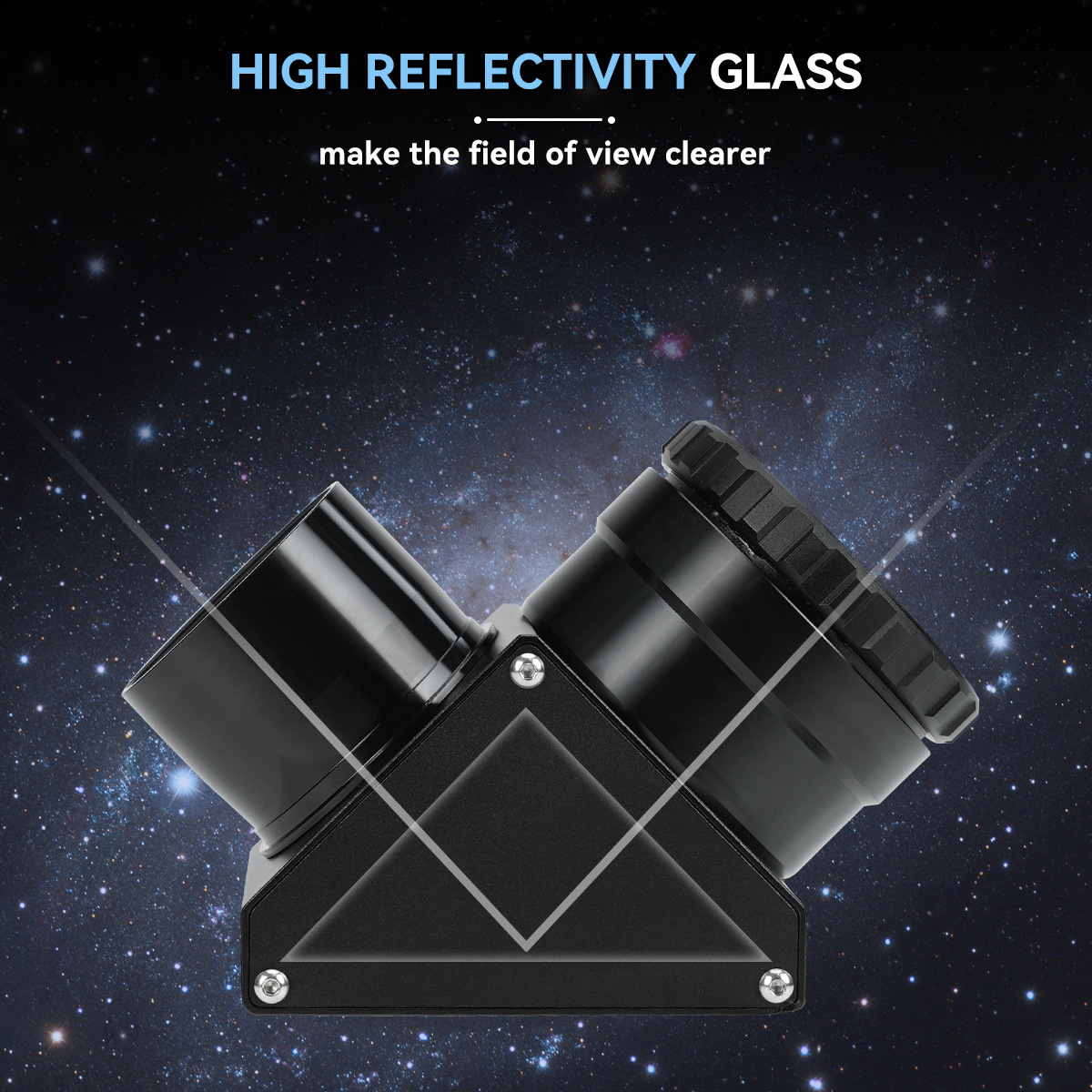

8. Reflective surface: dielectric coating
9. Reflectance:>99%
10. Image direction: Up and down, left and right reversed
11. Optical length: approximately. 109.1 millimeters

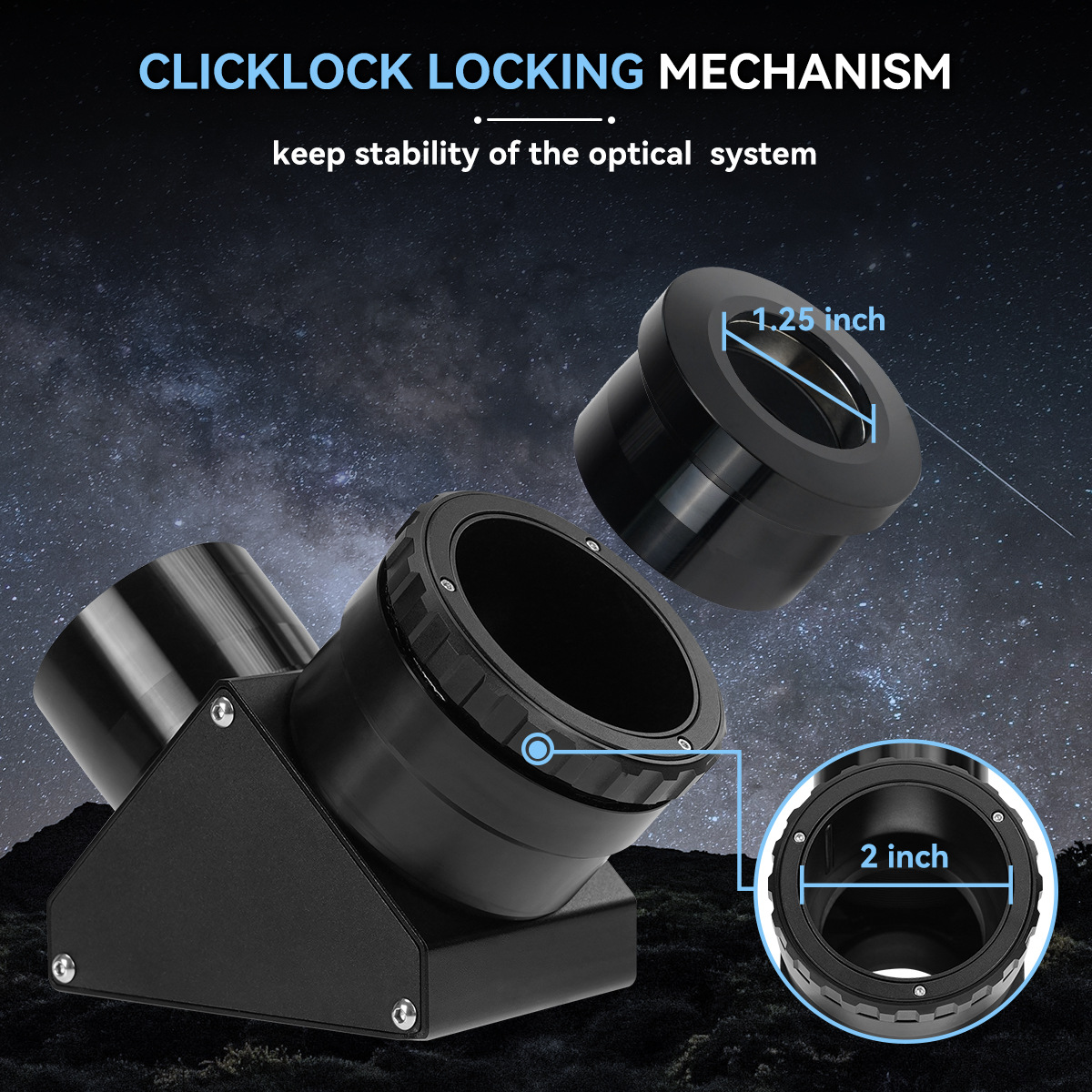

12. Clamping system: Clicklock

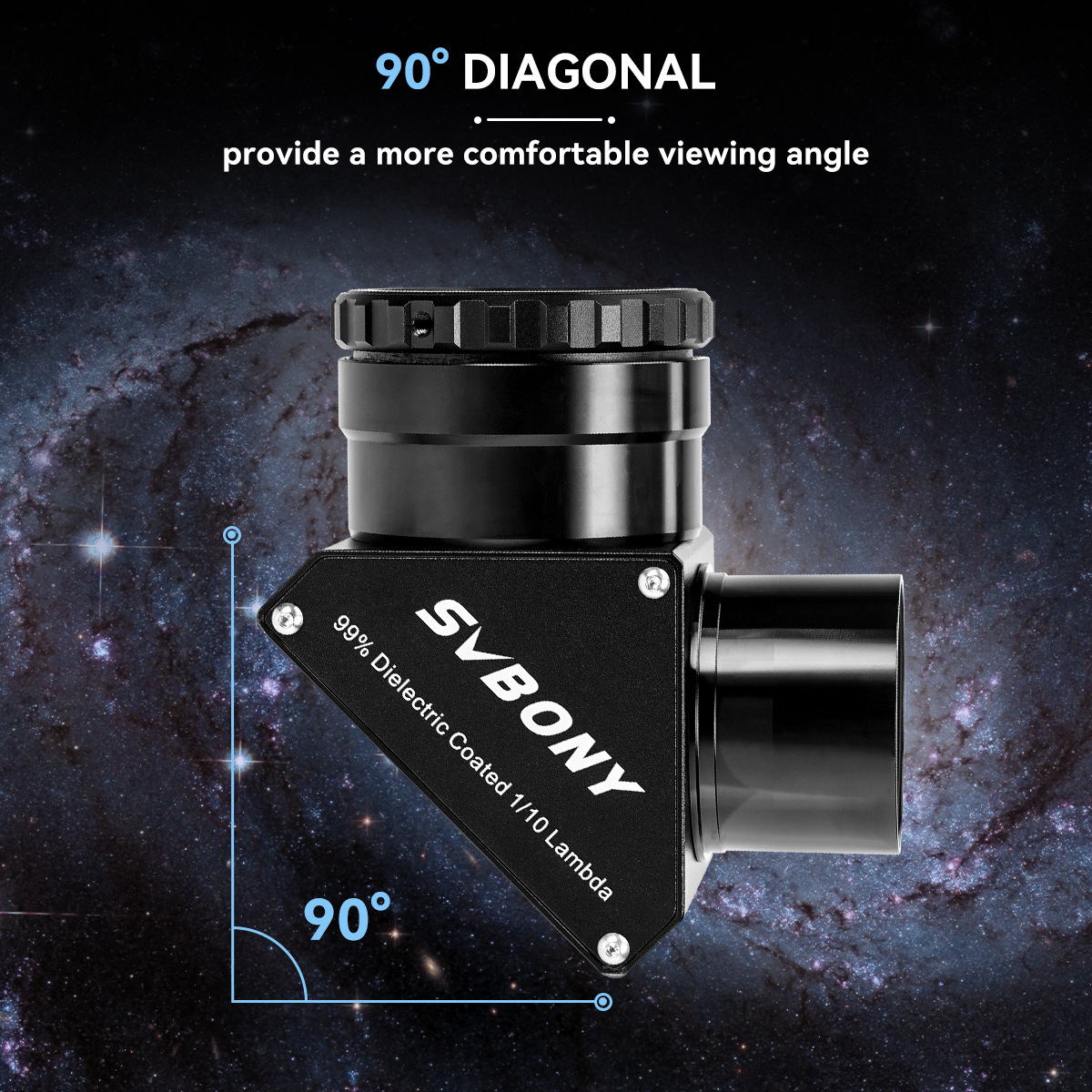

13. Deflection angle: 90 °
14. Aperture: 43mm
15. Material: Metal
16. Mirror thickness: 11.5mm
17. Net weight: 573.7 grams/20.24 ounces

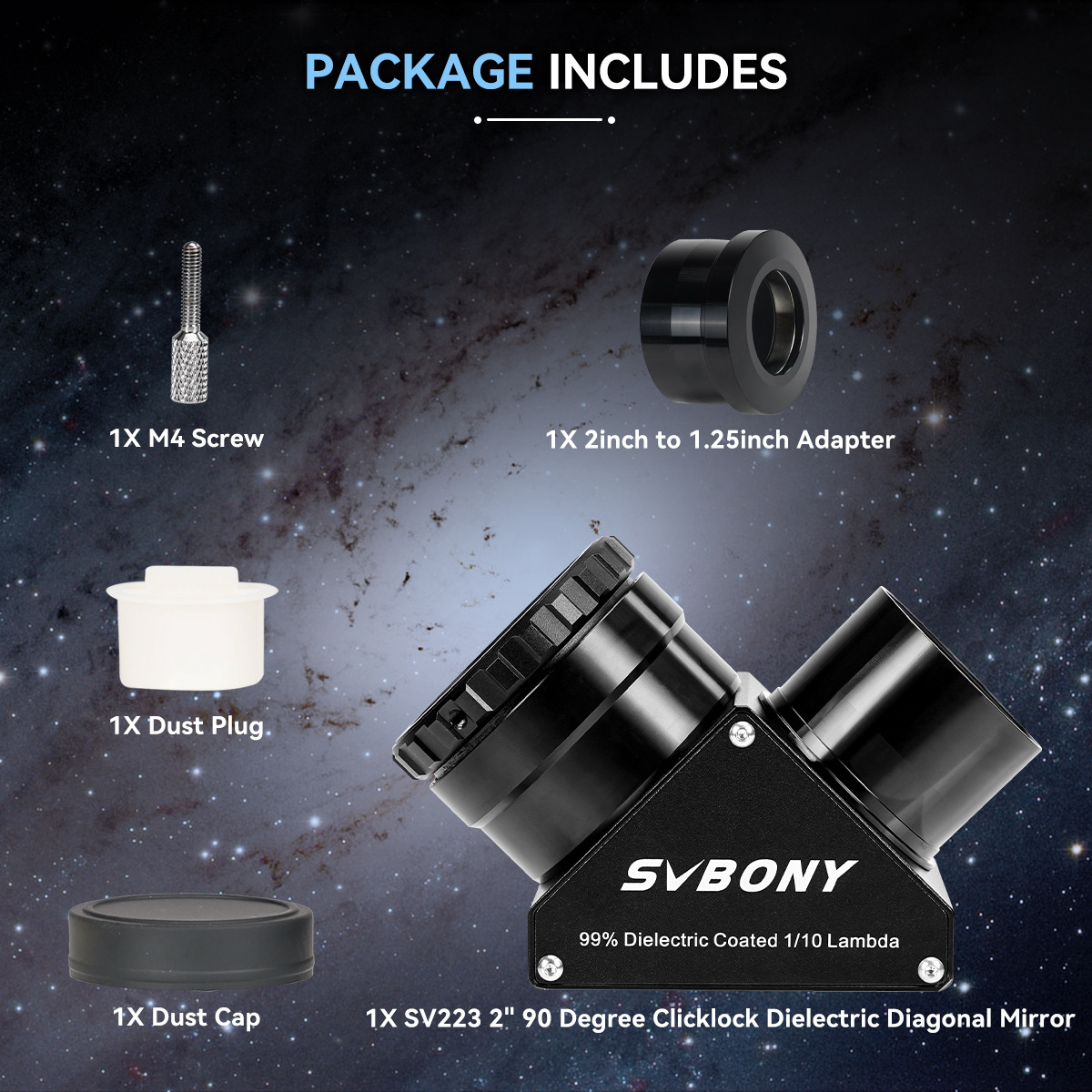

The package includes:
SV223 2 "90 degree zenith mirror

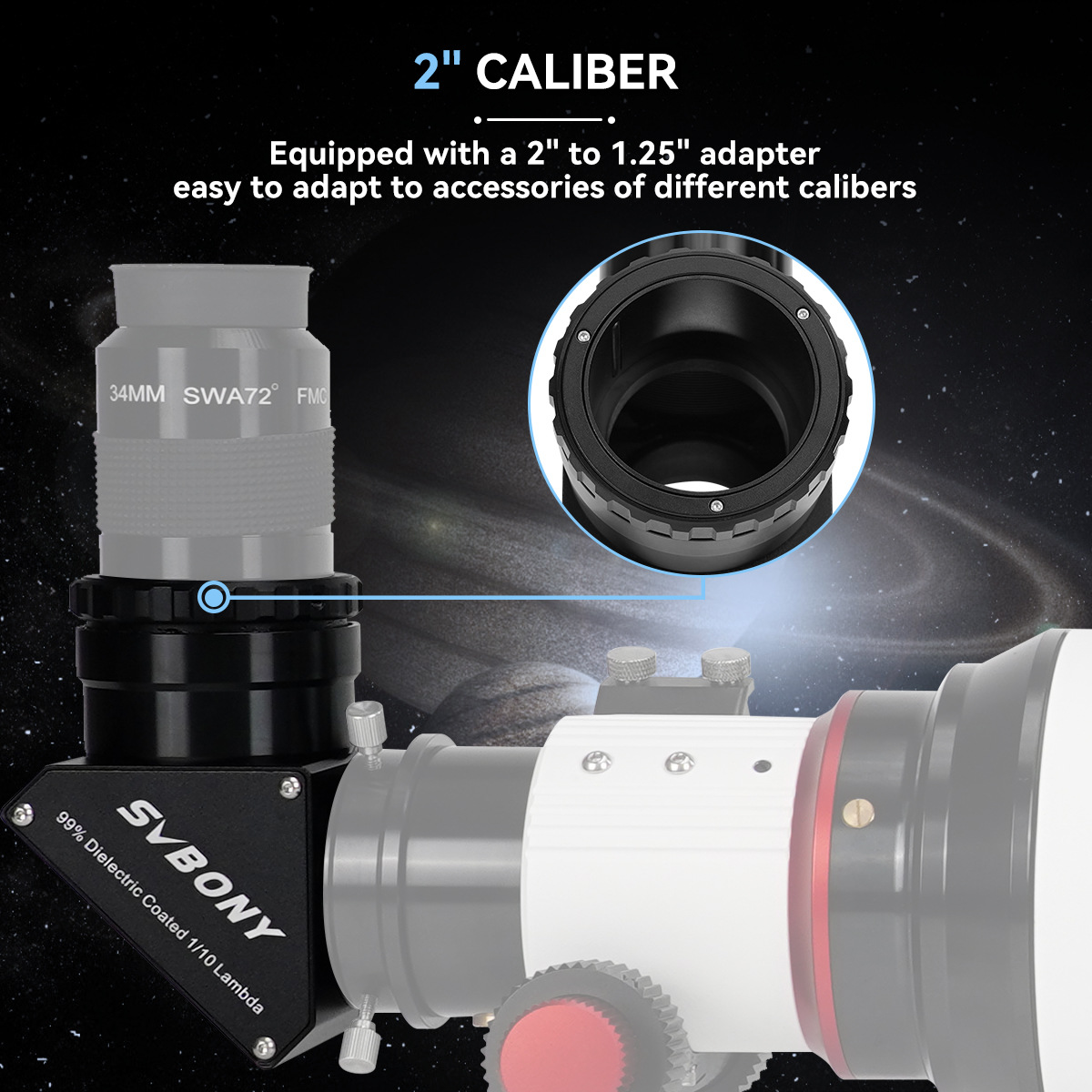

2inch to 1.25inch adapter
1 M4 screw
1PCS dust cap
1PCS dust plug
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
