Limit price of 159.99 USD, 179.99 EUR, 22980 JPY

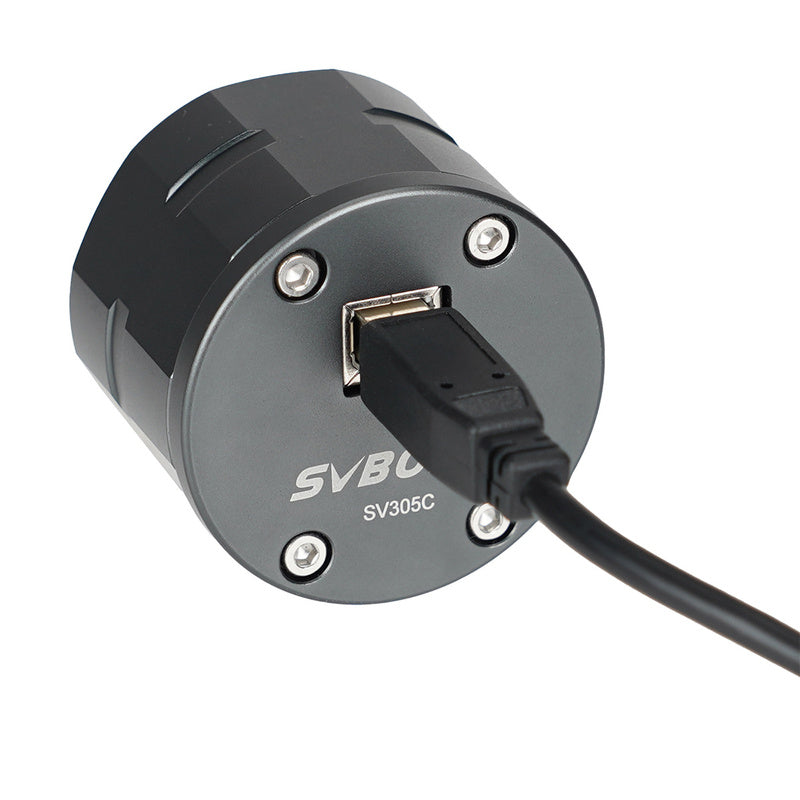

Camera interface
UV/IR CUTProtective glass with detachable design
The protective glass of the body is designed in a detachable form, and the protective glass that comes with the body is UV/IR CUT
128MB DDRII buffer
SV305C has a builtin 128MB DDRIII image buffer. The advantage of an image buffer is that when the USB interface is not busy or interrupted, the memory will cache the image and transfer it to the computer, so that frames will not be lost or damaged. Even if the USB bus is occasionally busy with other peripherals, this buffer allows slower USB 2.0 computers to capture every frame without losing it.
SV305C has ROI and BIN functions. You can set any resolution. Read out a smaller region of interest (ROI) from the sensor, keeping the image scale of the imaged object unchanged. And it can greatly improve the photo taking rate.
BIN2 * 2 pixels can merge two adjacent pixels, which can improve camera sensitivity.
HCG digital noise reduction technology
Adopting HCG digital noise reduction technology can significantly reduce readout noise while preserving high dynamic range.
Attention:
1. Computer configuration requirements:
All software and drivers for this camera can be obtained from the manufacturer's website.
Specifications:
Model SV305C

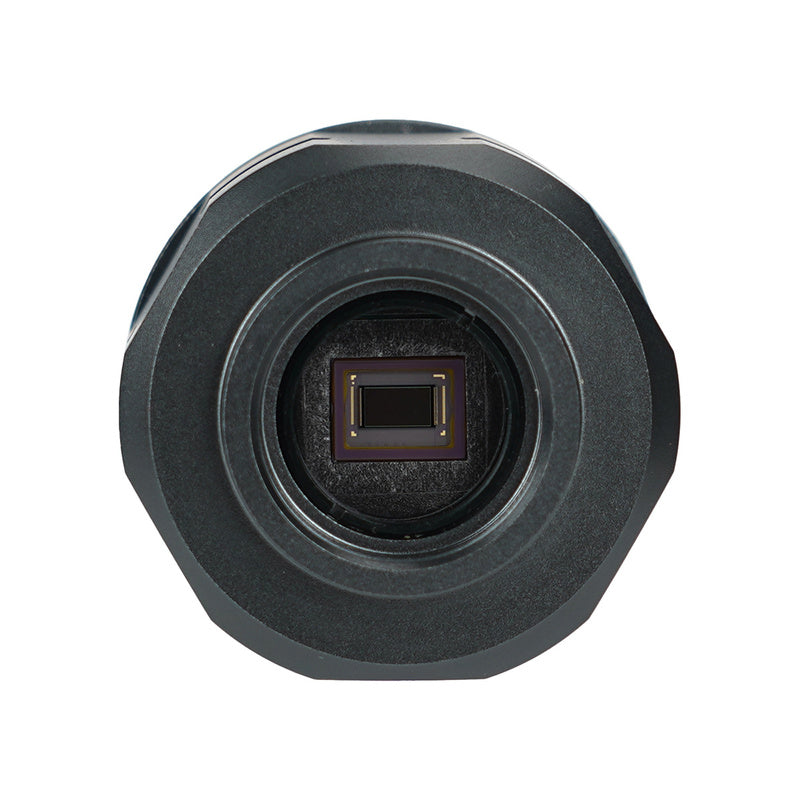

Sensor model SONY IMX662
Total Pixel Size 2.1 Megapixels
Diagonal 6.44mm
Pixel size 2.9 μ m X 2.9 μ m
Chip size 5.6mm × 3.2mm
Frame rate 24FPS
Shutter Roller Shutter
Exposure range 32 μ s-2000s
Read out noise of 6.5e~0.7e
Quantitative easing peak ≈ 91%
Manjing 38ke
12 bit analogtodigital converter
The return on investment is
Box 1X1 2X2
Digital HCG
Compatible with Windows system, Linux OS , Raspberry Pi,Mac os, Chrome os
Built in buffer 128M
Data interface USB2.0
Adapter 1.25 "/CS/C
Protective window UV/IR CUT
Rear focal length 7.5mm/12.5mm
Quantitative easing

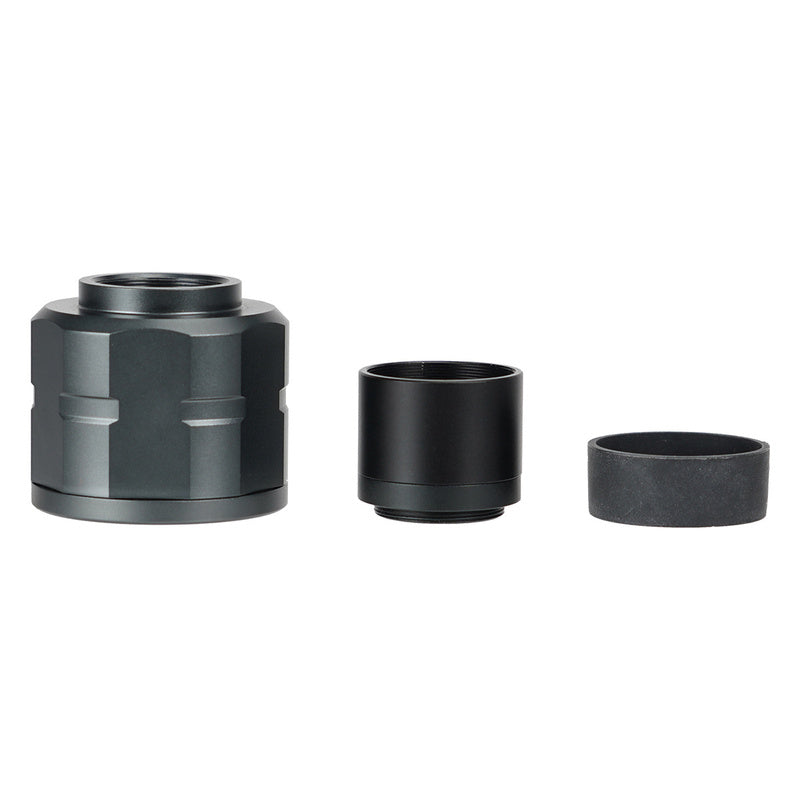

The package includes:
1 * Svbony SV305C camera
1 * USB 2.0 data cable
1 * 1.25 inch extension bucket
1 * CS-C adapter ring
1 * 1.25 inch lid
1 * Instruction manual
1 * Mirror wiping cloth
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
