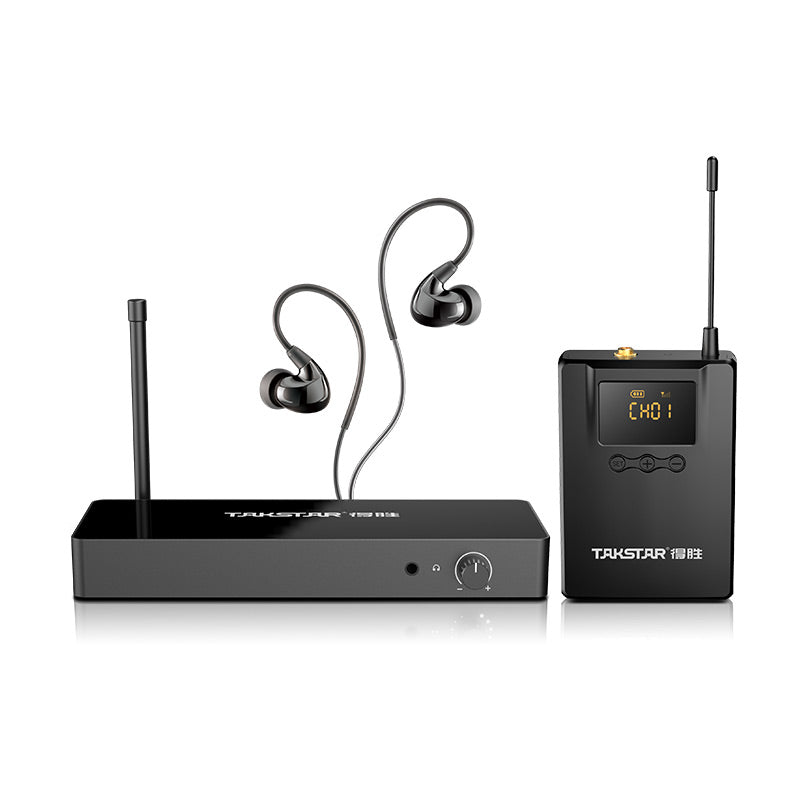

Takstar WPM-300 In Ear Stage UHF Wireless Monitor System for Studio Recording/on-Stage Monitoring (1 Transmitter and 1 Receiver) Ideal for Stage, Studio, Exhibit, Lecture, Speech
Features:
• A wireless monitoring system tailored for instrument/stage monitoring and simultaneous interpretation.
• UHF wireless transmission, PLL (phase-locked loop) technology, stable and reliable performance.
• Anti-interference composite circuit, use multiple bodypack receivers simultaneously.
• Supports up to 10 transmitters working at the same time, suitable for multilingual interpretation.
• Transmit up to around 50 meters within line of sight.
• Dynamic companding circuit with high S/N ratio for clear audio output.

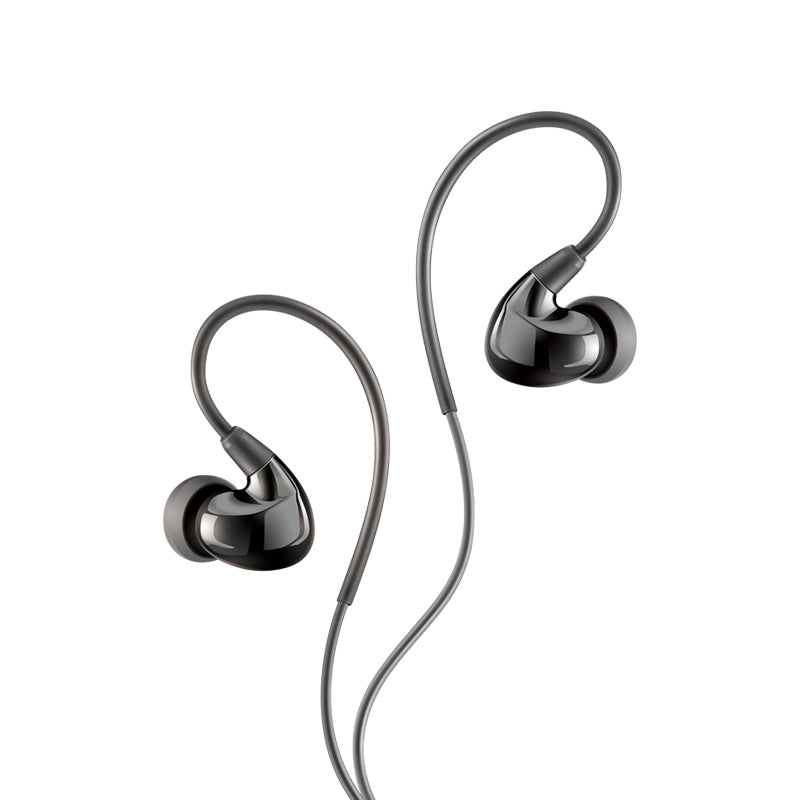

• Includes in-ear monitors that are comfortable to wear and offer rich delicate sound and strong bass.
• ø3.5mm audio input on transmitter, easier to connect with mixer, amplifier or other audio device.
Specification:

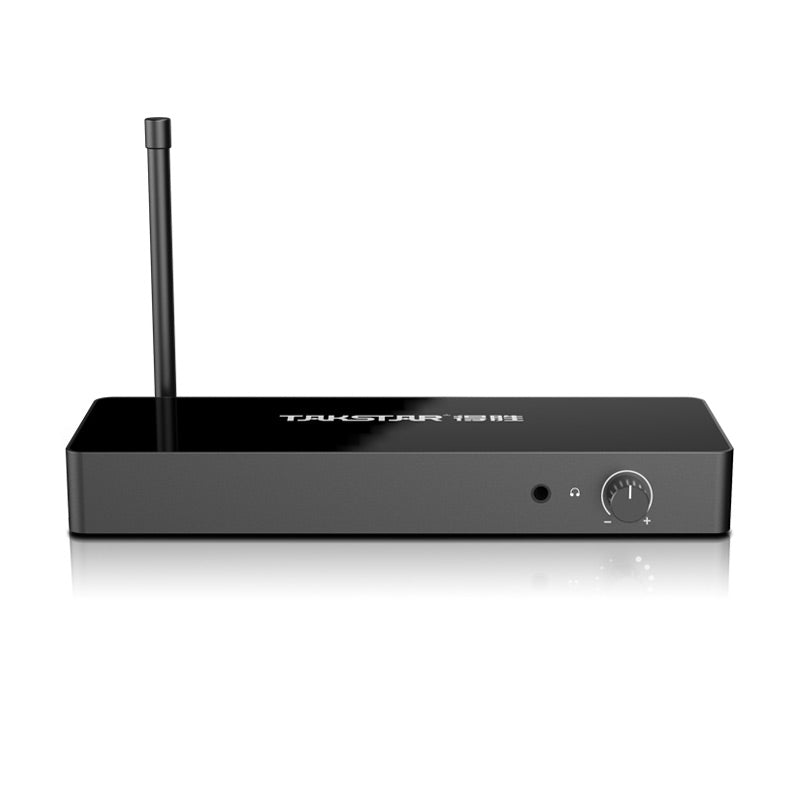

Transmitter Specifications
• Operating Frequency: 520-600MHz
• Operating Current: 100mA (TYP)
• Power Supply: DC 12V/300mA
• Transmitting distance: ≥ 50m (line of sight)
• Transmitting Power: 5dbm (TYP)
• Dimensions: 159×79.8×21.1mm
• Weight: approx. 123g

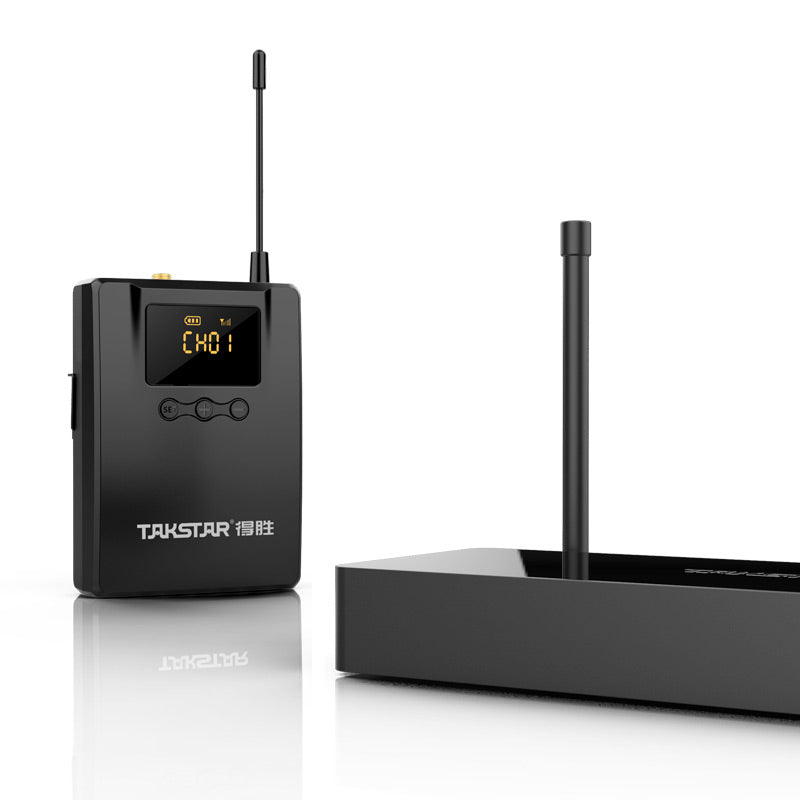

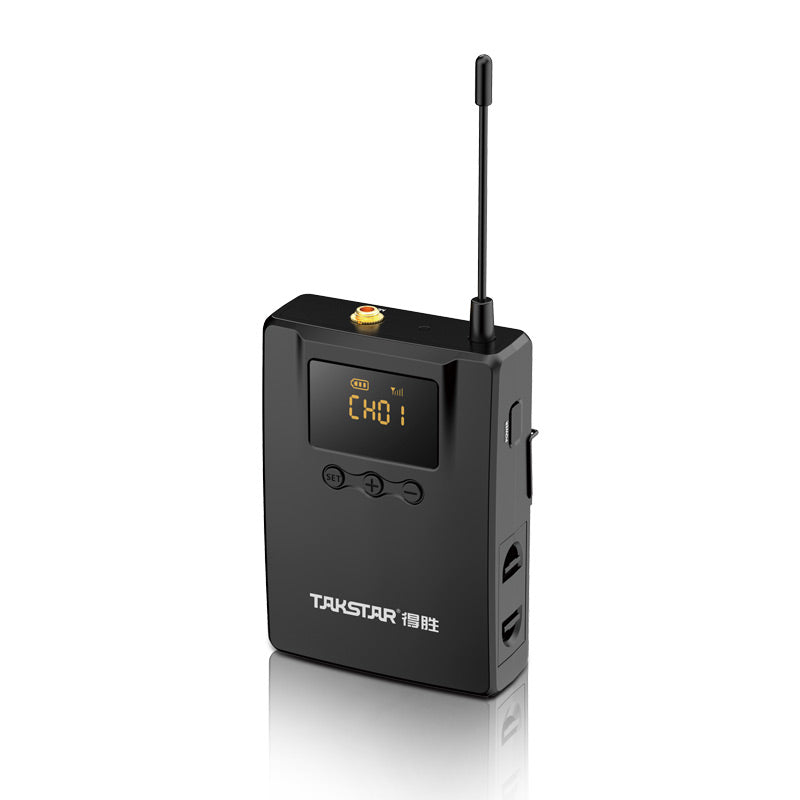

Receiver Specifications:
• Frequency Range: 520-600MHz
• Operating Voltage: DC 2.5V (2.2V-3.0V) / two AA batteries
• Operating Current: 115mA (TYP)
• Frequency Response: 20Hz-15 kHz (-6dB intercept point)
• S/N Ratio: > 60dB
• Receiving Sensitivity: better than 8dbuv
• Stereo Separation: >45dB
• Dimensions: 169×64×30.95mm
• Weight: approx. 123.5g
Note: The above data is measured by Takstar laboratory, and Takstar has the final interpretation right!
Suit for:• Suitable for instrument/stage/conference monitoring, simultaneous interpretation.
Packing List:
• Transmitter1 PC
• Bodypack Receiver 1 PC
• In-Ear Monitors 1 PR
• Silicone Ear Tips (S, M, L)3 PRS
• AA Dry Battery2 PC
• ø3.5mm Audio Cable1 PC
• RCA Audio Cable1 PC
• ø3.5mm to 6.3mm Plug1 PC
• 12V/300mA Adapter1 PC
• User Manual1 PC
