1. Stable Needle Stroke: Tattoo machine pen adopted eccentric shaft to drive the needle movement, provide high frequency needle stroke, which has low noise, fast coloring and reduce skin damage.

2. Comfortable Hold: tattoo pen simulates the grip and touch of a pen, provides you with a better user experience, which is suitable for most cartridge needles on the market.

3. Voltage Adjust: Tattoo power supply with 6V 7V 8V 9V 11V voltage can be adjust, adjusting accuracy is 1V, which can meet the speed needs of tattooist to operate different parts.

4. Port: tattoo machine kit adopted standard interface design, which can provide tight connection, suitable for both tattoo artists and beginners.

5. Long Endurance: tattoo machine kit made of aluminum alloy material, power supply built in 1200mAh large capacity battery, fully charged can be used for about 8 hours.

    Specification:

Item Type: Tattoo Pen Power Supply Set

Material: Aluminium Alloy, Electronic Components

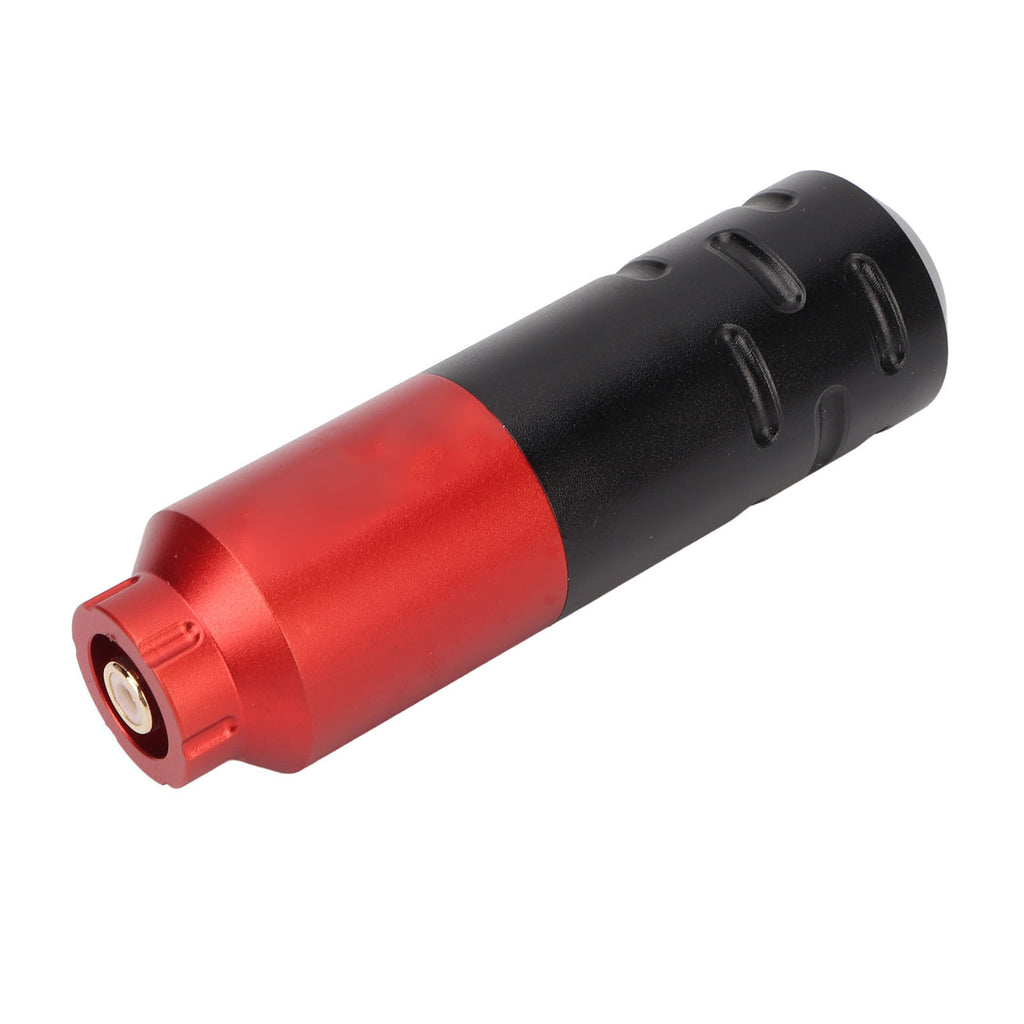

1. Tattoo Pen

Suitable Needle: Most cartridge needles on the market

Interface: Interface

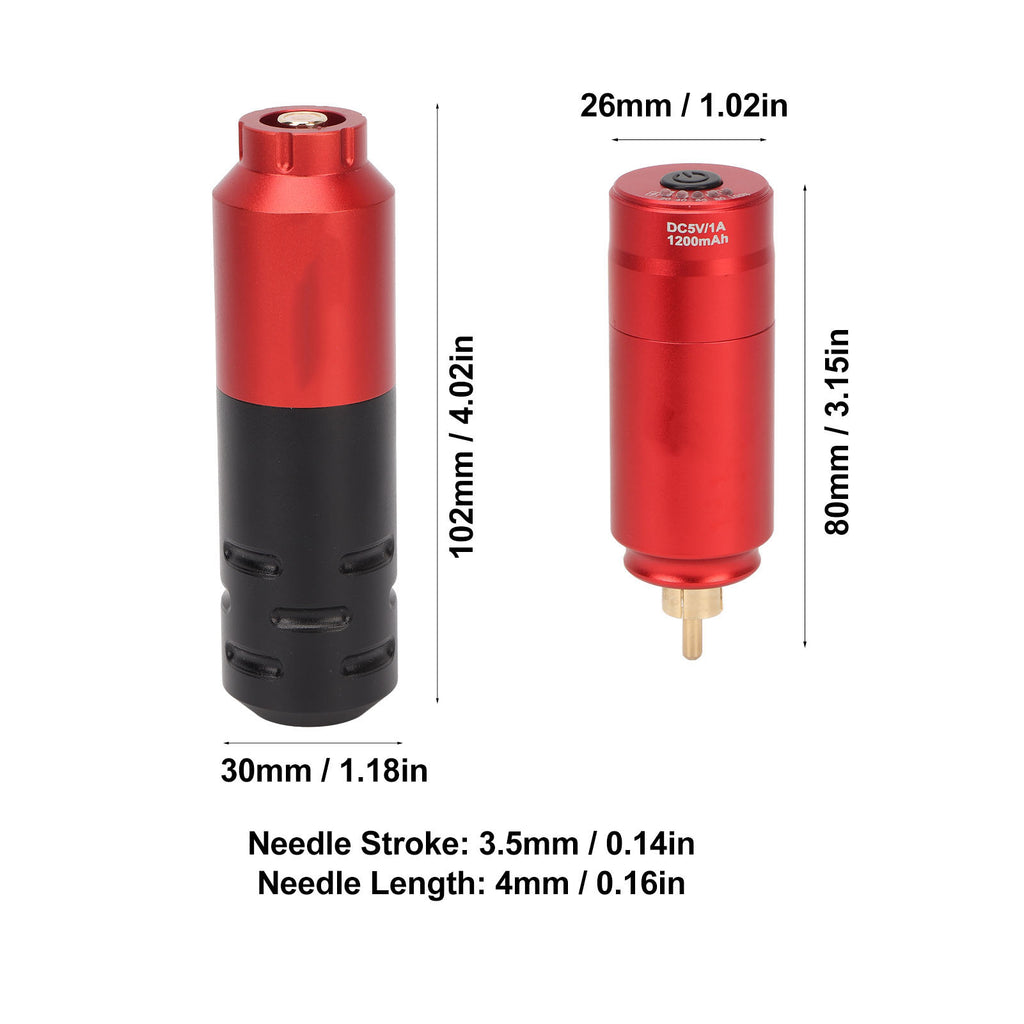

Length: Approx. 102mm / 4.02in(Without Needle)

Diameter: Approx. 30mm / 1.18in

Needle Stroke: 3.5mm / 0.14in

Needle Length: 4mm / 0.16in

Speed: Maximum 10000RPM/min (driving with the cartridge needles working speed, not idling speed)

Starting Voltage: 3.5V

Working Voltage: 4-12V (driving with the cartridge needles working speed)

2. Tattoo Power Supply

Interface: Interface

Battery: Lithium Battery 1200mAh(Included)

Power Supply Size: Approx. 80 x 26 x 26mm / 3.15 x 1.02 x 1.02in

Input: DC5V 1A

Output: 6V 7V 8V 9V 11V

Charging Voltage: DC5V/1A, TYPE C charging interface

Style: Input and output dual charge and discharge protection (the battery comes with over discharge protection, and it is safer to add short circuit and over discharge protection on the control board)

Charging Time: 3.5 hours (It is strictly prohibited to use a charger higher than 5V to charge)

Endurance Time: 8V voltage can be used for 8 hours

How To Use:

Power Operation Instruction: 1. Long press the power button for 2 seconds to switch the machine off. 2. Press the power button for 6V, 7V, 8V, 9V and 11V cycles, while the indicator light increases. 3. The default power start is 10V each time, and the memory of the voltage used last time will be displayed after 0.2 seconds. 4. When the button is not used for more than 2 seconds, it will automatically display the battery capacity. At the same time, the indicator light is in breathing state, and the 1‑5 indicators respectively represent 20% to full power. Press the power button to automatically return to the state of regulating voltage, and so on. 5. When charging, the indicator flashes to show the charging state. When it is full, the indicator is long on. 6. Battery inside the charging current limit, battery capacity is 1200MAH, more than 1A charger 3.5 hours full, 8V voltage output sustainable use for 8 hours or so (tattoo voltage is different, the use of time will be different, 8 hours is the theoretical value). 7. This product is mainly applicable to motor tattoo machine, do not use coil tattoo machine. 8. This product cannot be used while flushing. 9. If there is short circuit protection during use, it will be activated automatically after plugging in the charger to charge. Description of tattoo pen set: Wired operation: Install the needle on the tattoo machine, connect the clip cord, power supply and foot pedal, start the power supply, adjust the voltage to operate. Wireless operation, the tattoo machine is connected to the interface wireless tattoo power supply, adjust the appropriate voltage, you can operate.

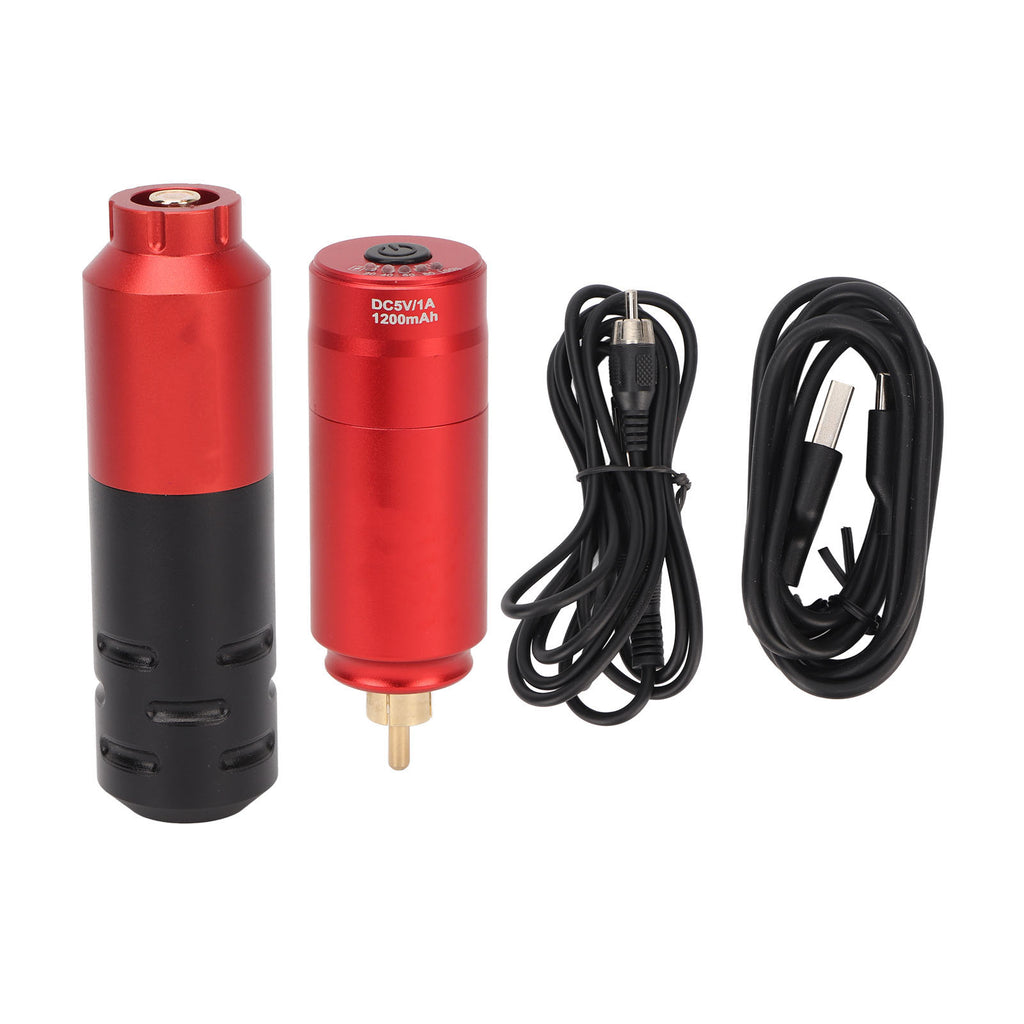

    Package List:

1 x Tattoo Pen    1 x Tattoo Clip Cord

    1 x Wireless Power Supply

    1 x USB Charging Cable
