Introduction:

Material: Plastic Shell

Display: LCD Digital

Unit Weight: 650g

Input voltage: 110V-240V, AC50/60Hz.

Output Voltage: 3~18v

Output Power: 0.3-45V

Operating Temperature: 5 ~ +45 ℃

Relative humidity 30%~75%.

Operating Air Pressure: 900-1060 HPA

--Liner/ Shader presets with memory modes.

--Momentary(conventional) or Maintained(push on push off) foot switch modes. Easy one button toggle

--Non volatile memory (holds time and presets even when power is removed)

--Wireless foot switch ready (foot switch under development)

--Volts, Amps, Speed (hz), Duty Cycle (%), ans STL(similar to follow through)

--Wipe down quality

--Easily bagged with typical machine or bottle baggies

--Power supply includes one universal mount

   Warranty:

One year warranty for principle machine

Three months warranty for adapter,Power supply cord and other accessories

   Advantages:

--Fully digital microprocessor control

--Precision regulated set point voltage 3-18VDC

--Plugin the power: Please use standard adapter connect to power supply through"DC/19" socket

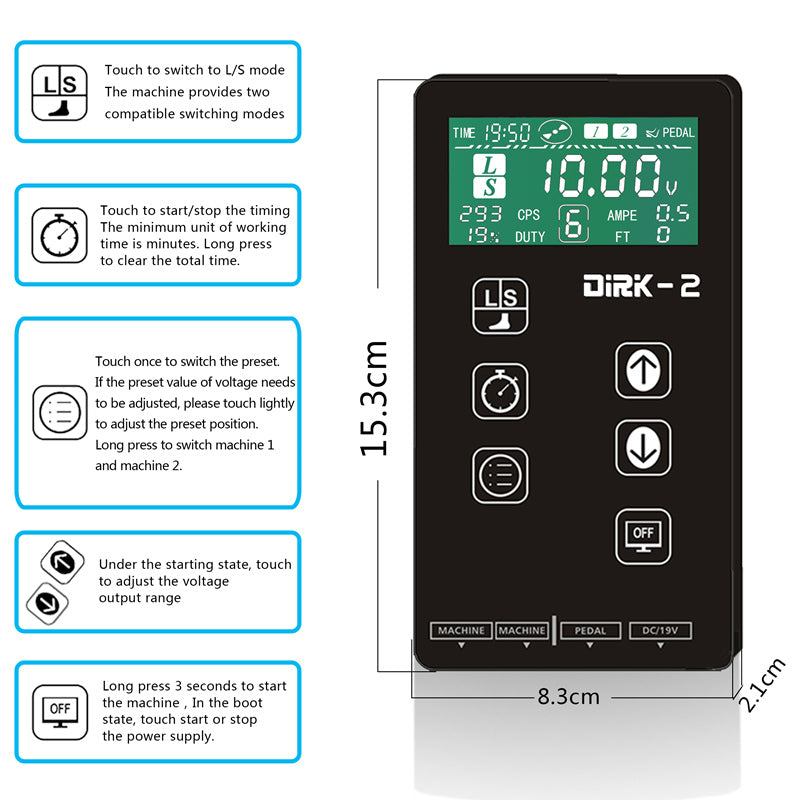

Switch ON/OFF and START/STOP functions:

A; When plugged into the power supply, press"POWER BUTTON" for 3 seconds to switch on, or another 3 seconds to switch off.

B: 5 seconds press on foot pedal to switch on, when switch on, touch "POWER BUTTON"" to start/stop the power

   Adjust the output voltage:

   when switched on, touch "VOLTS+" "VOLTS-" to adjust the voltage output

   L/S & Foot Pedal Moodle:

When switched on, touch "L/S BUTTON" switch to L/S model, when switch to L model, L be lighted, switch to model S will be lighted.

when switched on, press "L/S BUTTON" for 3 seconds to change the foot pedal model

--This machine offer two kinds of foot pedal mood, one is contineous output mood, another is inching output mood

   Preset voltage:

This machine provides 6 preset voltage under mood of L/S, the factory settings:

L1-5V/L2-6V/L3-7V/L4-8V/L5-9V/L6-9.5V

S1-6V/S2-6.5V/S3-7.5V/S4-8.5V/S5-9.5V/S6-10V

touch "PRESET BUTTON" swith successively to preset voltage, to adjust the preset voltage, touch "PRESET BUTTON" to adjust the voltage gears. Touch "VOLTS+" "VOLTS-" to adjust voltage, then press "PRESET BUTTON"  for 3 seconds to save the preset voltage.

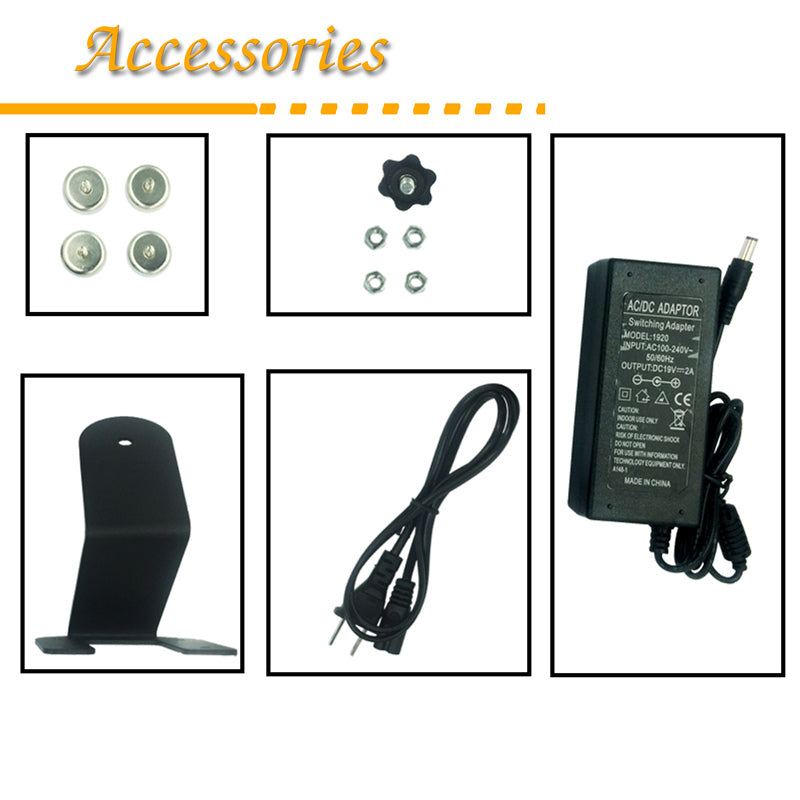

   Package Includes:

       1 Power Supply

1 Power Cord

1 set of holder parts
