TEC: Also called semiconductor refrigeration film, or thermoelectric refrigeration film, which uses the Peltier effect, that is, when the direct current flows through a couple of two different semiconductor materials in series in different directions, the generated heat flows in one direction Effect, which can achieve the purpose of cooling or heating, and made a semiconductor chip device.

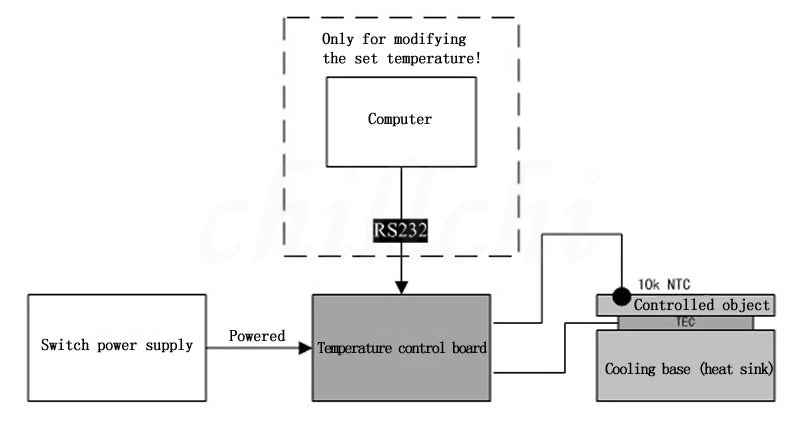

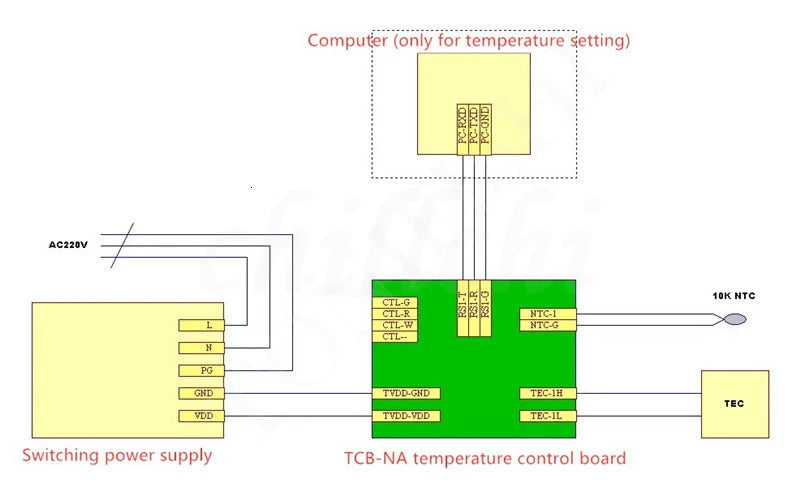

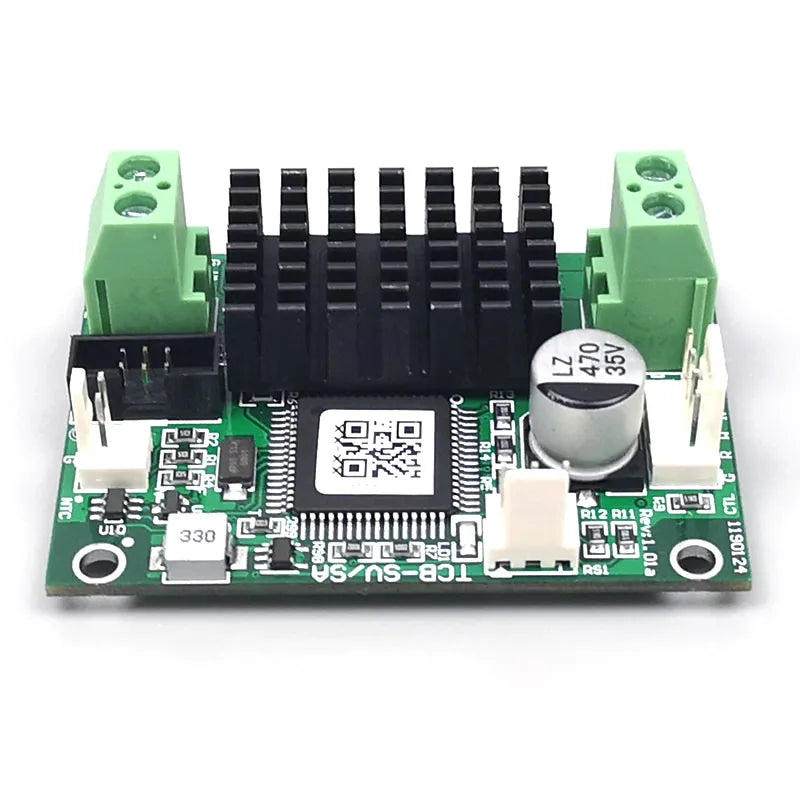

TEC temperature control board: Use DC power supply, TEC as the temperature control element, use a temperature probe to detect the temperature of the controlled object, the temperature control board uses PID algorithm to adjust the size and direction of the current provided to the TEC element in real time, so as to achieve the purpose of constant temperature.
-
High stability (+-0.01),Suitable for precision temperature control applications such as frequency doubling crystals.
-
Two-way temperature control, automatic switching between heating and cooling, supporting various types of TEC; can also be set to one-way mode, supporting one-way devices such as resistance wires and ceramic heating rods.
-
The temperature probe supports 10K NTC by default.
-

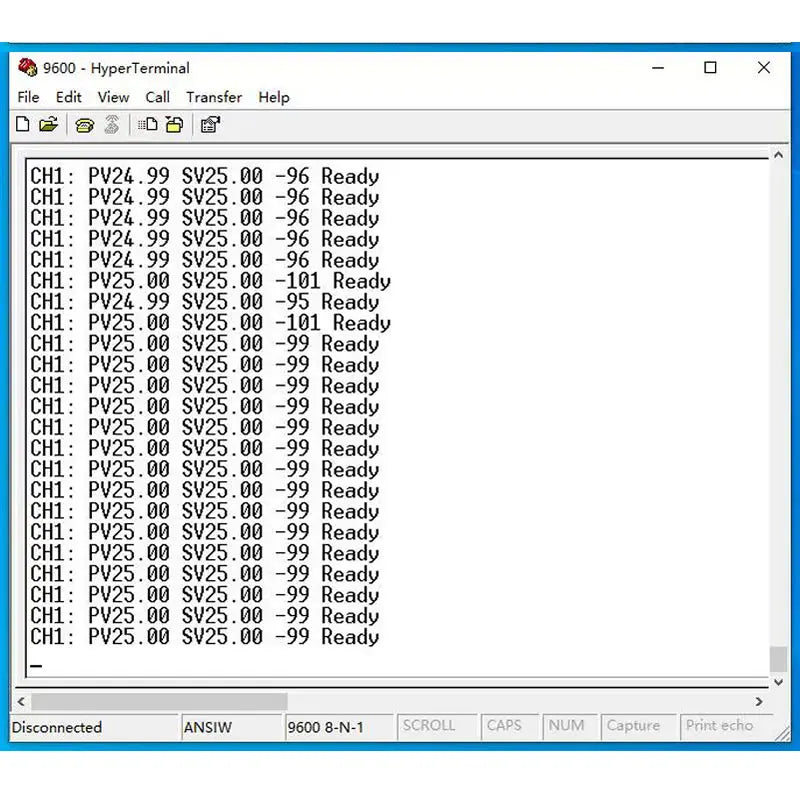

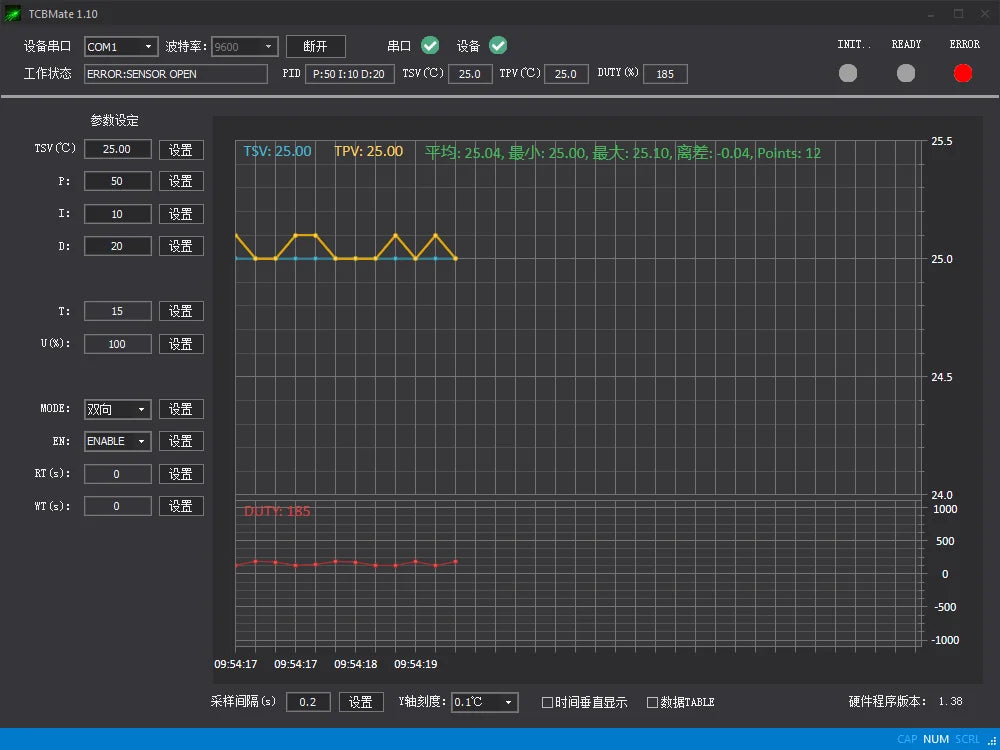

Can run independently. Parameter viewing and setting can be connected to the display screen, or other single-chip serial port control, or use universal serial port software, or special host computer software.
-
Support multi-channel control, with specific documentation.
-
Accessories: plugs and ferrules for board docking; NTC version comes with a 10K NTC by default, the same specifications as shop NTC.
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
