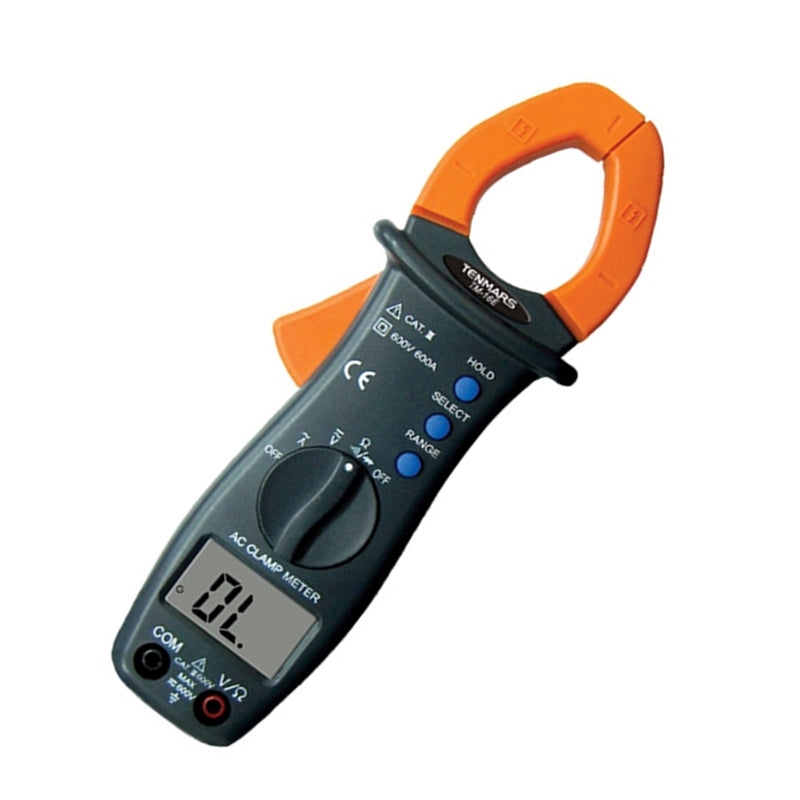

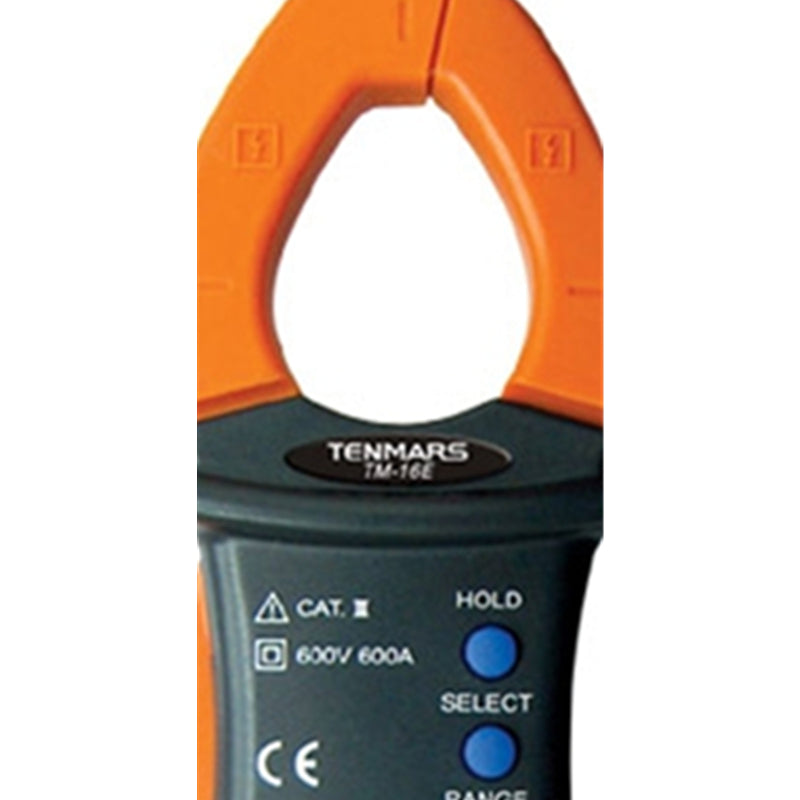

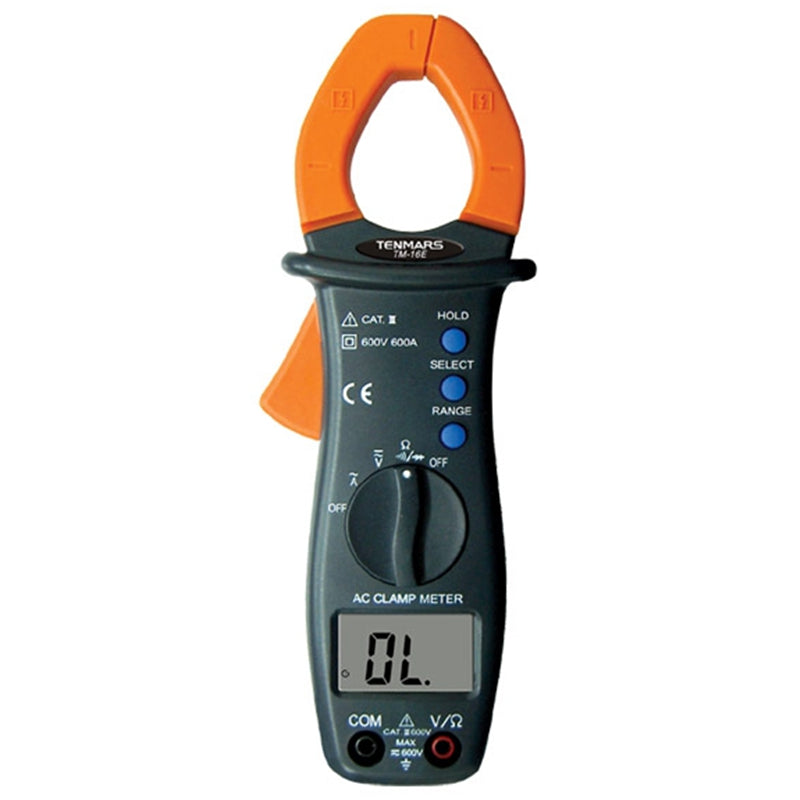

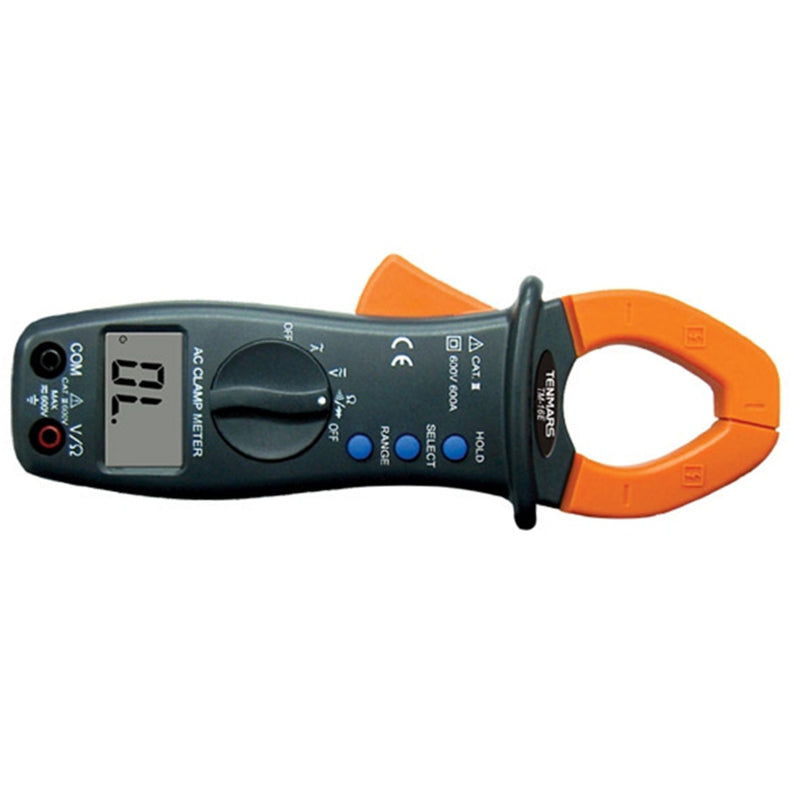

Tenmars 3 1/2 Digits LCD 600A Autoranging AC Clamp Meter TM-16E
Product Description:
1.CAT III 600V
2.3-1/2 digit LCD with maximum reading of 2000.
3.Data Hold.
4.AC volts, DC volts, AC current, Resistance, Continuity, Diode ranges.
5.Autoranging.
6.Maximum conductor size 30mm.
7.Low battery indication.
8.Continuity buzzer.
9.Auto power off.
Specification:
Maximum Current
600 Amps
Display
2000 counts
Max. Conductor Size
30mm
AC Current
0.1A to 600A, (2.0% of rdg + 5 dgts)
AC Current (Auto)
0.1A to 400A
AC Voltage
0.1V to 600V, (1.5% of rdg + 5 dgts)
DC Voltage
0.1V to 600V, (1.0% of rdg + 2 dgts)
Resistance
0.1 to 200, (0.8% of rdg + 3 dgts)
Continuity Buzzer
Yes
Diode
Test voltage 1.6V DC
Autorange
Yes
Auto Power Off
Yes
Data Hold
Yes
Dimensions
195mm (L) x 64mm (W) x 30mm (D)
Weight
240g
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
