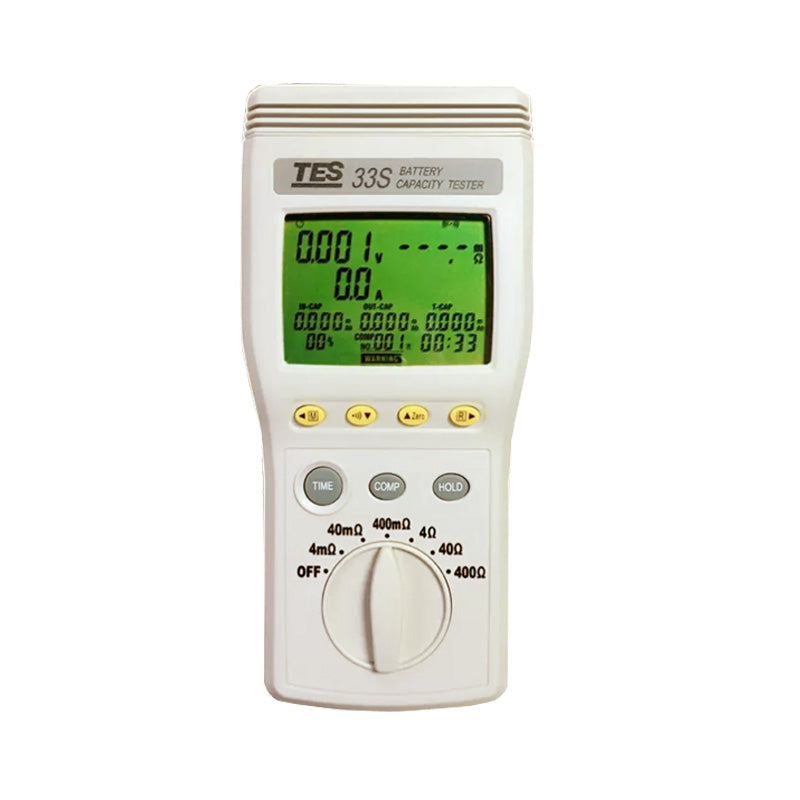

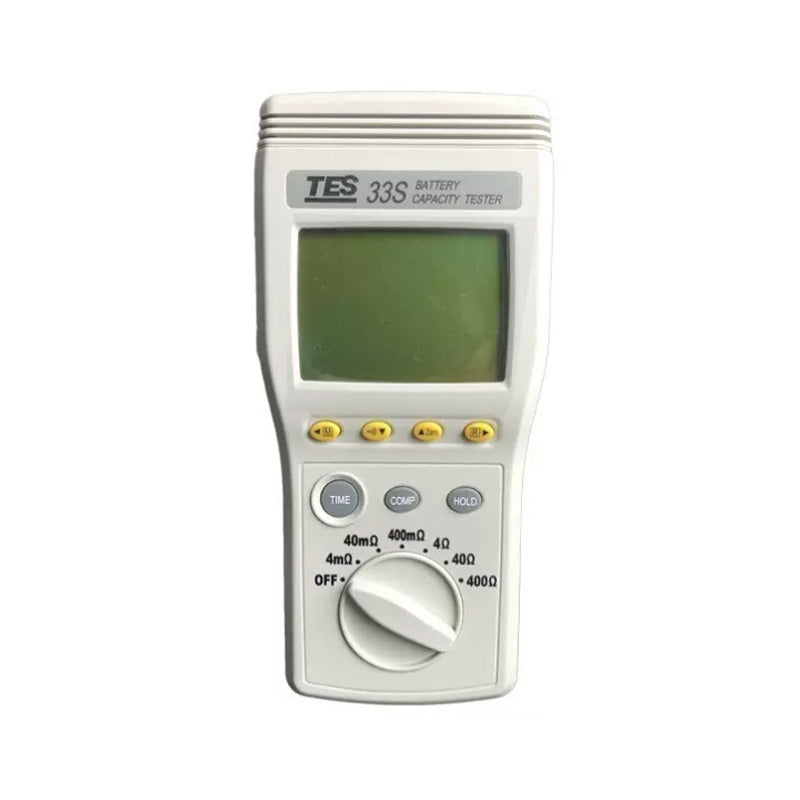

Battery Capacity 0 to 1200AH RS232 PC Interface TES-33S Battery Capacity

Tester  Update from TES-33

   Features

   Test Condition Without Shutting Down Battery.

   Simultaneously Measure Battery Resistance, Voltage, Current, Temperature.

   Auto-hold and Auto-data storage.

   Comparator Function.

   Rates Conditions as Pass, Warning, or Fail.

   Memory and Read Function

   Compact and Lightweight.

   RS232 PC Interface

      Storage Battery Systems Battery Capacity Testers,check battery condition in seconds, with the battery in service!

     Specification:

         Battery Types TestedCompact storage batteries, Alkali and lead-acid batteries..

       Battery Capacity0 to 1200AH

       Resistance

       Ranges : 4mΩ, 40mΩ, 400mΩ, 4Ω, 40Ω, 400Ω

       Resolution : 1μΩ , 10μΩ , 100μΩ , 1mΩ , 10mΩ , 100mΩ

       Accuracy : 4mΩ±(2% reading ±8digits) 40mΩ~400Ω±(0.8% reading ±6digits)

       Measurement Condition

       Current : Approx. 40mA, 4mA, 400μA, 40μA, 4μA

       Frequency : 1KHz±30Hz

       DC Voltage

       Range : 6V, 60V

       Resolution : 1mV, 10mV

       Accuracy : ±(0.1%rdg ±6digits)

       Temperature

       Range : -20 to 60 (-4 to 140)

       Resolution :0.1 / 0.1

       Accuracy : ±1 / ±1.8

       DC Current

       Range : 60A , 600A

       Resolution : 0.01A , 0.1A

       Accuracy : 60A : ±(2%rdg+20dgt) , 600A : ±(2%rdg+2dgt)

       Open Circuit Voltage5V max

       Manual Data Memory999 data sets

       Continuous Data Memory6000 data sets (only use PC download)

       Comparator

       Setting : Resistance upper and lower limits and voltage

       throughold limit.

       Memory : 99 sets of values

       Operating Environment0 to 40 (32 to 104), 80%RH or less, non-condensing.

       Maximum Input Voltage60VDC

       Power Supply or AC AdapterSix AA size 1.5V alkaline batteries

       Battery Life5.5 hours

       WeightApprox. 530g including batteries

       DimensionsApprox. 198(L) × 94(W) × 49(H)mm

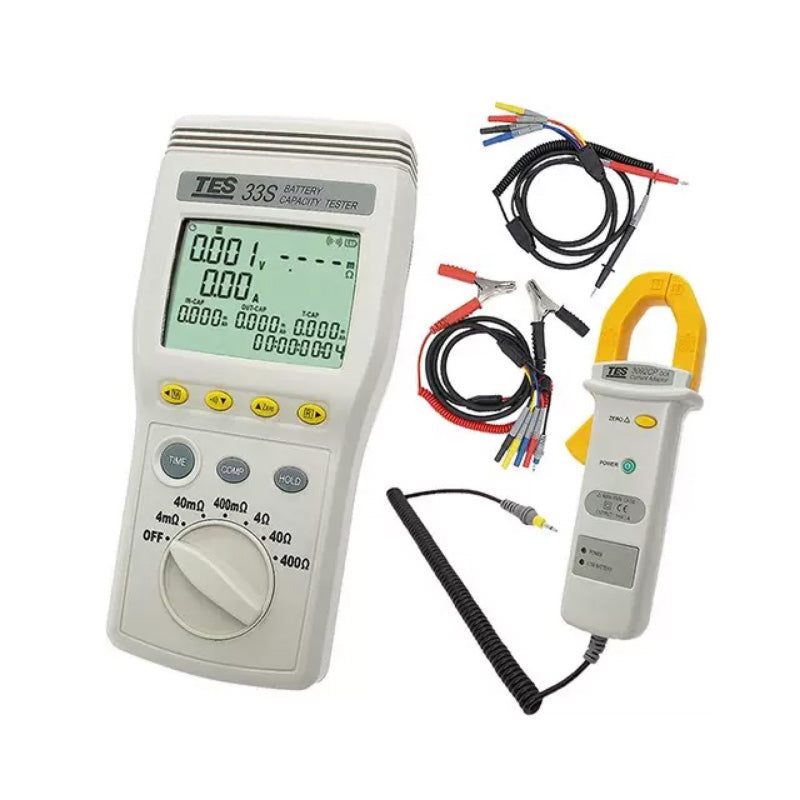

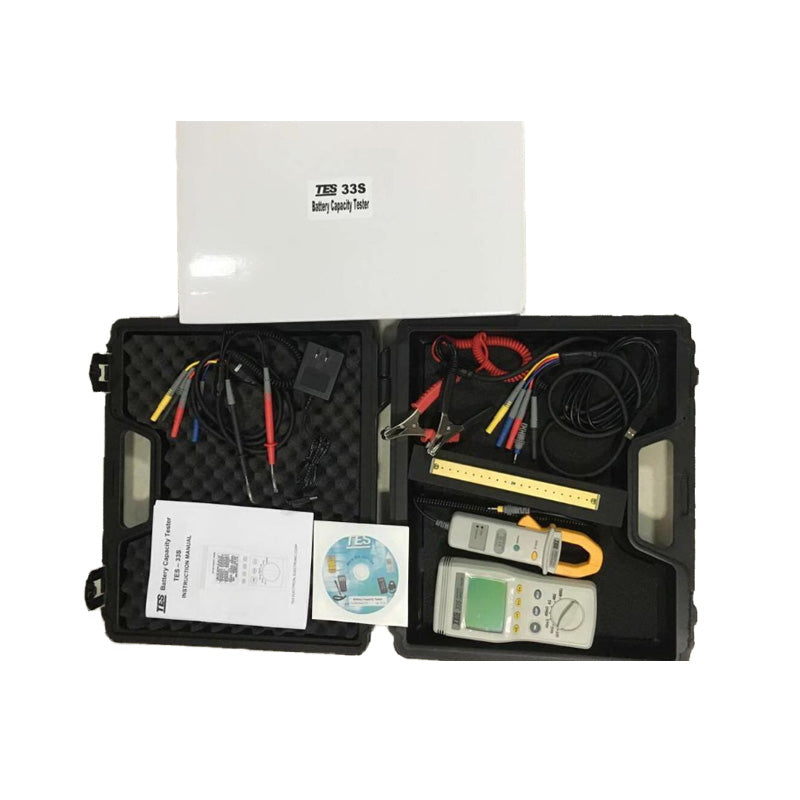

       AccessoriesClip type test lead with temperature sensor, Pin type test lead, 3092CP DCA current adaptor, Zero adjustment board

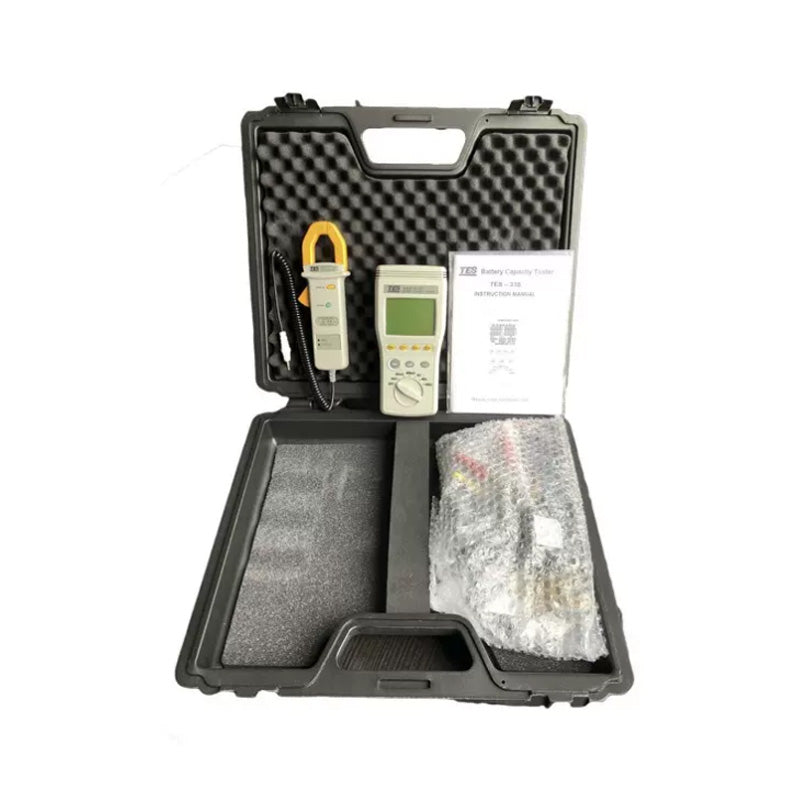

       Instruction manual, AC adaptor, Optical RS232 cable, CD PC software, Carrying case.
