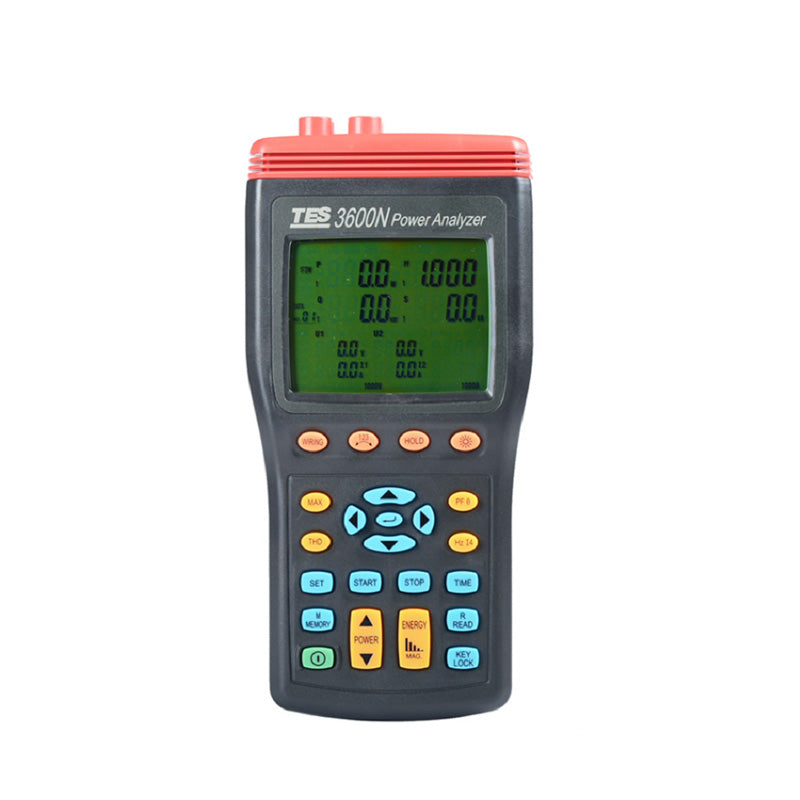

3P4W Power Quality Analyzer TES-3600 NEW 100% Wholesale & Retail
10 Display Easy - to - View LCD Screen.

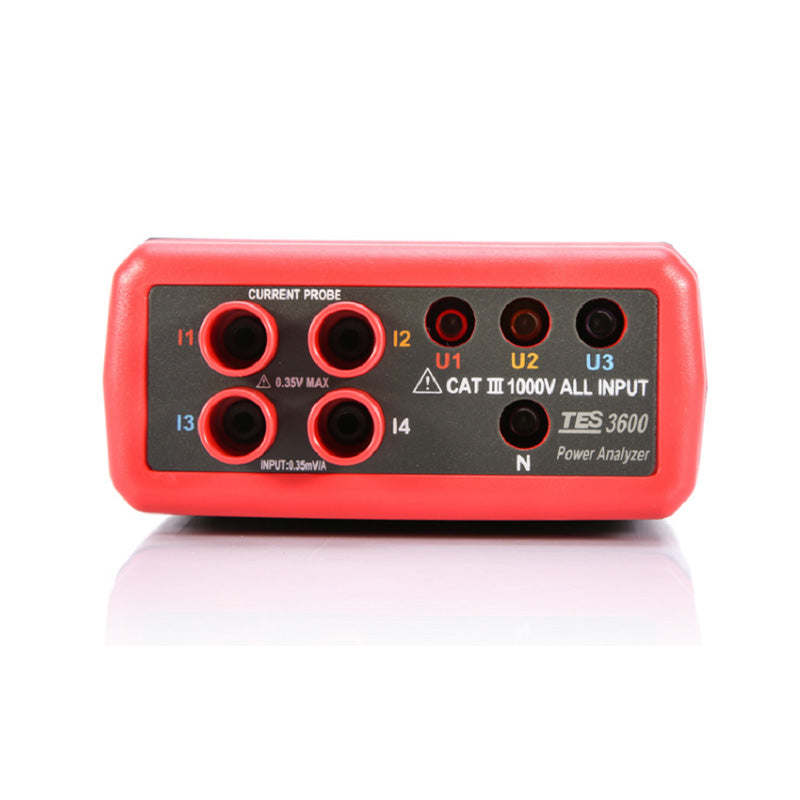

Connectors for 4 Current Sensing Clamps.
1P2W, 1P3W, 3P3W2M & 3P4W Power Measurement.
True RMS Sensing.
Power KW, KVAR, KVA, PF,0,Hz, & Energy KWh, KVARh & KVAh Measurement.
Phase sequency indicator function.
Backlight display function.
Manual Data Memory and Read (99 sets).
Data Logging (512KB Memory, 20,000 sets)
Programmable Trigger - Points and Start / Stop Time.
RS-232 Optical Interface with three phase voltage / current Waveform display and Harmonic analysis.
Easy - to - use Push - Button Operation.
Light Weight, Portable Design.
Voltage Measurement (V)
Ranges
Method
Accuracy
Input impedance
600.0V
True RMS
0.5%rdg 10dgts (>30V)
2M
Current Measurement (A)
Ranges
Method
Accuracy
250A 500A 1000A
True RMS
0.5%rdg 10dgts + clamp on sensor specifications
Active Power Measurement (KW)
Ranges
Accuracy
Effect of power factor
600.0KW
0.5%rdg 10dgts + clamp on sensor specifications
0.1%rdg
Reactive Power Measurement (KVAR)
Ranges
Accuracy
Effect of power factor
600.0KVAR
0.5%rdg 10dgts + clamp on sensor specifications
0.1%rdg
Apparent Power Measurement (KVA)
Ranges
Accuracy
600.0KVA
0.5%rdg 10dgts + clamp on sensor specifications
Power Integration Measurement
Power Integration
Resolution
Accuracy
0.0KWh to 9999MWh
0.1KWh
0.5%rdg 10dgts + clamp on sensor specifications
0.0Kvarh to 9999Mvarh
0.1Kvarh
0.0KVAh to 9999MVAh
0.1KVAh
Power Factor Measurement
Ranges
Accuracy
Polarity display
-1.000(lead) to 0.000 to + 1.000 (lag)
1dgt for each calculation from measured values
When the current lags the voltage unsigned ; when the current leads the voltage : "-".
Frequency Measurement
Ranges
Measurement source
Accuracy
40Hz to 100Hz
Voltage U1
0.5%rdg 1dgt
General Specifications
Size
235(L)x116(W)x54(H)mm (9.3"Lx4.6"Wx2.1"H)
Operating Temperature and Humidity
0 to 50C(32 to 122F ) R.H. < 80% non-condensing
Storage Temperature and Humidity
- 10 to 60C(14 to 140F) R.H. < 70% non-condensing

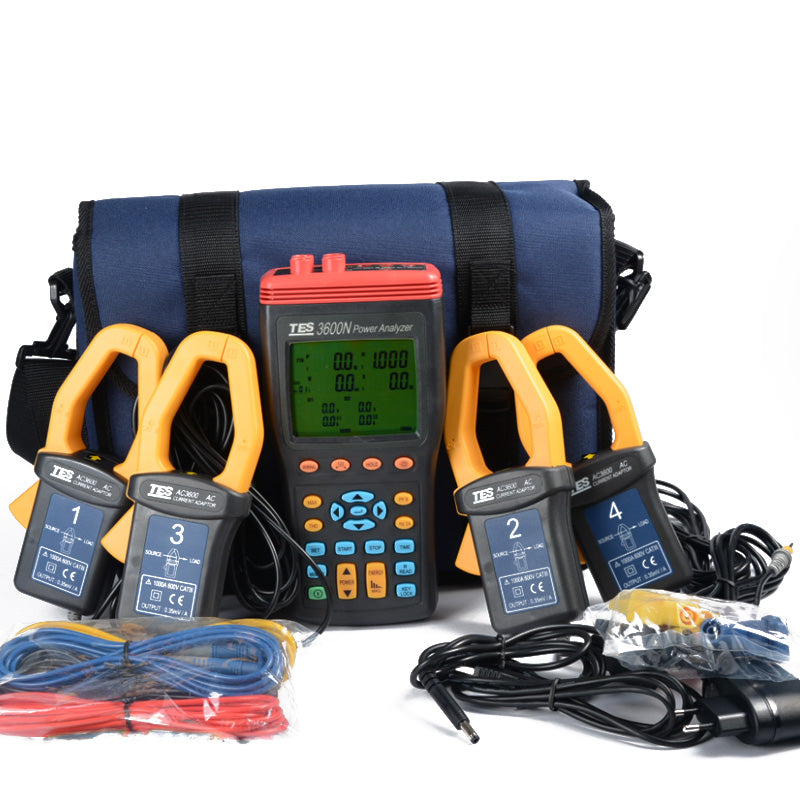

Accessories
1) Instruction manual
2) Software CD Rom / Optical RS-232/USB interface
3) Deluxe carrying case
4) Battery (“AA” 1.5V x 8pcs not included package )
5) AC adaptor (110V -> 12V ; 220V -> 12V)
6) 4pcs current clamp transducer (1, 2, 3, 4 cable length 3 meters) (1000A AC, jaw opening 40mm)

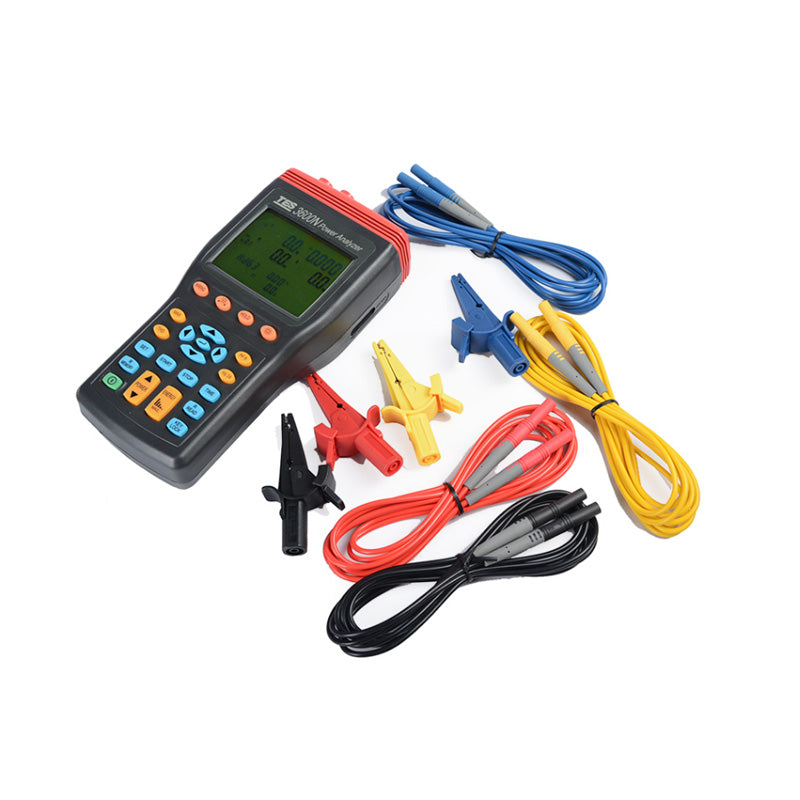

7) 4pcs crocodiles test leads (blue, yellow, red, black, wire length 3 meters)
