Testo 512 Differential Pressure Meter for 0-200 hPa 0560 5128

Product Description

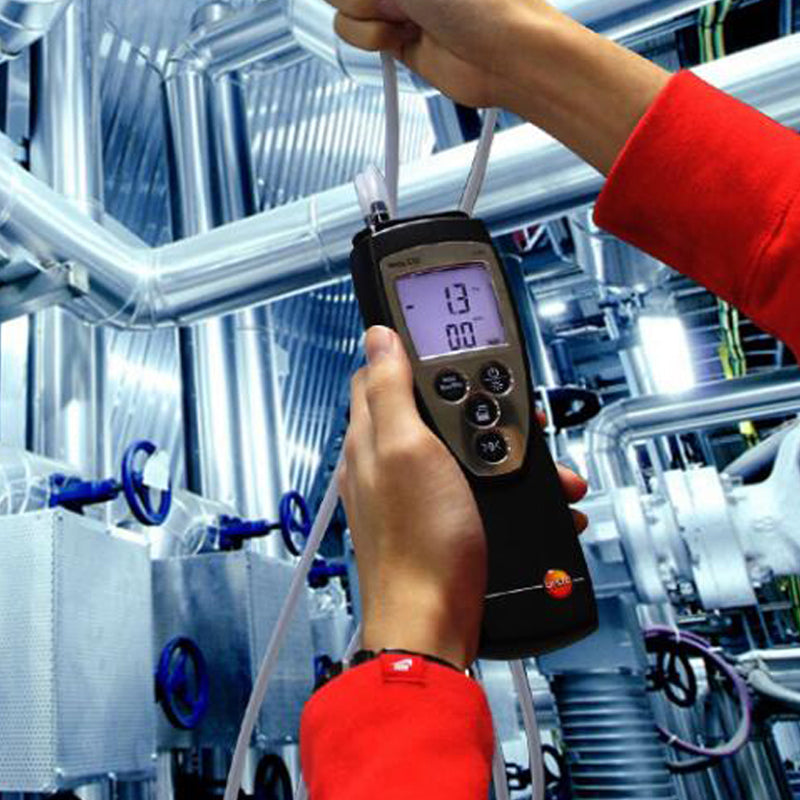

                   The testo 512 with a measuring range from 0…200 hPa can be used to help you carry out quick and easy filter checks when performing differential pressure checks on ventilation and air conditioning systems. Differential pressure measurements are carried out to determine whether filters still work properly or whether they are used up and clogged and need to be replaced.

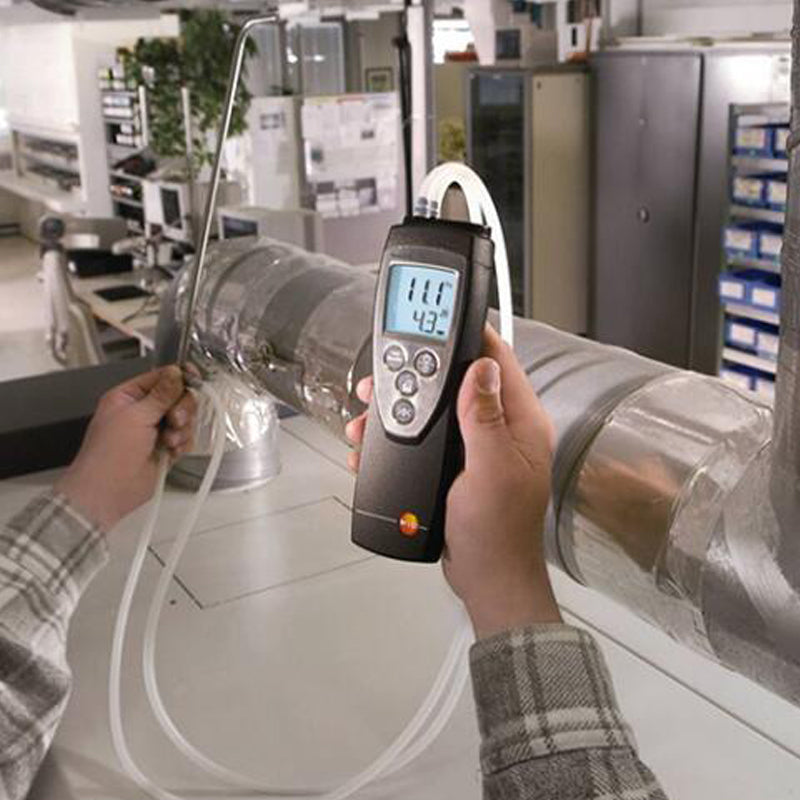

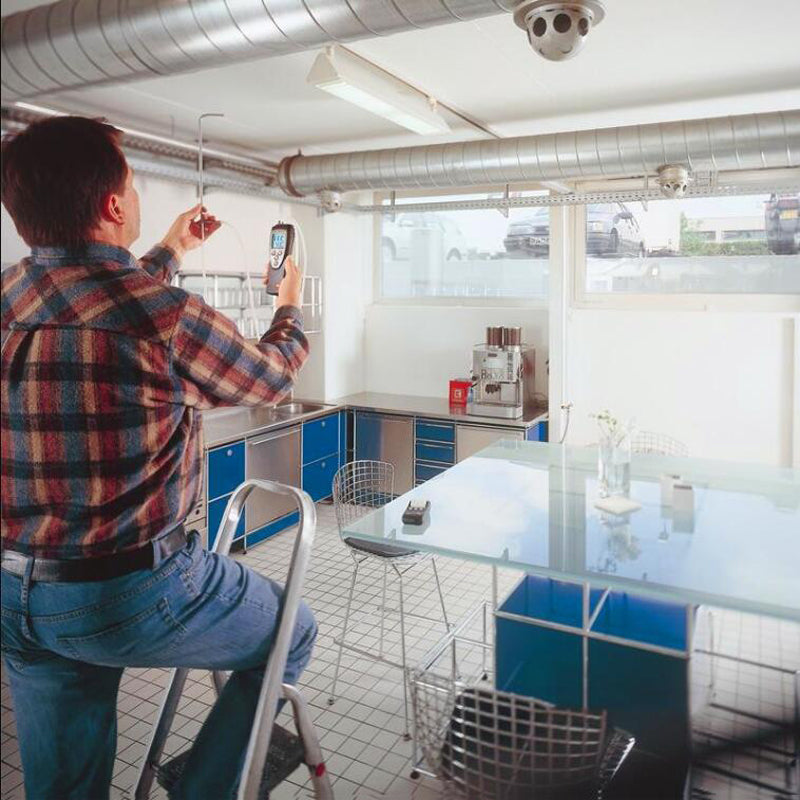

The differential pressure meter is ideal for carrying out pitot static tube measurements in air ducts at very high air flow speeds or when the air stream is strongly polluted. The compact, rugged meter shows both the pressure as well as the air flow speed and has a measuring range from 10 to 100 m/s.

The damper for adjustable averaging can be programmed individually while the density compensation is already integrated.

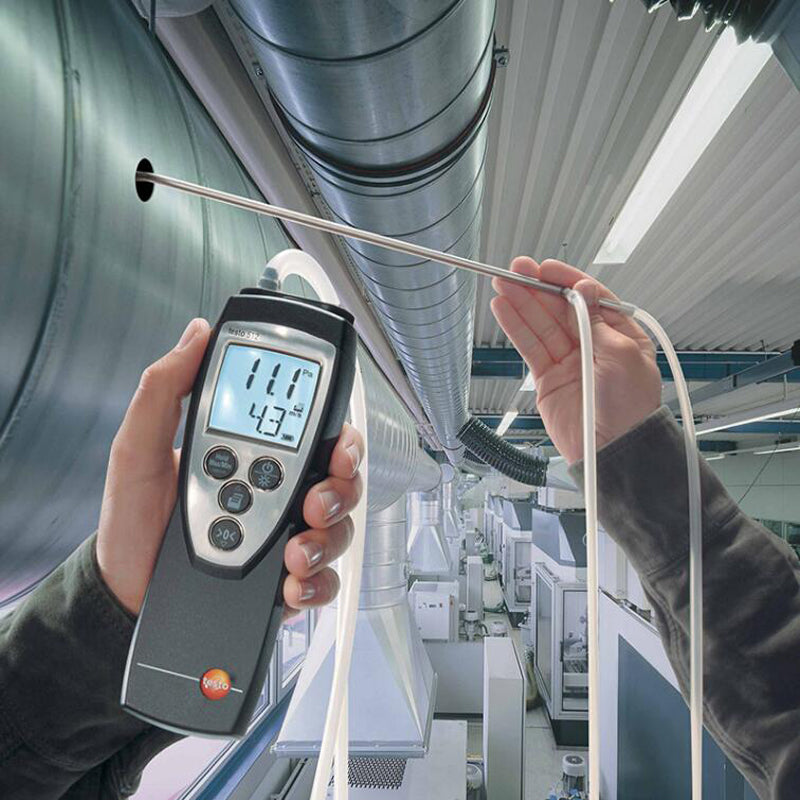

The pitot static tube that you will need to carry out your air flow measurements can be ordered together with your differential pressure meter. Choose from one of three models to select the model that is best suited to your individual requirements. The pitot static tube is inserted into the air duct where it measures the air flow quickly and reliably.

The testo 512 displays the pressure and the air flow speed simultaneously. You can choose between two different units of measurement - m/s and fpm - to indicate the air flow speed and from eight different units - psi, kPa, hPa, Pa, mm H2O, mmHg, inch H2O and inch Hg - to measure the pressure.

                                          Differential Pressure - Piezoresistive

                                                      Measuring range

            0 to +200 hPa

+10 to +100 m/s

1970 to 19690 fpm

                                  Accuracy

            0.5 % fs

                                  Resolution

            0.1 hPa

0.1 m/s

0.1 fpm

                                  Overload

            ±2000 hPa

                                                                                    General technical data

                                                      Dimensions

            202 x 57 x 42 mm

                                  Operating temperature

            0 to +60 °C

                                  Measuring medium

            All non-corrosive gases

                                  Seceltable units

            hPa, Pa, mmH₂O, inH₂O, inHg, mmHg, kPa, psi, m/s, fpm

                                  Battery type

            9V block battery, 6F22(not included package)

                                  Battery life

            120 h

                                  Display type

            LCD

                                  Display size

            2 lines

                                  Storage temperature

            -10 to +70 °C

                                  Weight

            300 g
