Testo 755 1 755 2 Current Voltage Meter with 200 A AC, 600 V~1000 V AC/DC Continuity Testo 755-1 755-2

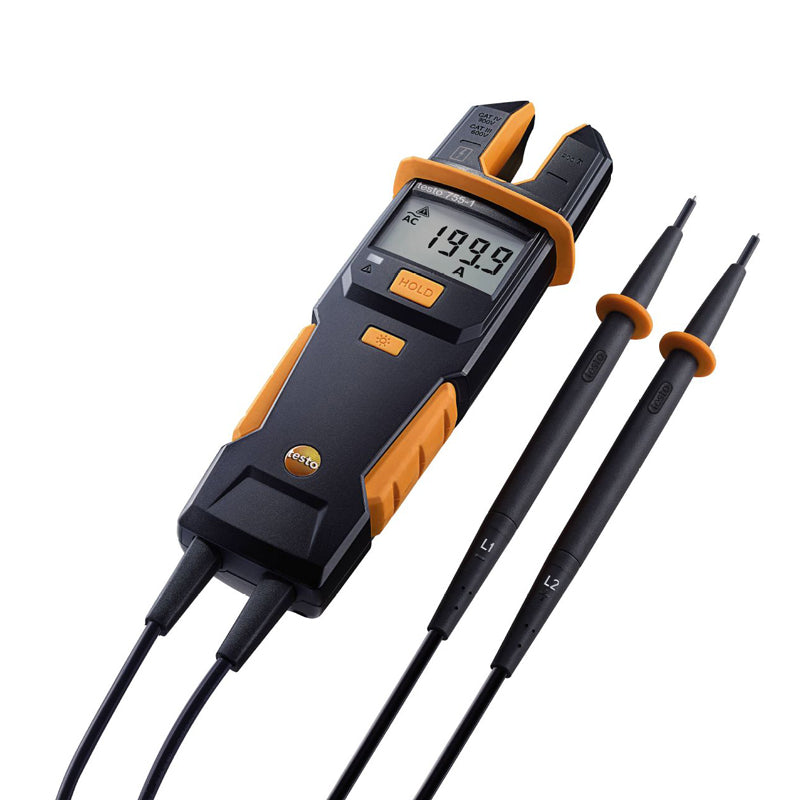

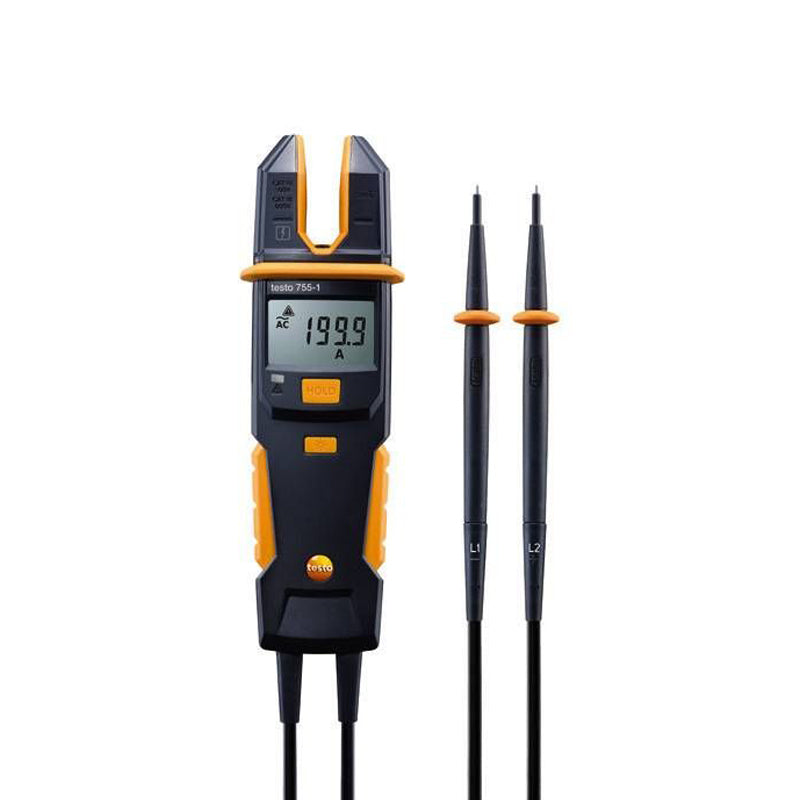

#1：Testo 755-1 Current Voltage Meter with 200 A AC, 600 V AC/DC, and Continuity 0590 7551
Product Description:

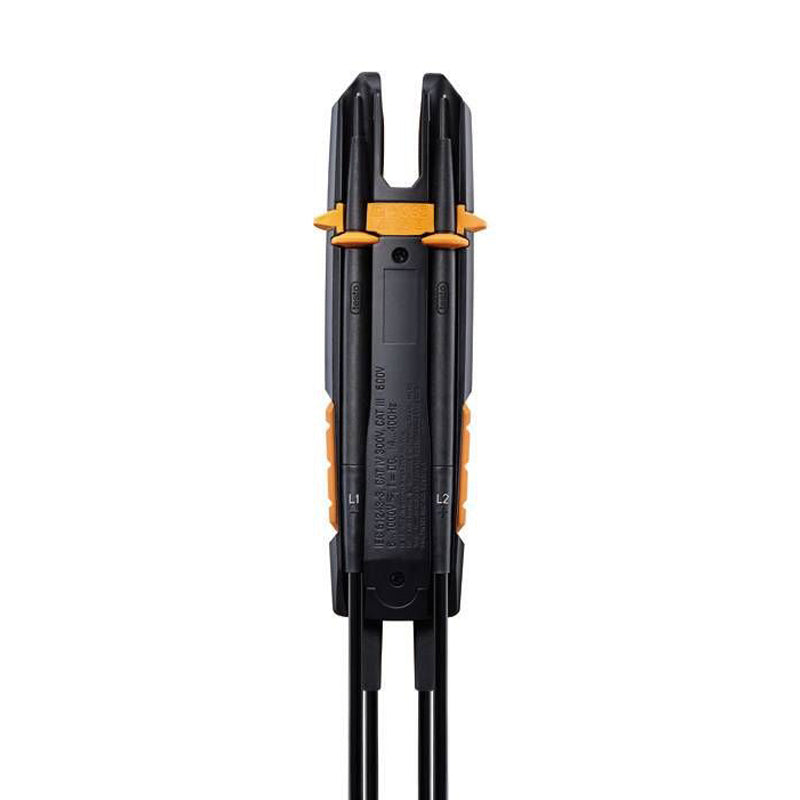

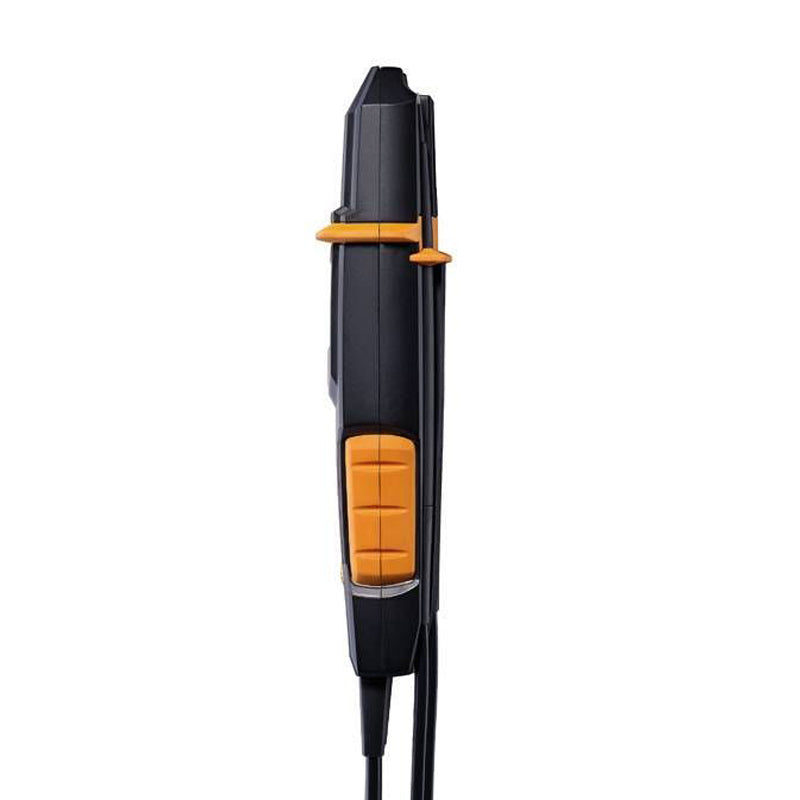

The instruments include important functions such as current, voltage, resistance & continuity. The integrated flashlight enables users to work in poorly lit areas. The overall design is for convenient testing including interchangable measuring tips which can be easily updated and maintained. A convenient lead holder is integrated into the housing for safe and easy storage.
Testo’s history of efficiency, innovation, and quality now extends into the entire electrical lineup. Once again, Testo brings high value, feature-packed products to the HVAC contractor market.
*Meter automatically detects testing in-process and selects correct meter configuration which saves time and optimizes accuracy
*Polarity detection for DC circuits
*
3-phase sequence check with motor rotation indication
*
Single lead voltage test with audible indication

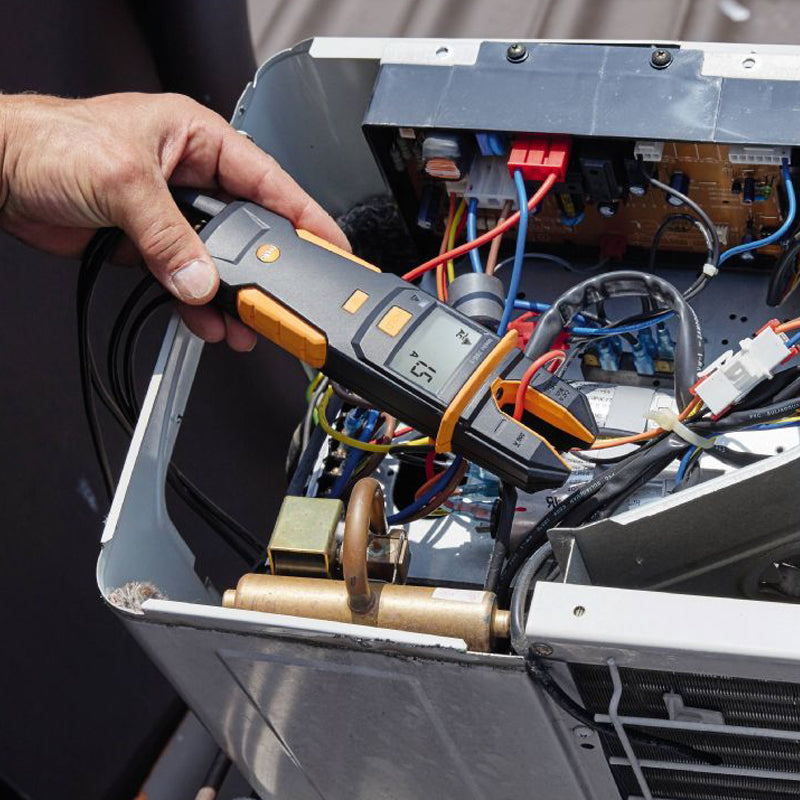

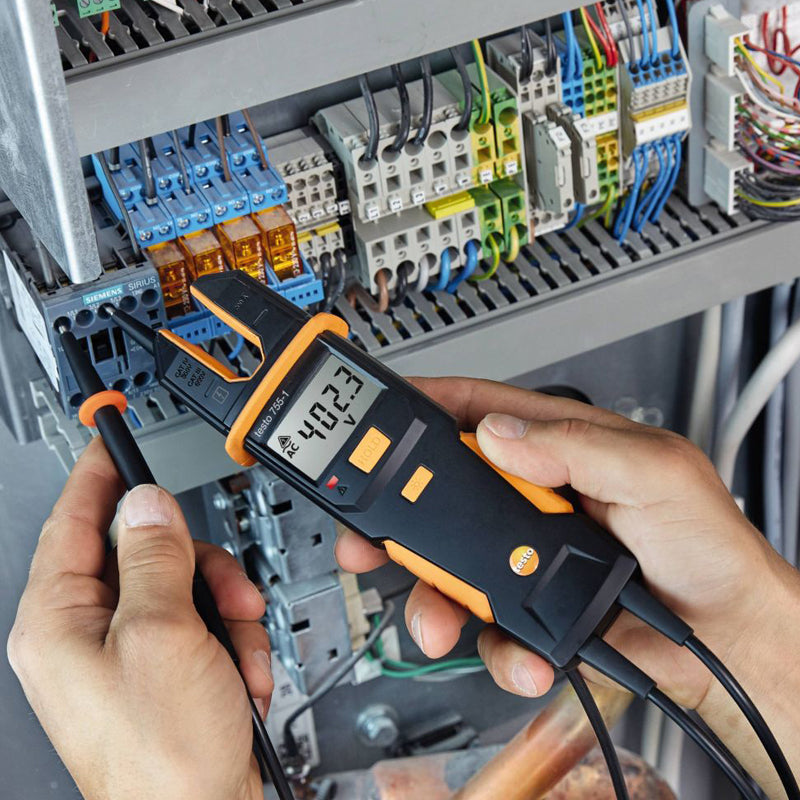

The testo 755 current/voltage testers are fast and easy to use, especially when you are testing many circuits. The convenient open-jaw current tester automatically turns on when voltage exceeds 6V. It then auto-selects the correct parameters and range for your test. These rugged testers are suitable for virtually all your daily electrical measuring tasks.
DC voltage
Measuring range
6 to 600 V
Resolution
max. 0.1 V
Accuracy
± (1.5 % of mv + 3 Digit)
AC voltage
Measuring range
6 to 600 V
Resolution
max. 0.1 V
Accuracy
± (1.5 % of mv + 3 Digit)
AC current
Measuring range
0.1 to 200 A
Resolution
max. 0.1 A
Accuracy
± (3 % of mv + 3 Digit)
Resistance
Resolution
max. 1 Ohm
Measuring range
30 to 100 kOhm
Accuracy
± (1.0 % of mv + 5 Digit)
General technical data
Operating humidity
0 to 75 %rH
Weight
11.29 oz. / 320 g
Dimensions
7.8 x 2.4 x 1.6 in. / 199 x 62 x 40 mm
Operating temperature
14° to 122 °F / -10 to +50 °C
Product colour
Black
Protection class
IP64
Standards
EN 61243-3; EN 61010-1
Battery type
2 AAA batteries
Display type
LCD
Display size
one-line
Storage temperature
5° to 140 °F / -15 to +60 °C
Overvoltage Category
CAT IV 600V; CAT III 1000V
Authorizations
CSA; CE
Instrument Measurement Functions
Continuity testing
yes
Display ligthing
yes
Hold
yes
Measuring point illumination
yes
Display (counts)
4,000
Autom. measurement parameter detection
yes
#2：Testo 755-2 Current / Voltage Meter with 200 A AC, 1000 V AC/DC, Continuity, and Phase Rotation Tester
Product Description:
1.Phase rotation tester and voltage range up to 1000 V
2.
Unique feature which allows the user to check for voltage using only a single lead
3.
Polarity detection for DC circuits
4.
Meter automatically detects testing in-process and selects correct meter configuration which saves time and optimizes accuracy
The testo 755-2 includes important additional features: phase rotation, voltage range up to 1000V, and the unique feature which allows the user to check for voltage using only a single lead. The testo 755 current/voltage testers are fast and easy to use, especially when you are testing many circuits. The convenient open-jaw current tester automatically turns on when voltage exceeds 6V. It then auto-selects the correct parameters and range for your test. These rugged testers are suitable for virtually all your daily electrical measuring tasks.
The instruments include important functions such as current, voltage, resistance & continuity. The integrated flashlight enables users to work in poorly lit areas. The overall design is for convenient testing including interchangable measuring tips which can be easily updated and maintained. A convenient lead holder is integrated into the housing for safe and easy storage.
Testo’s history of efficiency, innovation, and quality now extends into the entire electrical lineup. Once again, Testo brings high value, feature-packed products to the HVAC contractor market.
DC voltage
Measuring range
6 to 1000 V
Resolution
max. 0.1 V
Accuracy
± (1.5 % of mv + 3 Digit)
AC voltage
Measuring range
6 to 1000 V
Resolution
max. 0.1 V
Accuracy
± (1.5 % of mv + 3 Digit)
AC current
Measuring range
0.1 to 200 A
Resolution
max. 0.1 A
Accuracy
± (3 % of mv + 3 Digit)
Resistance
Resolution
max. 1 Ohm
Measuring range
30 to 100 kOhm
Accuracy
± (1.0 % of mv + 5 Digit)
General technical data
Operating humidity
0 to 75 %rH
Storage temperature
5° to 140 °F / -15 to +60 °C
Weight
11.29 oz.
Dimensions
7.8 x 2.4 x 1.6 in. / 199 x 62 x 40 mm
Operating temperature
14° to 122 °F / -10 to +50 °C
Product colour
Black
Protection class
IP64
Standards
EN 61243-3; EN 61010-1
Battery type
2 AAA batteries
Display type
LCD
Display size
one-line
Overvoltage Category
CAT IV 600V; CAT III 1000V
Authorizations
CSA; CE
Instrument Measurement Functions
Continuity testing
yes
Display ligthing
yes
Hold
yes
Rotating magnetic field testing
yes
Single pole phase testing
yes
Measuring point illumination
yes
Display (counts)
4,000
Autom. measurement parameter detection
yes
