Solar Voltage: 3~90.00V , ±1.5%+5
Solar Current: 0~40.00A , ±1.5%+5
Solar MPPT Power： 0~2000.0W , ±1%+5
Sampling point: 1000 digit group
Voltage Curve: Color/Green
Current Curve: Color/Blue
Power Curve: Color/Red

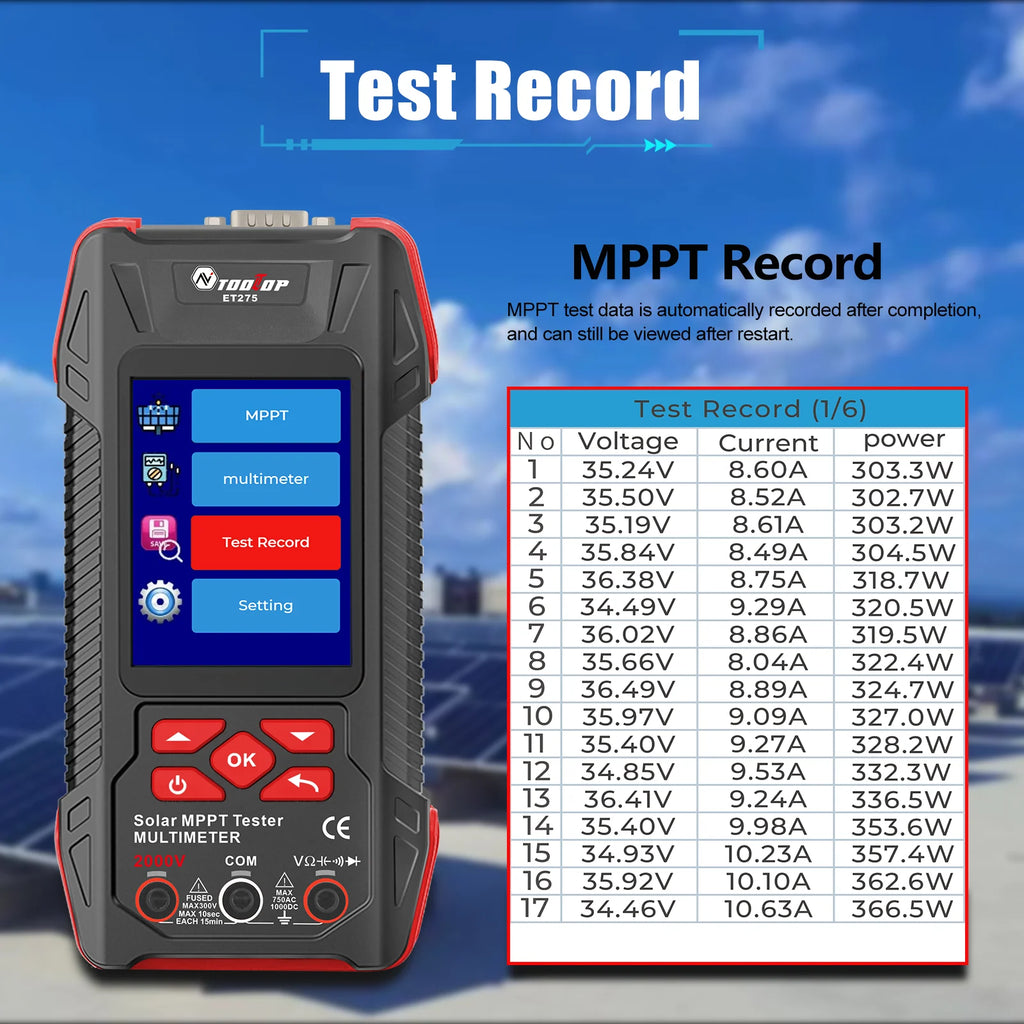

Data record：100
Display: 3.2 inches,240*320 resolution
interface: DB9
Protect: Over voltage/Over reverse polarity/over current/over temperature protect

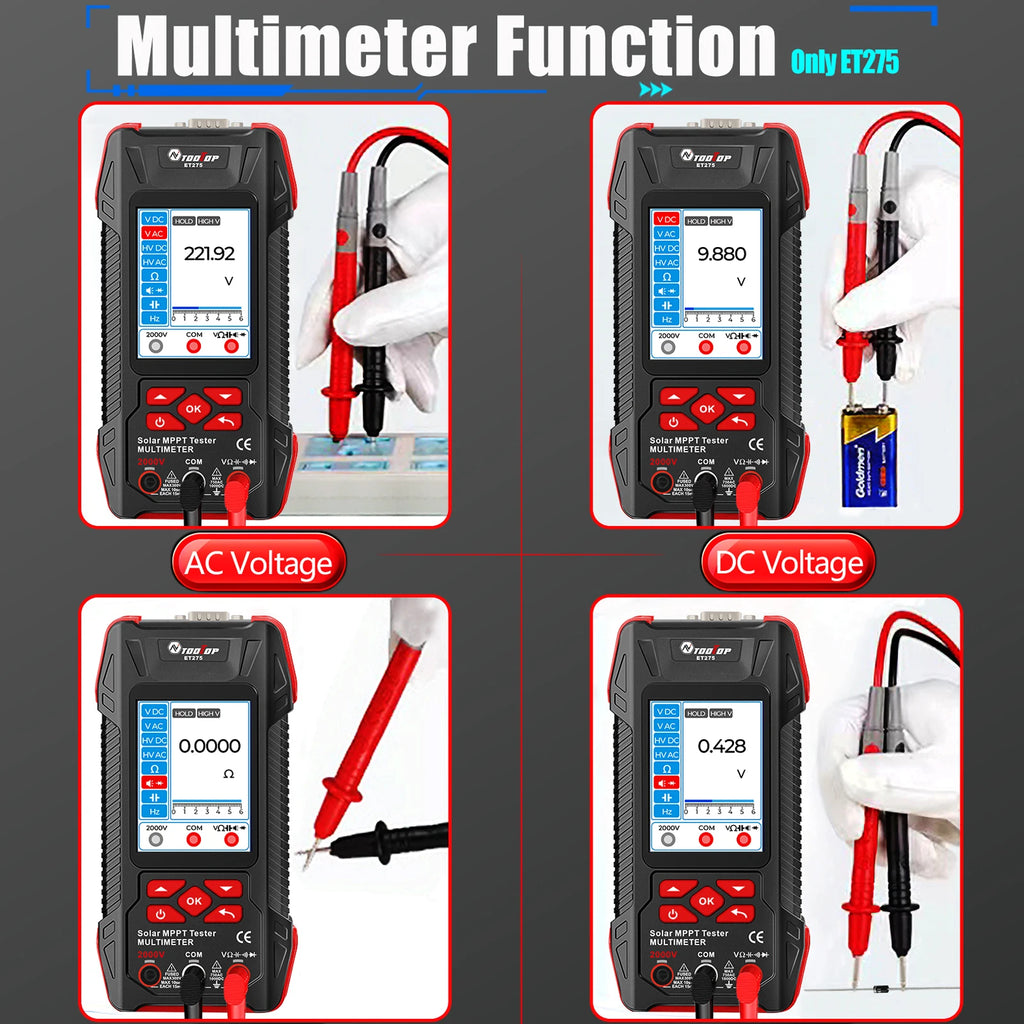

Multimeter （Only for ET275）
Display: 60000 counts
High DCV: 2000V(±0.8%+0.8)
High ACV: 2000V(±1.5%+0.5)
DC Voltage：600mV~1000V（±0.5%+0.3）
AC Voltage：600mV~750V（±0.8%+0.5）
Resistance: 600.00Ω~60MΩ（±1%+0.6）
Capacitance:6.0000nF~60MF(±2%+0.6)
Frequency: 6.0000Hz~6Mhz(±1%+0.1)
Countinuity test: ＜10Ω buzzing
Diode test:support
Other Parameter
Screen: 3.2 Inches color screen, resolution 240*320
Languages: Chinese, English, German, French, Spanish
Battery: Built-in 1500mA.H rechargeable lithium battery (with protection circuit)
Power: 5V/2A/10W or higher required; (charger not included)
Low Battery Detection Function: support
Auto Power Off: support

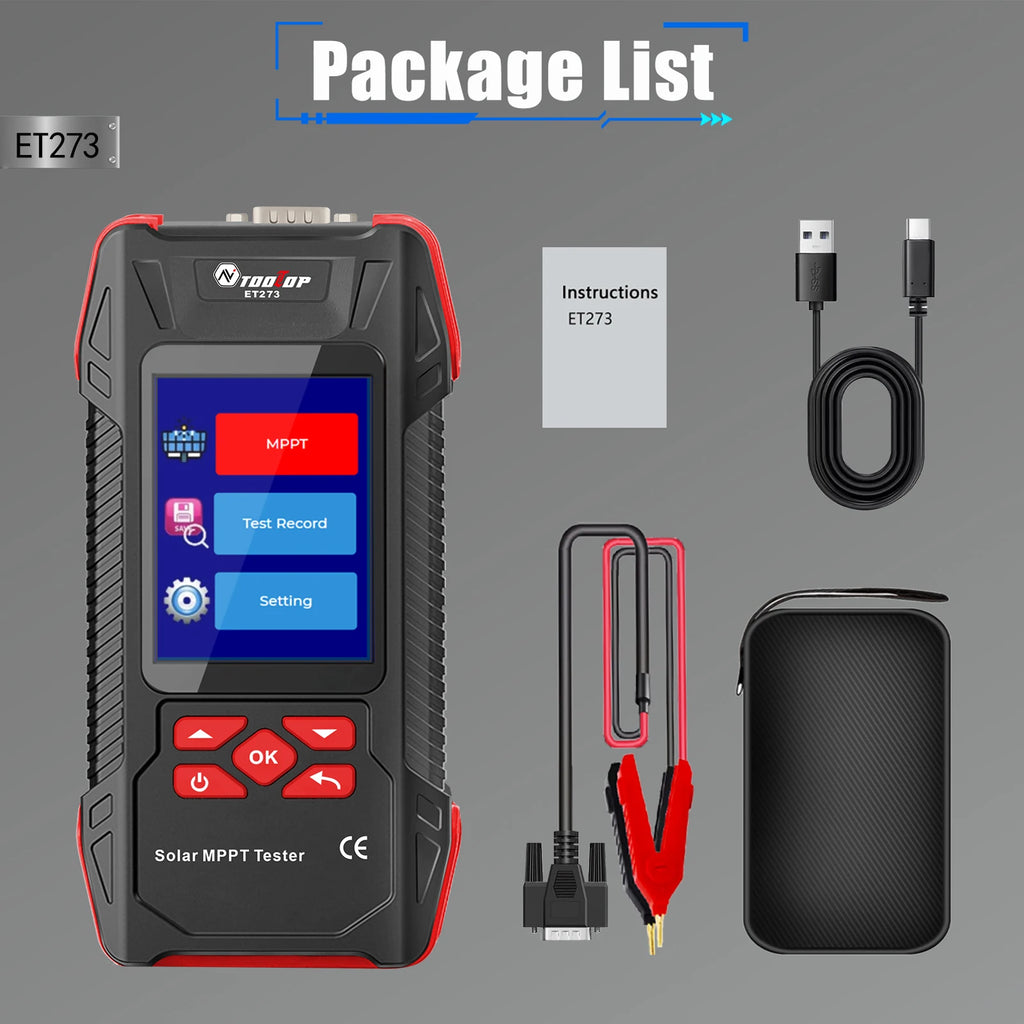

ET273 Package List:
1 x Solar MPPT Tester
1 x Solar Test Clip
1 x USB Cable
1 x Storage Bag
1 x English User Manual

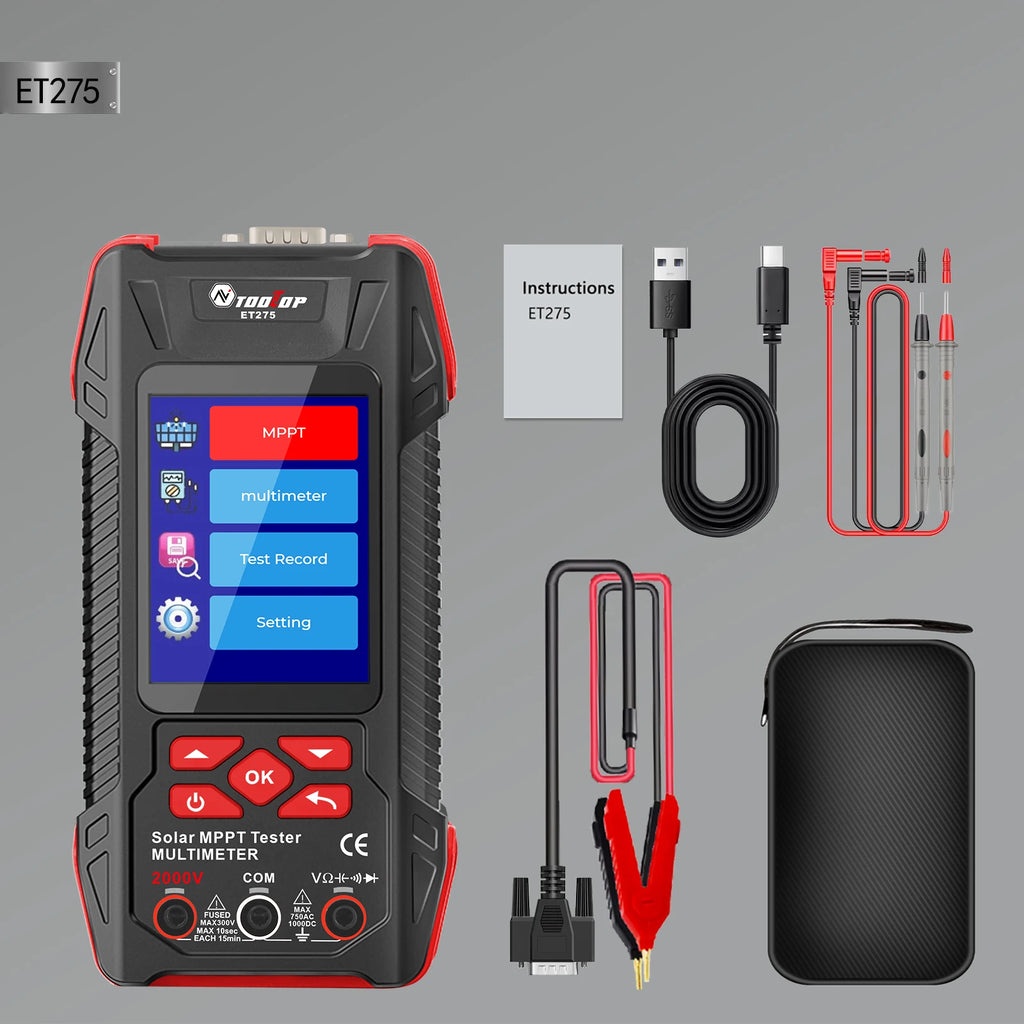

ET275 Package List:
1 x Solar MPPT Tester
1 x Solar Test Clip
1 x Multimeter Test Leads
1 x USB Cable
1 x Storage Bag
1 x English User Manual
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
