Description

Features :

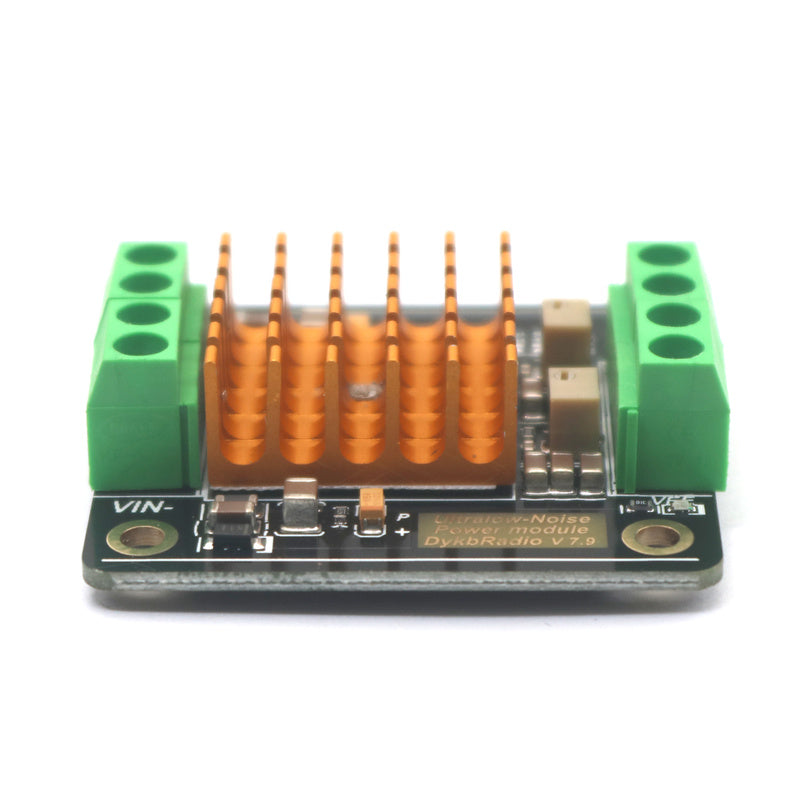

The module uses two TPS7A chips to form positive and negative adjustable outputs. Module positive and negative ground plane segmentation, support independent

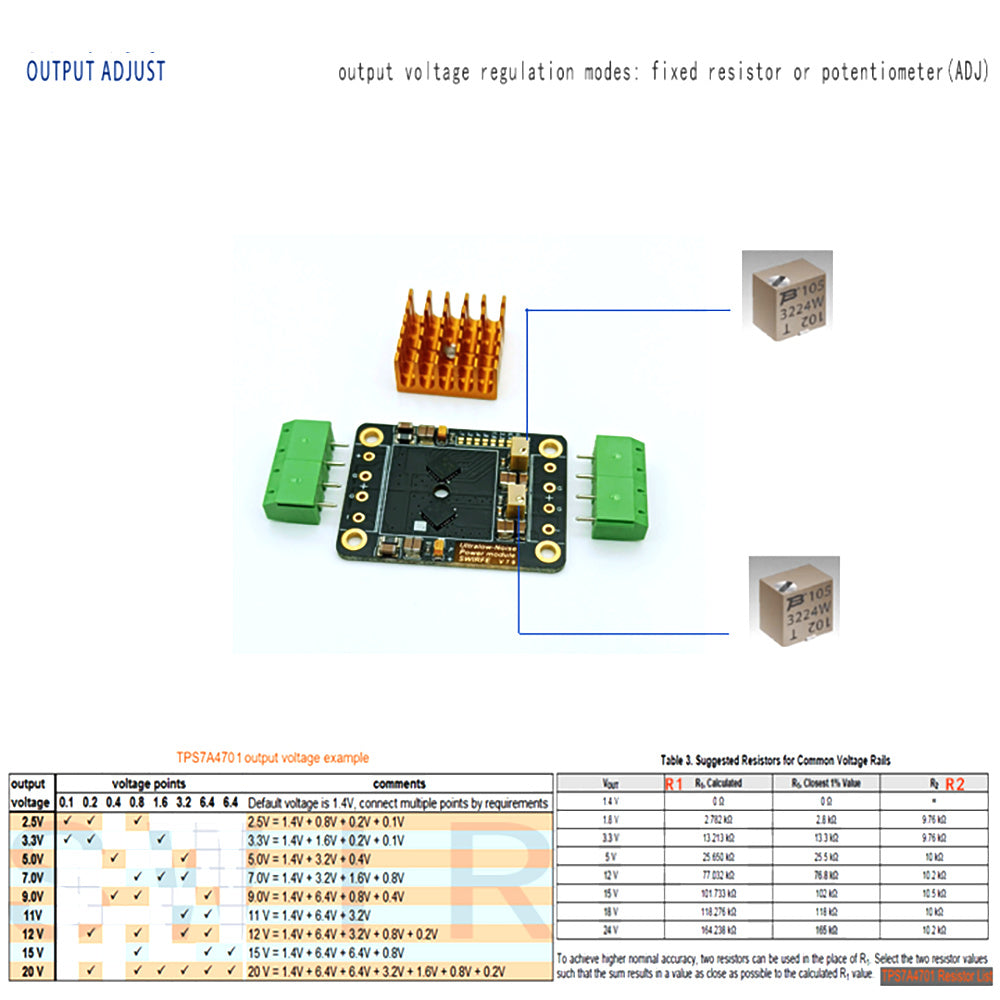

Use positive or negative output. The module has an input pre-filter circuit, which improves the ripple suppression ability. The module uses two Bourns 3224W multi-turn trimmer potentiometers to adjust positive and negative output voltages respectively. The module can adjust the output voltage by using a fixed resistance value resistor partial voltage. The positive output of the module can adjust the output voltage by using the solder joint mode. Modules use international standard 5.0 pitch pins.

Application Scenario Applications:

The TPS7A4701PN1A module is a depressurized positive and negative symmetric voltage regulator module composed of low noise LDO. It is often used in RF circuit, 36V wide range voltage range noise reduction circuit, high-speed op amp ADC conversion, audio power supply circuit, instrument sensor power supply, automobile bus, medical experimental device, etc.

size : 45x43x20mm

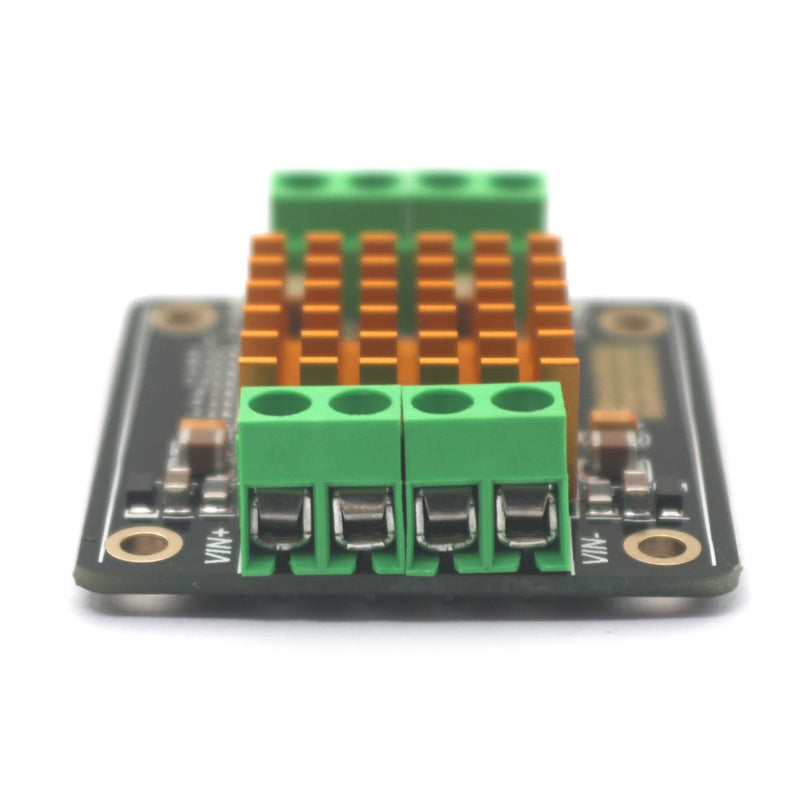

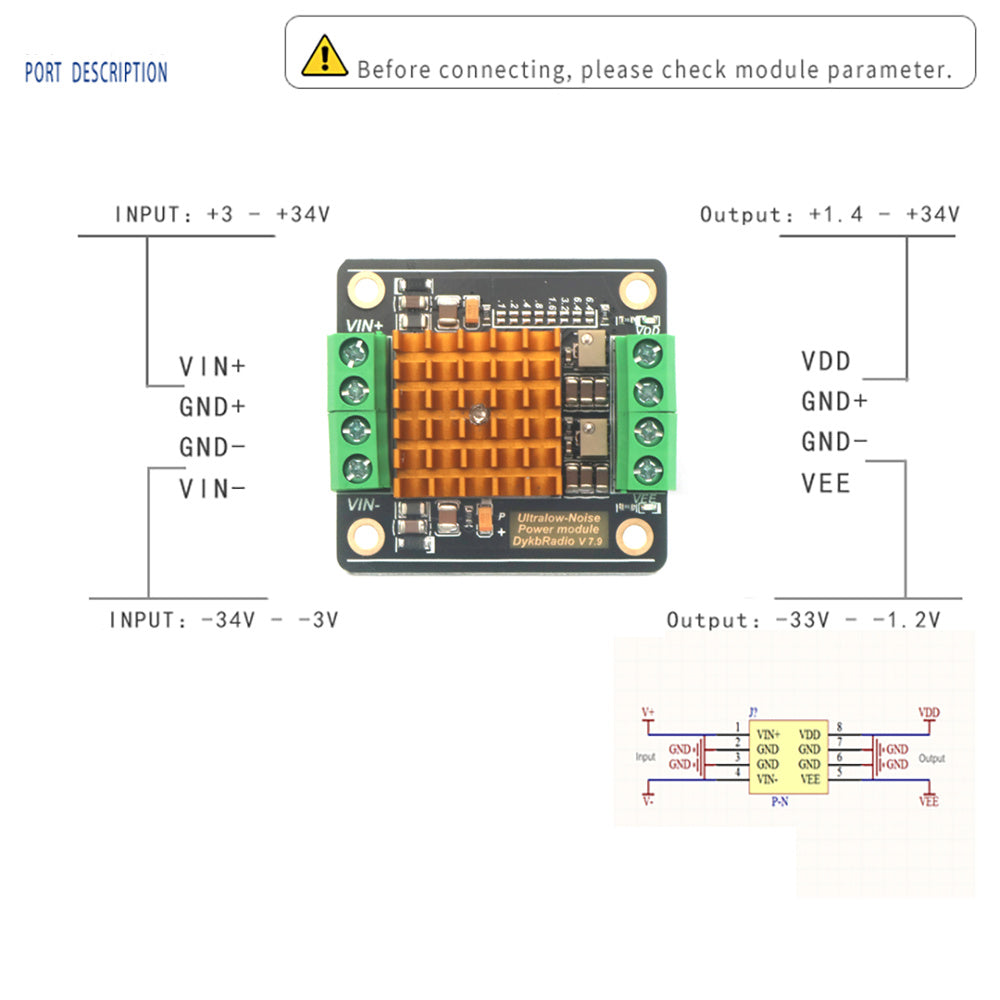

Interface Mode: 5.0mm x4pin connector

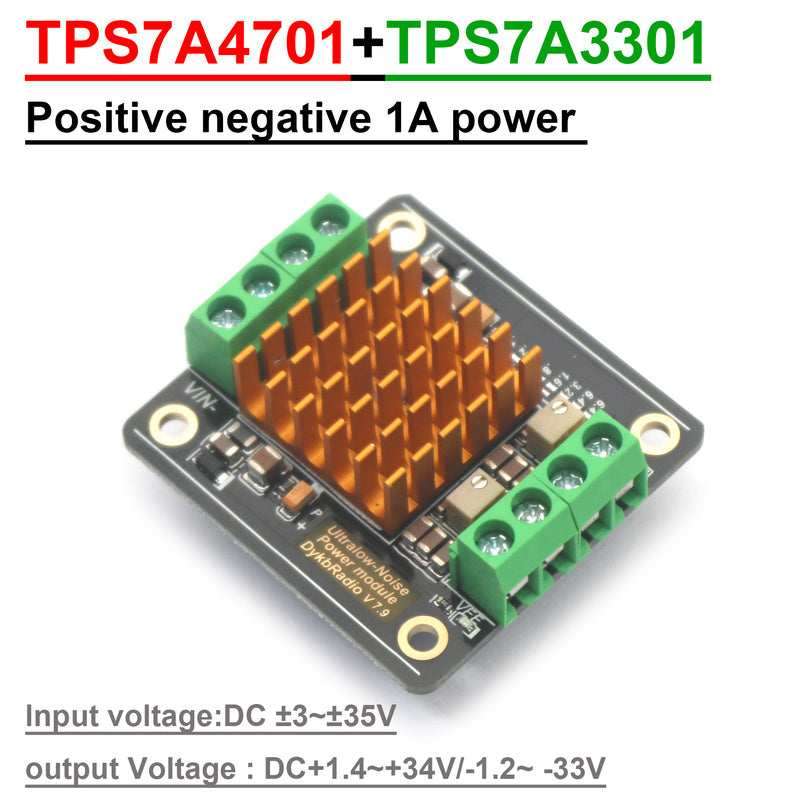

lnput voltage:DC ±3~±35V

output Voltage : DC+1.4~+34V/-1.2~ -33V Default 5V

output Current: +1A MAX

Output Accuracy : 0.01V

Dropout Voltage :±0.4V

IQ :　 4mA (input 30V, output 15V)

PSRR　　　:72~82DB MAX

Vrms　　　:　+4.7uV /-16uV( Min )

Line Transient　:　+/-0.07%(1A/0-2000mV)

Load Transient　　:　+/-0.5% (5V/0~1A)

EN　　　:　　Support

Vloc　　　　　:　Not Support

Electrical lsolation　　:　NO
