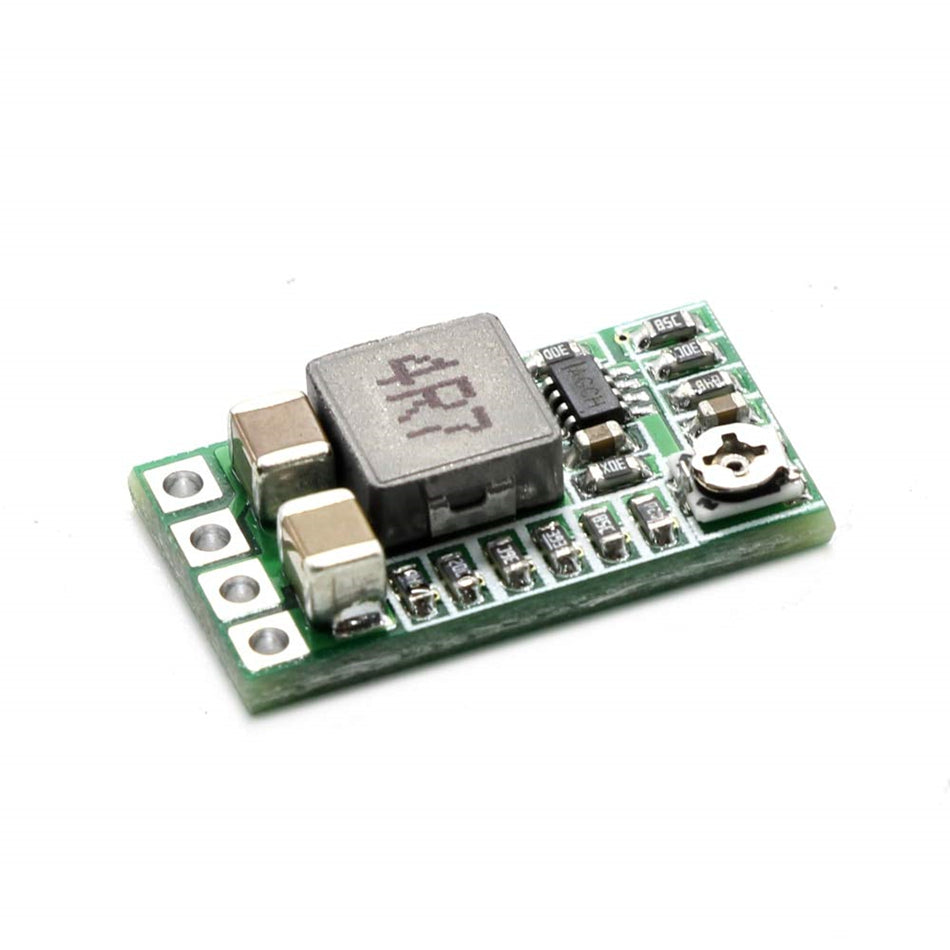

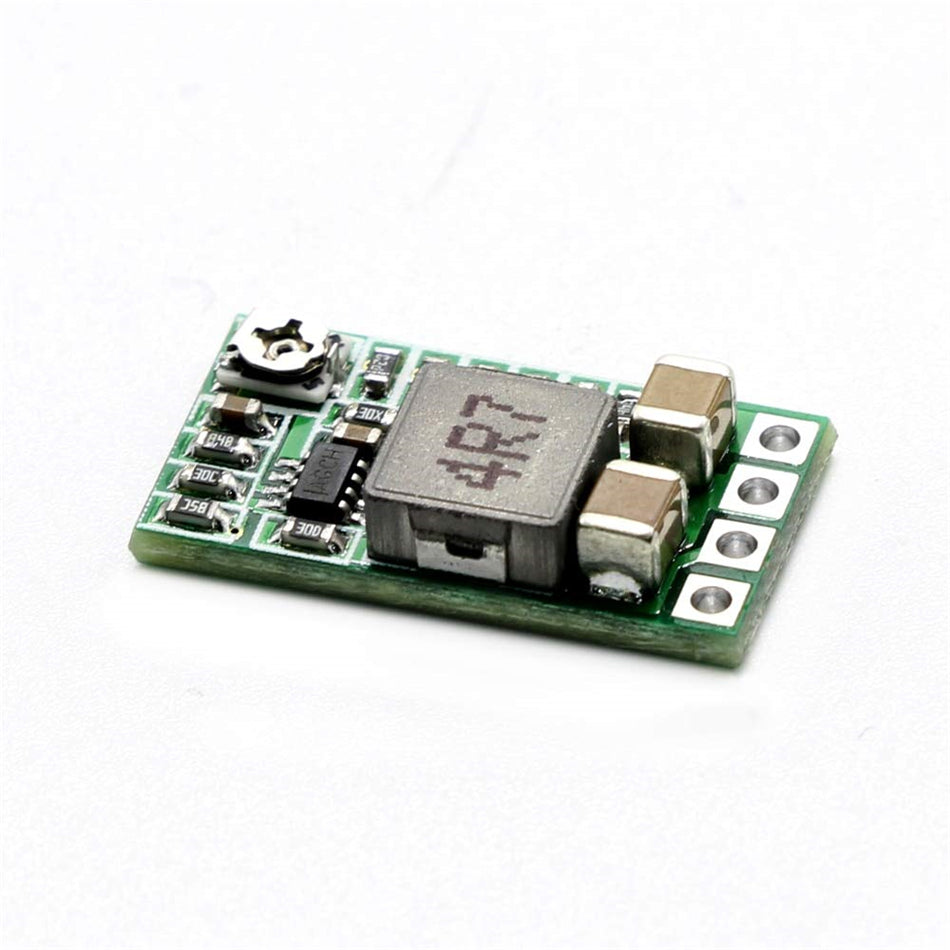

Ultra-Small Mini DC-DC Step Down Power Supply Module 3A Buck Converter Adjustable 1.8V 2.5V 3.3V 5V 9V 12V for Arduino diy kit
Technical Specifications:
Input Voltage: DC 4.5-24V

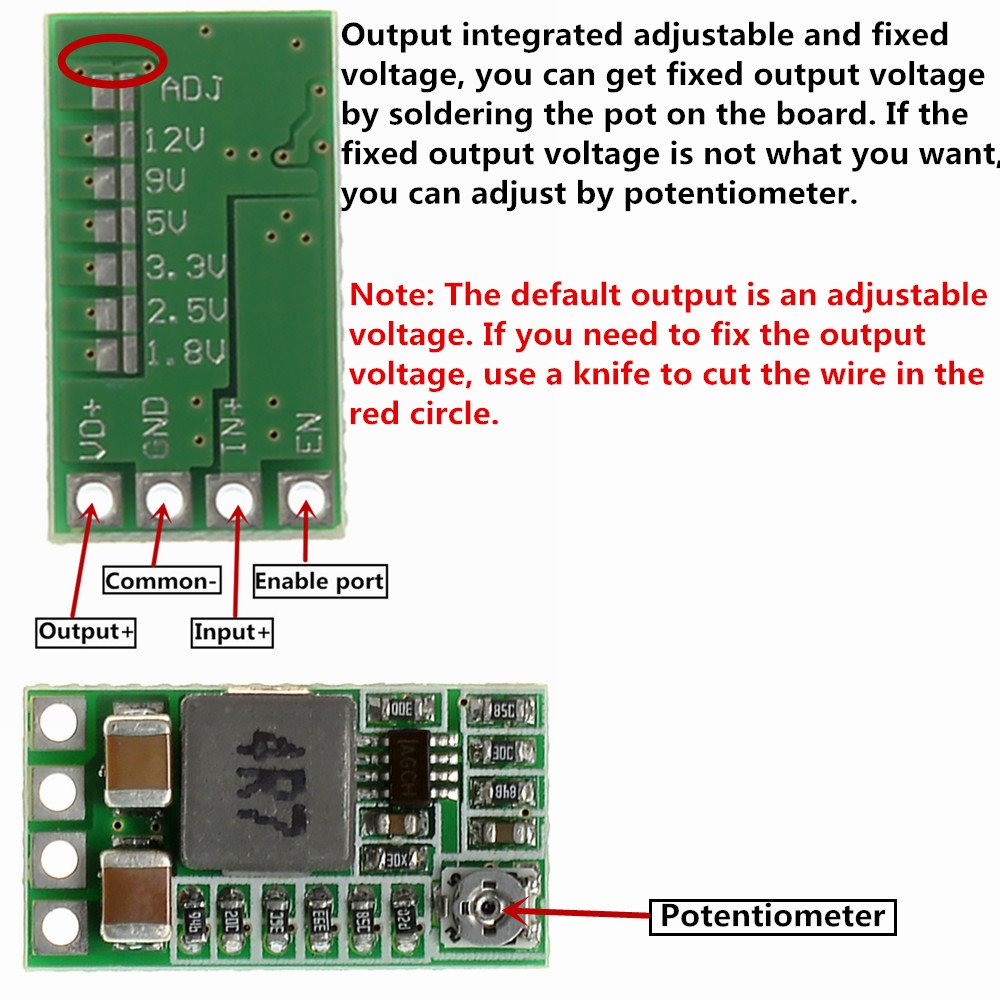

Output Voltage Adjustable Range: 0.8-17V; Fixed voltage (1.8V 2.5V 3.3V 5V 9V 12V)
Output Current: 3A (max),actual testing input 12V output 1.5A

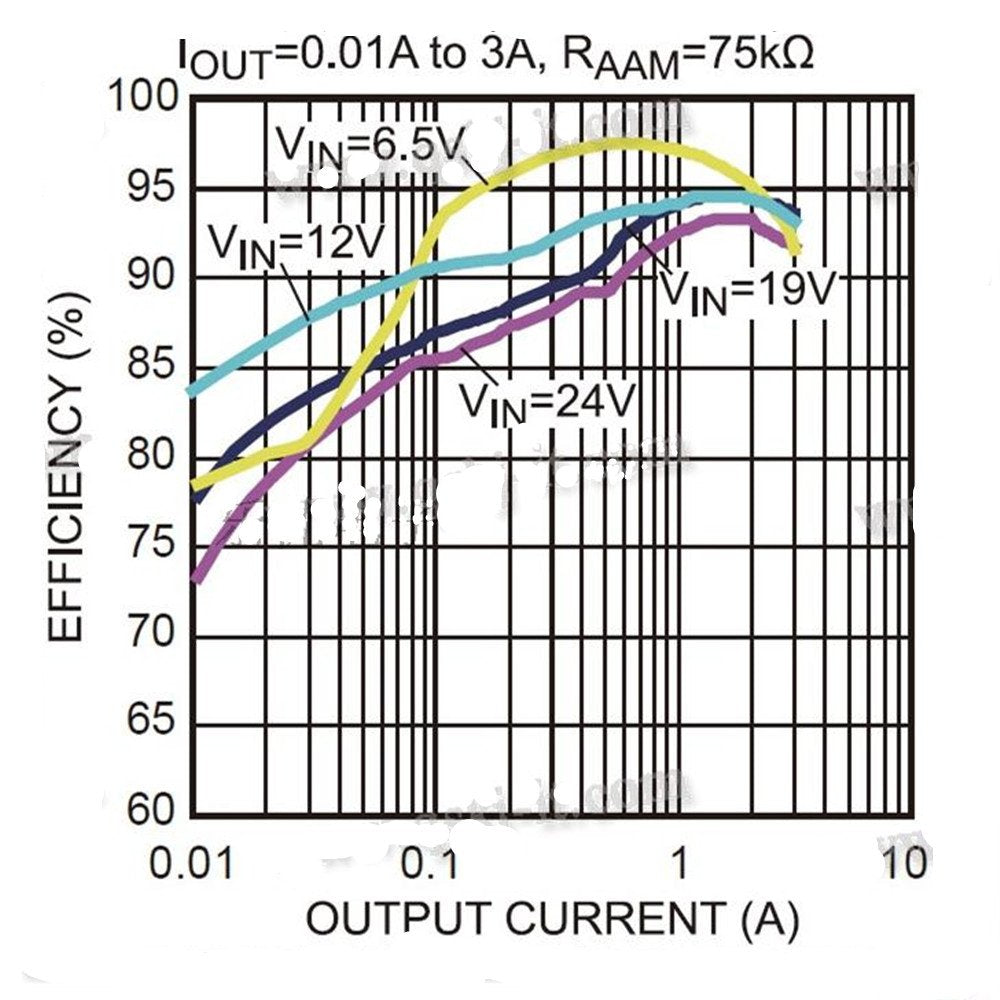

Transform Efficiency: 97.5%(max) (6.5V to 5V 0.7A)
Switch Frequency: 500KHz
Output Ripple Wave: 20mV (12V to 5V 3A) 20m band width
Operating Voltage: -40 Celsius~ 85 Celsius
Output Overvoltage Protection: No
Static Current: 0.85mA
Load Adjust Rate: ±1%
Voltage Adjust Rate: ±0.5%
Dynamic Response Speed: 5% 200uS
Output Short Circuit Protection: Yes
Input Transposition Protection: No
Enable Control: Yes
Connecting Type: Soldering
Input Way: Soldering
Output Way: Soldering/pin
Soldering Hole Space: 2.54mm
Size: 20mm x11mm x 5mm/0.79” x 0.43” x 0.20”(L x W x H)
Package includes:
1/5/10 x Mini Voltage Regulator
