Features:
Compact structure and light weight, portable to use and carry around.
Easy to operate, just put it on the slope, support both absolute and relative measurements.
The content of the large display screen can be automatically flipped to facilitate reading.
LM320B inclinometer supports dual-side laser measurement to obtain more accurate measuring results.
Magnetic on both sides (LM320A) / magnetic on four sides (LM320B), so that it can be attracted on the metal surface to obtain accuracy results.
Powered by a 3.7V 300mAh lithium battery and featuring low battery indicator, support recharging through the equipped USB cable with Type-C interface.
If there is no operation within 5 minutes, it will automatically shut off to save power.
Widely applicable to automobile, railway, military, industry, machinery, woodworking, construction, telecommunications, etc.
Specifications:

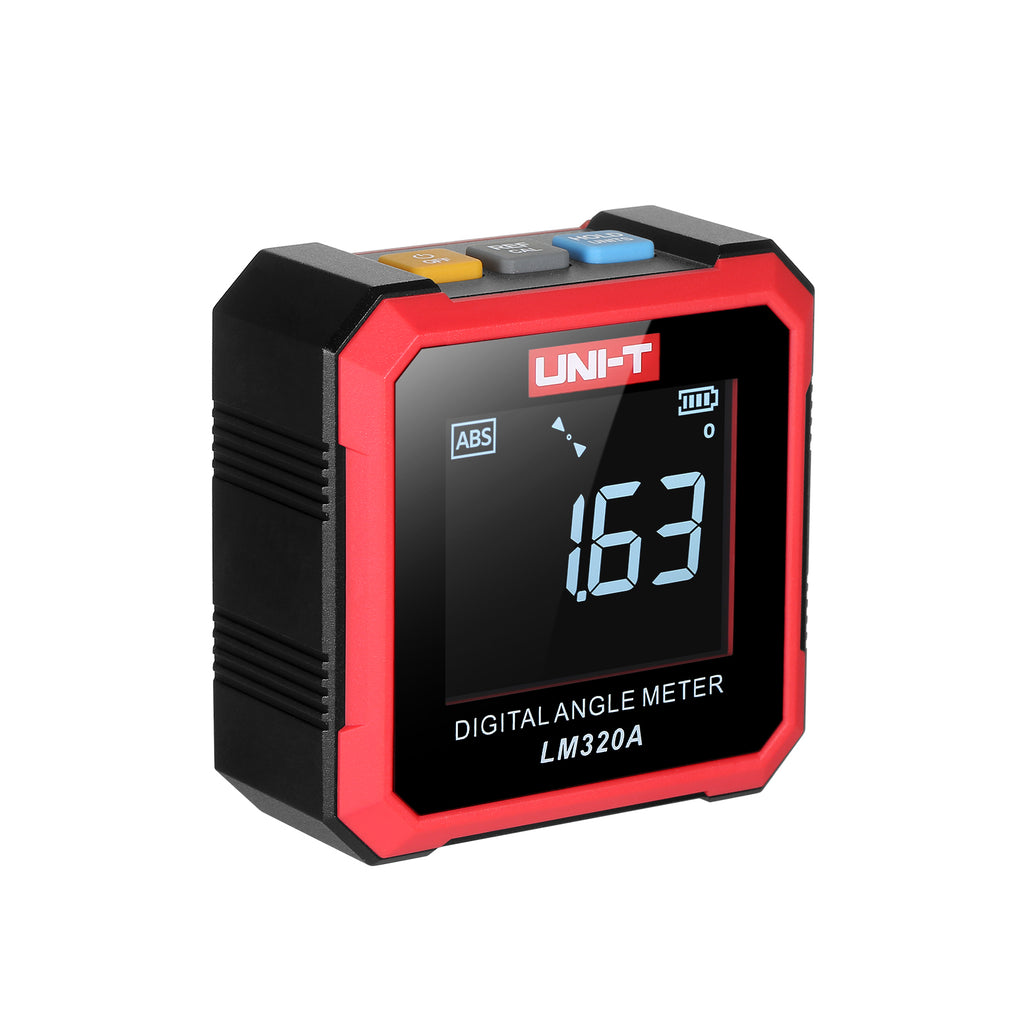

Model: LM320A / LM320B (Optional)
Magnetic Base: magnetic on both sides (LM320A) / magnetic on four sides (LM320B) (Optional)
Material: Aluminium alloy
Color: Black
Power Supply: 1 * 3.7V 300mAh lithium battery
Charging Interface: USB Type-C
Working Time: about 2 hours
Measuring Range: 4*90°
Accuracy: ±(0.2°)
Resolution: 0.01°
Relative / Absolute Angle Measurement: √
Angle Locking Function: √
Low Battery Reminder: √
User Interface: reverse display screen with backlight
Automatic Shutdown: no operation within 5 minutes
Bidirectional Laser Scanning: only LM320B support
LM320B Wavelength: 630nm~670nm
LM320B Laser Radiation: CW<1mW
Operating Temperature: 0~50℃

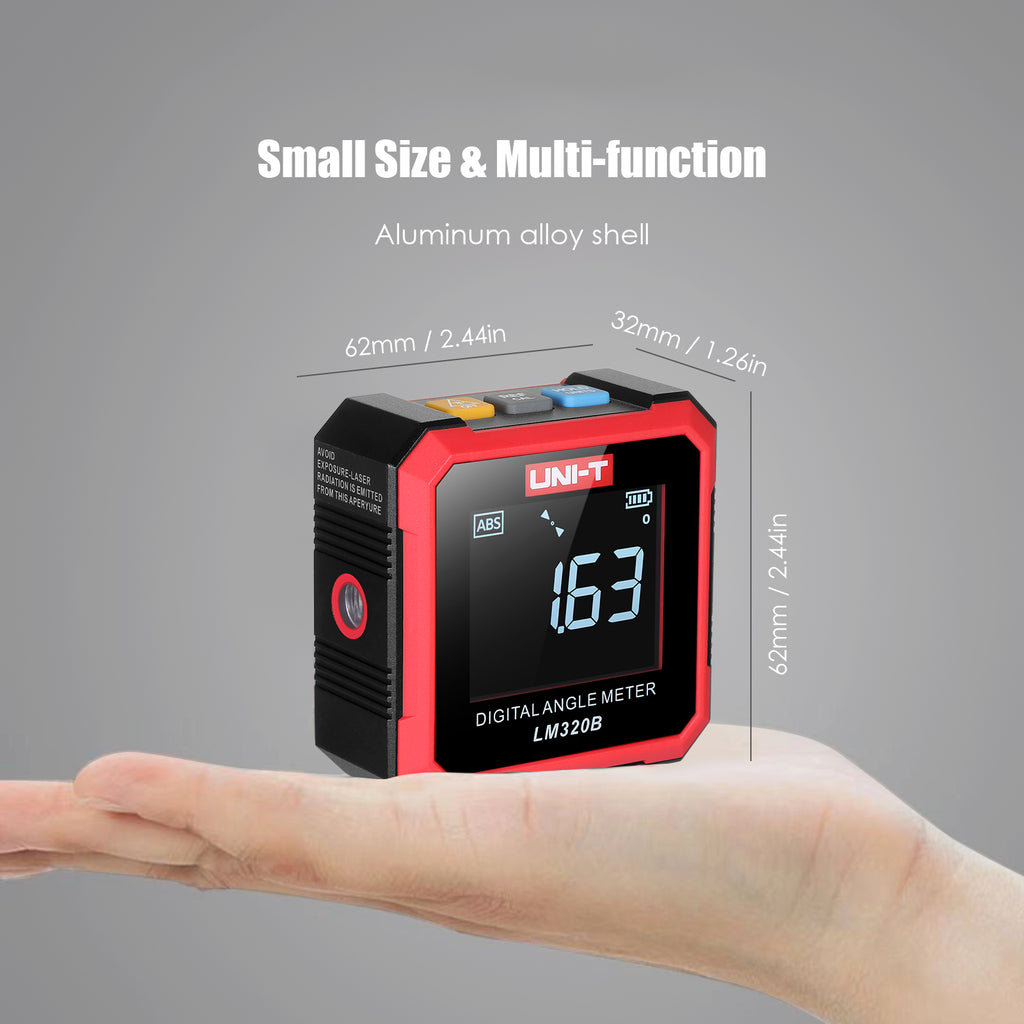

Item Size: Approx. 6.2*6.2*3.2cm / 2.44*2.44*1.26in
Item Weight: Approx.
LM320A: 97g / 3.42oz
LM320B: 123g / 4.34oz
Package Size: Approx. 11*7.5*4.5cm / 4.33*2.95*1.77in
Package Weight: Approx.
LM320A: 182g / 6.42oz
LM320B: 209g / 7.37oz
Packing List:
1 * Inclinometer
1 * Reflecting Board
1 * Silicone Pad
1 * USB Cable
1 * User Manual (English)
