Basic function / model

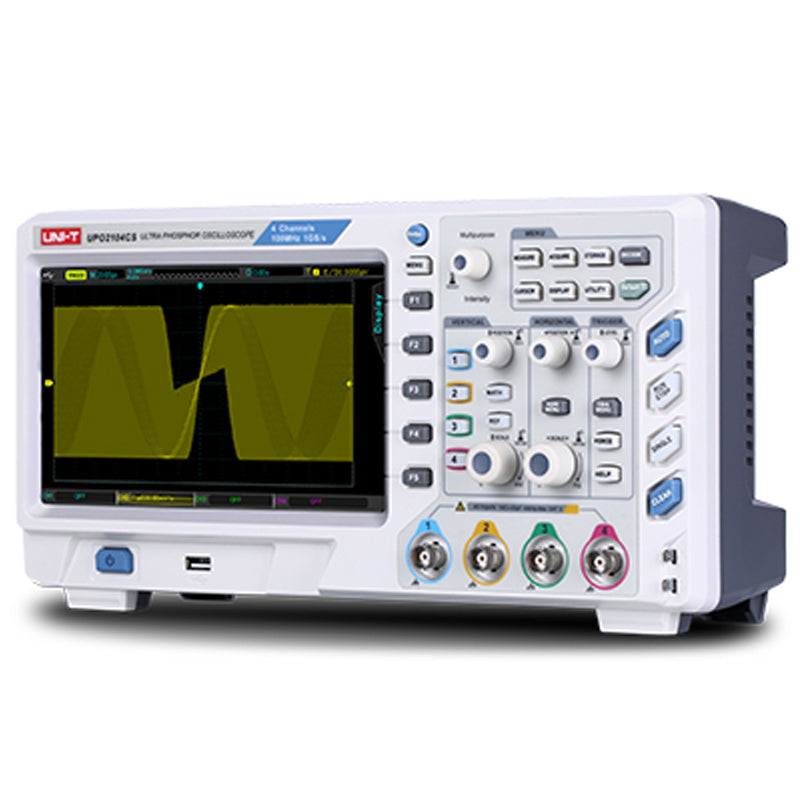

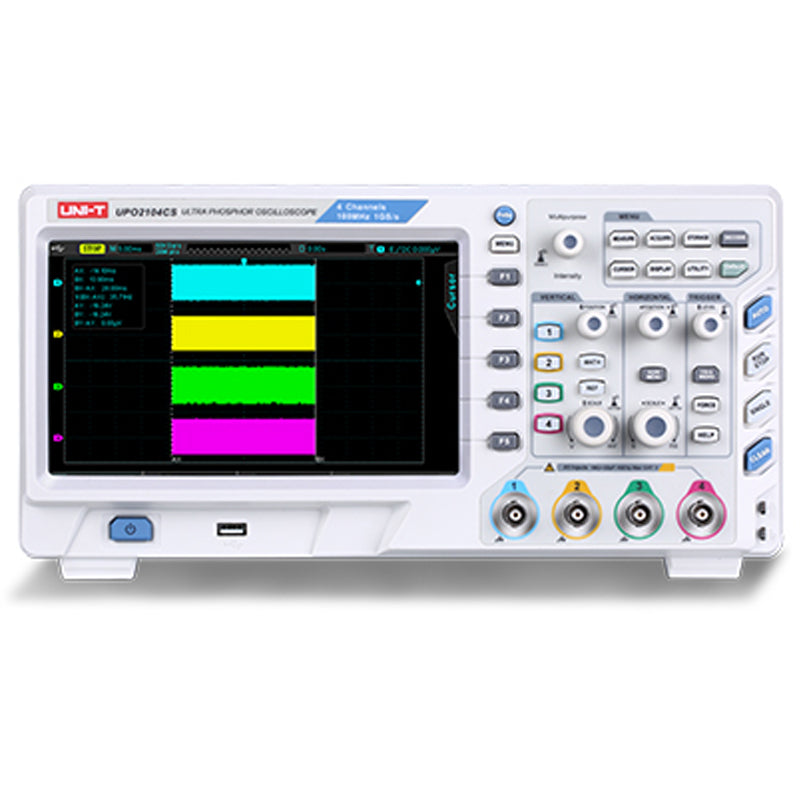

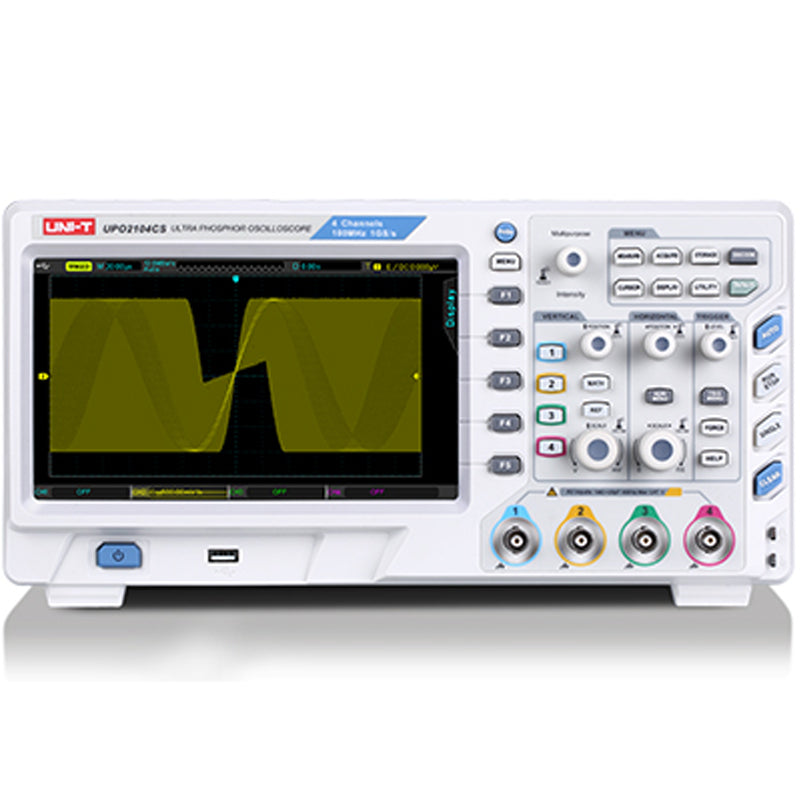

     UPO2104CS

             Analog bandwidth

     100MHz

             Channel number

     4

             Real time sampling rate

     1GS/s (Dan Tongdao)

             Storage depth

     28Mpts (per channel)

             Waveform capture rate

     50000wfms/s

             Time base

     5 ns to 50s

             Input impedance

     (1M + 2%) / (20pF + 3pF)

             Vertical sensitivity range

     1 mV/div to 20 V/div (1 M)

             DC gain precision

     2% full scale

             Waveform recording

     Can record up to a maximum of frame waveform data

             trigger

     Edge, pulse width, under amplitude, over amplitude, N edge, delay, timeout, duration, build / hold, slope, video, code type;

(optional: RS232/UART, I2C, SPI)

             Bus decoder (optional)

     RS232/UART, I2C, SPI

             Wave operation

     A+B, A-B, A * A/B, B, FFT, logic operation, edit Advanced Computing

             automatic measurement

     Maximum, minimum value, peak to peak, the top value and the bottom end of the value, amplitude, period average value, average value, middle value, cycle RMS, root mean square value, impulse, pre washed, frequency, cycle, rising time and time, pulse width, negative pulse width, is accounted for, negative duty ratio and delay a - > b decline inDelay A to BPhase A - BPhase A - BMeasurement of area and area

             Measure quantity

     At the same time display 5 kinds of measurement

             Survey statistics

     Mean value, maximum value, minimum value, standard deviation and the number of measurements

             Frequency meter

     Hardware 6 bit frequency meter

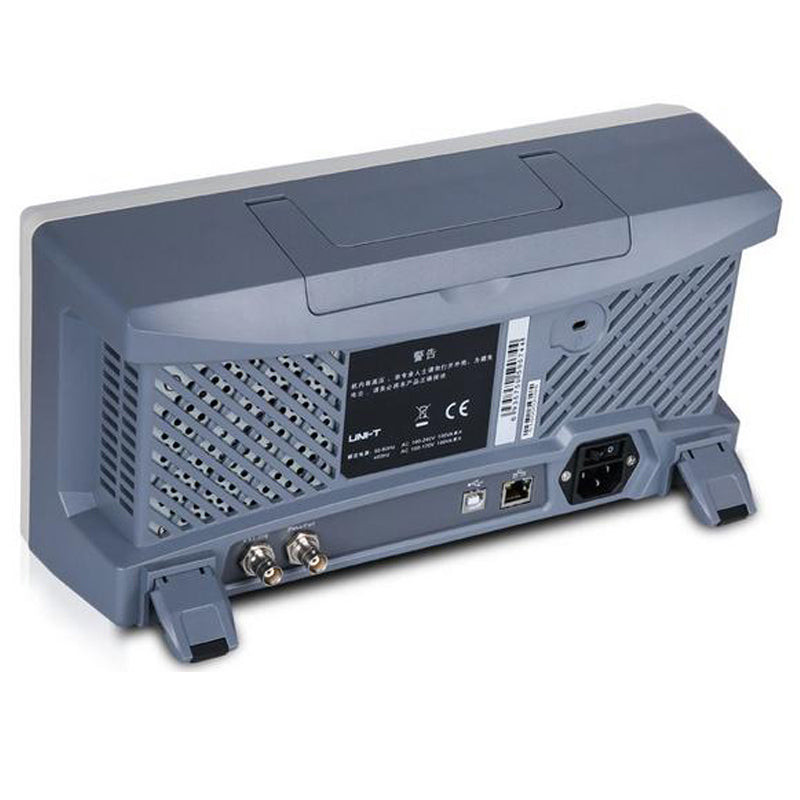

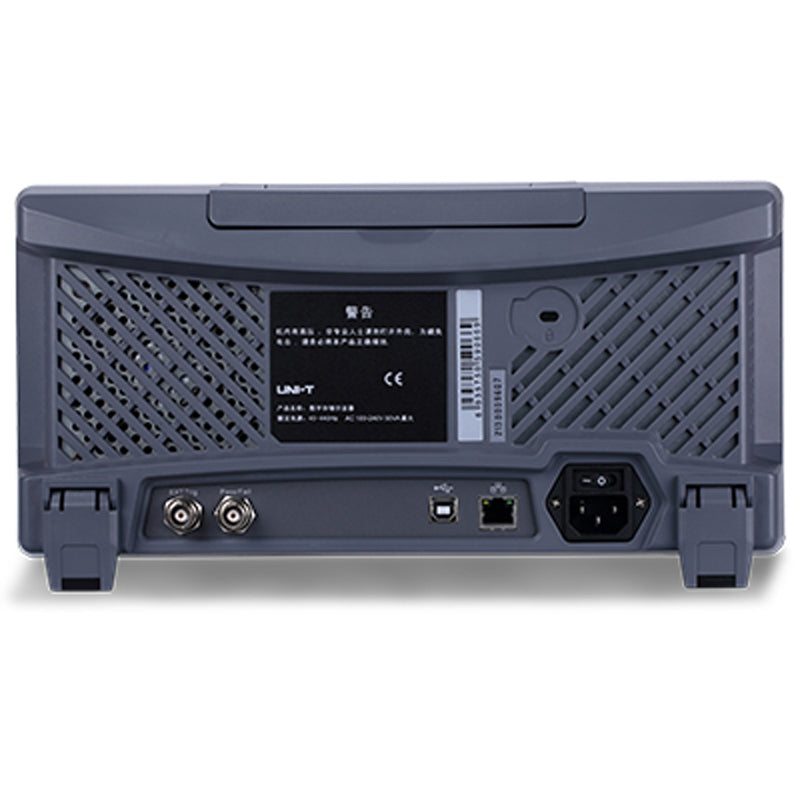

             standard interface

     Host USB, Device USB, LAN, OUT AUX

             characteristics

             Power Supply

     100V ~ 240VACrms, 45Hz~440Hz

             LCD size

     8 inches LCD TFT, WVGA (800 x 480)

             body color

     Ivory white + gray

             Body weight

     3.5Kg

             Body size (D * H * W)

     105mm * 163.8mm * 336mm

             Standard accessories

     Probe X 2 (1 x, 10 x 2 channel) or probe X 4 (1 x, 10 x 4 x), power cord, power cord, USB cable, software CD

             Standard packing

     Carton, use manual

             Standard packing quantity

     2 Taiwan

             Standard packing size (L * W * H)

     325mm * 220mm * 550mm

             Standard packing gross weight

     9.5Kg

             Optional accessories

     LA module, 25MHz function / Arbitrary Waveform Generator
