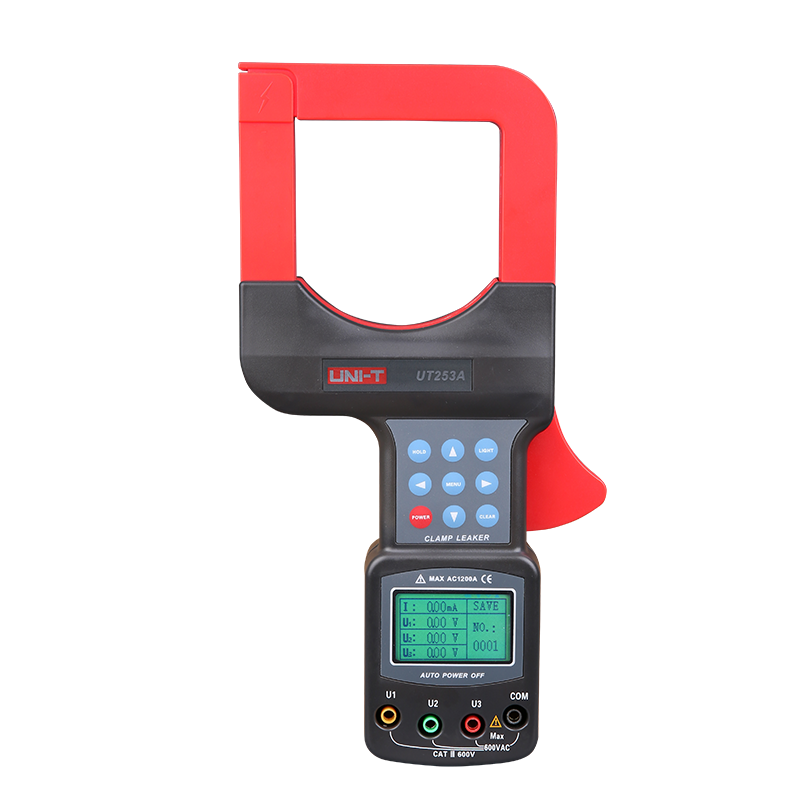

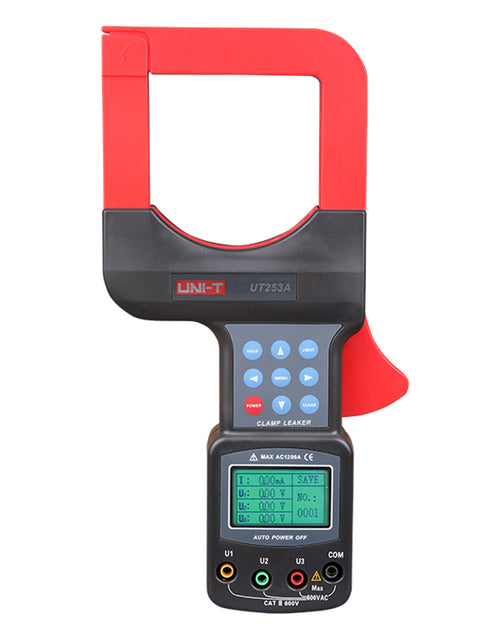

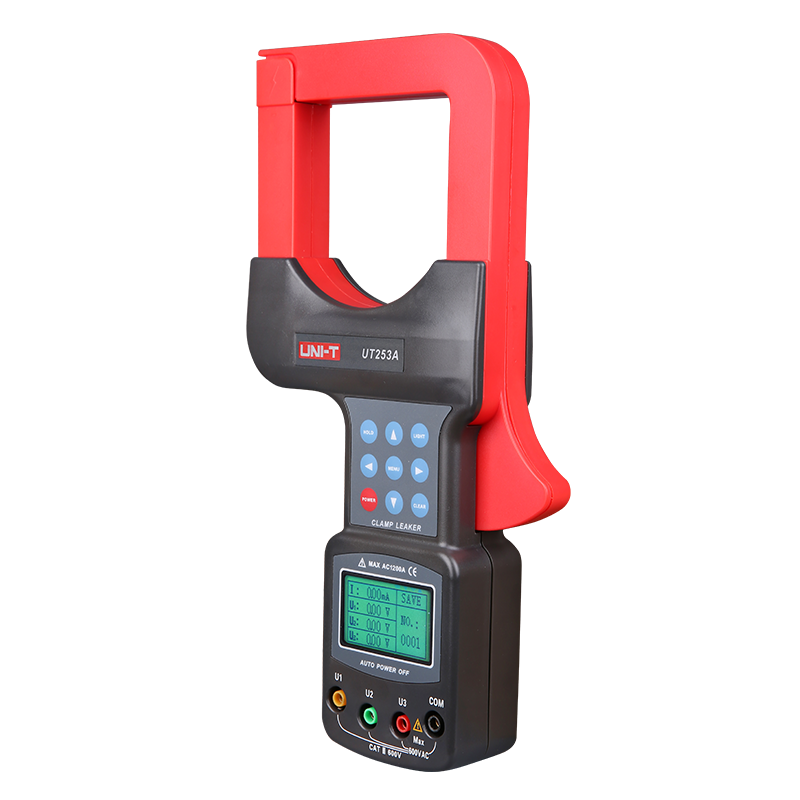

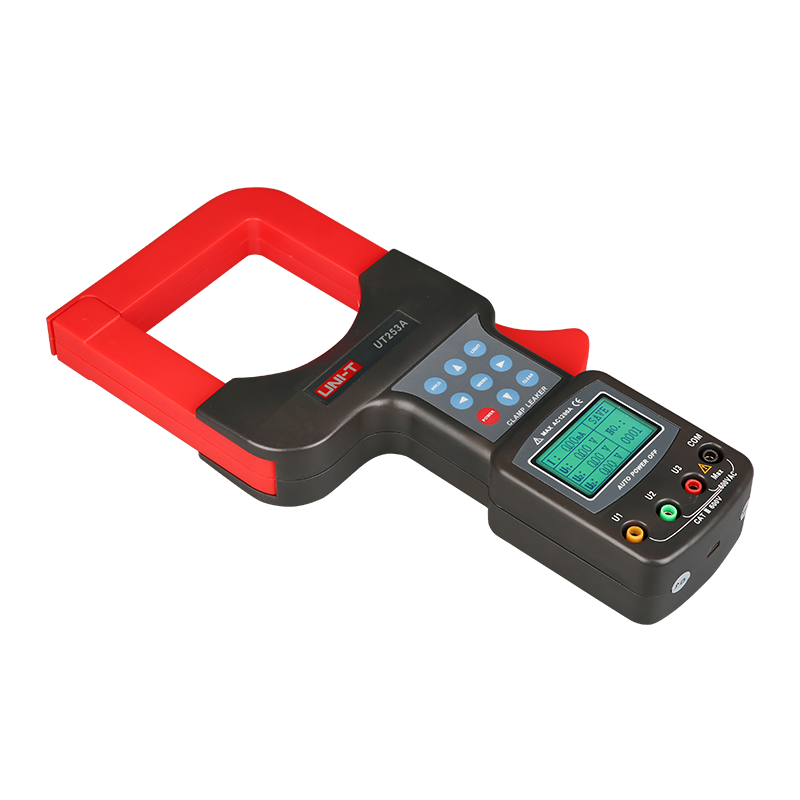

UNI-T UT253A 1200A Auto Range LCD Display Large Jaws Leakage Current
Clamp Meters Clamp Leaker Voltmeter Meter W/RS232 Data Hold
UT253 series are large current high precision leakage clamp meters that can measure up to 2000A. Its large 80mm×80mm jaw is able to clamp up to 96mm cables or flat-steel ground wires. UT253' s intelligent design can measure leakage current, three-phase voltages and display them on the screen simultaneously.
Applications:
The meter is widely used in electric power, communications, meteorology, railway, oil field, construction, metrology, R&D institutes, mining, ect.
Features
1. Auto range; RS-232
2. LCD backlight; Data hold
3. Over-range display
4. Auto power off
5. Low battery indication
Specifications
Specifications
Range
UT253A
UT253B
Leakage current (A)
0mA～300A
±(1.5%+3)
±(1.5%+3)
300A～1200A
±(2%+3)
±(2%+3)
1200A～2000A
±(3%+3)
Voltage (Freq.)
√
√
Resolution
0.01mA
0.1mA
AC voltage (V)
0.00V～600V
±(1.5%+3)
±(1.5%+3)
Frequency: 50Hz/60Hz
√
√
Resolution
0.01V
0.01V
Features
Display mode
128 dots×64 dots LCD
Clamp size
80mm×80mm
Data logging
200
200
Test mode
Clamp CT, integration
√
√
General Characterisitics
Power
1.5V Battery (LR6) x 4(Battery not included)
Display
43mm x 29mm
Product color
Red and grey
Product net weight
1kg
Product size
275mm x 145mm x 40mm

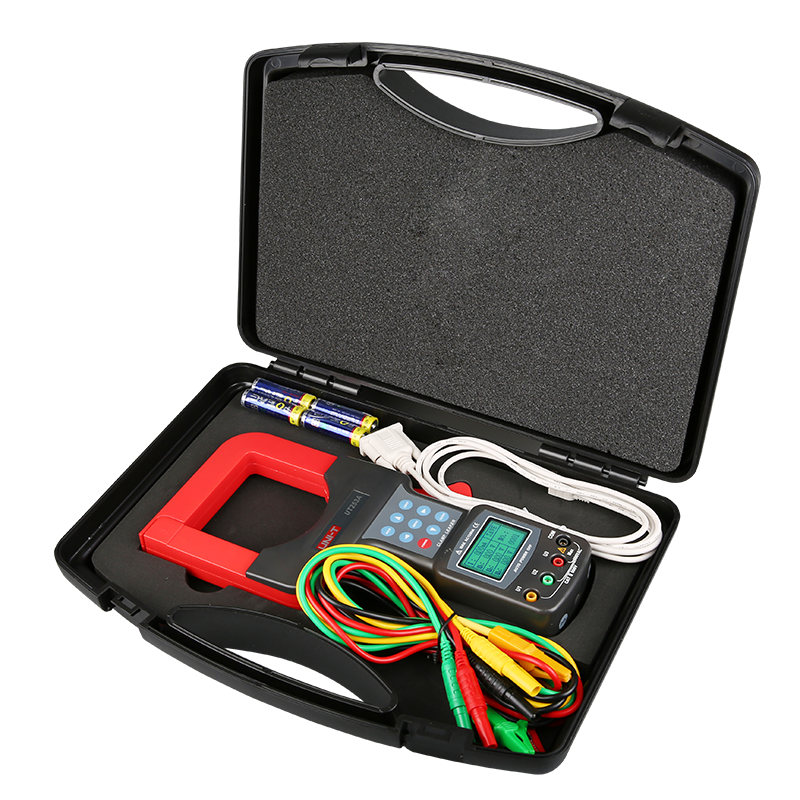

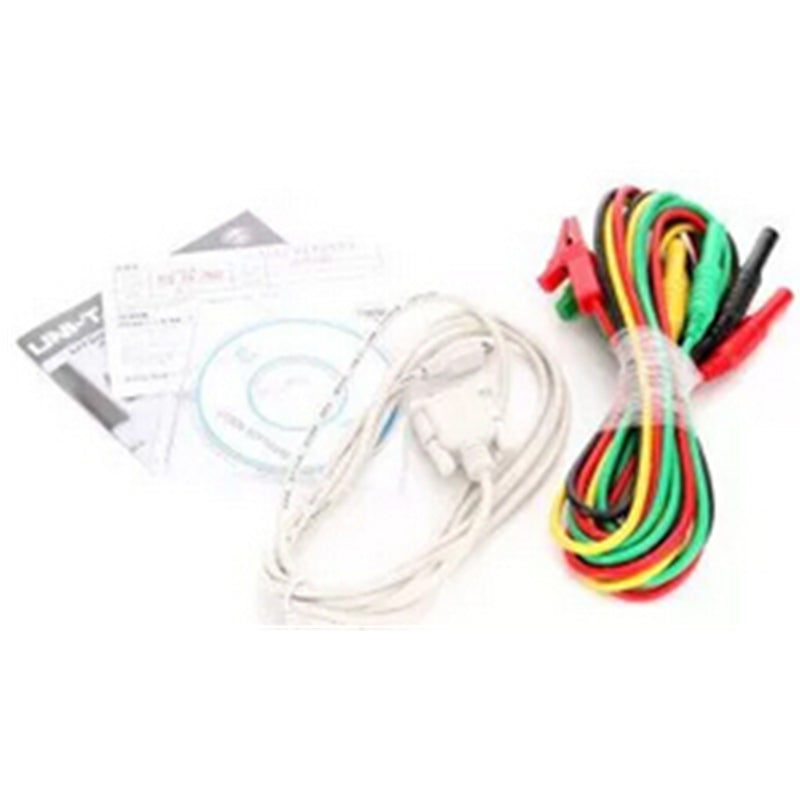

Standard accessories
test leads (3 red, 1 black), RS-232 interface cable,
Standard individual packing
Color box, tool box
Notes:the batteries not included package
