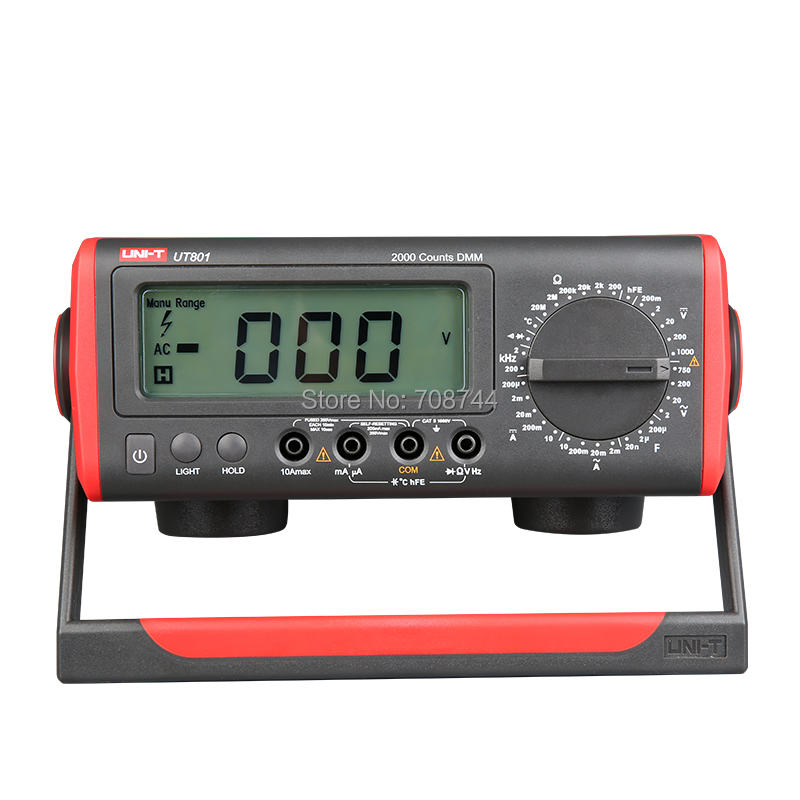

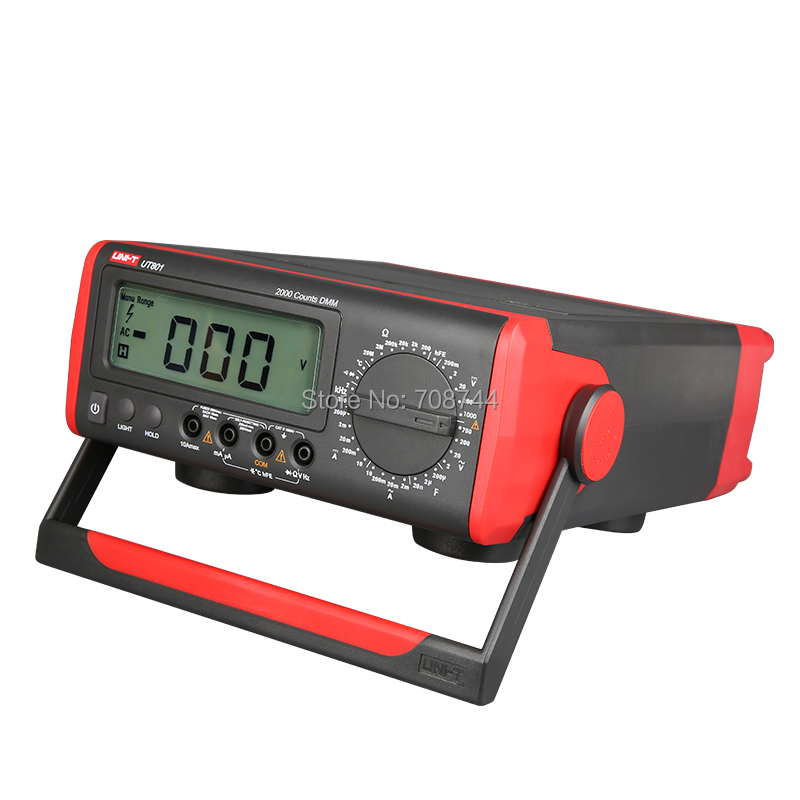

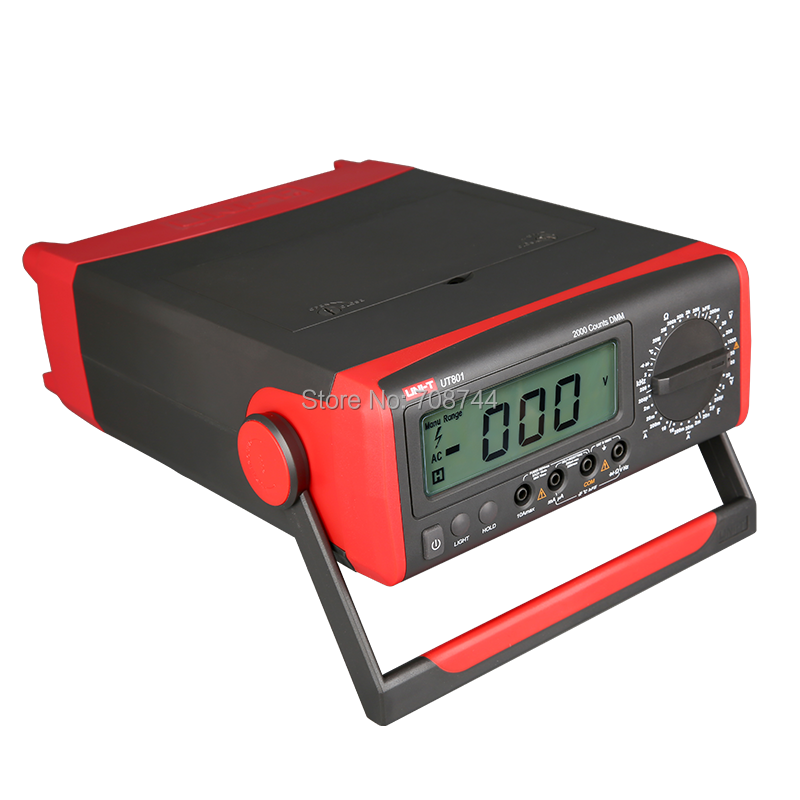

UNI-T UT801 Bench Type Digital Multimeter
Specifications:
Basic Functions
Range
Best Accuracy
DC Voltage
200mV/2V/20V/200V/1000V
(0.5%+2)
AC Voltage
2V/20V/200V/1000V
(0.8%+3)
DC Current
200µA/2mA/20mA/200mA/10A
(0.8%+2)
AC Current
2mA/20mA/200mA/10A
(1.0%+3)
Resistance
200/2k/20k/200k/2M/20MΩ
(0.8%+3)
Capacitance
20nF/2µF/200µF
(4%+3)
Frequency
2kHz/200kHz
(1.5%+5)
Temperature (°C)
-40°C ~ 1000°C
(1.2%+3)
Special Functions
Transistor
YES
Sleep Mode
YES
Diode
YES
Continuity Buzzer
YES
Display Backlight
YES
REL
YES
Max/Min Mode
YES
Low Battery Display
YES
Input Impedance for
DC Voltage Measurement
>10MW
YES
Data Hold
YES
Max. Display
1999
General Characteristics:
Power
AC220V/50Hz or 1.5V Battery x 6 (R14)
LCD Size
108 x 35mm
Product Colour
Red and Grey
Product Net Weight
1500g
Product Size
300 x 245 x 105mm
Standard Accessories
Test Lead, AC220V Power Cord,English Manual, Point Contact
Temperature Probe, Multi-Purpose Socket
Standard Individual Packing
Gift Box
Standard Carton Measurement
685 x 370 x 325mm
(0.082CBM Per Export Carton)
Standard Carton Gross Weight
4kg
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
