Detailed:
1. Supports plug-and-play USB storage device. Communication with and remote control of computer through the USB device;
2. Storage of waveforms setups and interfaces waveforms and setups reproduction;
3. Automatic measurement of 28 waveform parameters;
4. Unique waveform recording and replay function;
5. Edge,Pluse,Video,Alternate trigger functions;
6. Unique Pass/Fail functions;
7. Multilingual menu displays.
Parameter:
Specification
UTD2202CE
Channels
2
Bandwidth
200MHz
Sample Rate
1GS/s
Rise Time
1.8ns
Memory Depth
25kpts
Waveform Acquisition Rate
2000wfms/s
Vertical Sensitivity
2mV/div~5V/div
Timebase Range
2ns/div~50s/div
Storage
Setup, Wave, Bitmap
Trigger Modes
Edge, Pluse, Video, Alternate
Interface
USB Device, USB Host, Pass/Fail
General Characteristic
Power
100-240VAC, 45-440Hz
Display
5.7 Inches 64K Color TFT LCD, 320×240
Product Color
White and Gray
Product Net Weight
2.5 Kg
Product Size(W×H×D)
320mm ×150mm ×130mm
Standard Accessories

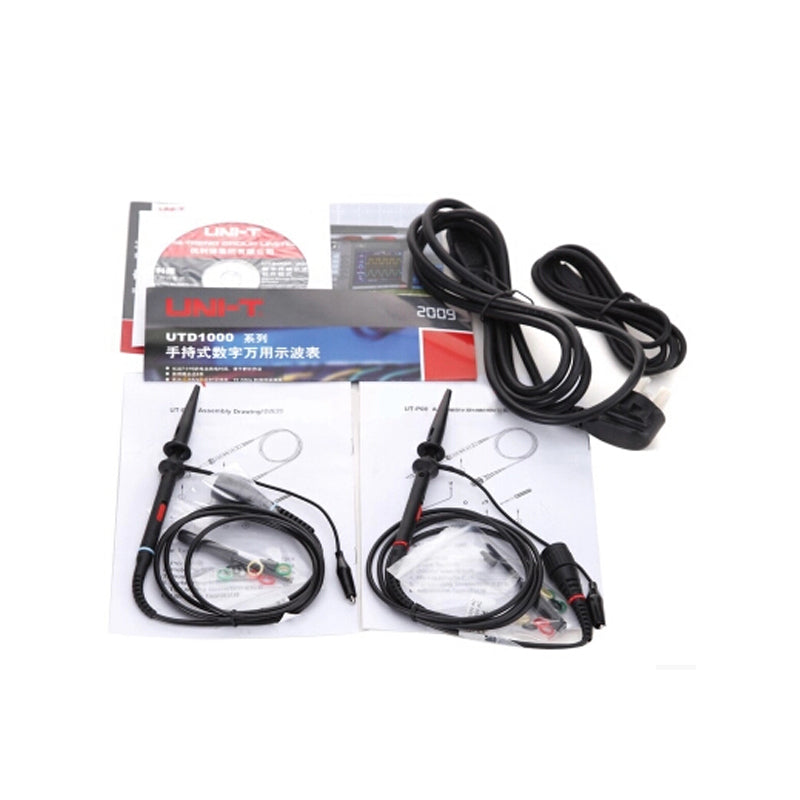

Probe×2 (1×,10× switchable),Power Cord, USB Cable, PC Software CD
Standard Individual Packing
Gift Box, English Manual
Standard Quantity Per Carton
2 PCs
Standard Carton Measurement(L×W×H)
450mm × 420mm × 280mm
Standard Carton Cross Weight
9.2 Kg
Optional Accessories*
LAN Communication Port,
Contrast:
Specification
UTD2102CE
UTD2152CE
UTD2202CE
Channels
2
Bandwidth
100MHz
150MHz
200MHz
Sample Rate
1GS/s
Rise Time
3.5ns
2.3ns
1.8ns
Memory Depth
25kpts
Waveform Acquisition Rate
2000wfms/s
Vertical Sensitivity
2mV/div~5V/div
Timebase Range
5ns/div~50s/div
2ns/div~50s/div
Storage
Setup, Wave, Bitmap
Trigger Modes
Edge, Pluse, Video, Alternate
Interface
USB Device, USB Host, Pass/Fail
General Characteristic
Power
100-240VAC, 45-440Hz
Display
5.7 Inches 64K Color TFT LCD, 320×240
Product Color
White and Gray
Product Net Weight
2.5 Kg
Product Size(W×H×D)
320mm ×150mm ×130mm
Standard Accessories
Probe×2 (1×,10× switchable),Power Cord, USB Cable, PC Software CD
Standard Individual Packing
Gift Box, English Manual
Standard Quantity Per Carton
2 PCs
Standard Carton Measurement(L×W×H)
450mm × 420mm × 280mm
Standard Carton Cross Weight
9.2 Kg
Optional Accessories*
LAN Communication Port,
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
