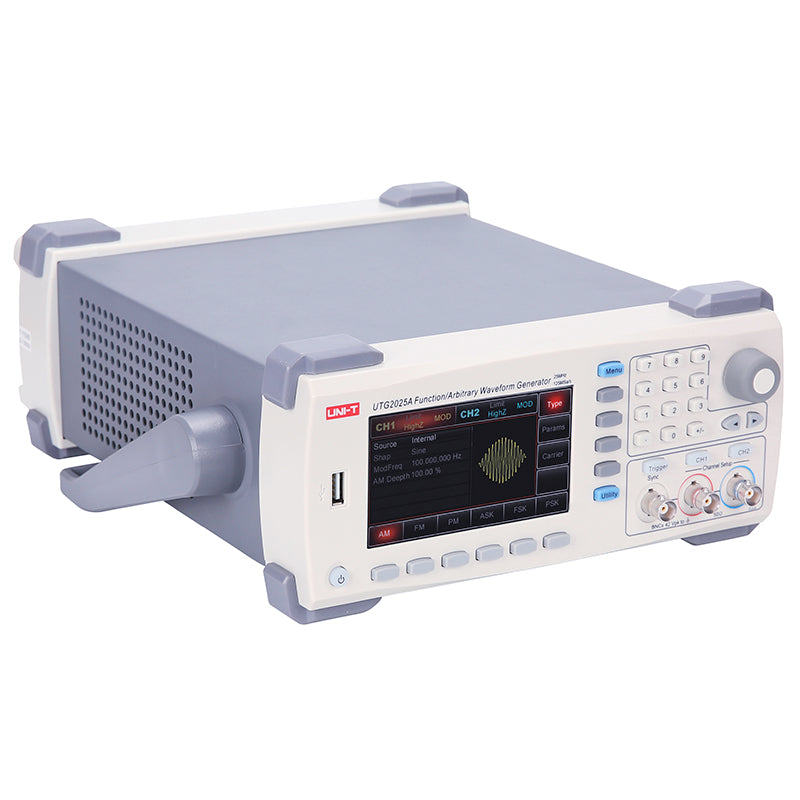

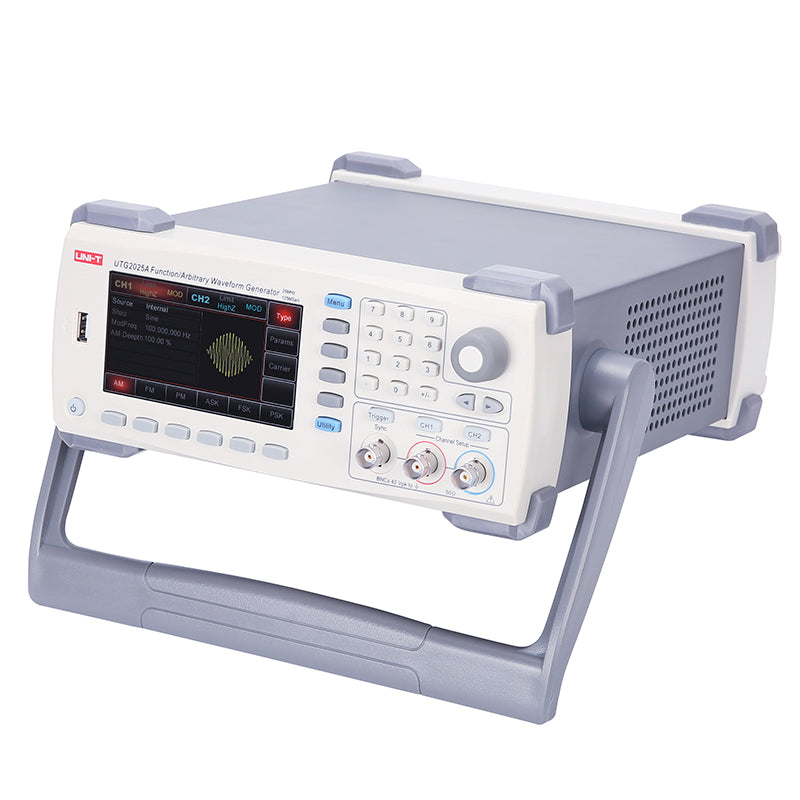

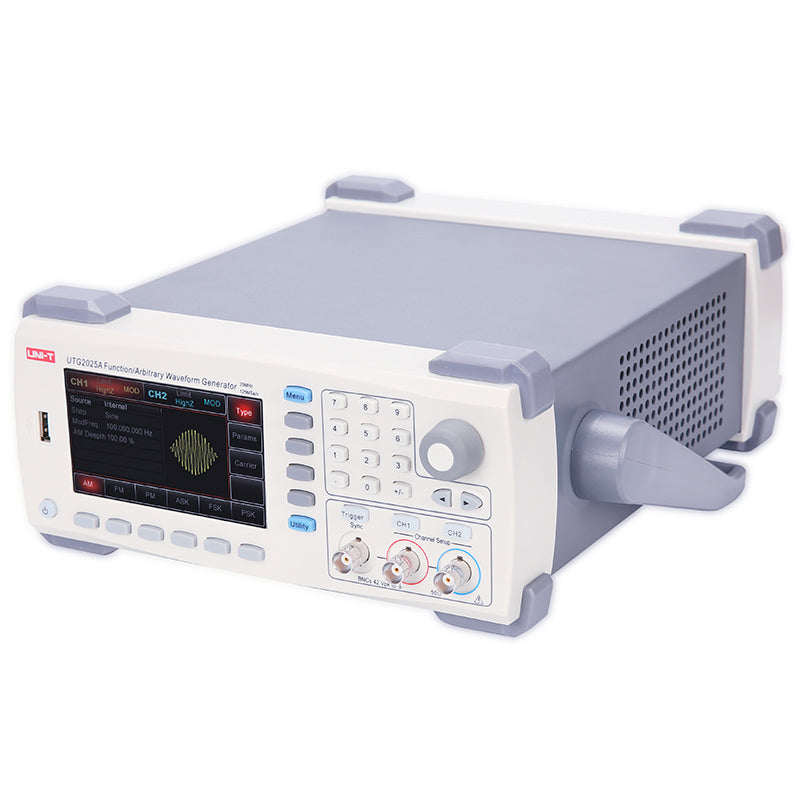

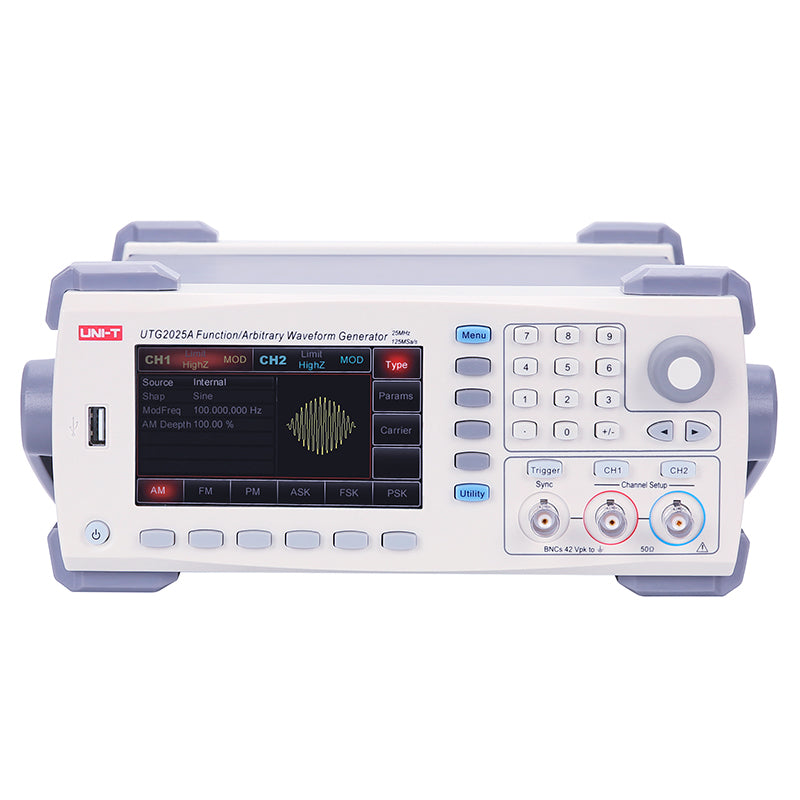

UNI-T UTG2025A 25MHz USB Dual Channels Signal Function Arbitrary Waveform Generator better than UTG9020A
Detailed:
Product Features:
1. Intuitive Interface Design;
2. Dual Channels with Standard Performance;
3. 250MS/s ,200MS/s Sample Rate, 14bits Vertical Resolution;
4. Integrated Analog and Digital Design;
5. 4.3 HD Display Panel.
Parameter:
Specification
UTG2025A
Channels
2
Max.Sample Rate
200MS/s
Max.Output Frequency
25MHz
Frequency Resolution
1 Hz
Vertical Resolution
14 bits
Max. Arb Memory Depth
1Mpts
Waveform
Sine,Square,Ramp,Triangle,Pulse,Noise,DC,Arb
Output Amplitude Range
1mVpp-10Vpp (50);2mVpp-20Vpp (High Z)
Modulation Types
AM,FM,PM,ASK,FSK,PWM,Sweep,Burst
Interface
USB Device, USB Host, LAN (UTG2062A )
General Characteristic
Power
100-240VAC, 40-440Hz
Display
4.3 Inches 64K Color TFT LCD, 480×272
Product Color
White and Gray
Product Net Weight
3.2 Kg
Product Size
231mm × 94mm × 283mm

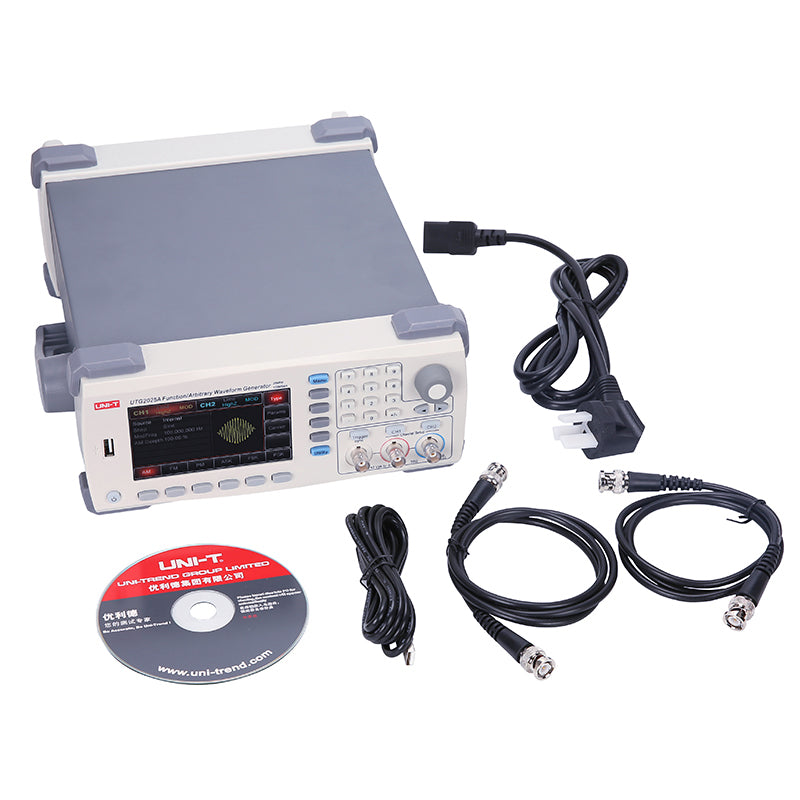

Standard Accessories
BNC Cable,Power Cord , USB Cable,PC Software CD
Standard Individual Packing
Gift Box, English Manual
Standard Quantity Per Carton
2 PCs
Standard Carton Measurement
330mm × 295mm × 255mm
Standard Carton Cross Weight
10.5 Kg
Optional Accessories
LAN Communication Port
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
