Features：
1. 3.5”IPS display (640*480)
2. IR resolution: 320x240
3. Frame rate: 9Hz
4. Temperature range: -40℃ to 400℃
5. Accuracy: ±2℃ / ±2%
6. Blending（200W visual camera）
7. Digital zoom: 2x, 4x
8. Flashlight
9. Hi/Low alarm
10. PC analysis
11. Wifi
Parameter：
Model

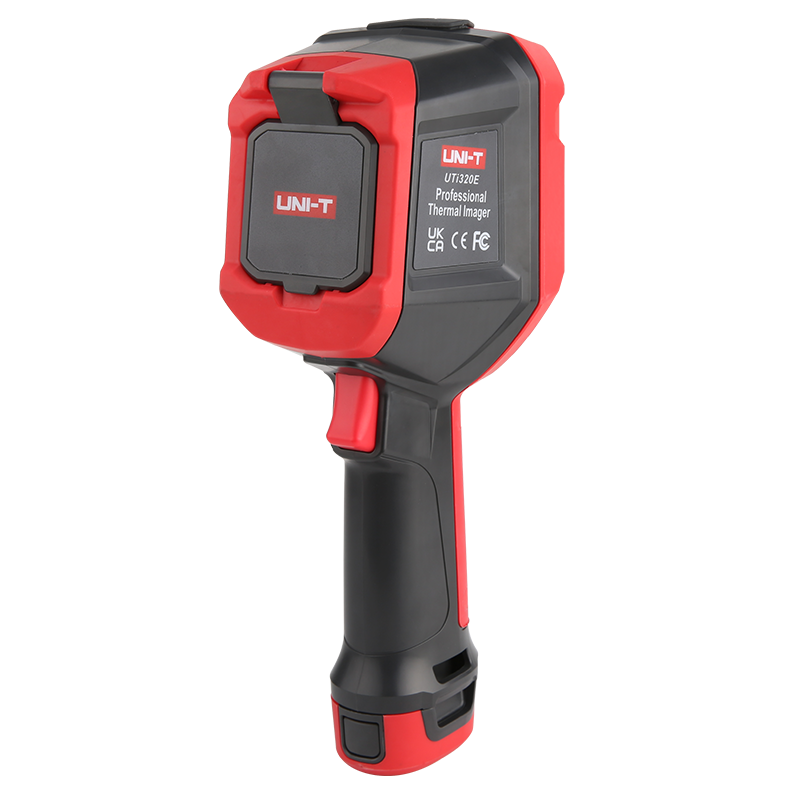

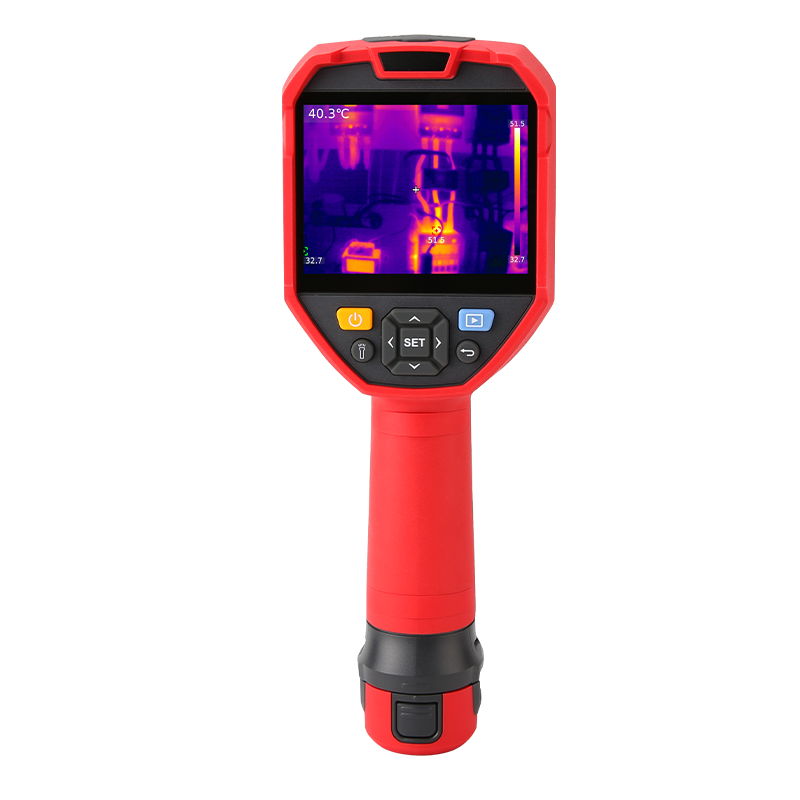

UTi320E
IR resolution
320x240 pixel
Screen Display
3.5”IPS
Field of view (FOV)
56°x 42°
Thermal sensitivity (NETD)
65mK
Spatial resolution (IFOV)
3mrad
Focus
Focus free
Frame rate
9Hz
Object Temperature range
-40~400℃
Measurement accuracy
±2℃ or ±2% whichever is greater
Battery
Li-ion battery pack(5200mAh)
Battery Type
Replaceable
Battery operating time
≧4 hours
Founctions
Palettes
7
Emissivity
Adjustable (0.01-0.99)
Measurement presets
Point x5, Line x1, Area x6
Digital camera
2MP
Digital zoom
2x, 4x
Image Model
Thermal, visible, blending, PiP
LED
√
WiFi download photo
√
ROI (eliminates interference)
√
Isotherm
√
Atuo tracking for Lo/Hi temperature
√
Alarm
√
Storage
16G Mcro SD Card
PC software
Analysis, Real-time display
Protection
IP54/2m
Communication interface
Type-C
Package
Product net size
260mmx97mmx99mm
Product net weight
630g
Standard accessories

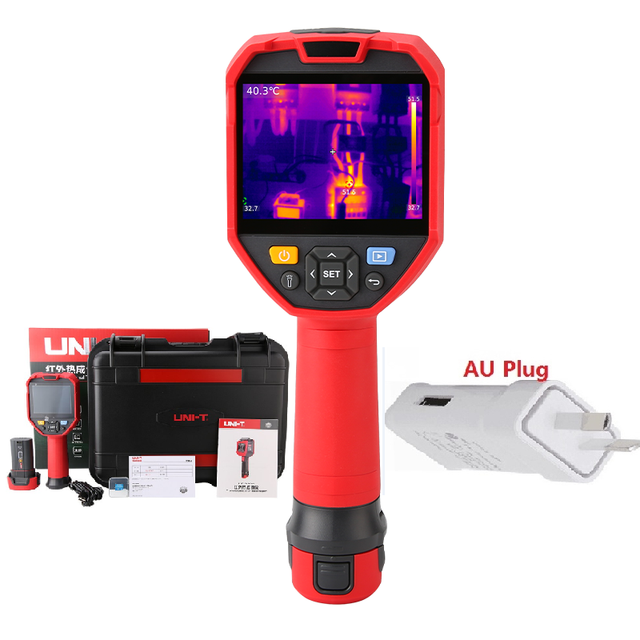

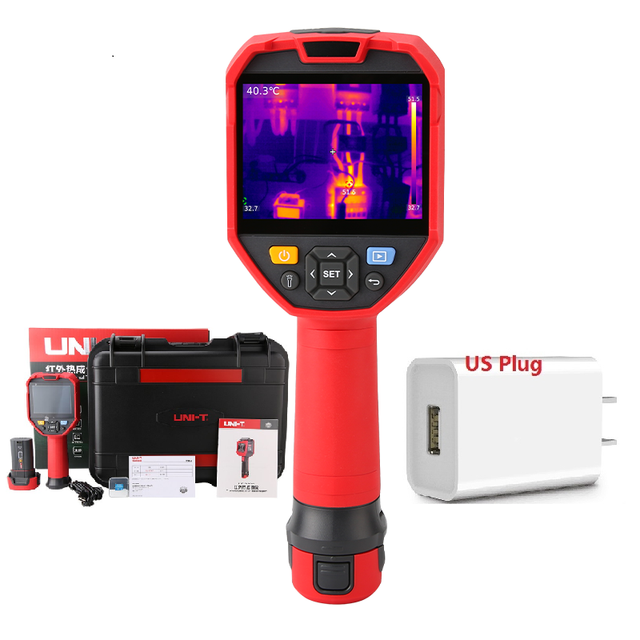

Micro SD card, Type-C USB cable, manual, Li-ion battery pack
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
