Working voltage: AC220V
Ambient temperature: -20 ° C -60 ° C
Output current: 2A/220VAC
Remote control distance: ≥50m
Decoding method: single chip decoding (optional fixed code remote control and learning code remote control)
Working frequency: 433MHZ
Features:
The controller and the paired remote control adopt a million sets of learning code encoding chips, and the re-bit rate is extremely low, and the use is safer.
Application: for Garage, electric door, rolling shutter door
Pair code / reverse setting.
This product has learned the code between the remote controller and the controller before leaving the factory. It is not necessary to pair again before use. If you need to increase or decrease the remote control, you can follow the following steps.

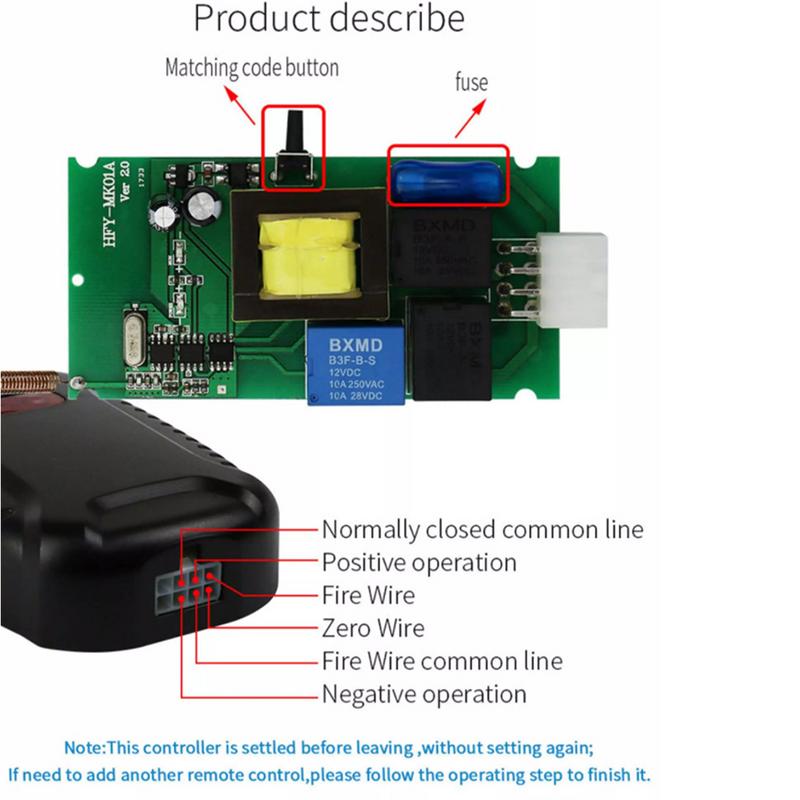

Pair code:
1. Stop the motor by first pressing the stop motor on the remote control.
2. Press the code button on the controller to release the hand, power indicator will turn off the red light, and then press any button on the remote control. The power indicator flashes red three times, indicating that the code is successful.
Clearing code:
Long press on the controller on the code key does not let go, the power indicator red light from on to off to flash three times, release the code button to clear the code successfully (all remote control paired with the controller has been cleared).
Motor forward/reverse setting:
When you need to change the direction of the motor in the reverse direction, press and hold the remote control lock button for a long time. About five seconds, the power indicator flashes red three times. Release the remote control lock button and the motor reverse direction changes successfully. Return to the original setting operation. Be sure to stop the motor before changing the direction of the motor in the forward and reverse direction.
Note :
This remote control kit only for Chain motor .Can not work for tubular motor.

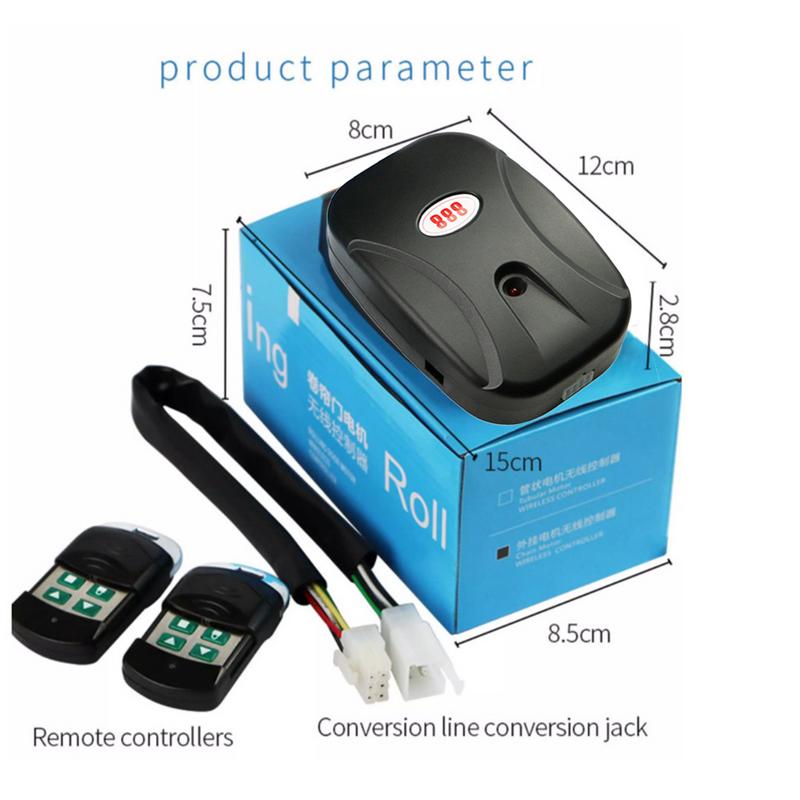

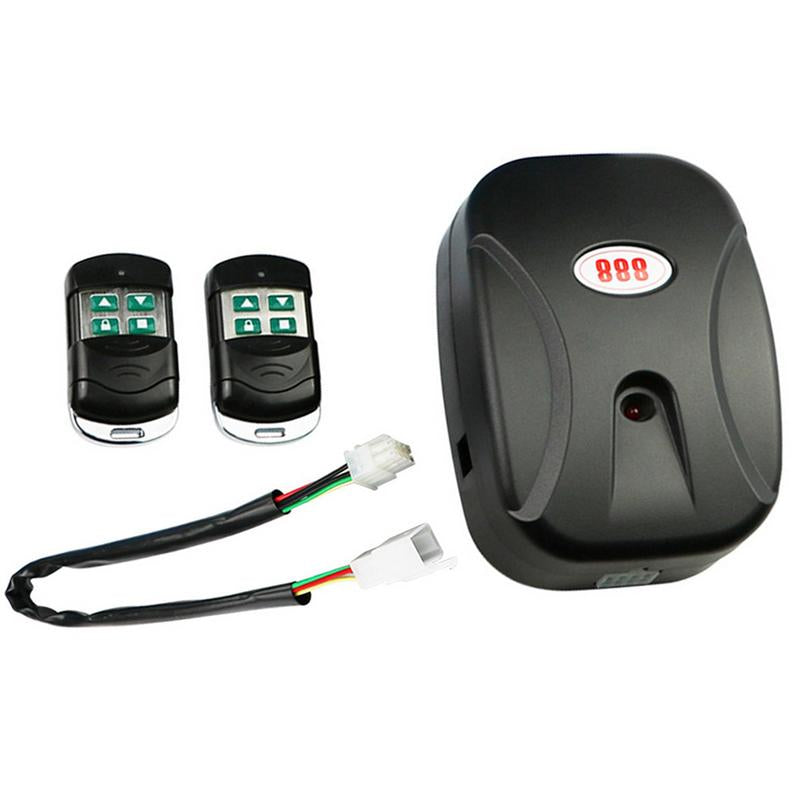

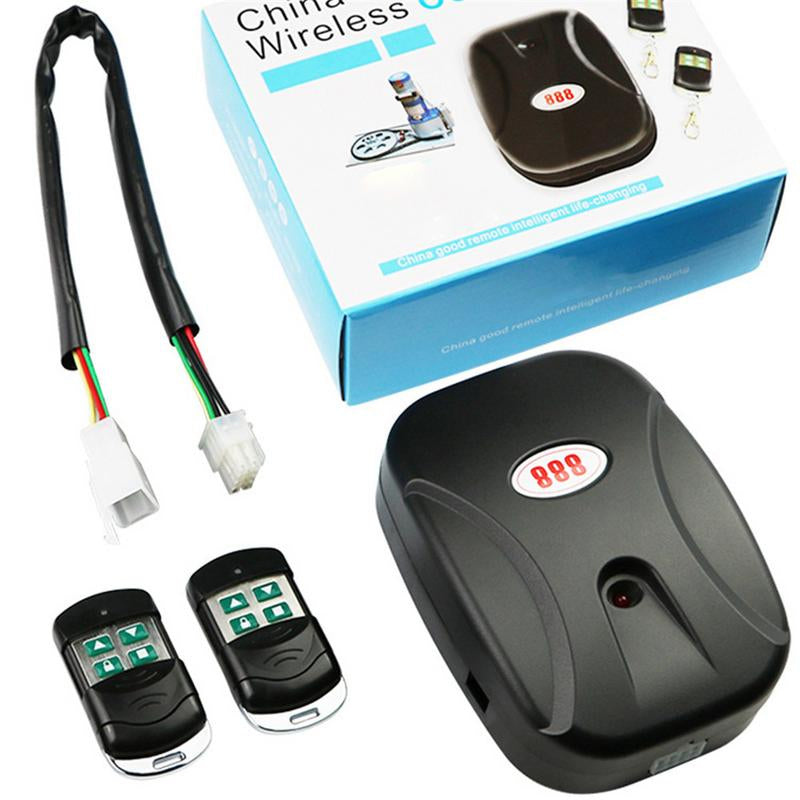

Packing list:
Control box*1
Remote control*2
Instruction manual*1.
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
