Description:
2019 New Usb Controller TTL PWM CNC Laser 3 Axis Driver Stepper Motor Control DIY CNC Machine Part GRBL Board CNC 3018/2418/1610
Package:

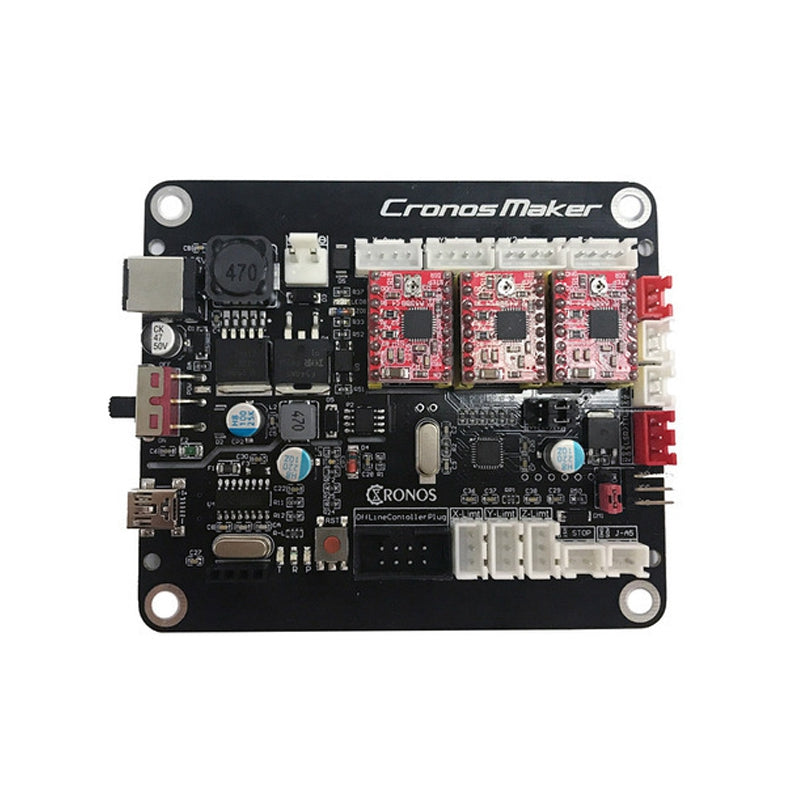

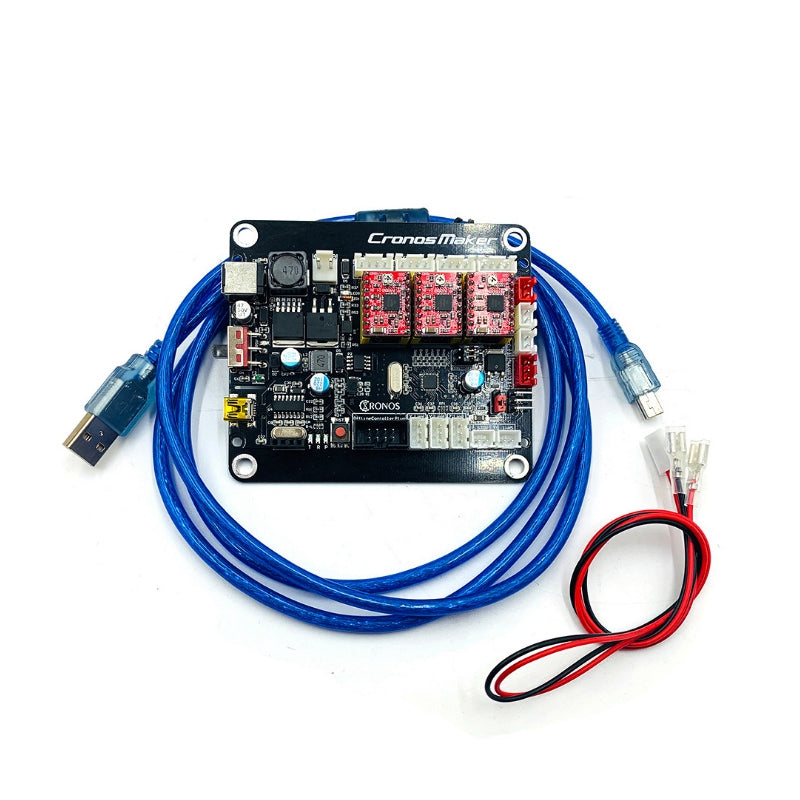

1 x GRBL controller board
1 x USB Cable
1x CD(Including laser control software, GRBL engraving machine control software, product instructions, software using instructions etc.)
This is a GRBL open source code-based laser, can be used for Laser Engraving machine, CNC Engraving Machine etc.

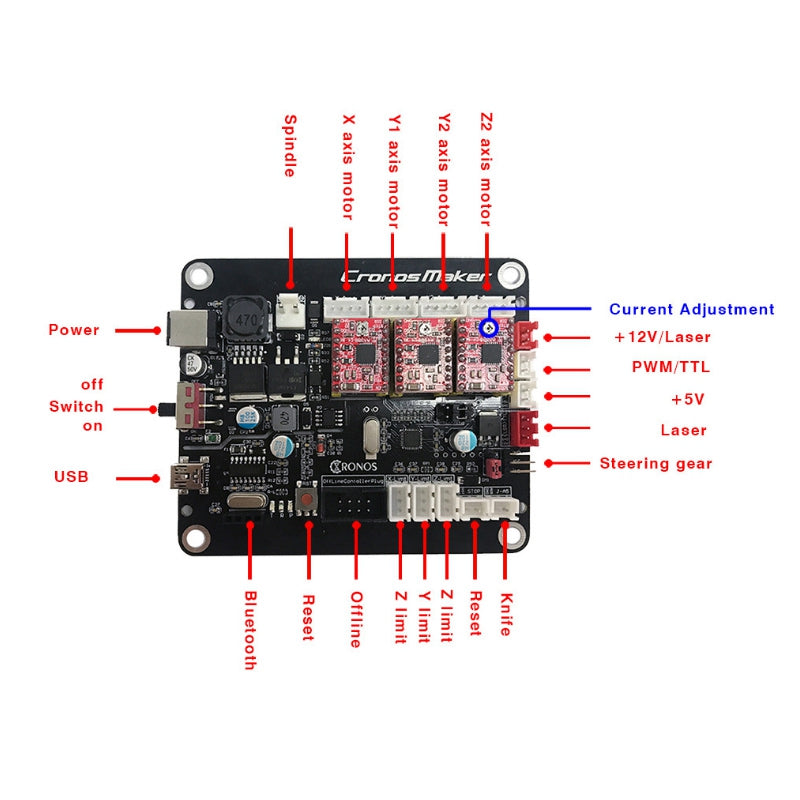

Characteristic:
1.Application:use for DIY mini Engraving machine or Toy laser engraving machine
2.Applicable software:GRBL control,Un Gcode Sender, GRBL controller,or other software that supports GRBL code
3.Communication:USB(USB-CH340).
4.Power supply: voltage: 12V current about 4A , according to the load to increase or decrease the power supply.
5.Stepper motor driver: A4988 motor driver,16 microstep 1.5A phase current output
6.Support stepper motor: NEMA17 NEMA23 stepper motor, phase current less than 1.5A .
7.Laser interface: 12V or 5V, power less than 18W laser module.
8.Spindle motor interface: the maximum support 400W DC spindle motor.
9.With fan interface and TTL signal output interface (for controlling the laser module with TTL module).
10.Limit interface: 3-axis limit interface.
11.Probe interface: for Z a
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
