1. Application scenarios:
1. Antenna RF feed
2. Connect the instrument to block the direct current when testing the module [The spectrum analyzer and signal source cannot be directly connected to direct current, so direct current is required.
2. Module size:
Volume: 4.5*3*1.4cm (without protruding SMA),
Weight: 66g (including host + TYPE-C cable);
3. Module parameters:
1. Working frequency: 10M-6GHz
2. Insertion loss: ≤1dB (refer to the measured S21 S11 curve for details)
3. Normal working voltage of DC blocking: DC-250V [Nominal withstand voltage of DC blocking capacitor is 250V, using ATC brand, high frequency microwave low insertion loss capacitor】

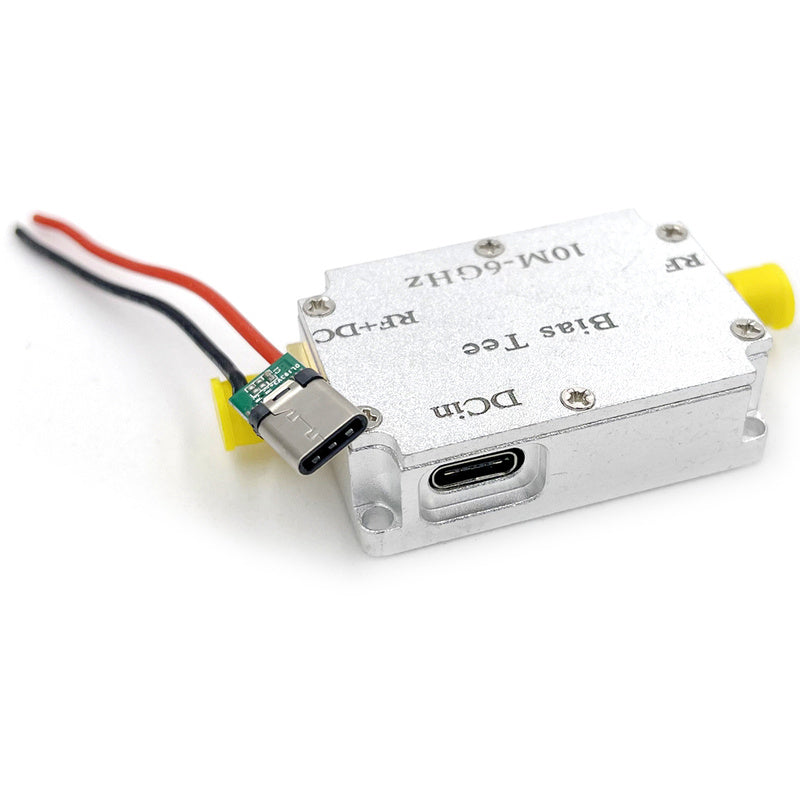

4. Normal working voltage and current of feeding: ≤350mA [The feeding current is mainly related to the current limiting of the feeding inductance. The microwave radio frequency inductor currently used is 350mA; the maximum feeding voltage is 50V] Power is supplied through the TYPE-C interface
5. Input and output impedance 50 ohms, input and output interface SMA

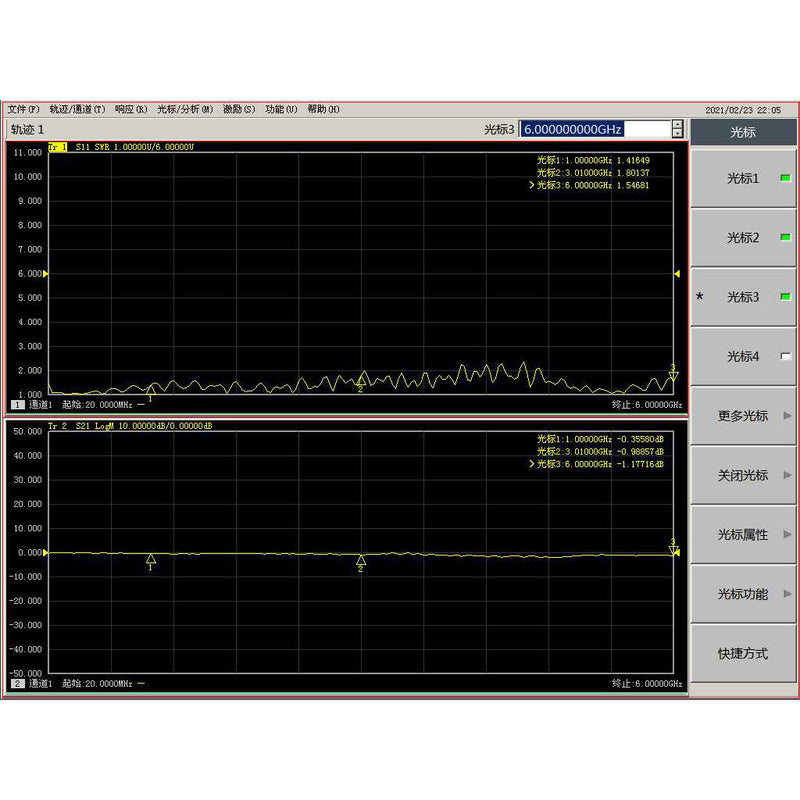

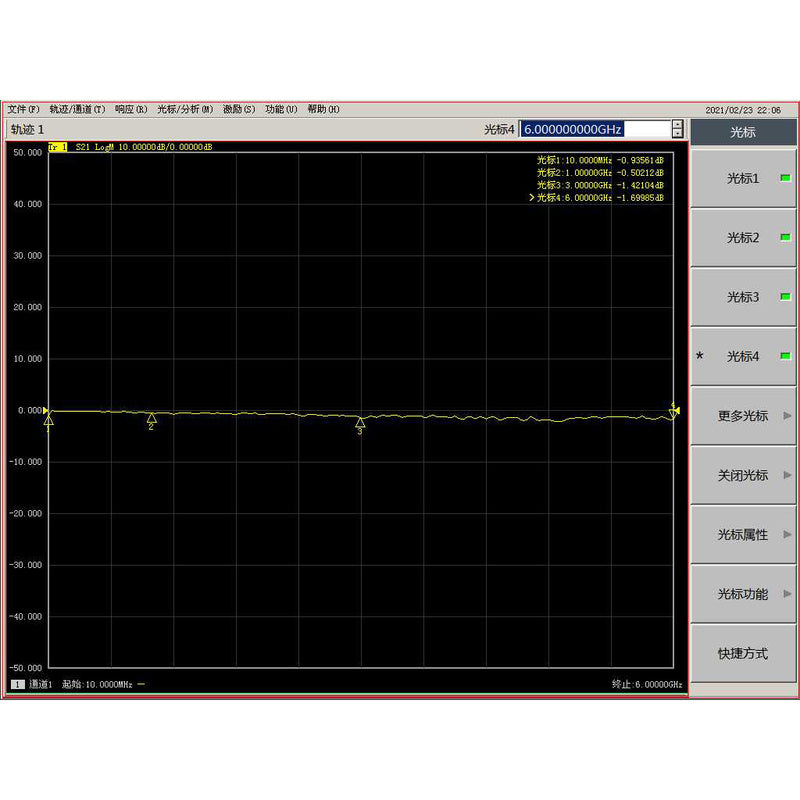

Measured S parameters
