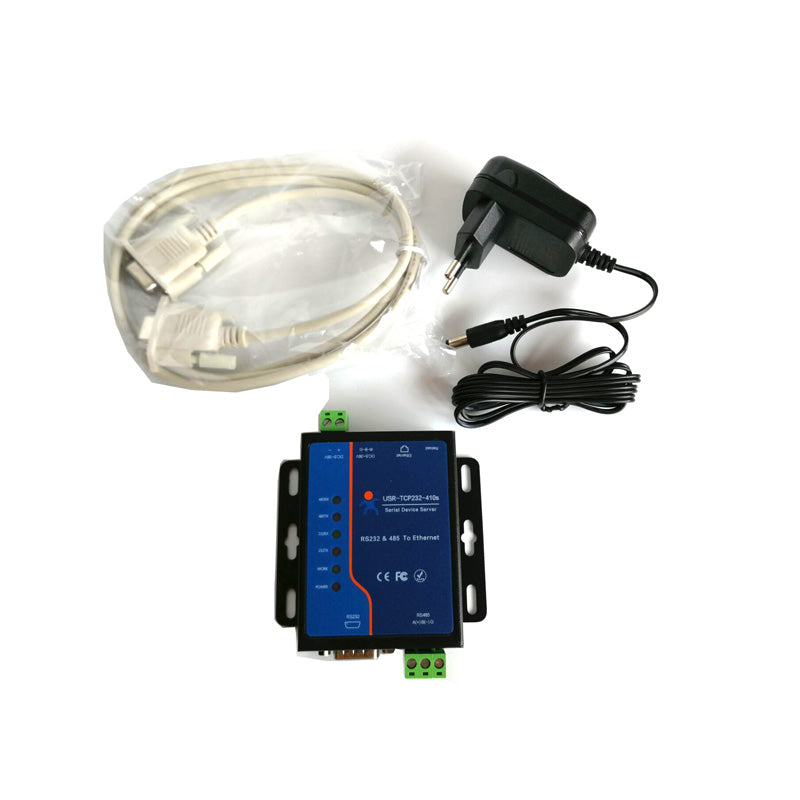

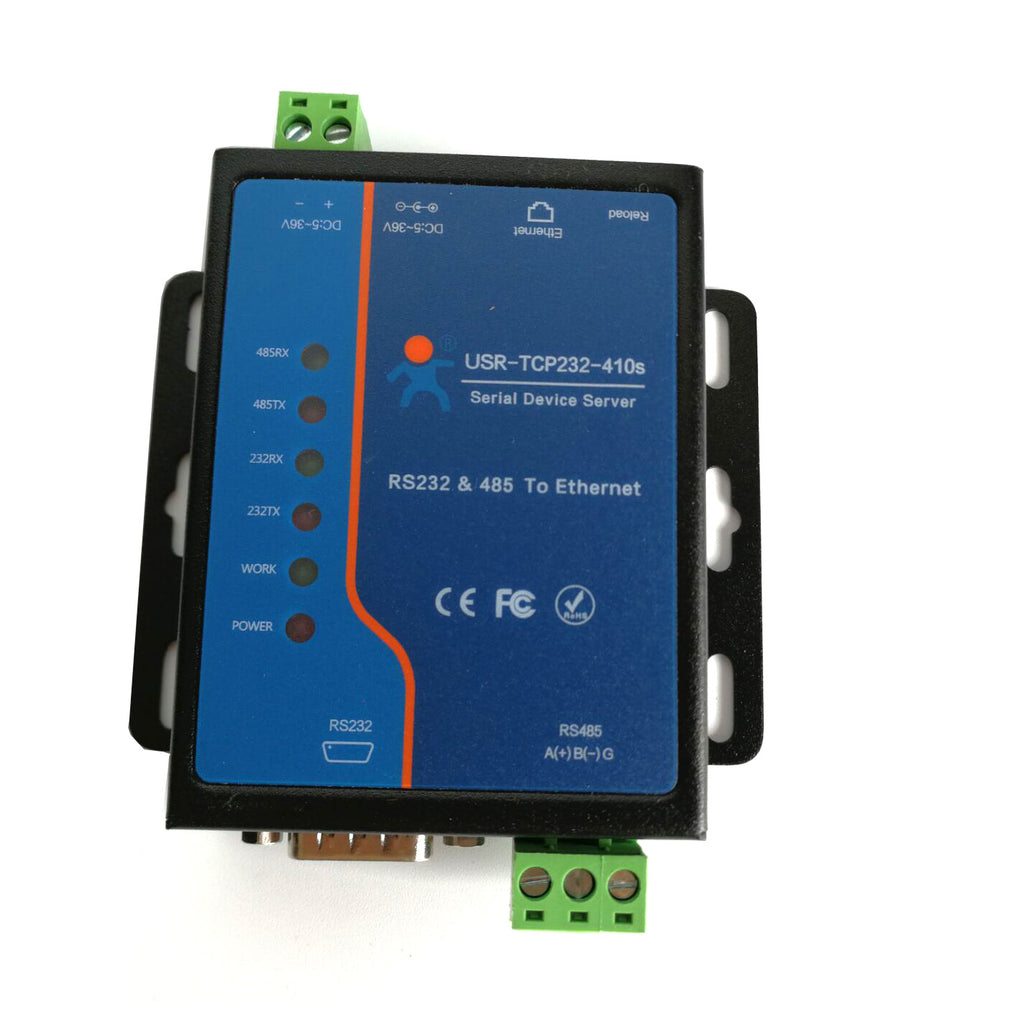

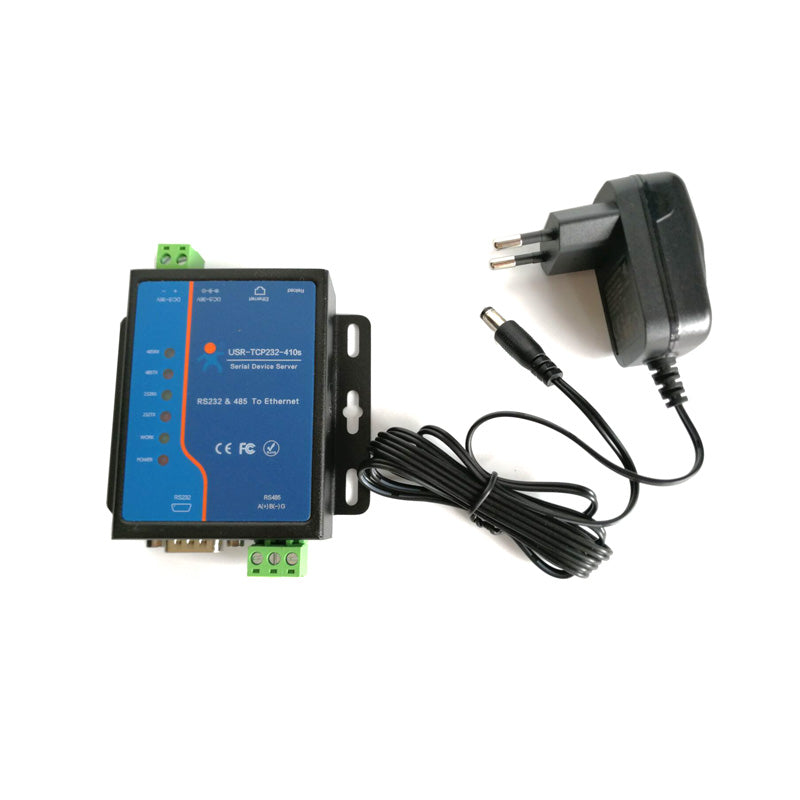

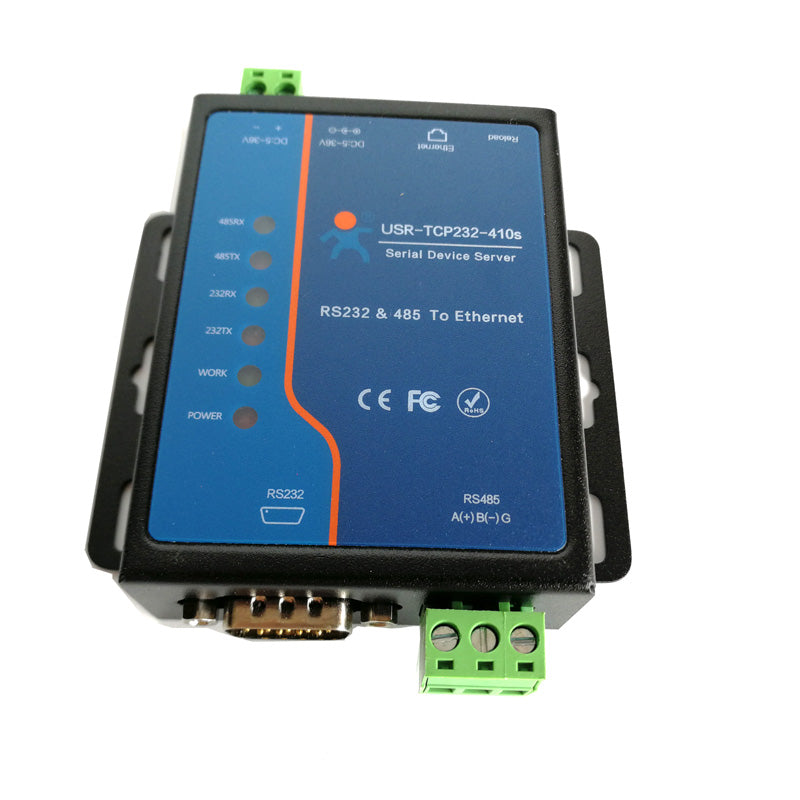

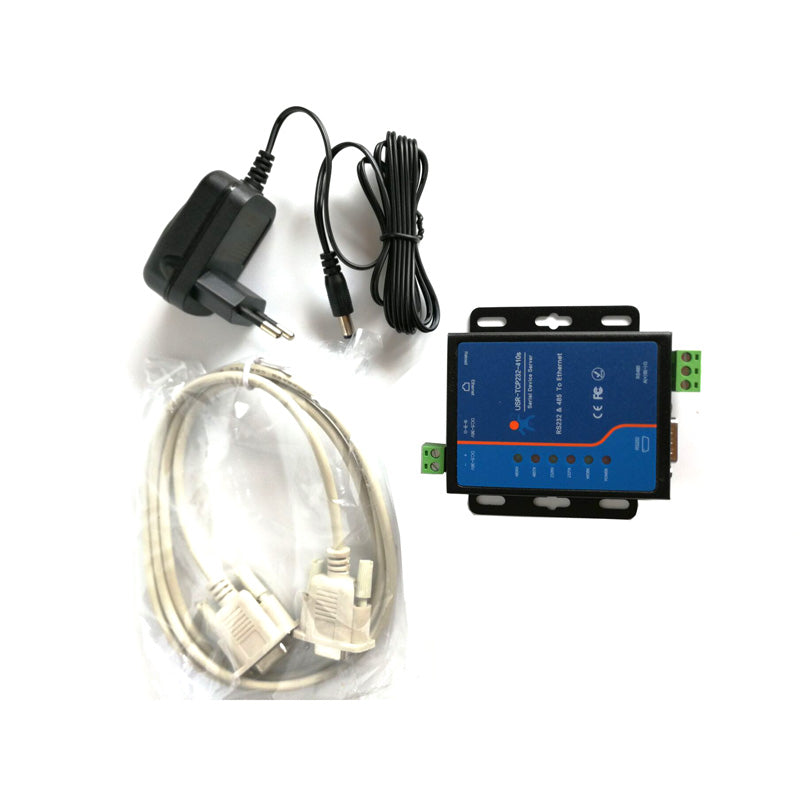

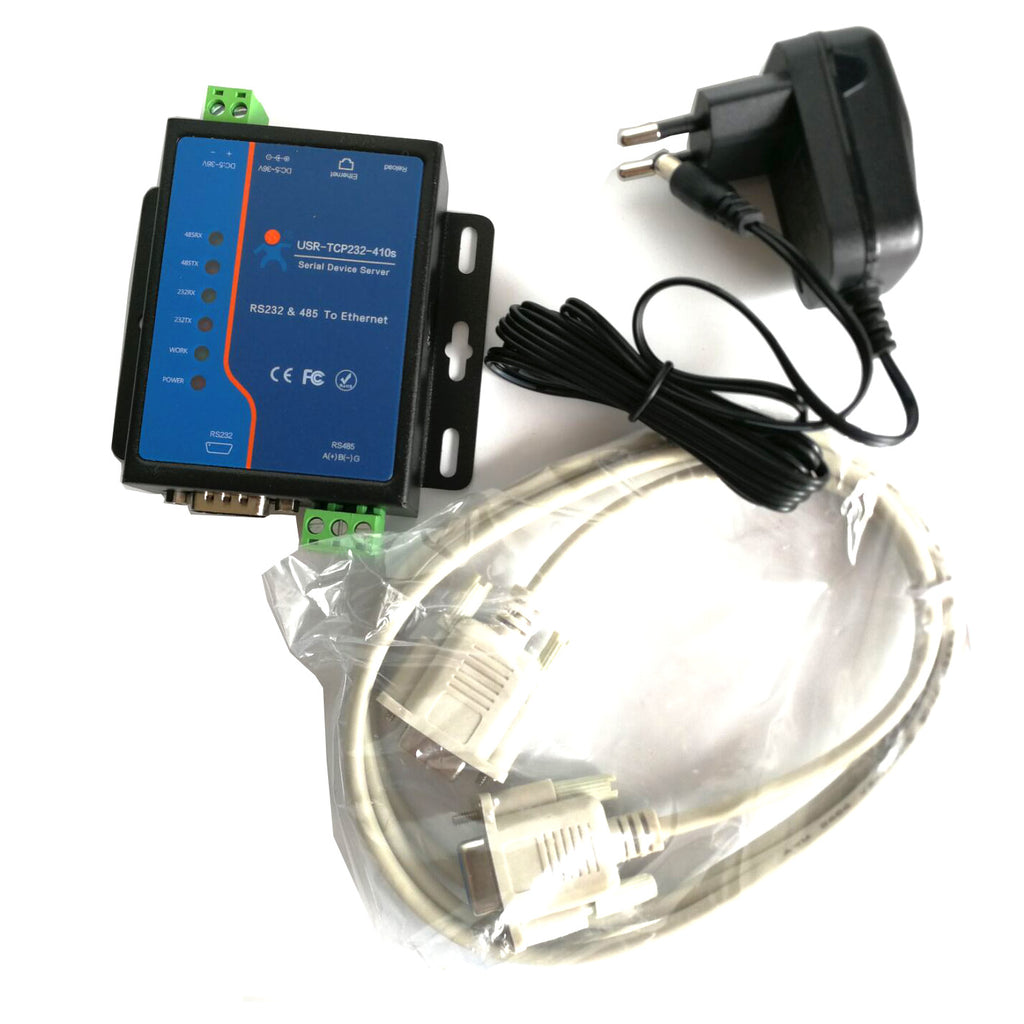

USR-TCP232-410s Serial RS232 RS485 to TCP server ethernet converter with modbus RTU
USR-TCP232-410s is industrial serial ethernet server, which can realize bidirectional transparent transmission between serial RS232/RS485 and Ethernet. No more consider about the details, protocol conversion inside the server. Through simple settings via webpage or setup software can assign working details, realize serial data and TCP/IP data package transparent transmission.
|
Industrial Solution
|
TI Cortex M4 Solution, work temp at -40·85C
|
|
Power Supply
|
DC/Terminal type 5V~36V
|
|
Serial Port
|
Supports RS232/RS485 can be used at one time
|
|
Flow Control
|
Hardware CTS/RTS, ( Software: XON/XOFF can be avaliable)
|
|
Modbus Gateway
|
Modbus TCP to Modbus RTU
|
|
Advanced Function
|
|
|
Work Mode
|
TCP Server/ TCP client/ UDP Server/UDP Client/ HTTPD Client
|
|
Built-in web page
|
Customzied web page is acceptable
|
Port 1
1.Can distinguish which serial port connects to the device via port number.
2.Reload button,one key to restore default settings
3.Support time-out restart
Port 2
1. Data transmission between serial port and web page
2. Supports keep alive function, rapidly detect dead links
3. Serial port can work independently at the same time
4.Identification package/Heartbeat package
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
