Specification

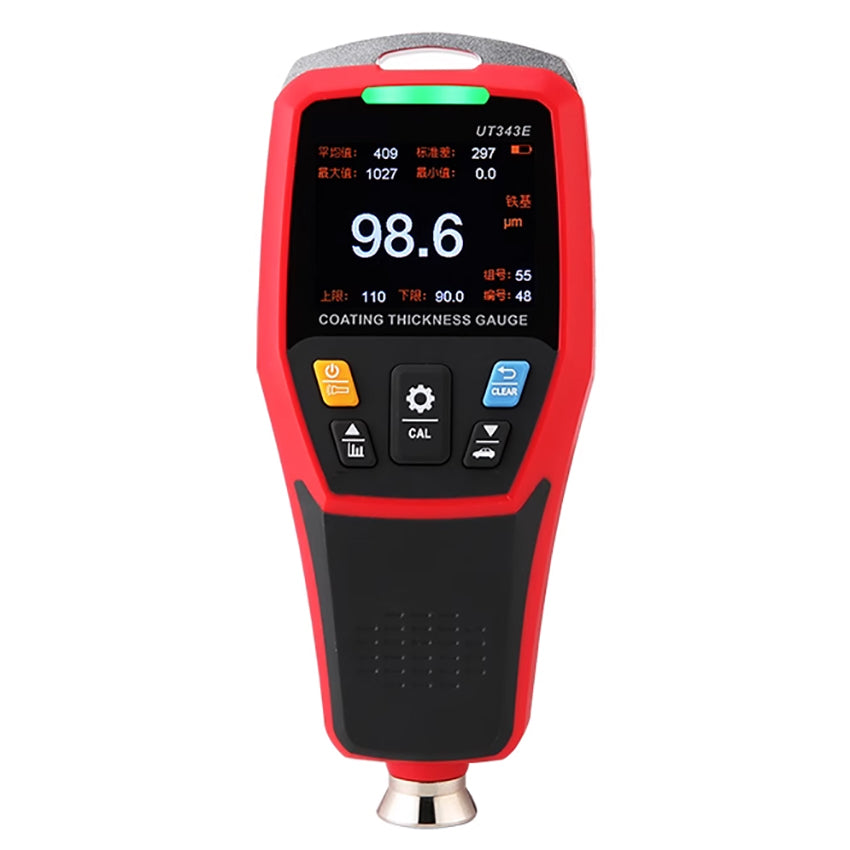

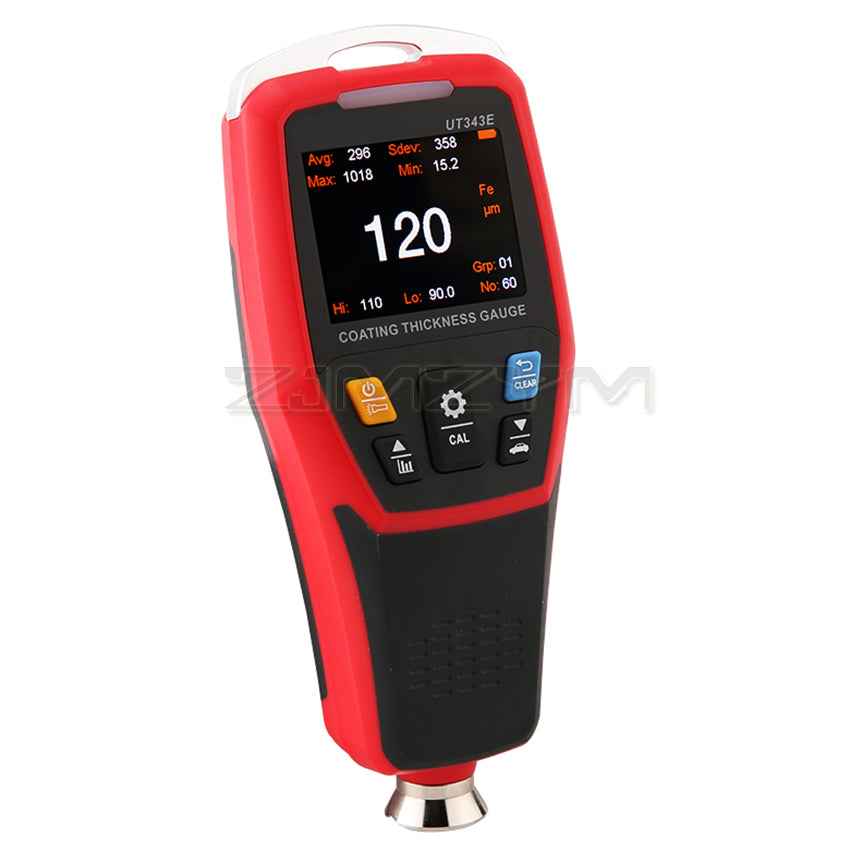

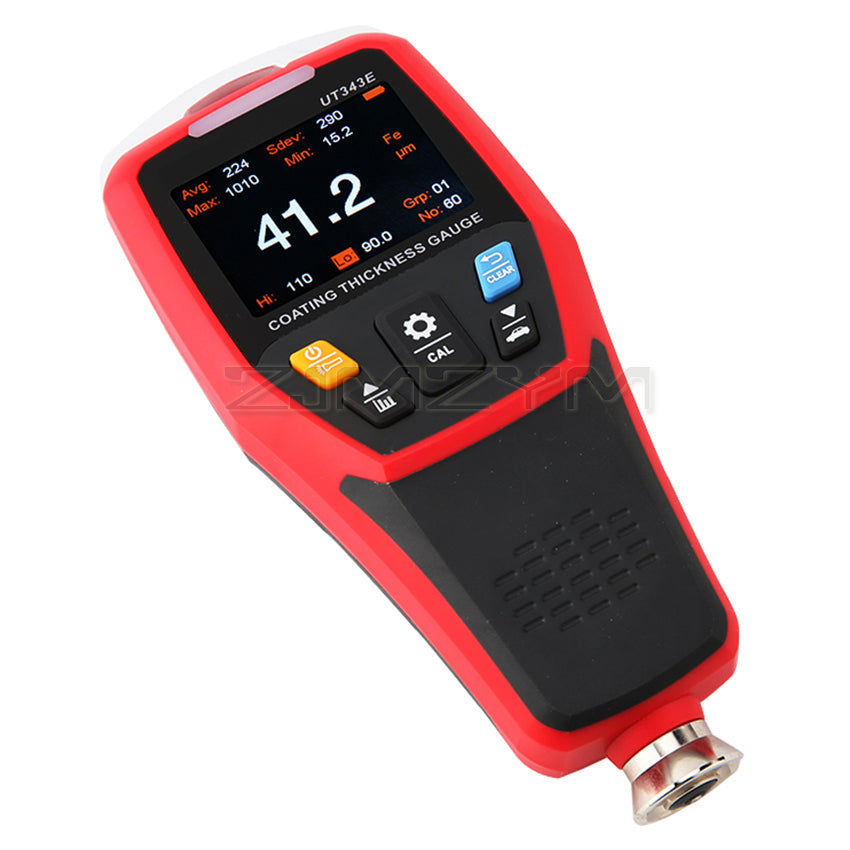

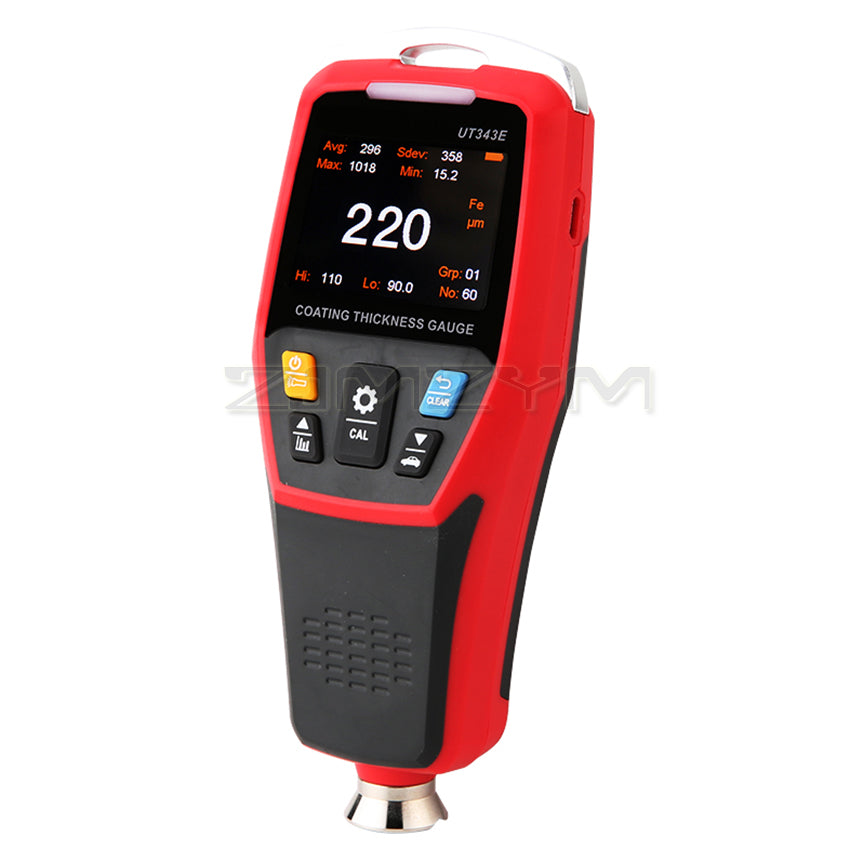

Name: Coating Thickness Gauge
Model: UT343E
Unit conversion: um / mil
Measuring range: 0-2000µm / 0-78.7mil
Suitable for: Measurement of ferrous and non-ferrous substrates (FE and NFE)
Measurable media:
1. Non-conductive coating on magnetically conductive metal
or non-conductive metal materials;
2. Magnetically conductive metal materials on the conductive coating
(such as: iron / steel above the galvanized layer)
Recognition mode: automatic, manual recognition
Probe measuring force: 0.3~1.5N
Power supply: 3.7V 1300mAh lithium battery
LCD backlit screen display: 2-inch TFT (resolution: 320 * 240)

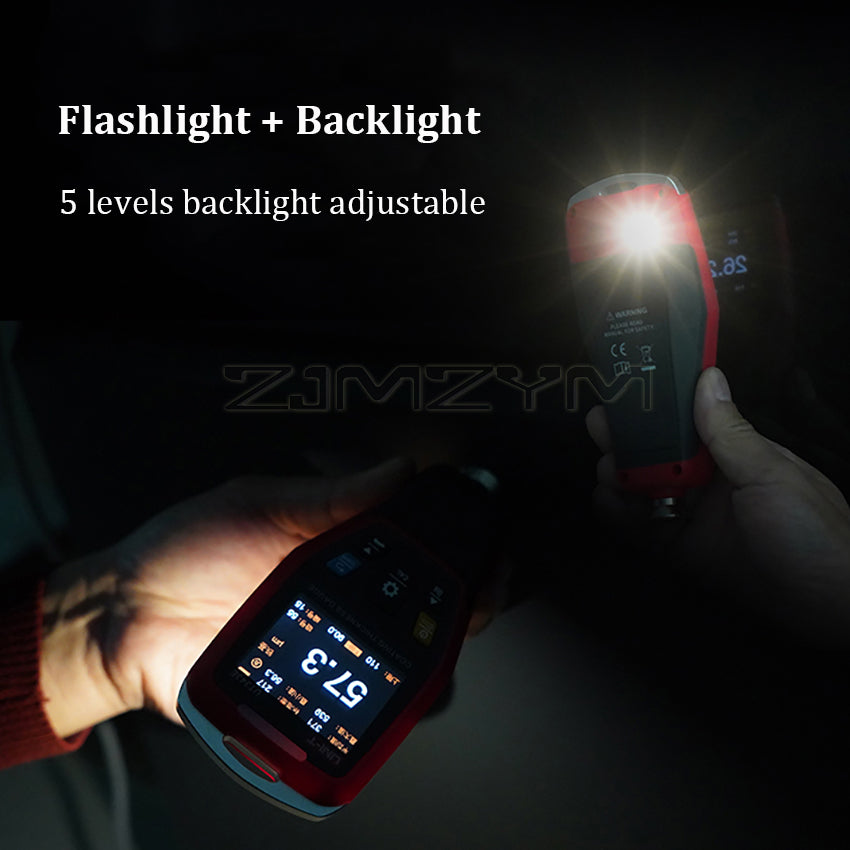

Flashlight function: With
Backlight brightness: 5 levels adjustable
Micro-USB interface: With
APP Bluetooth wireless data transmission function: With (built-in 5.0 Bluetooth module)
APP Bluetooth transmission distance: ≥10m
Automatic language broadcasting: With
LED prompt light: red, green, yellow 3 colors
Calibration mode: zero calibration / two-point calibration (settable)
Car paint mode: single point, five-point quick determination
Storage capacity: can store 3300 measurement values (55 groups * 60 strokes)
Screen display mode: can be automatically rotated and manually locked
Automatic shutdown: no operation about 5 minutes shutdown
Net weight: 0.5kg
Machine size: 152*65*35mm

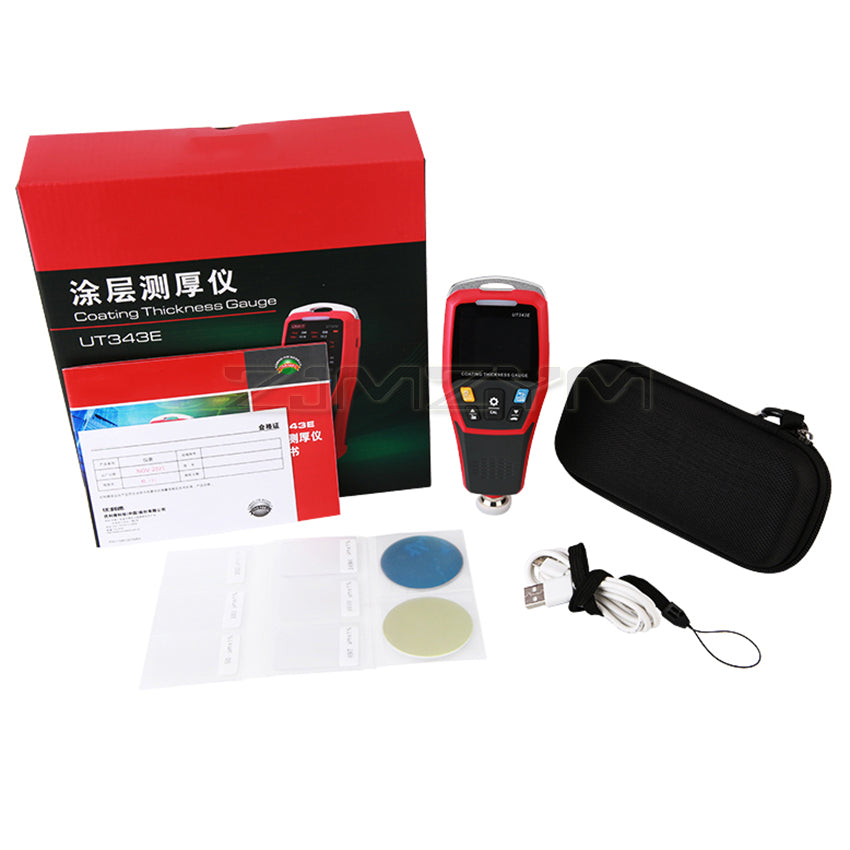

Package Included:
Host*1
Standard film thickness sheet*1
Iron substrate*1
Non-ferrous substrate*1
Sensor cover*1
Carrying strap*1
USB cable*1
Cloth bag*1
Manual*1
