1. Product Introduction

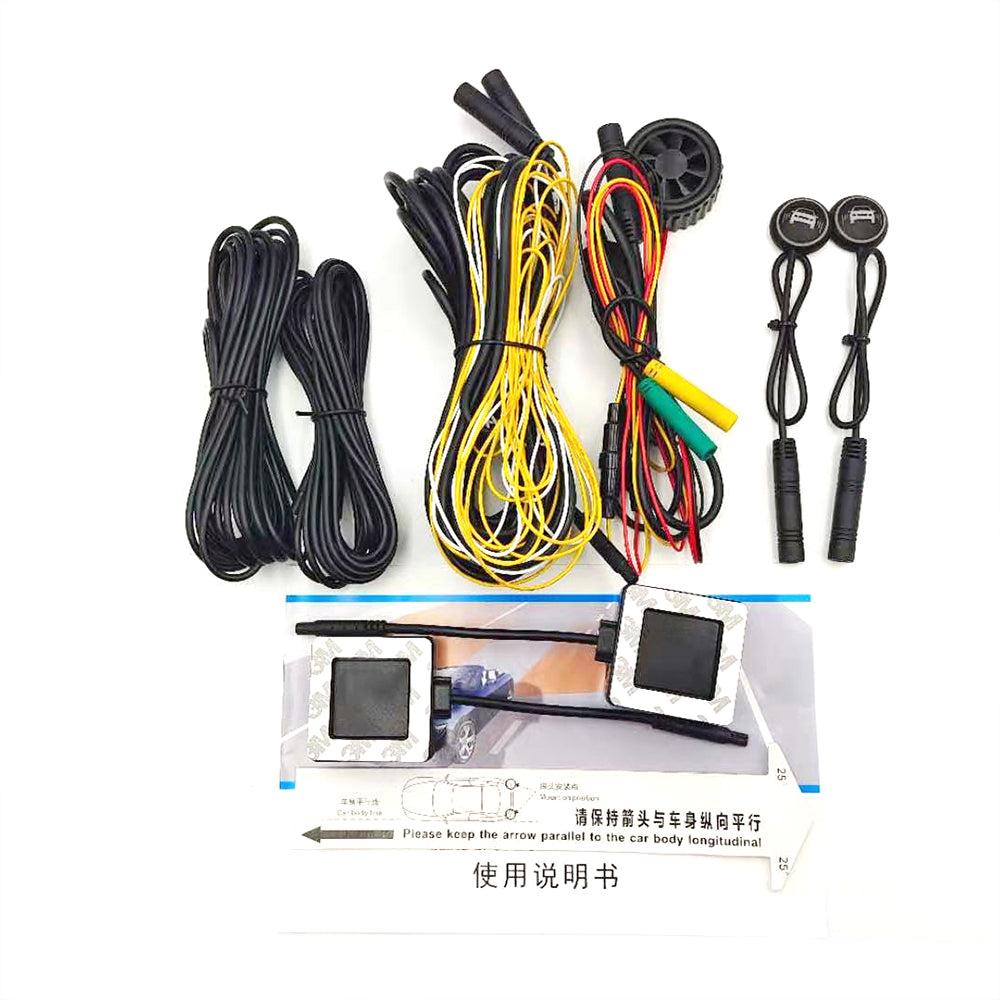

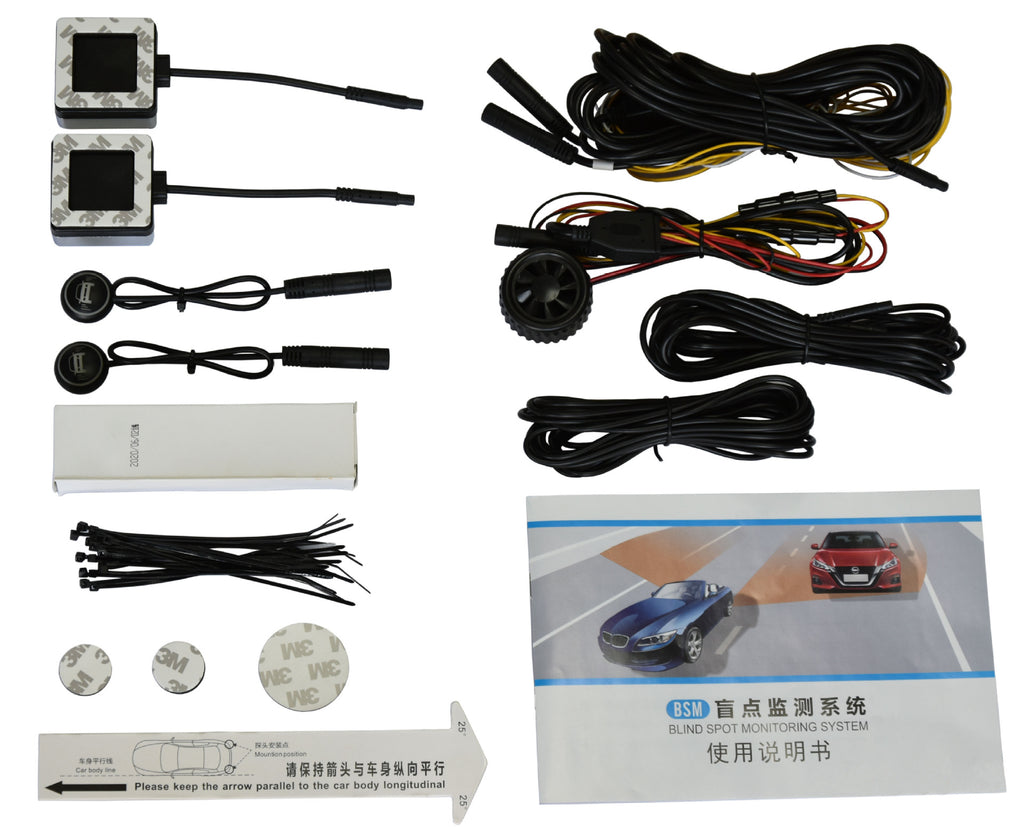

 Thank you for your choosing our Blind Sport Monitoring System (BSM). This system is a vehicle assistance device that helps driver lane changing safely during driving. With the aid of 24GHz microwave sensor, probe the side / rear of the vehicle for those moving objects into the blind spot of the detection zone. The system works in two microwave sensors, two LED light (or blind region monitor), a buzzer and the wire harness which is the perfect connection of microwave and computer.

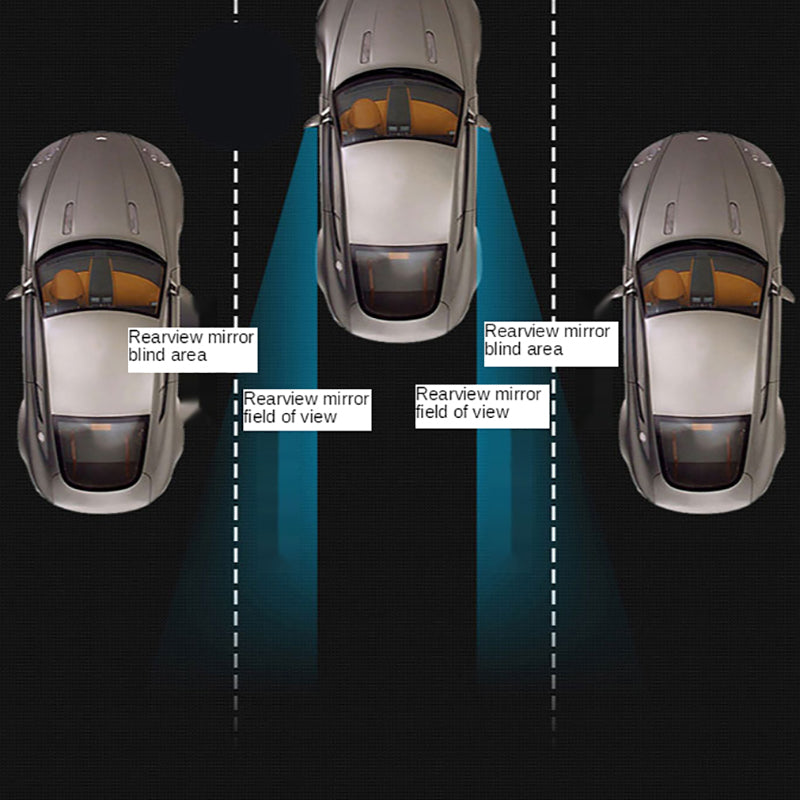

 There is blind zone at the rear of the vehicle which is easy to endanger driving safety.! When you installed BSM into your lovely car, no matter it's day time, night time or even in the snow, you can be alerted whenever there is a moving object pop into the rear of the vehicle, with the aid of LED lighting on , blinking, buzzer sound so that the driver can be cautious when lane changing to avoid the possibility of side crash accident.This system is easy to be installed, no need to punch, non destructive car appearance. Installed at the plastic bumper left / right side of the rear of the vehicle, will instantly improve the use of the original car performance.

 "Lane changing has warning, make driving safer".

 Sincerely thanks for the choice of this system.



 3. Technical parameter

                Number

       Project specification

               01

       Electricity Voltage : 12V

               02

       Maximum Power: 5W (max)

               03

       Working Temperature : -40°C--- +85°C

               04

       Storage Temperature : -40°C---  +85°C

               05

       Waterproof level :IP67K

               06

       Detection Range : Lateral Distance : 0.3m - 4m; Rear side Distance : 0.3m - 10m.

               07

       Detection Range Accuracy : N96%

               08

       Alarm Range : 0. 3m-10m

               09

       System Alarm Accuracy : N96%

               10

       Alarm method : method 1 => LED light turn on. Method 2 => LED flash and buzzer sound.





 4. Cautions points during installation

 1. Please prepare necessary disassembly tool and protective bumper painted sponge pad or cloth pad.

 2. When you disassemble connector, MUST NOT pull wire harness in force, otherwise, will broken the harness. Please plug in connector until it practically tightened (you can hear the sound of "Click").

 3. The wire harness should be fixed with the car cable harness by tie band. Neither droop nor abnormal sound. Cut off excess tie band.

 4. Disassemble and assemble procedure, please strictly follow our installation manual. Try not to break parts as careful as possible. In case of breakage, please change the parts immediately.

 5. Microwave sensor installation cautions points.

 1. Microwave sensor (signal launching surface) can only penetrate the plastic bumper case.

 2. Microwave sensor (signal launching surface) in the front, must be no metal intervention.

 3. Should not install microwave sensor opposite to fluorescent light

 6. Overall diagram of installation



 7. Wire connection

 1. Power supply wire connection

 (1) Connect black wire of power supply wire with negative side of the vehicle or ground.

 (2) Connect yellow wire of power supply wire with vehicle power supply ACC 12V.

 (3) Connect red wire of power supply wire with vehicle power supply ACC 12V.

 (4) Connect indicator extension wire to power supply wire with same labeling. Yellow wire to right indicator, green wire to left indicator.

 2. Extension of sensor cable connection

 (1) Connect 6P sensor wire to power supply wire.

 (2) Sensor wires connect to left and right sensors, make sure connect tightly.

 (3) Connect white wire of extension of sensor cable with right turn light 12V.

 (4) Connect yellow wire of extension of sensor cable with left turn light 12V.

 Caution: Because of different left and right sensor wire length, power supply wire is assumed to connect to dirver's side. If power supply wire connect to front passenger's side, leftt and right sensors should install in vice versa.

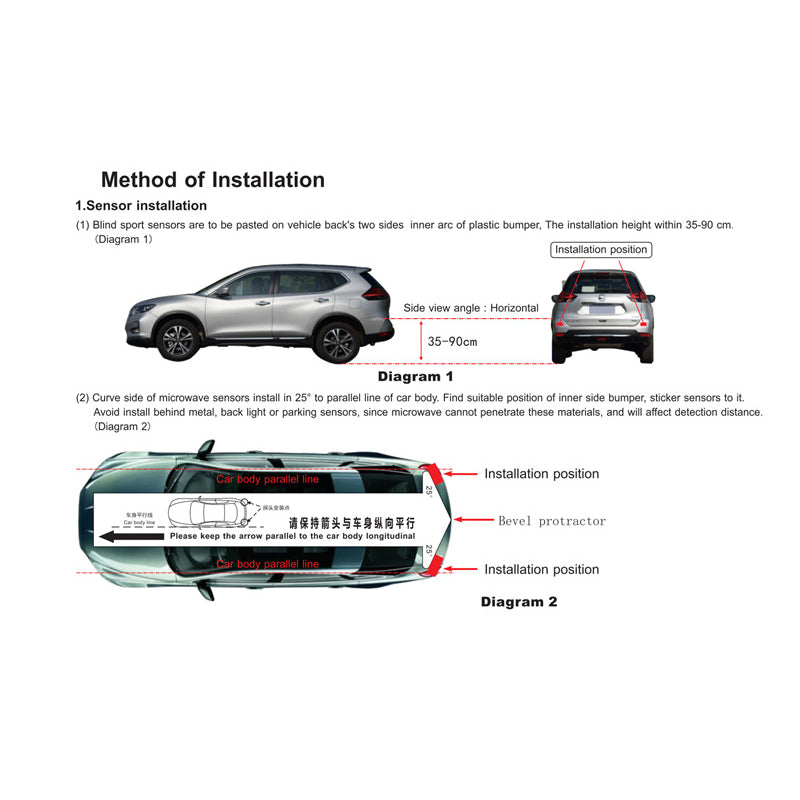

 8. Method of Installation





 (3) Remove rear plastic bumper, cautious not to scratch the surface paint, put the bumper onto soft sponge or cloth pad.

 (4) Corresponding side of the remarked outer arc, that is inner arc of the bumper (note: inner arc and outer arc must be at the same position). Wipe the area which sensor is to be pasted by a cloth with alcohol and make a marking.

 (5) Remove 3M sticker of the sensor, paste sensor on the marked inner arc, press tight, be aware of wire terminal direction of sensor during installation, sensors install horizontally with wire in up or down direction. (Diagram 3)

 (6) Finally fix the miccowave sensors with 704 silicon glue. Connect sensors wire to control box sensor extension cable.(Diagram 4)

 (7) Repeat above procedure to install another sensor.



 2. Special Blind Sport Mirror Installation (Please skip this procedure for universal product)

 (1) Remove the front door trim panel and rear view mirror and unplug the heating plug of the mirror.

 (2) At the front door, pull the LED extension wire to the rear view mirror position, then connect the LED extension wire connector with the relative connector of the BSM rear view mirror of special car.

 (3) Plug in the heating plug with the BSM rear view mirror.

 3. Universal LED light Installation (Please skip this procedure for special product)

 Please paste LED light on rear view mirror A pillar upside positionfit is best to see the position of the rear view mirror at the same time.(Diagram 5)

 4. Control box and buzzer installation

 Buzzer to attached to the driver's place. Control box installed in the plastic panel of driver,s main cab dashboard. Should avoid the place of high temperature, moist, leakage.



 9. Testing after installation and vehicle parts recovery

 1. Confirmation of Installation status

 (1) Before powering on, check if there is any abnormality in cabling and installation.

 (2) Specifically check of improperiy pressed, stretched, stuck etc. of the vehide wire harness.

 2. Power Restore

 (1) Start the car to ensure that the vehicle functions properly.

 (2) If any abnormalities occur, please check wire harness installation.

 3. Functional Test and parts recovery

 (1) Start the car, move car near the back of sensor to see if LED is light on, both left and right side is to be tested.

 (2) Switch on both "Left / Right turn on lighf separately, when move near car, test if LED blinks and produce sound alert altogether.

 (3)Functionality test passed, then restore those uninstalled original car parts and check if all function property.

 10. User's Guide

 1. After the car ACC is powered on, the LED lights installed on the left and right sides will light at the same time and turn off after 1 second, indicates that the system is powered up. The system enters the working status immediately.

 2. After the system enters the working status, it detects the blind areas (cover both sides of the driveway, length direction is about 10 meters) of the rear sides of the car. (Diagram 7)

 3. When the reverse gear is hung, the system enters interference avoidance mode, the system is temporarily shut down, and the system resumes working mode after exiting the reverse gear.

 Left side blind area check:

 (1) When moving vehicle is detected in the left rear blind zone, left side LED light will light up.

 (2) If you turn on the Left turn signal at this time, then Left side LED light flash as the reminder. Simultaneously, buzzer sounds three consecutive alarms.

 Right side blind area check:

 (1) When moving vehicle is detected in the right rear blind zone, right side LED light will light up.

 (2) If you turn on the Right turn signal at this time, then right side LED light flash as the reminder. Simultaneously, buzzer sounds three consecutive alarms.

 In other cases, LED light and buzzer no reaction.



 4. Under the following circumstances, the radar sensor cannot detect the target object.

 -The vehicle is in a blind sport behind the adjacent lane, but the vehicle is not close.

 -Opposite approach vehicle.

 -The adjacent lane of the vehicle is very wide, exceeding the detection range of the radar probe.

 -The vehicle nearly at the same speed along with your driveway at a longer driver time.

 -Vehicles in adjacent lanes try to exceed you.
