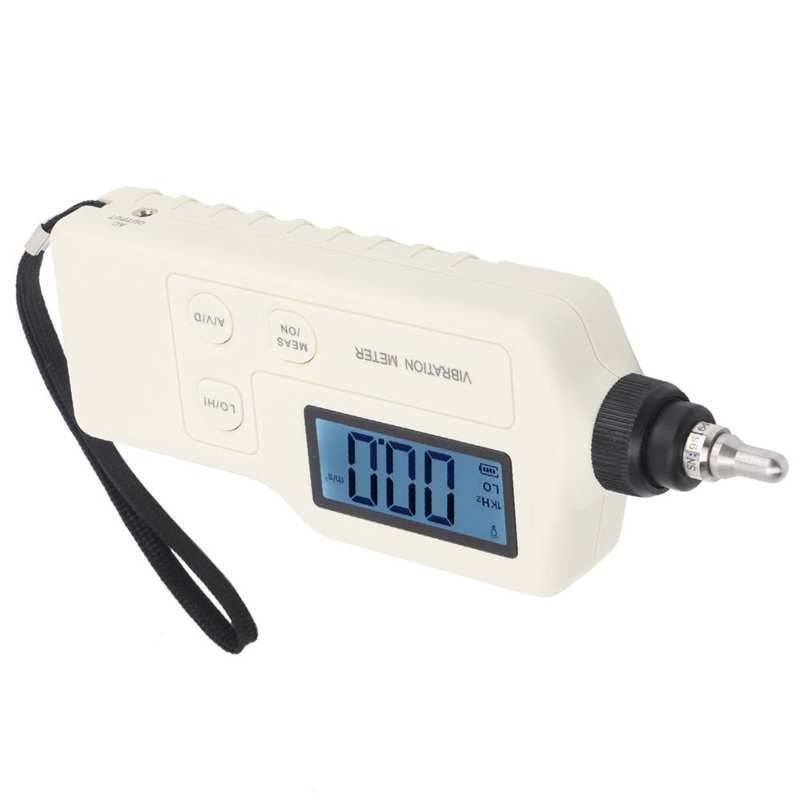

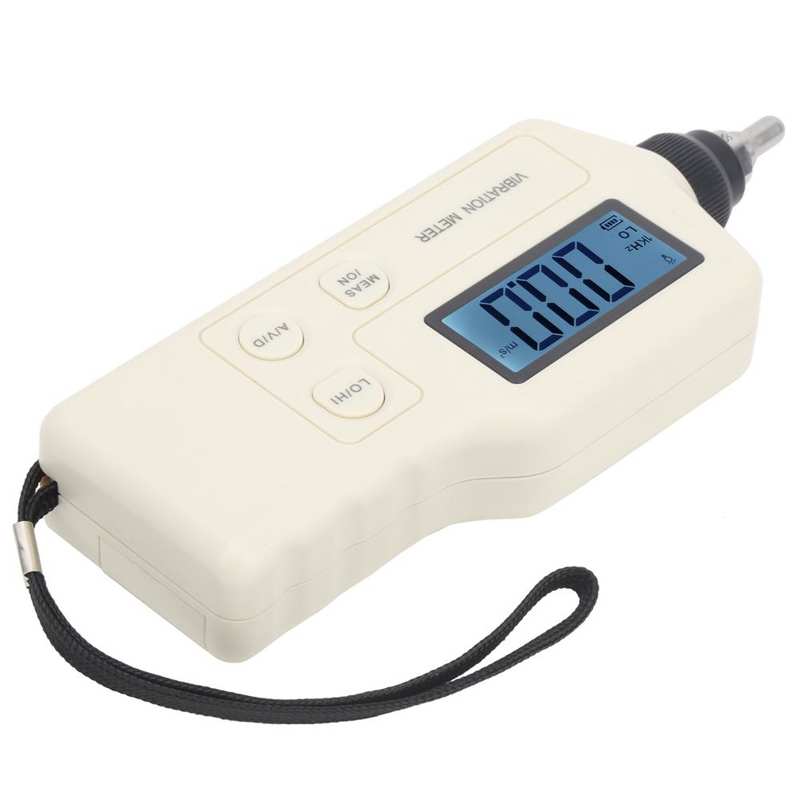

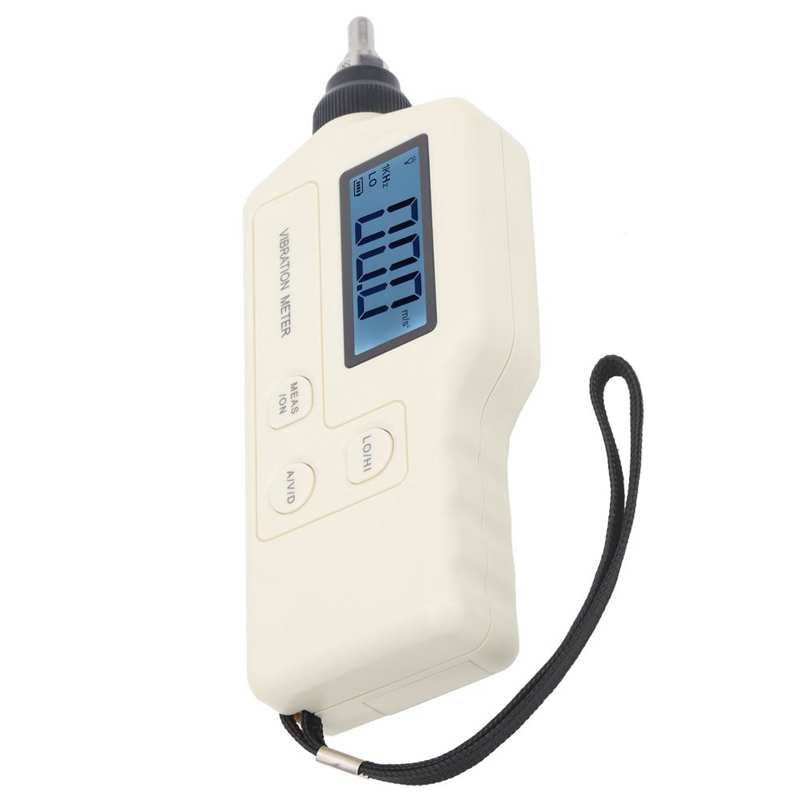

Handheld Portable Digital Vibration Meter Tester Vibrometer Mechanical Bearing Fault Detector
Feature:
1. Simple to use, the structure is compact, portable for carrying along with measurement.
2. Digital display LCD large screen, visually display measurement value and state.
3. It can measure acceleration, speed and displacement, and choose different vibration frequency characteristics.
4. Highly sensitive probe, accurate measurement, equipped with AC signal output interface.
5. With low battery indicator function, automatic shutdown function, LCD backlight function.
Specification:
Item Type: Vibration Meter
Material: ABS
Color: As shown in the picture
Acceleration Measurement Range: 0.1~199.9m/s peak
Speed Measurement Range: 0.1~199.9s effective value
Displacement Measurement Range: 0.001~1.999mm peak
Measurement Error: ±5%±2digits (ie 2 words)
LCD Display: 3 and a half digits display
Acceleration Measurement Frequency Range: 10Hz~1KHz 1KHz~15KHz
Speed Measurement Frequency Range: 10Hz~1KHz
Frequency Range of Displacement Measurement: 10Hz~1KHz
Display Data Replacement Cycle: 1 second
Power Supply: 1 x 9V alkaline battery (not included)
Data Output: AC output 2V peak (display full range) Load: 10kΩ or high-impedance headphones can be connected
Quiescent Current: ≤20μA
Working Current: ≤25mA
Automatic Shutdown Function: Automatic shutdown within one minute of no operation
LCD Backlight Function: Turn off after 7 seconds of no-operation
Operating Temperature Range: 0~40℃
Working Humidity Range: 30%~90%RH
How to Use
Get the product, open the power cover of the back cover, install the battery, close the back cover, lightly press MEAS/ON to turn on, long press MEAS/ON to measure immediately, long press MEAS/ON, release the button The data can be displayed. LO/HI is the switch of high and low frequency, it can also be calibrated to zero, and the unit of A/V/D can be switched. The product is simple to operate and compact.
Package List:
1 x Vibration Meter(Battery Not Included)
1 x Instruction Manual

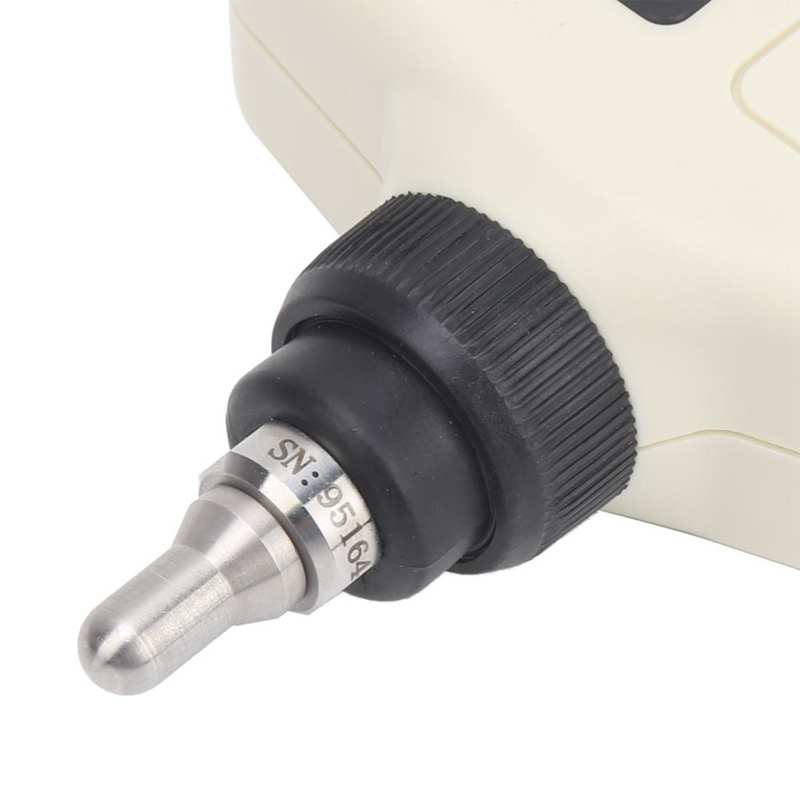

1 x Long Probe
1 x Short Probe (installed on the host)
1 x Packing Box
