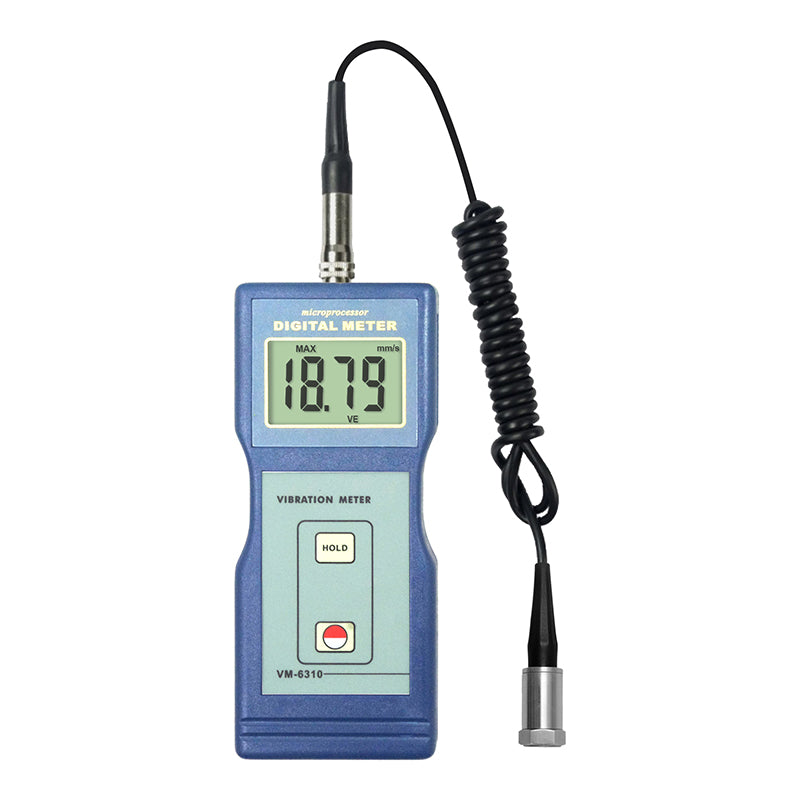

Features:
* In accordance with ISO 2954, used for periodic measurements, to detect out-of-balance, misalignment and other mechanical faults in rotating machines.
* Specially designed for easy on site vibration measurement of all rotating machinery for quality control,commissioning, and predictive maintenance purposes.
* Individual high quality ccelerometer for accurate and repeatable measurements.
* Optional headphones for use as electronic stethoscope.
* Bearing condition monitoring function.
* Use “USB data output” and “RS-232 data output” to connect with PC.
* Provide “Bluetooth ™ data output” choice.
Specifications:
Sensor
Piezoelectric Accelerometer
Measuring Range
Velocity: 0.01~199.9 mm/s True RMS
Frequency Range
Velocity: 10 Hz ~ 1k Hz
Accuracy
< 5 %
Analogue Output
AC Output 0~2.0 V Peak Full Scale (Load Resistance: Above 10k)
Max. Value Hold
Power Off
Manual Power Off or Auto Power Off
Battery Indicator
Low Battery Indicator
Data Output
USB, RS-232, Bluetooth
Operating Conditions
Temperature: 0~50 °C Humidity: <90 %RH
Power Supply
4 x 1.5V AA size (UM-3) Battery
Dimensions
160 x 68 x 32 mm
Weight
181 g (Not Including Batteries)
Vibration Standard:
ISO/IS2373 Motor Quality Standard According As Vibration Velocity
Quality Rank
Rev(rpm)
H:high of shaft(mm)
Maximum vibration velocity rms(mm/s)
80<H<132
132<H<225
225<H<400
Normal
600~3600
1.8
2.8
4.5
Good(R)
600~1800
0.71
1.12
1.8
1800~3600
1.12
1.8
2.8
Excellent(S)
600~1800
0.45
0.71
1.12
1800~3600
0.71
1.12
1.8
Difference of VM-6310,VM-6320 and VM-6360:
