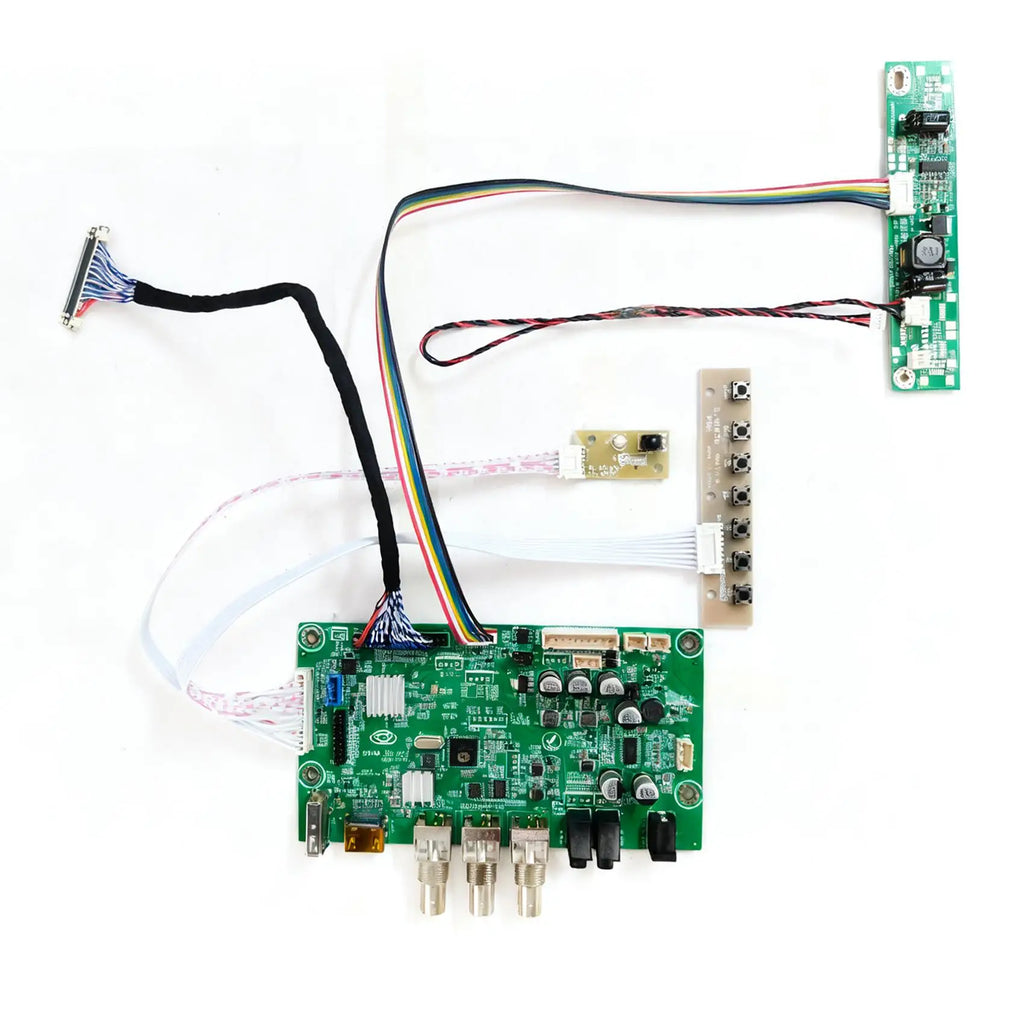

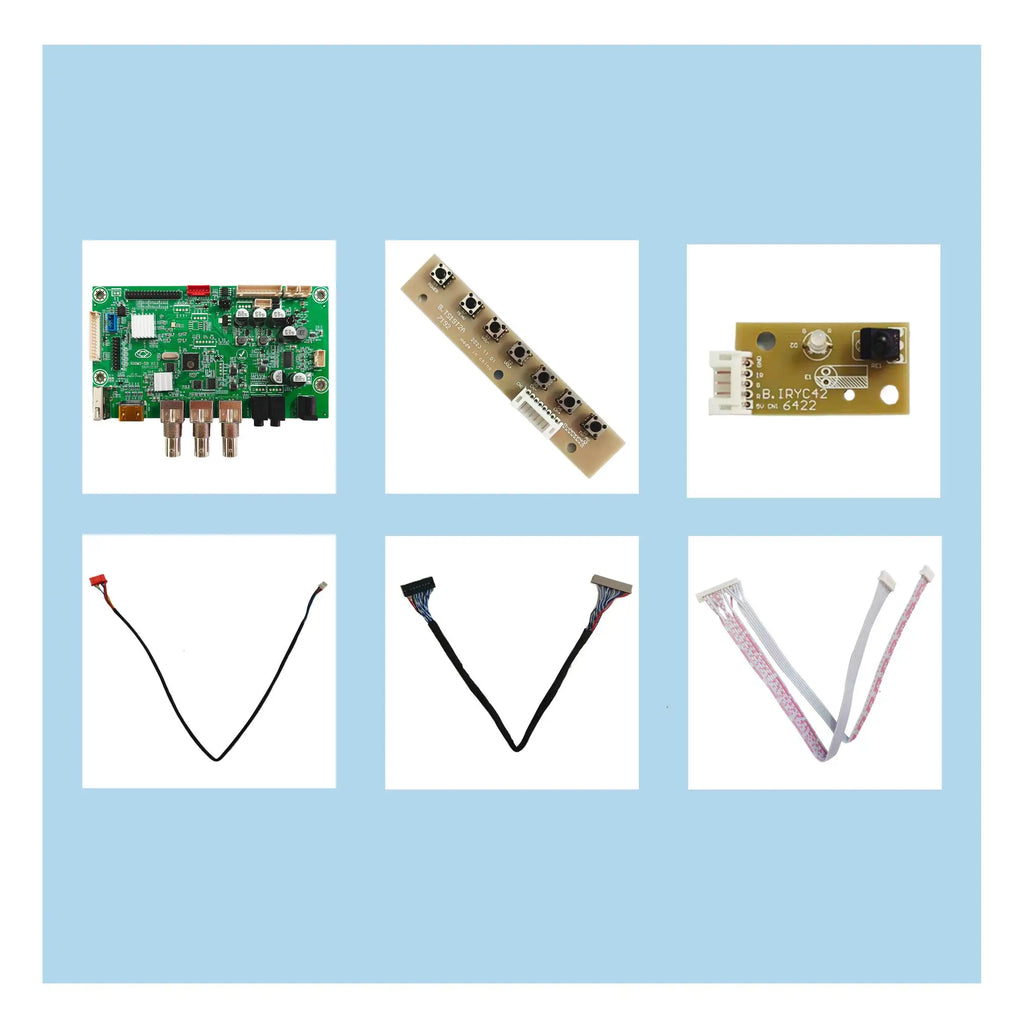

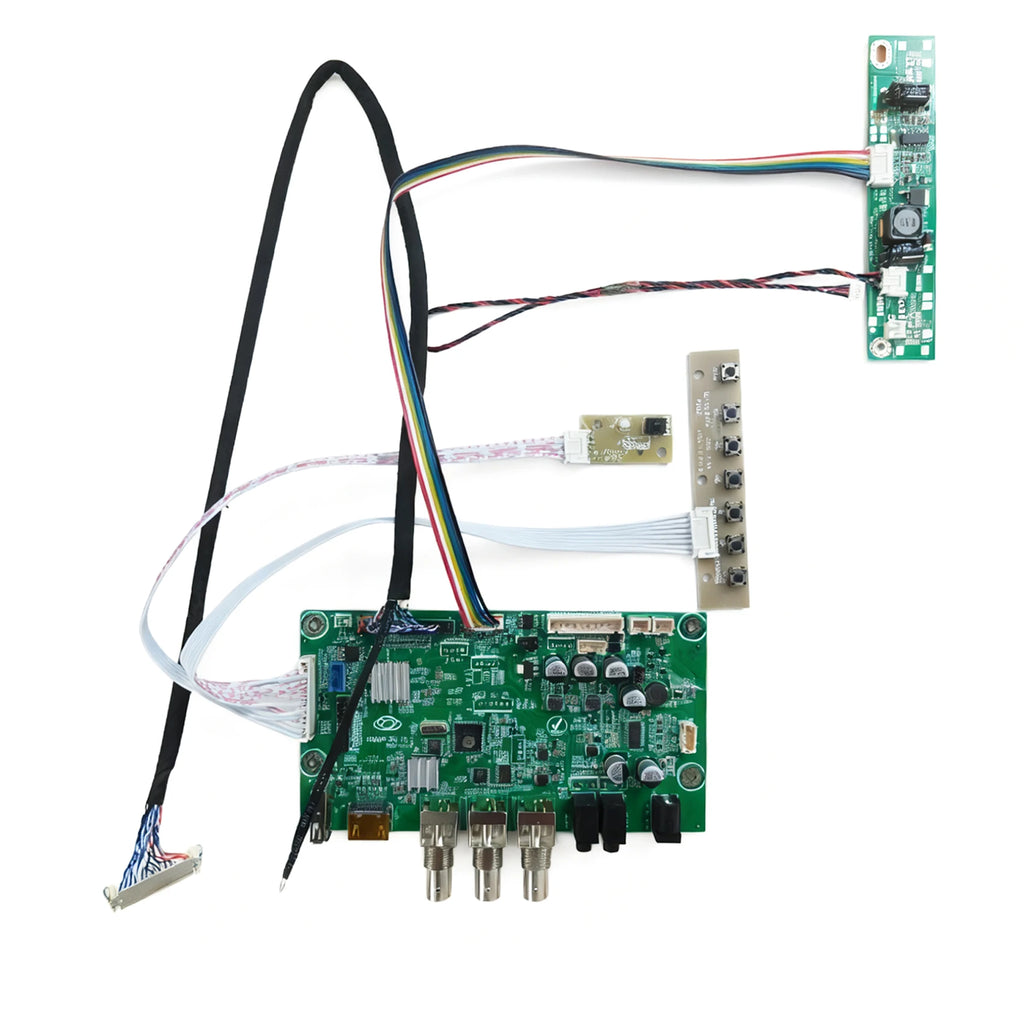

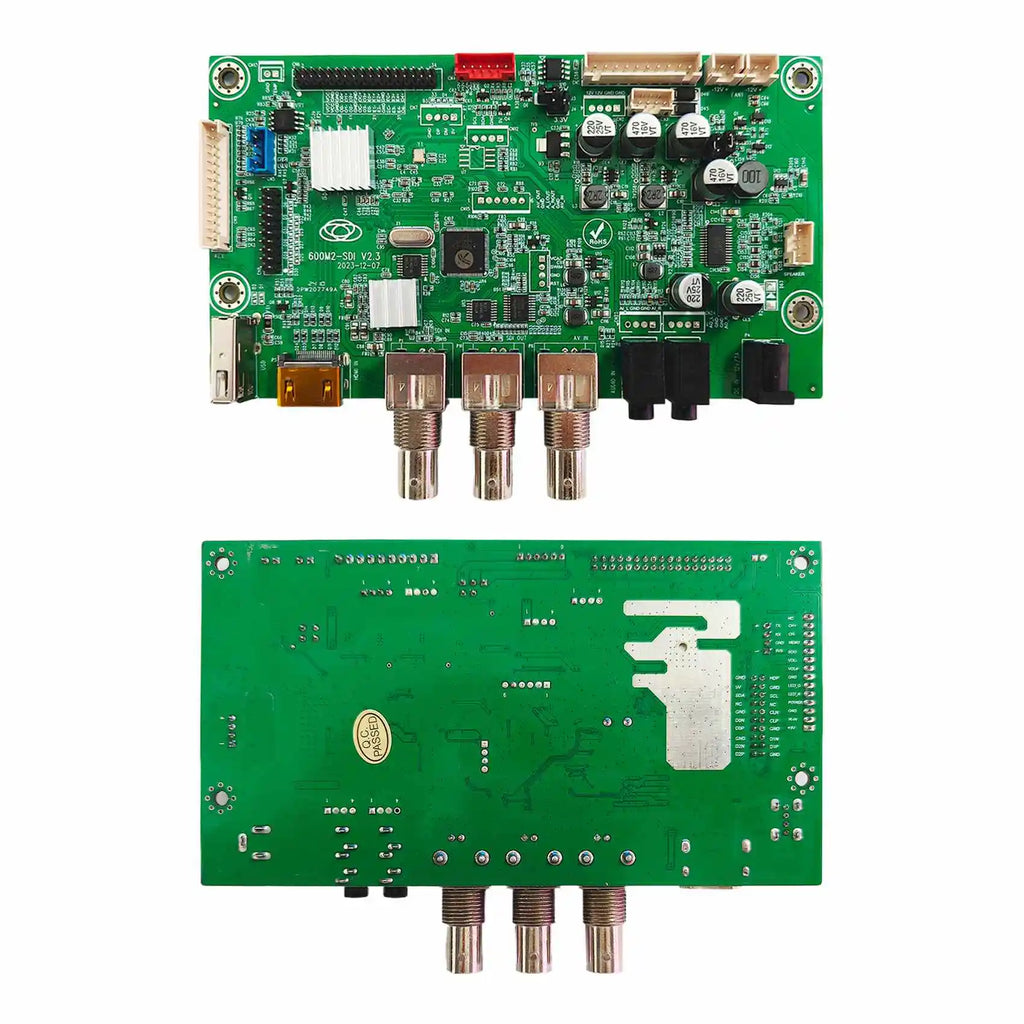

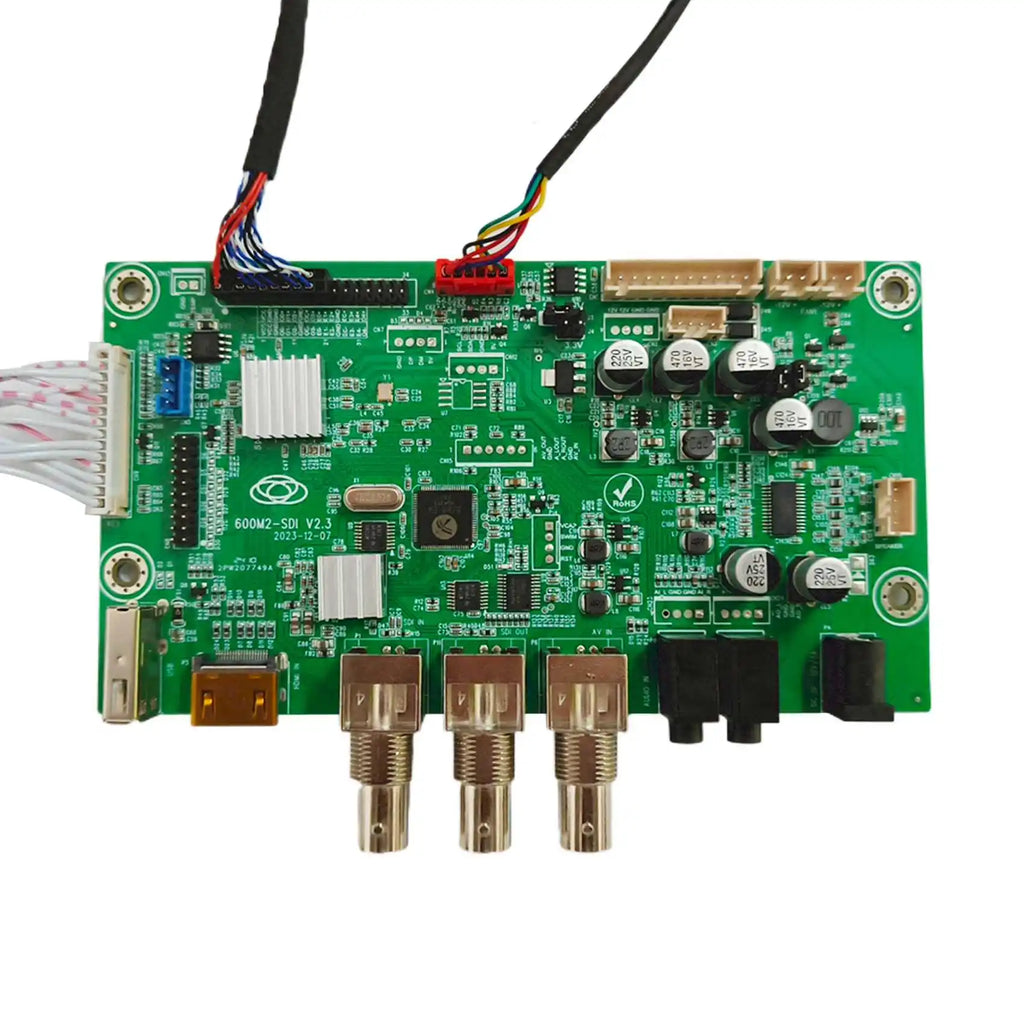

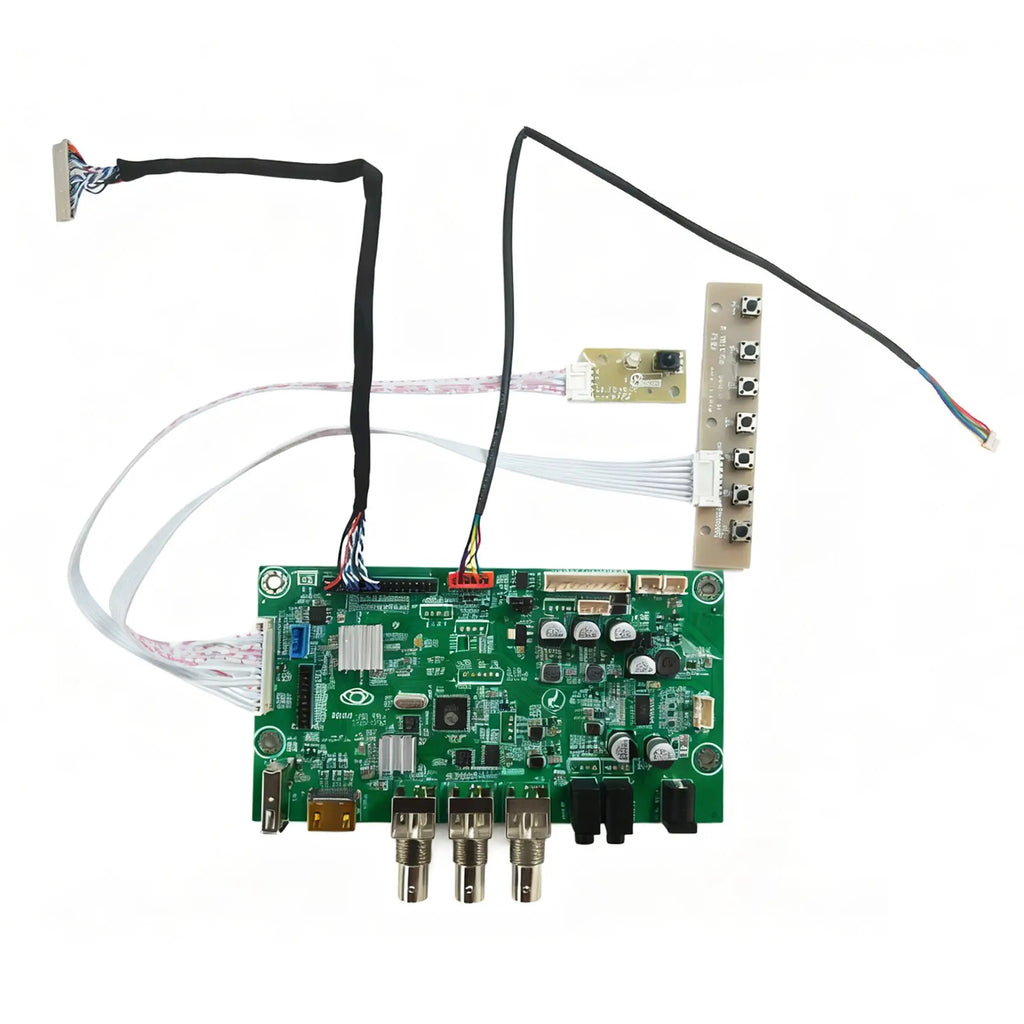

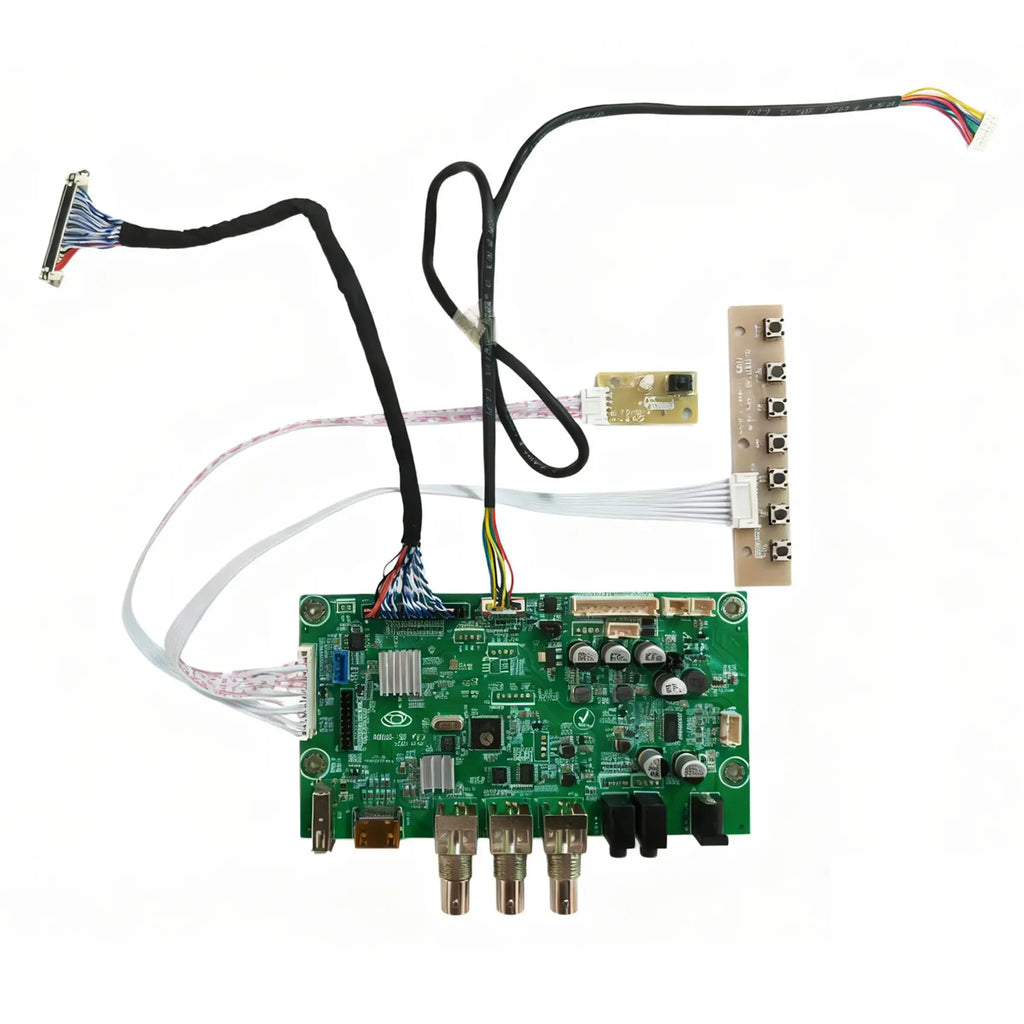

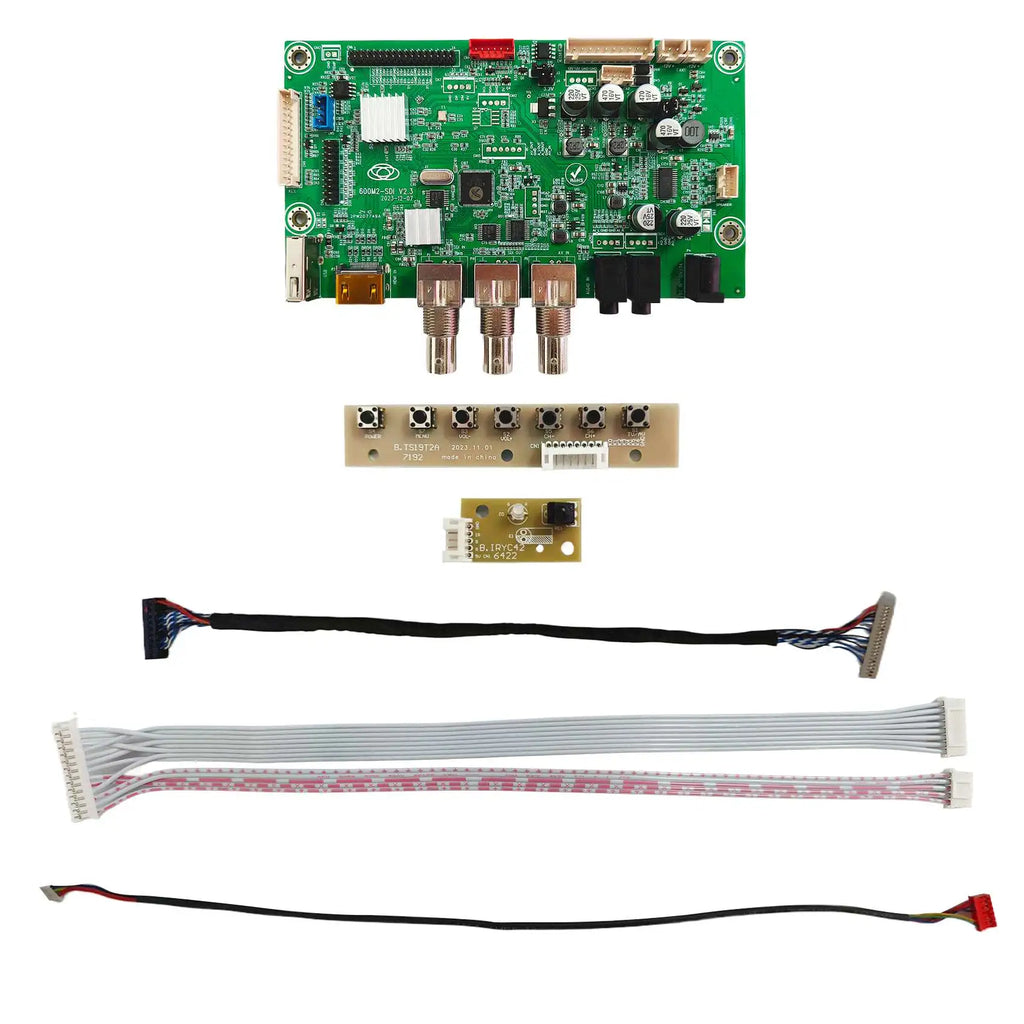

LCD Controller Board:
H/D SDI AV USB AUDIO LCD Board Work for LVDS Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W

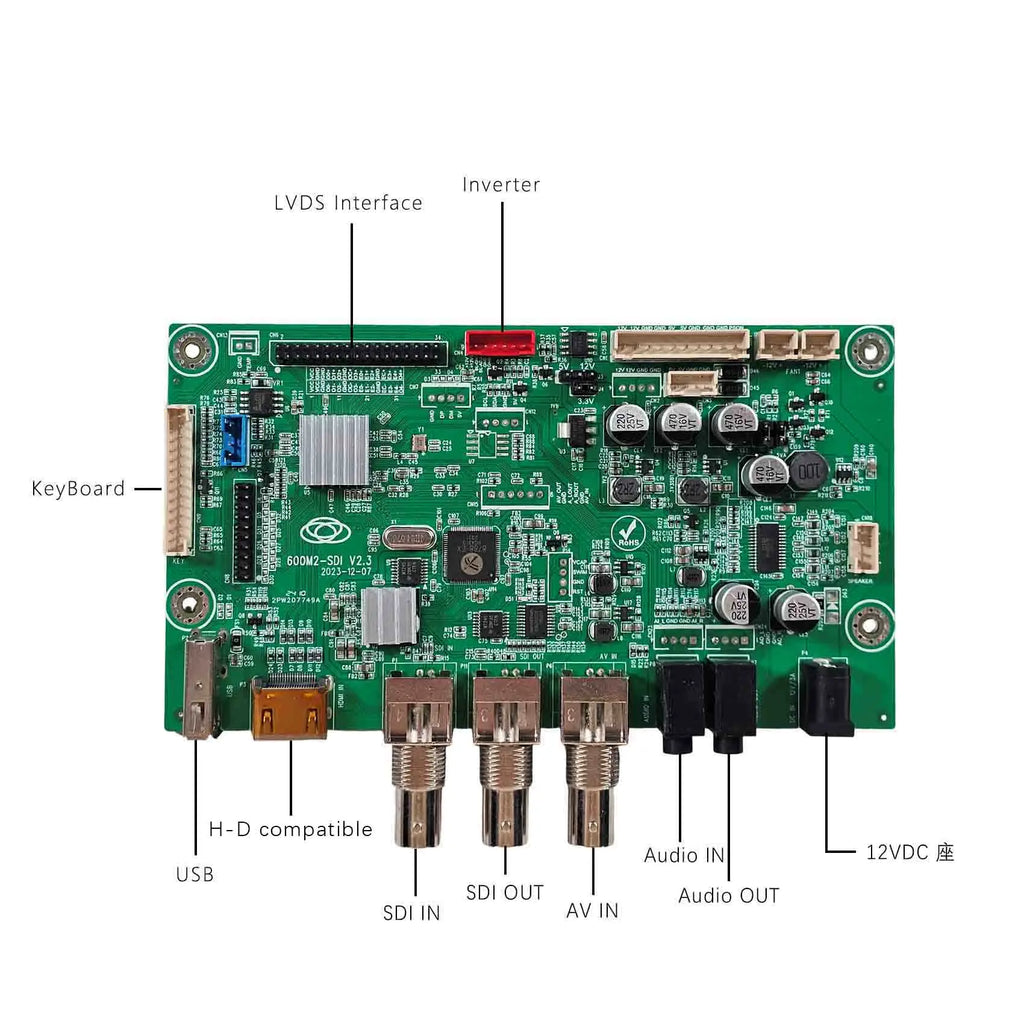

Video Input: H/D SDI AV USB
Audio Input: H/D AV（BNC)
H/D Input：480P/576P/720P/50/60Hz 1080P/24/25/30/50/60Hz 4K@30Hz
SDI：H/D-SDI、3G-SDI 270Mb/s 1.485Gb/s 2.97Gb/s 75ohm
SDI Inupt：720P/50Hz 720P/60Hz 1080i/50Hz 1080i/60Hz 1080P/24/25/30/50/60Hz
SDI Output：720P/50Hz 720P/60Hz 1080i/50Hz 1080i/60Hz 1080P/24/25/30/50/60Hz
AV Input：480i /P/60Hz 576i/P /50Hz
USB: Movie/Picture/Music/Text
Audio Output: Earphone Speaker Connector
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 150mm x 82.5mm x 18mm
Please select the correct SKU based on your screen model before placing your order.
Or contact vsdisplay before placing your order.
K003663:VS600M2-SDI V2.3 for LQ150X1LG96 LQ150X1LG92 1024x768:
Compatible Work With:
15inch 1024X768:
LQ150X1LG96 LQ150X1LG92
K003664:VS600M2-SDI V2.3 for G170ETN02.0 1280x1024
Compatible Work With:
17inch 1280X1024:
G170ETN02.0
K003665:VS600M2-SDI V2.3 for 20.7inch 21.5inch 23inch 23.8inch 27inch
Compatible Work With:
21.5inch 1920x1080:
HM215WU1-500 M215HGE-L10 M215HGE-L21 M215HW01 VB M215HW02 V0M215HW03 V1 M215HW03 V2 M215HTN01.1 M215HGE-L21 LM215WF3-SLK1LM215WF3-SLC1 T215HVN01.0 M215HW02 V0
23inch 1920x1080:
LM230WF5-TLF1 LM230WF5-TLF2 LM230WF5-TLF4 LM230WF5-TLE1 LM230WF5-TLH1
23.6inch 1920x1080:
M236HGE-L10M236HGE-L20
27inch 1920x1080:
M270HW02M270HVN02.0
K003666:VS600M2-SDI V2.3 for M170ETN01.1 G190ETN01.0 1280x1024
Compatible Work With:
17inch 1280x1024
M170ETN01.1 M170ETN01.3
19inch 1280x1024
M190ETN01.0
