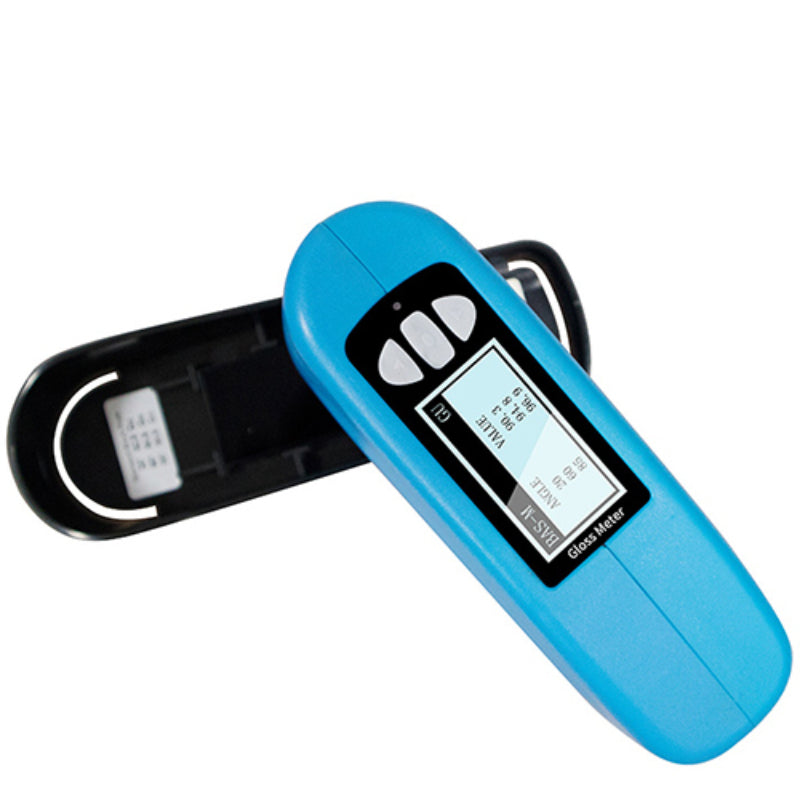

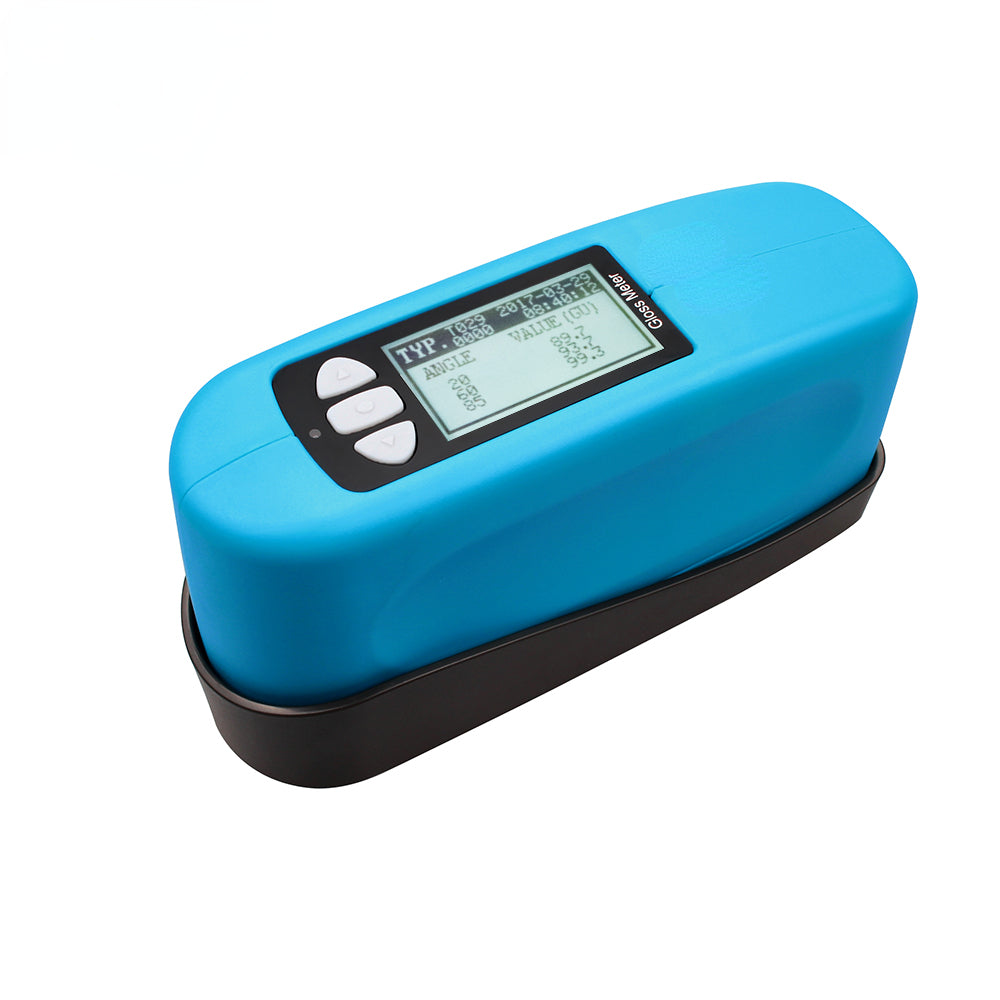

FRU Tri-angleGloss Meter WG68 (20/60/85°)

 With PC Software

 _______________________________________________________________________________________

 1.Caliber Application:

  Big aperture ia normally used on flat or wide arc surface samples.

 20°for high gloss, more than 200Gu.

 60°(9*15mm) for normal gloss, from 10-200Gu.

 85°(5*38mm) for low gloss, less than 10Gu.

 ___________________________________________________________________________________

 2.Gloss meter Application:

      WG68 Gloss meter can be applicable in Non-metallic materials (Painting,car paint,Coating,Plastic,Ink Printing,Marble,Granite,Polishing Brick,Ceram  etc.)and  Metal ( Anodizing,Copper,stainless etc.)

 _______________________________________________________________________________________

 3.Advantages :

 1.One button to complete triangle measurement: one operation can complete three angle measurement; Measuring light incident angle meet ISO 2813 three measuring light incident angle. Three incident angle of mirror gloss meter is 20 °, 60 °, 85 ° respectively;

 2.Optional angle mode: choose measuring angle or angle combination according to user needs.

 3.Manually entering standard samples gloss data;

 4.Humanized design, good man-machine communication interface;

 5.Three angle can store 50000 testing records, storage structure is: 100 prototypes, each prototype with 500 testing data;

 6.Data browsing and viewing function;

 7.The machine has automatic shutdown function, low power warning functions, full data storage hint functions;

 8.USB communication interface to communicate with PC;

 9.PC software can be extended more functions.

 _______________________________________________________________________________________

 4.Specification:

           Specification

      Unit

      Triangle Gloss Meter

            Measuring Angle

       degree

      20° 60° 85°

            Measuring Range

      GU

      20°:0-2000

 60°:0-1000

 85°:0-160

            Measuring Spot

      mm

      20°: 10x10

                60°:9x15

                85°:5x18

            Measuring Spot

      GU

      0-1000:0.1  1000-2000:1

            Repeatability

      GU

      0-100:0.2 >100:0.2%

            Indication Error

      GU

      ±1.5

            Zero Error

      GU

      0.2

            Working Temperature Range

      ℃

      10℃ - 40℃

            Storage Temperature Range

      ℃

      -10℃ - 70℃

            Humidity Range

      Relative humidity less than 85%,without condensation

            Power Adapter

      Section 2 5 alkaline batteries/power adapter

            Volume

      mm

      159x49x72

            Weight

      g

      500

   ______________________________________________________________________________________

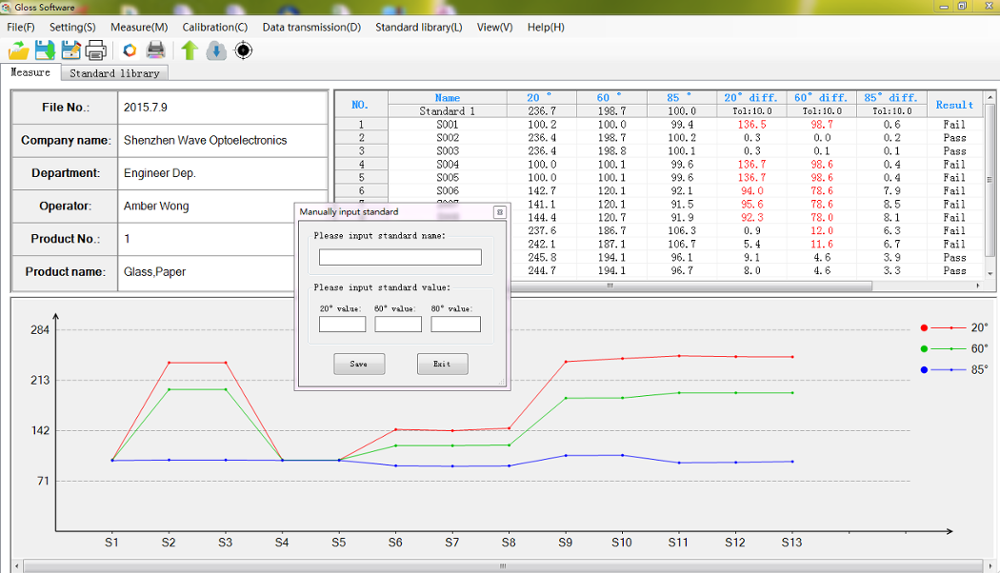

 5.GlossW Software Effect:

 ________________________________________________________________________________________

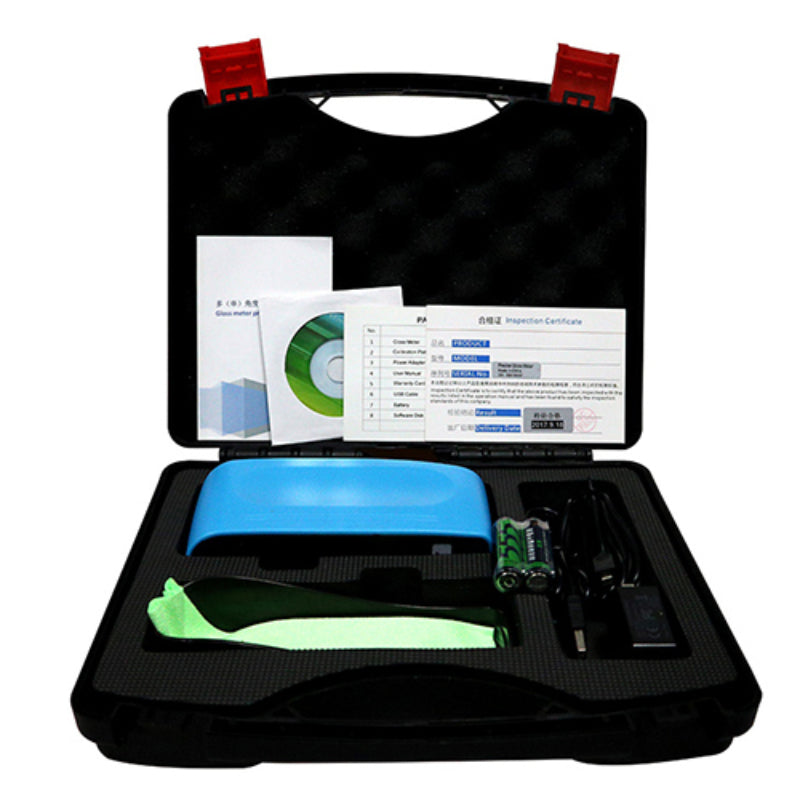

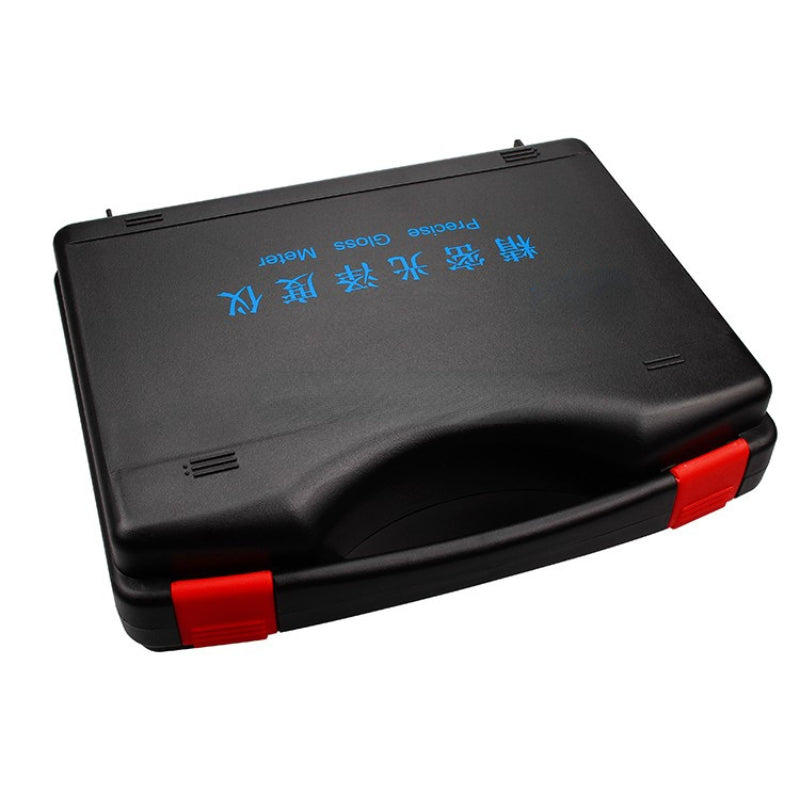

 6.More details:

 __________________________________________________________________________
