  Shining Points:

     --3.5'' full color screen, allows for detailed showing of infrared generated images;

   --320x240 resolution and 0.3 million pixel visible image resolution, high definition of images;

   ---20~400°/-4°~752° temperature measurement range, 2.5° accuracy for better operation;

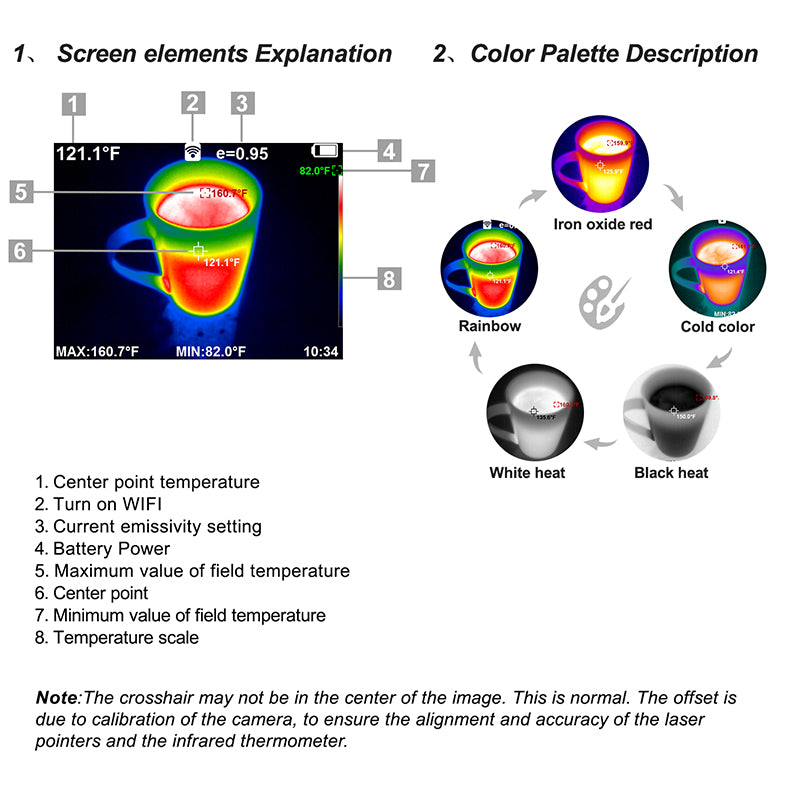

   --5 kinds of palette for choice: rainbow, iron red, cold color, black & white and white & black;

   --automatic setting: 5 mintues/20 minutes/ not power off automatically;

   --built-in 8GB SD card for storage, the pics can be also transferred to television, computer or other devices for checking;

   --wide application at fire-fighting, archaeology, traffic, farming, electronic manufacture and other fields;

   --seperate button for specific function, which is quite easy for you to turn it on or off, delete or check pictures;

   --mini and portable for 97×129×256mm size and 588g weight, attached pouch allows for more convenient carrying;

   --ergonomic handle, which can be used and held comfortably

  Specification:

              Model

     HT-A9

             Display screen

     3.5" full angle TFT display screen

             Infrared image resolution

     320*240

             visible image resolution

     300,000 pixel

             Field angle/shortest focus length

     56°*42°/0.15m

             Thermal sensitivity

     0.07℃

             Temperature measurement range

     -20°C~400°C(-4°F~752°F)

             Measurement accuracy

     ±≤100°C±2°C;100-300°C±2%; ≥300°C±3%

             Emissivity

     Adjustable from 0.01 to 1.0

             Frame rate of thermal image

     9Hz

             Wavelength coverage

     8-14um

             Focus mode

     Fixed

             Color palette

     Rainbow, iron oxide red, cold color, black & white, white & black

             View option

     The integration of thermal image with 25% step length and visible image

             Storage medium

     Built-in 3G (above 20 thousand image stored)

             File format

     JPG

             USB

     Micro USD2.0

             Power supply

     Built-in chargeable 26650 battery

             Automatic power-off time

     Selectable: 5 minutes/20 minutes/no power off automatically

             Product size(length*width*heigth)

     97*129*256mm

             Product weight

     588g

             Work temperature

     0℃ to 45℃

             Storage temperature

     -20℃ to 60℃

             Relative humidity

     <85%RH
