Kindly Reminder: This bluetooth module can only support Android mobile device.

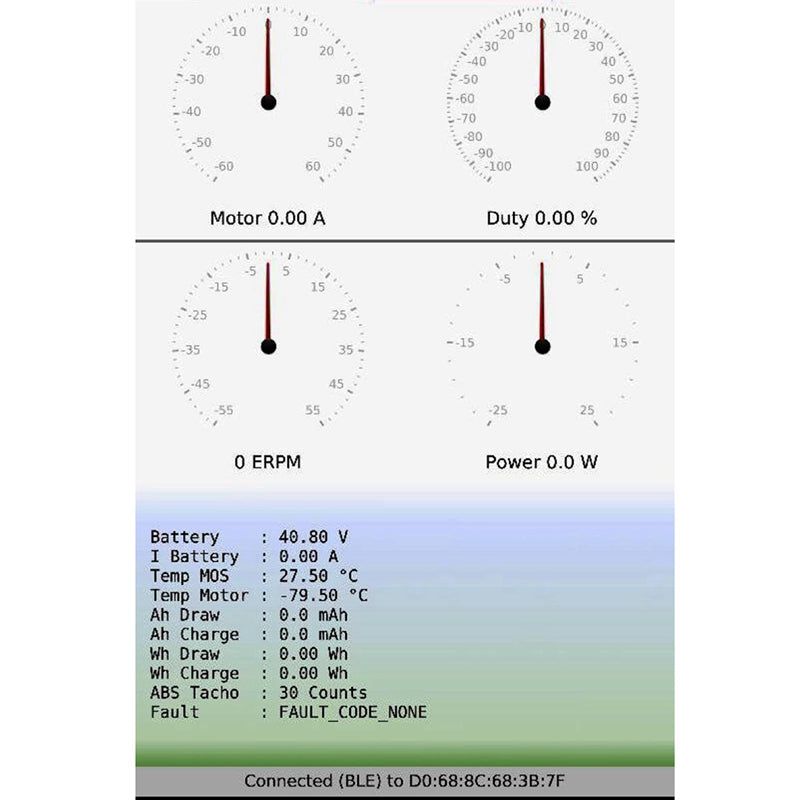

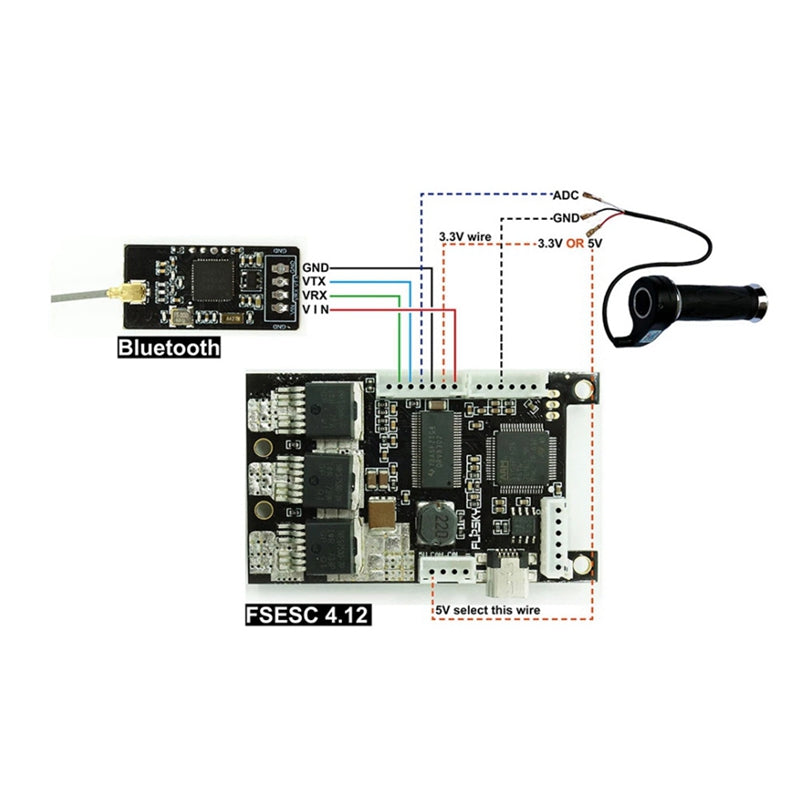

Used to communicating between the VESC and VESC Tool (mobile) over BLE. Note that the UART port on the VESC must be enabled with a baud rate of 115200 for this to work. The UART port on VESC can work only under 115200 baud

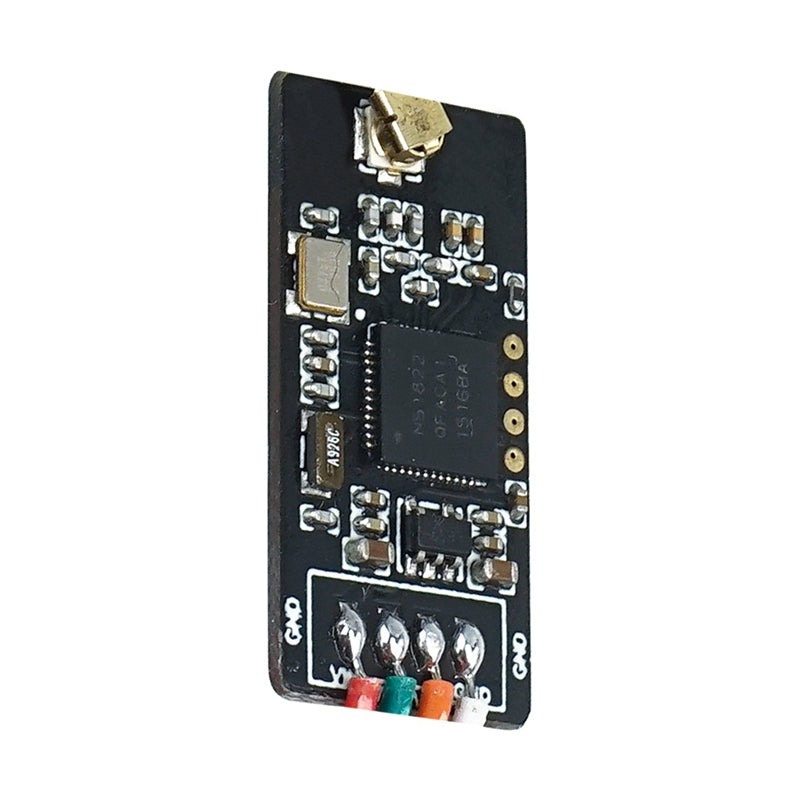

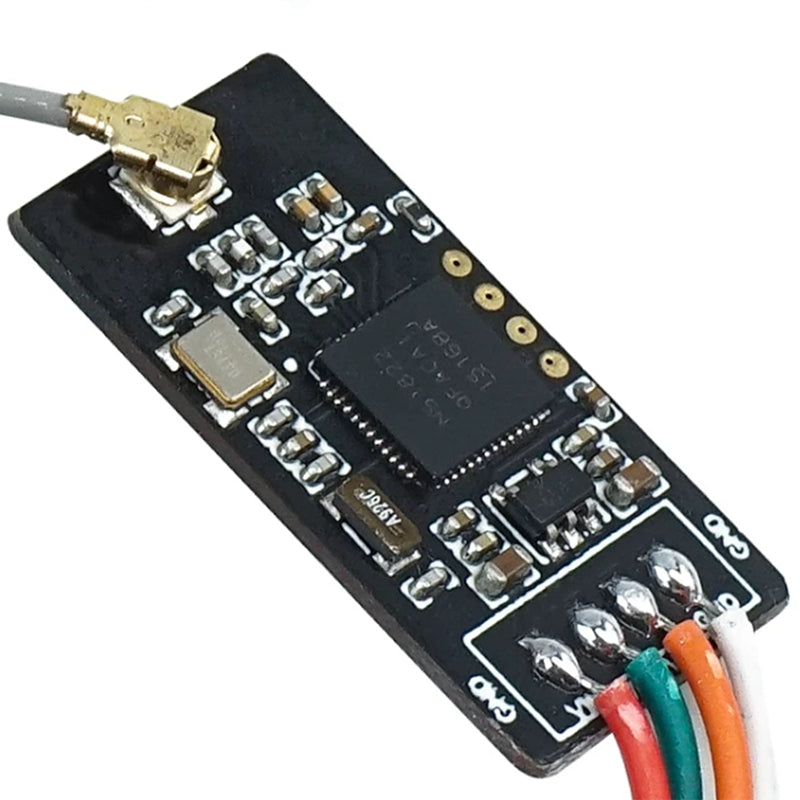

Operating voltage: 2.0V ~ 12V Onboard Chip: NRF51822

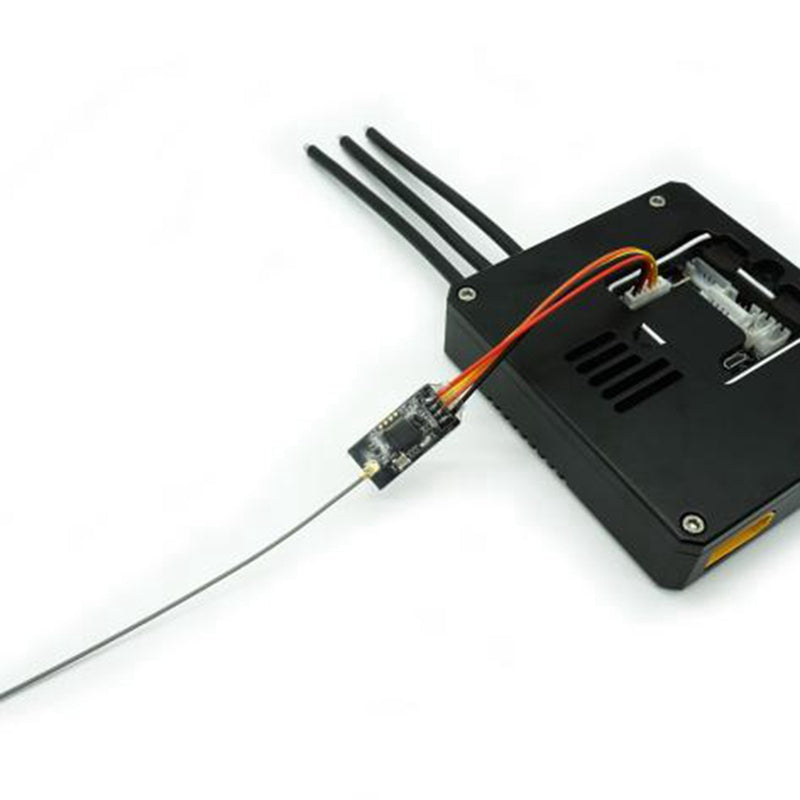

Actual use distance: The distance to communicate with VESC is about 15 meters

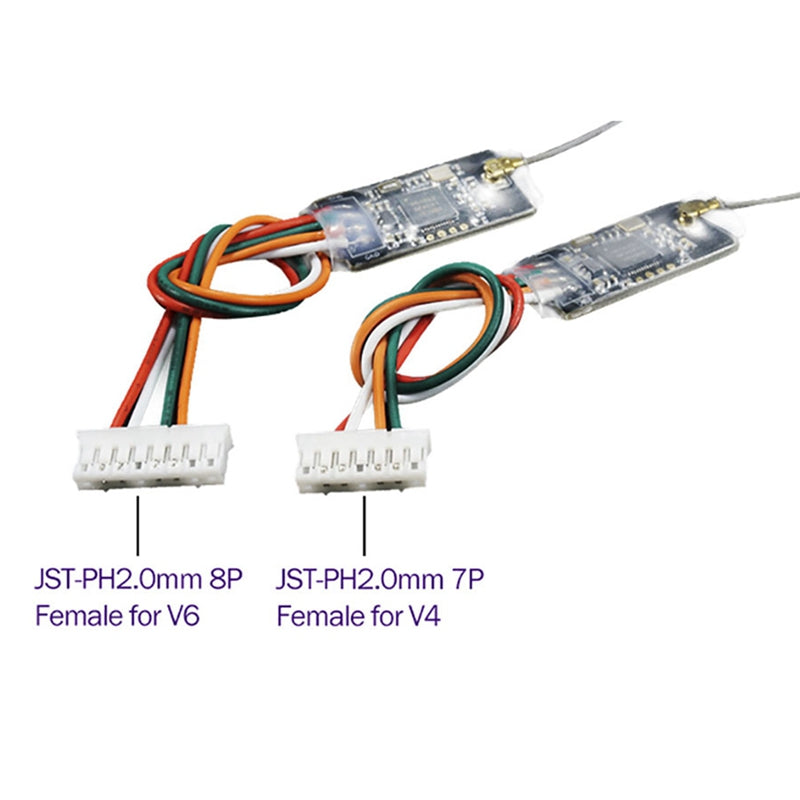

Type: for V6 / for V4
Frequency range: 2.4GHz
2.4 GHz multiprotololl RF receiver
ARM Cortex-M0 32 bit processor
256kB flash & 16kB RAM
PCB size:27mm x 13mm
2.0mm seven-pin four-wire connector length:90mm
Antenna length:145mm
Material: plastic
colour: black
Package Contents:
1 x bluetooth module
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
