Feature:
1. Independent and Safe: Microinverters can independently control each component in parallel, minimizing safety risks. IP65 waterproof.
2. Protection Functions: Over temperature protection, under voltage alarm, under voltage protection, over voltage protection, short circuit protection, overload protection functions.
3. Miniaturization: This solar grid tie micro inverter adopts high frequency processing, miniaturized, smaller and lighter. Maximum input DC voltage: 52V.
4. Function: The micro inverter can achieve maximum power point tracking to maximize the overall output power. Built in high accuracy instrument, you can see the working status of each component.
5. Various Installation Methods: The micro inverter can be installed directly behind the module or on the bracket for easy maintenance.
Specification:
Item Type: Intelligent Grid Connected Inverter
Material: Aluminum Alloy
Color: Silver
Maximum/Minimum Startup Voltage: 22-50V
AC Digital Display Test Voltage: 80-260VAC
Output Parameters: 230V
Output Power: 300W
Rated Output Power: 280W
Rated Output Current: 1.39A
Rated Voltage Range: 180-260V AC
Rated Frequency Range: 47-52.5Hz
Power Factor: >99%
Number of Connected Units: 12 (Single Phase)
Static MPPT Efficiency: 99.5%
Power Consumption at Night: <1W
: <5%
Input Voltage: 22-50V (used for Photovoltaic Panels with VOC at 30-52V, 36V Battery)
Plug Specification: EU Plug 230V (with Waterproof Connector)
Output Power: 300W
Maximum DC Short Circuit Current: 20A
Maximum Input Operating Current: 15.2A
Ambient Temperature Range: -40℃ to +60℃
Waterproof Grade: IP65
Power Transmission Mode: Reverse Transmission, Load Priority

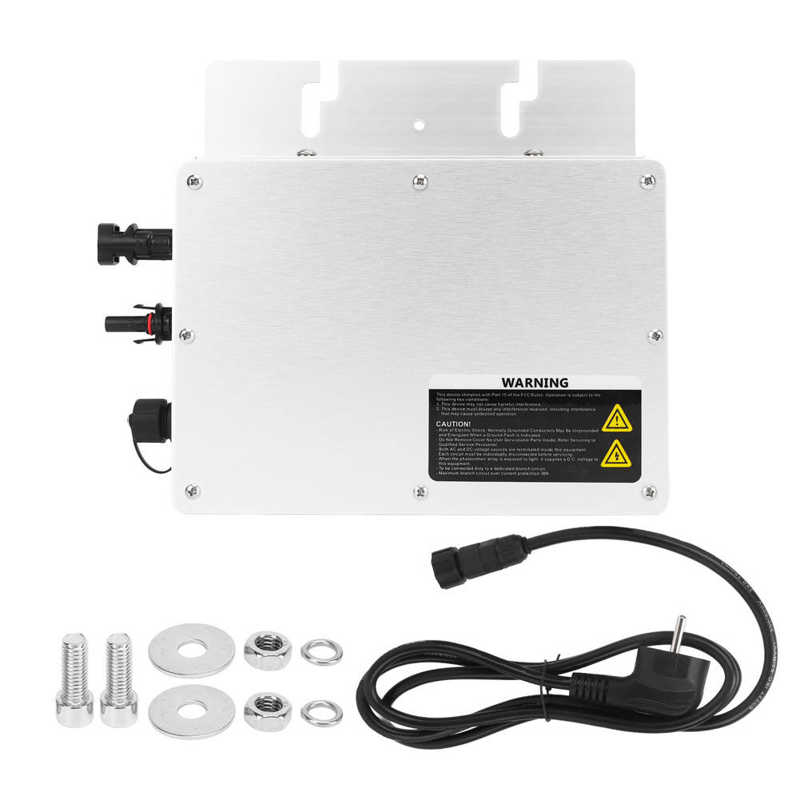

Package List:
1 x Manual
1 x Inverter
1 x Cable

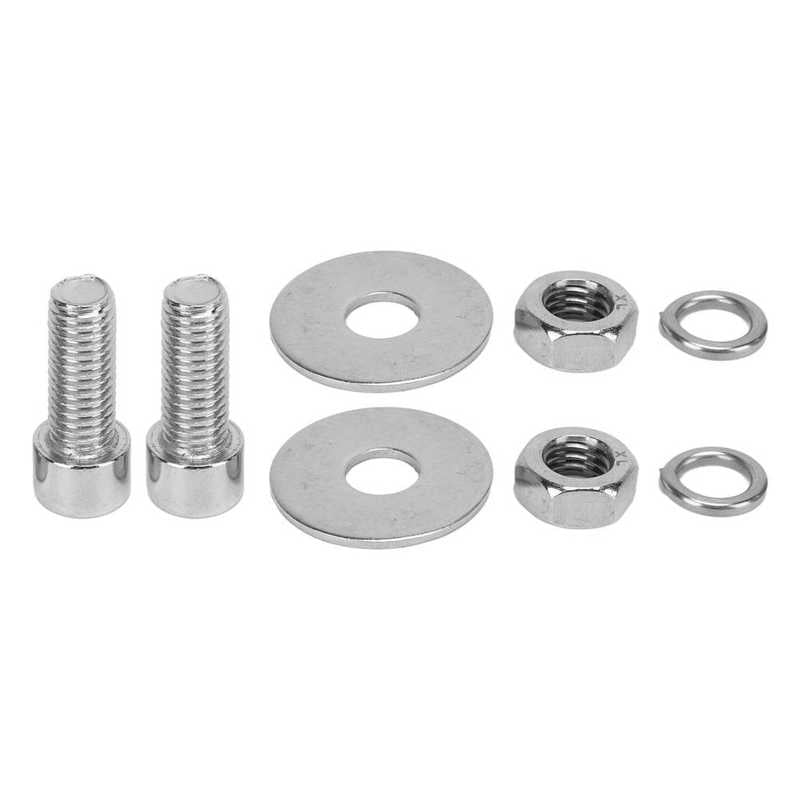

2 x Fixing Screw
2 x Fixing Nut
2 x Fixed Gasket
2 x Fixed Washer
