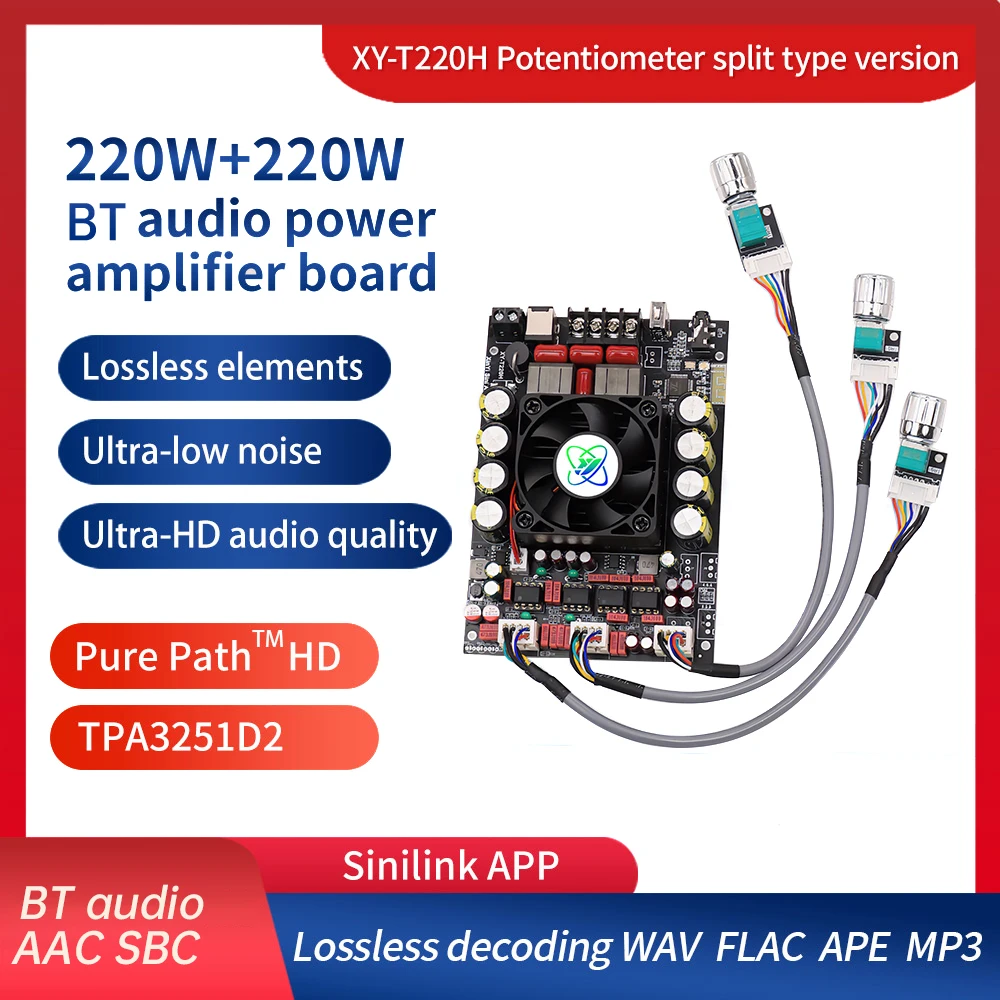

XY-T220H-W 220W*2 Lossless Bluetooth-compatible Audio Amplifier Board Stereo High And Low Frequency Adjustment TPA3251 Module
Features:
1. This device features advanced integrated feedback design and proprietary high-speed gate driver error correction function.

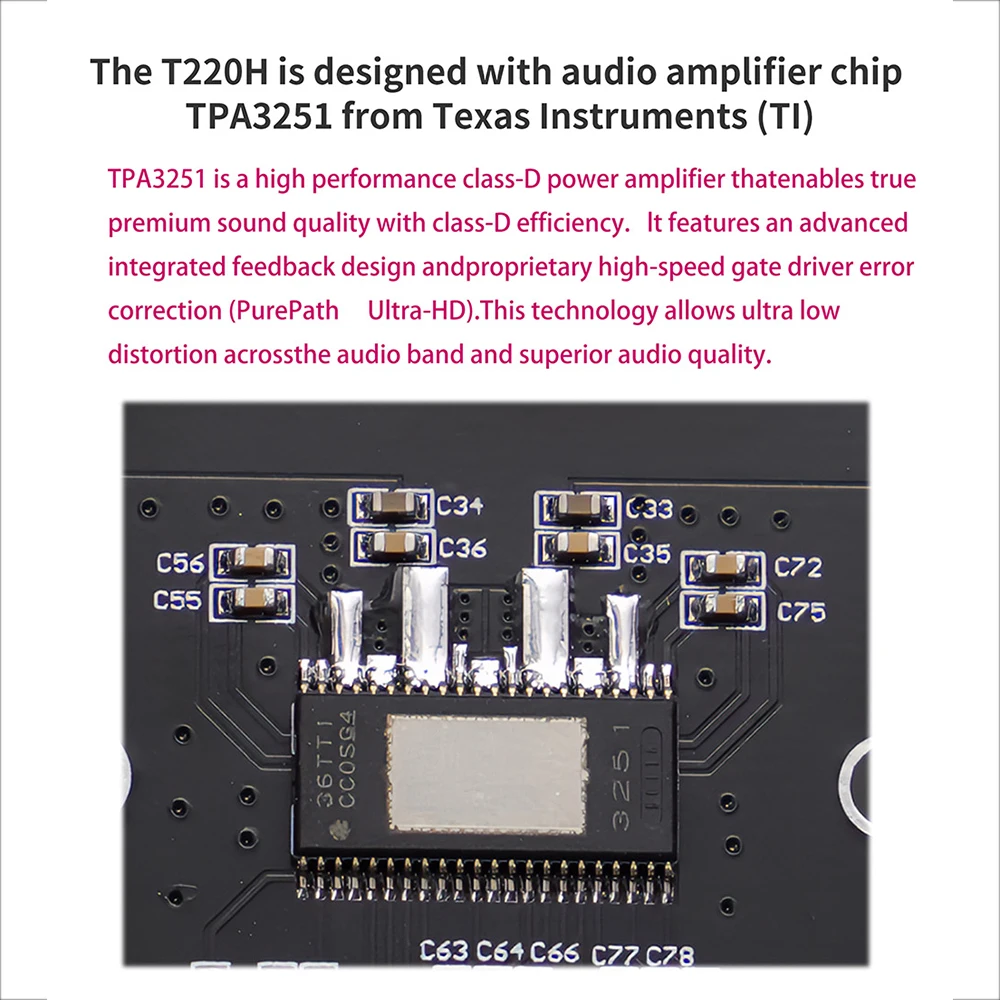

2. TPA3251D2 is a high-performance Class D power amplifier that has Class D efficiency and can bring true high-end sound quality.
3. This technology enables the device to maintain ultra-low distortion throughout the entire audio frequency band while displaying high-definition sound quality.

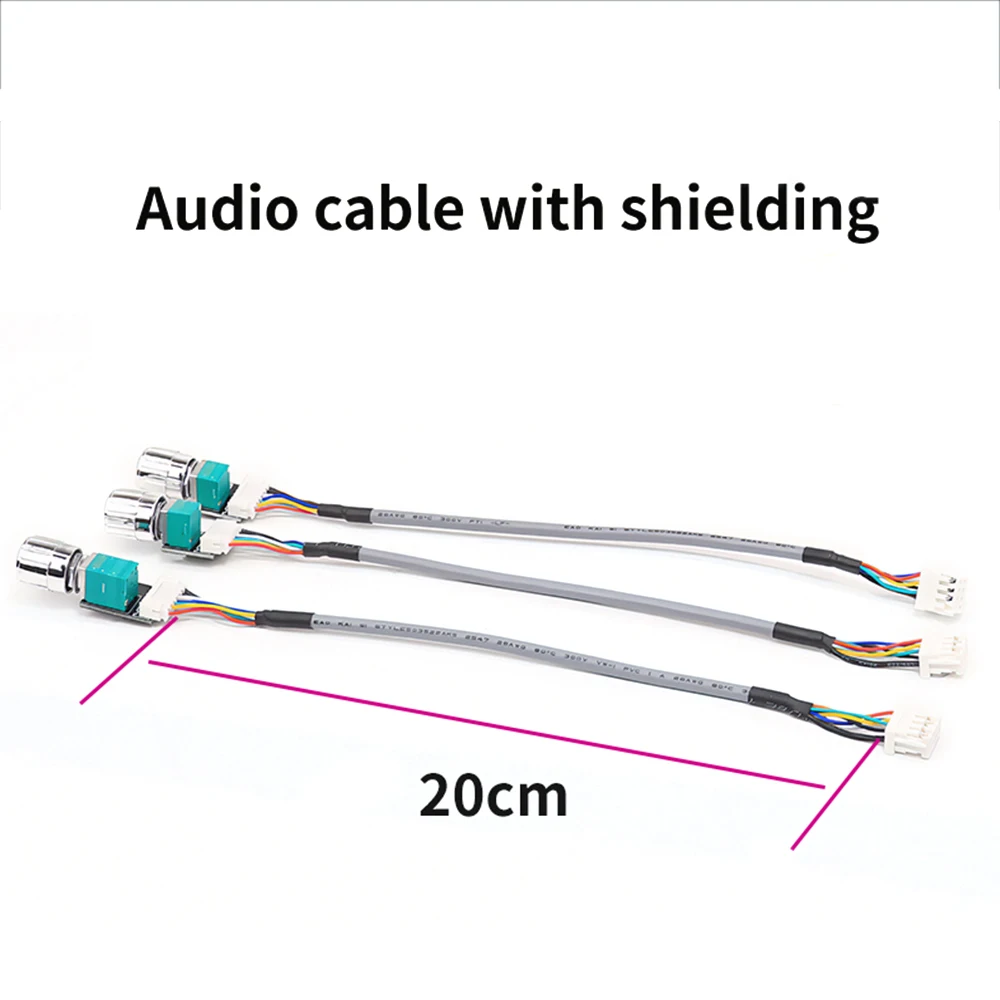

4. The external version of the potentiometer is convenient for DIY installation, and the product uses TPA3251D2 amplifier chip for high-definition sound quality.

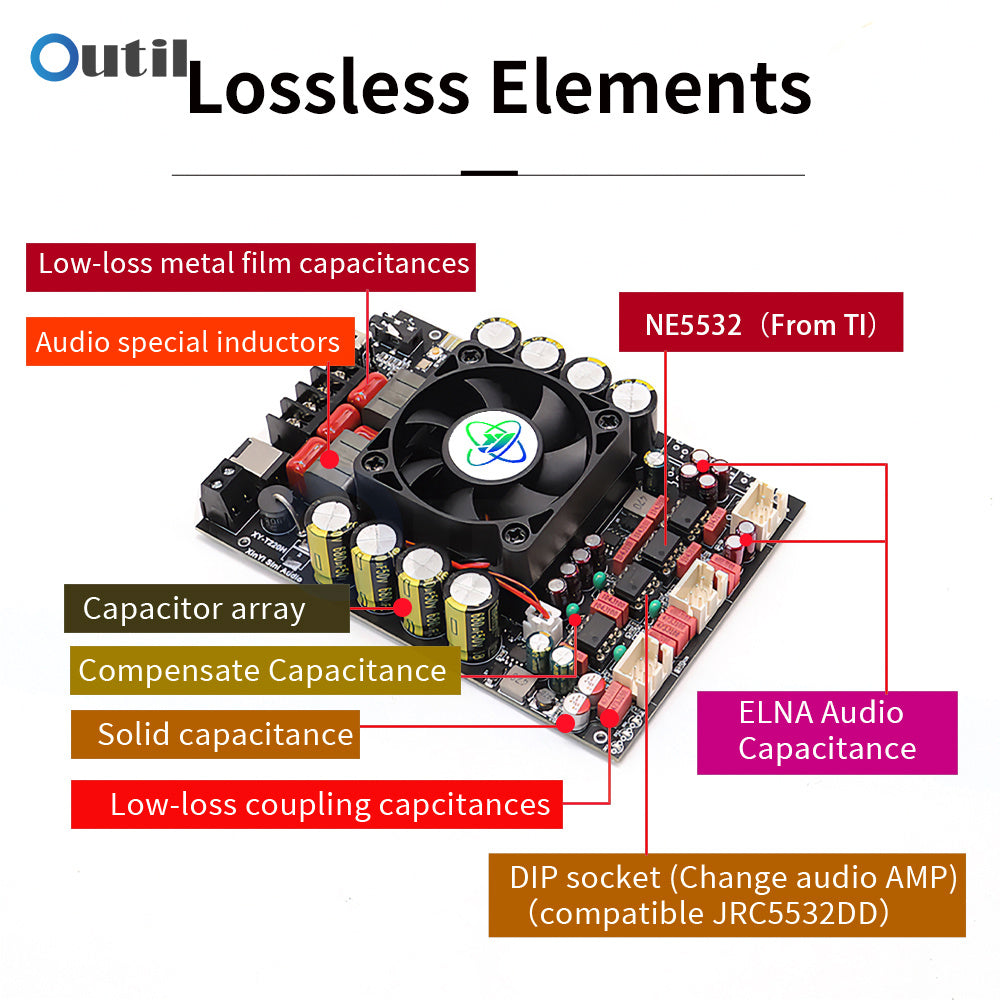

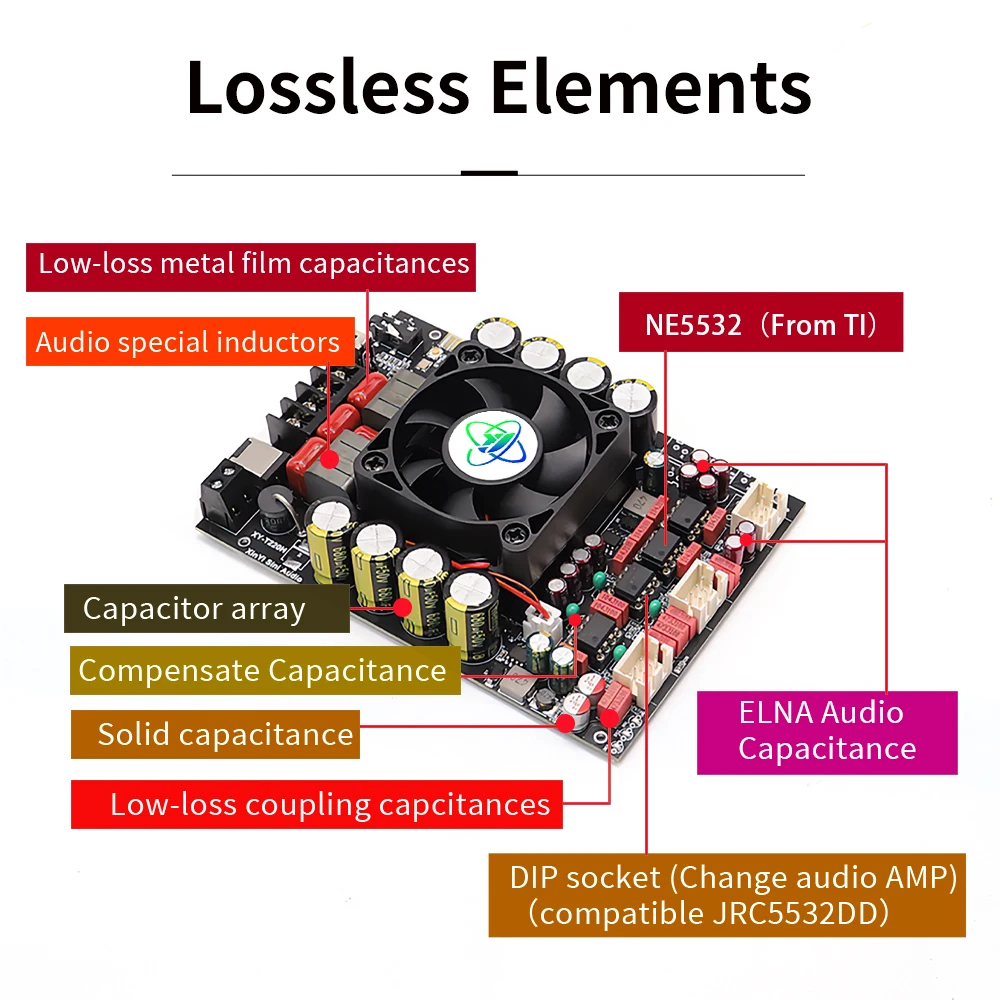

5. The gold-plated socket has good conductivity and high reliability, and can be replaced with a previous stage operational amplifier (compatible with JRC5532DD).
Parameter:
Type: BT Audio Amplifier

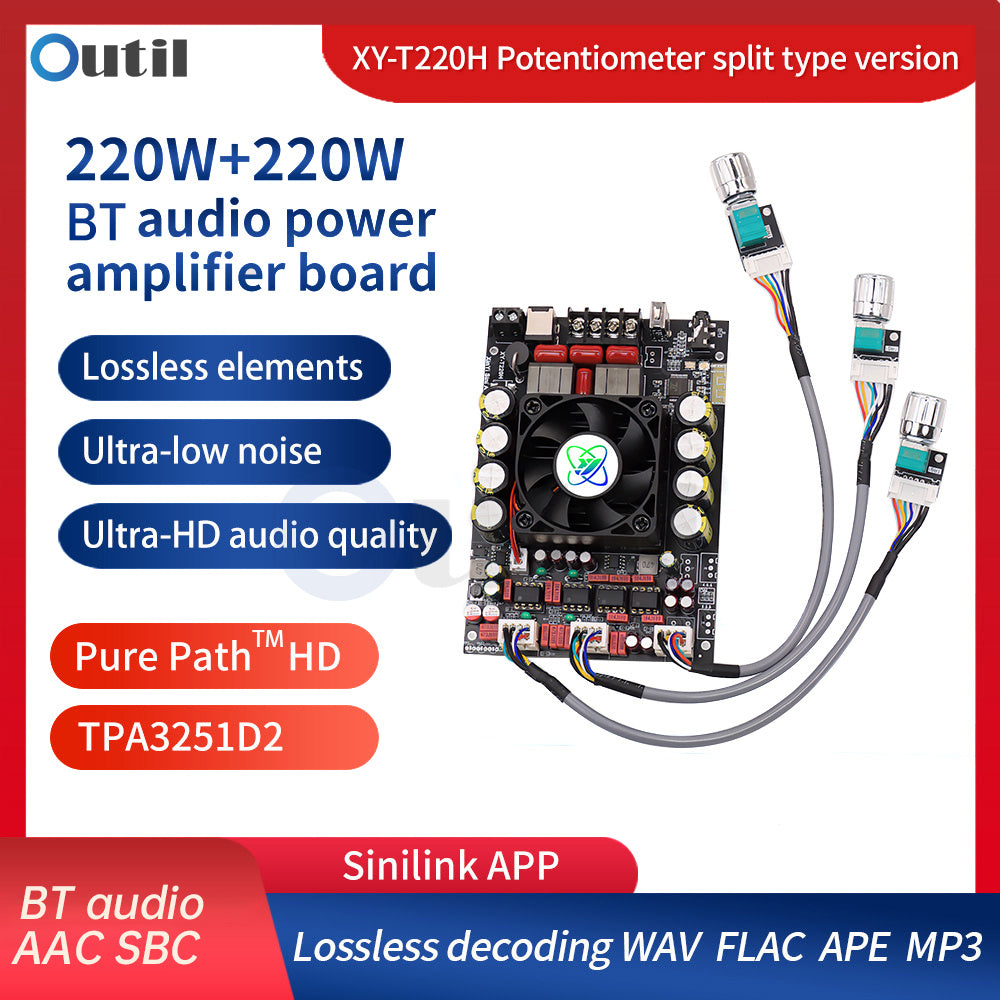

Model: XY-T220H potentiometer external version
Power supply: DC 12-36V/8A

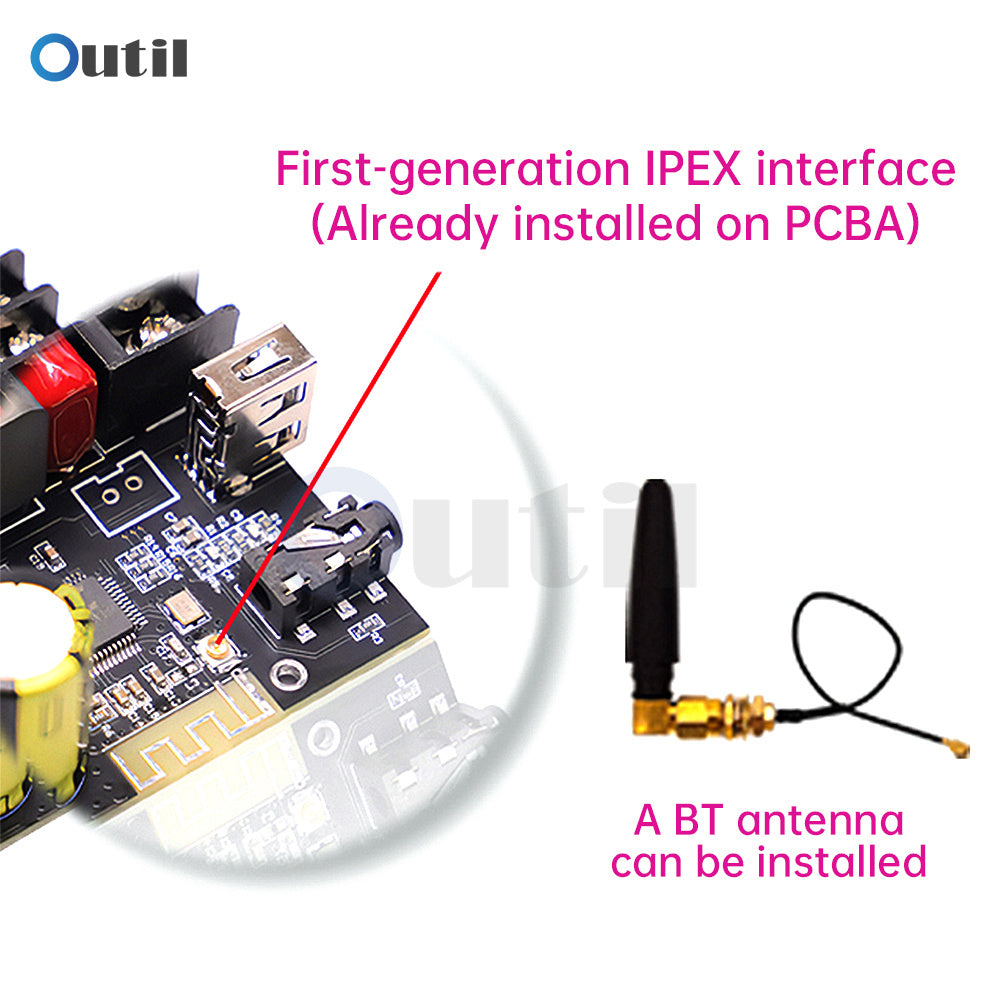

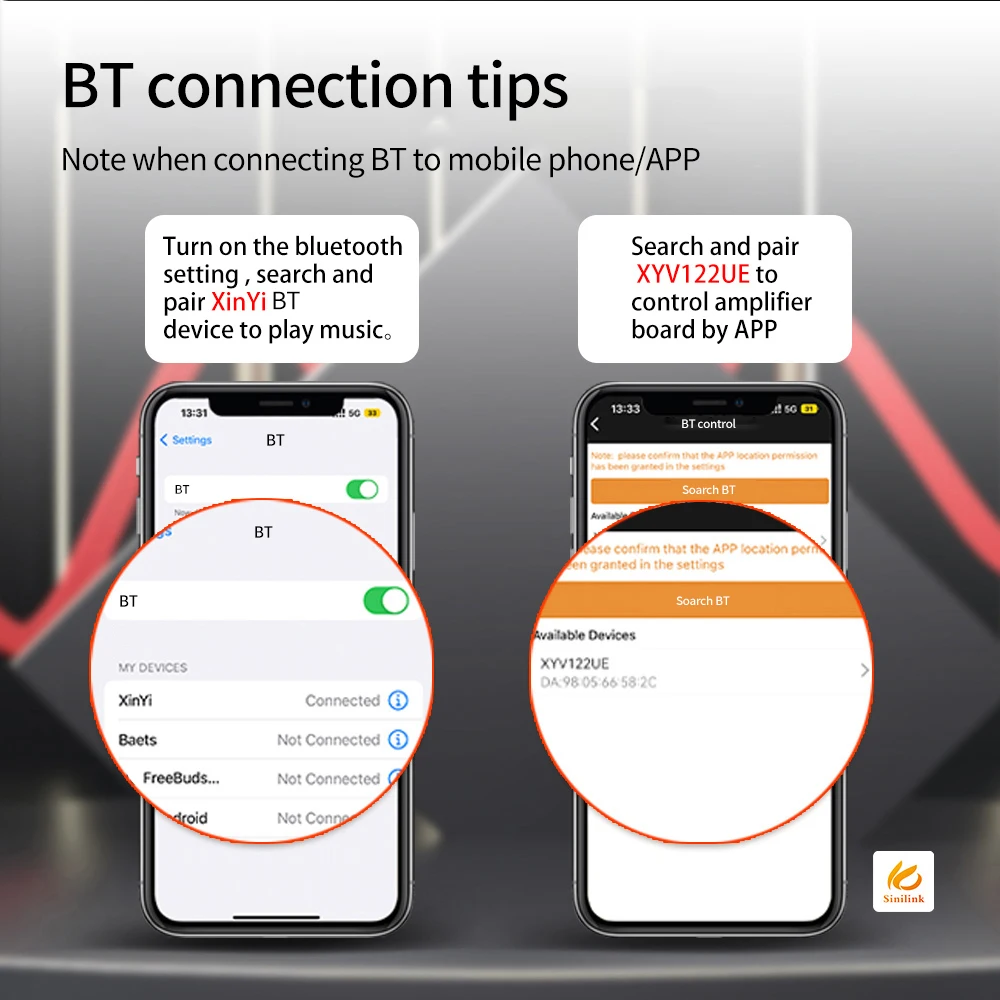

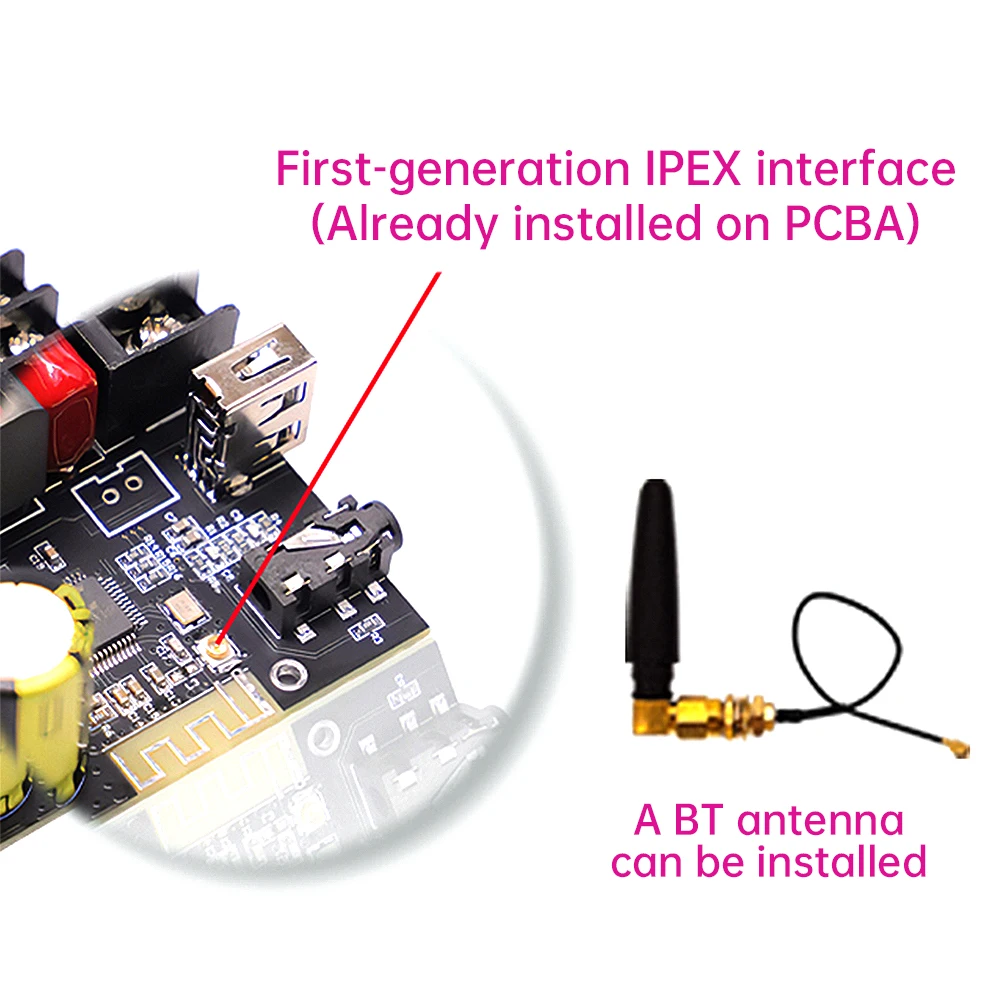

BT version: 5.2

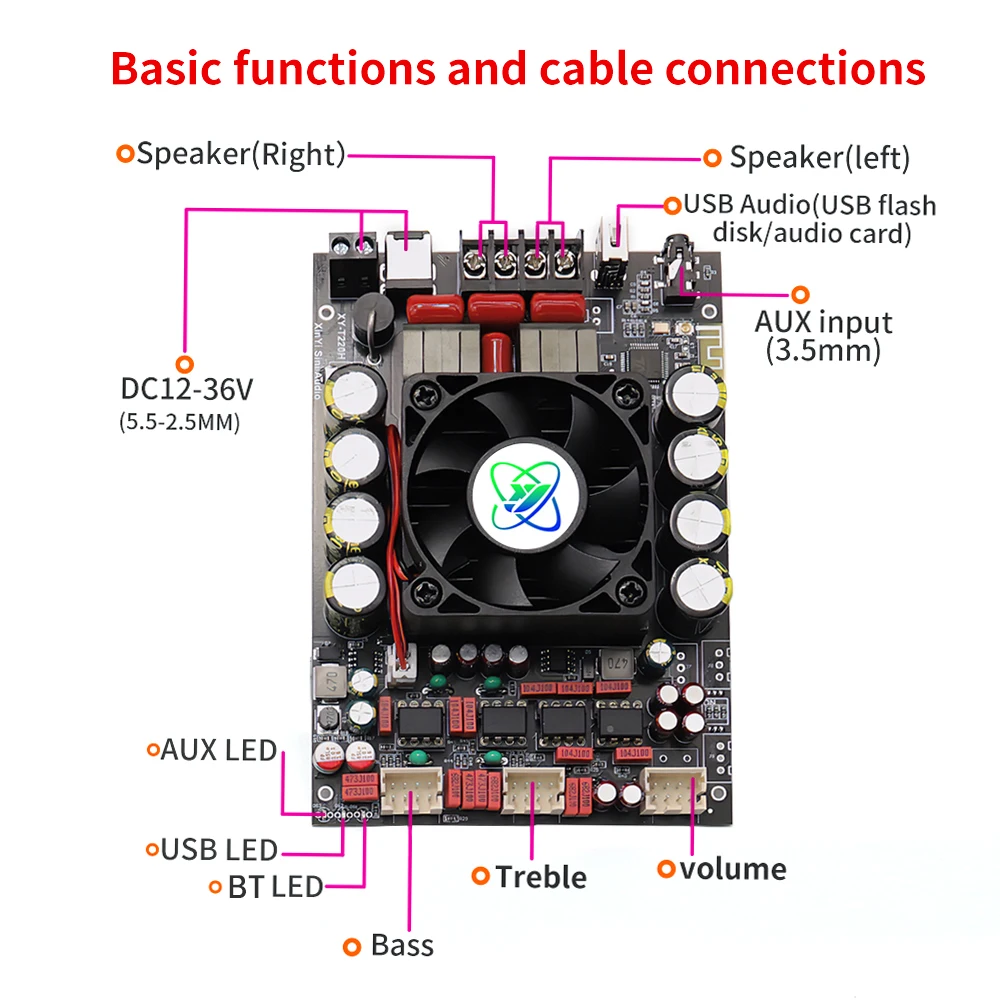

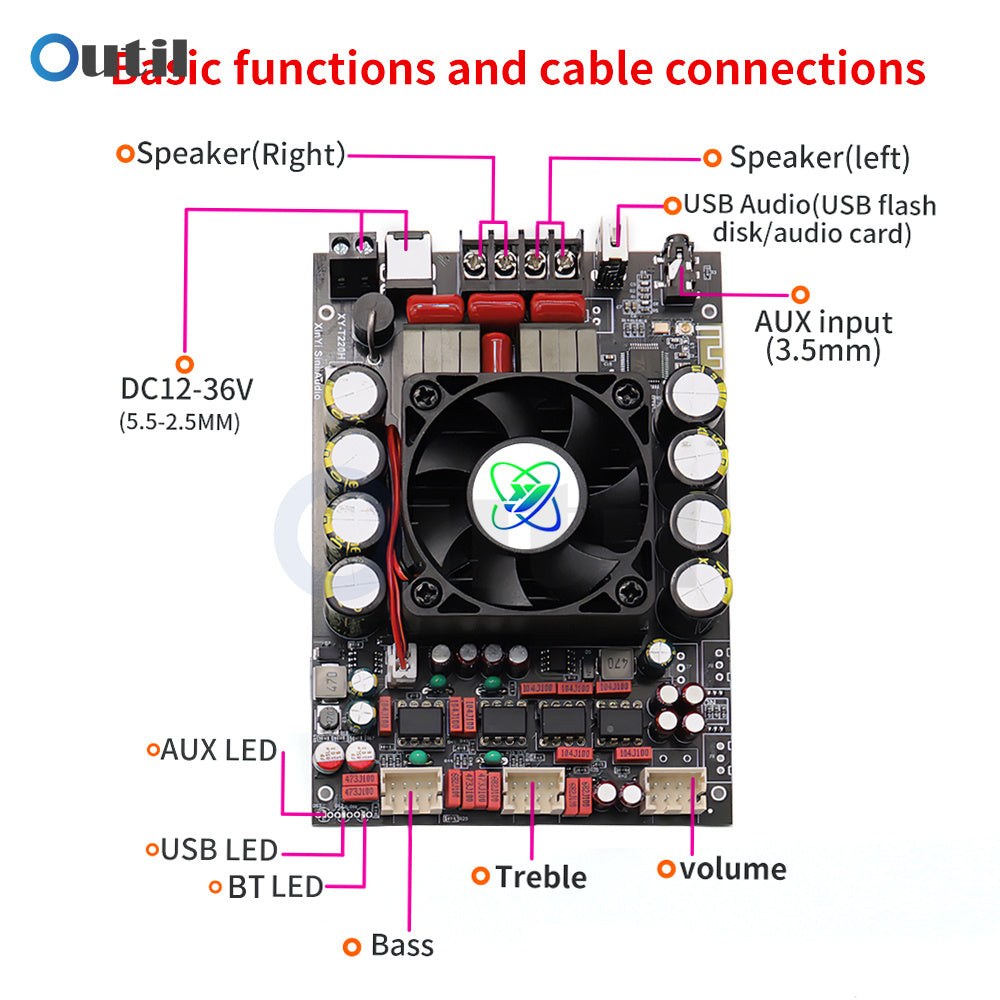

Audio input: BT+AUX+USB flash drive+USB sound card
BT audio decoding: AAC SBC
Frequency range: 20Hz-20KHz

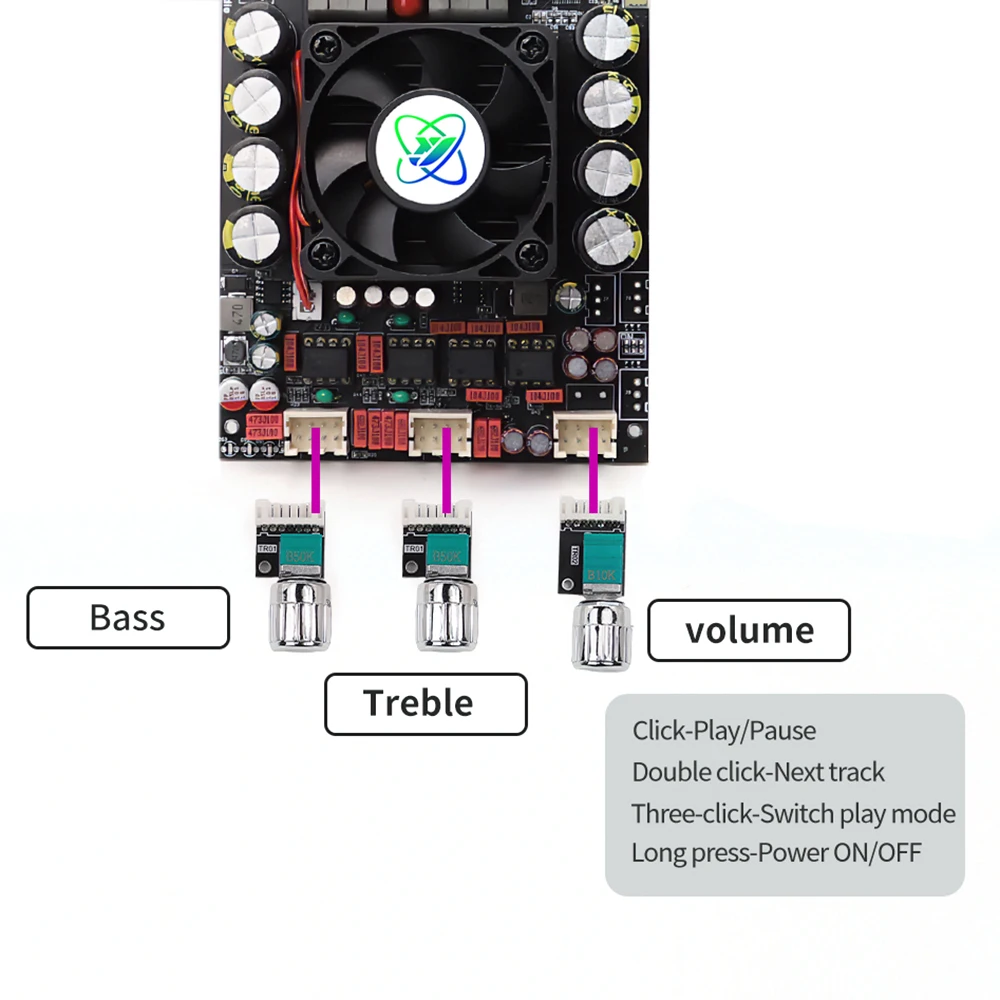

Audio adjustment: independent adjustment of high and low frequencies

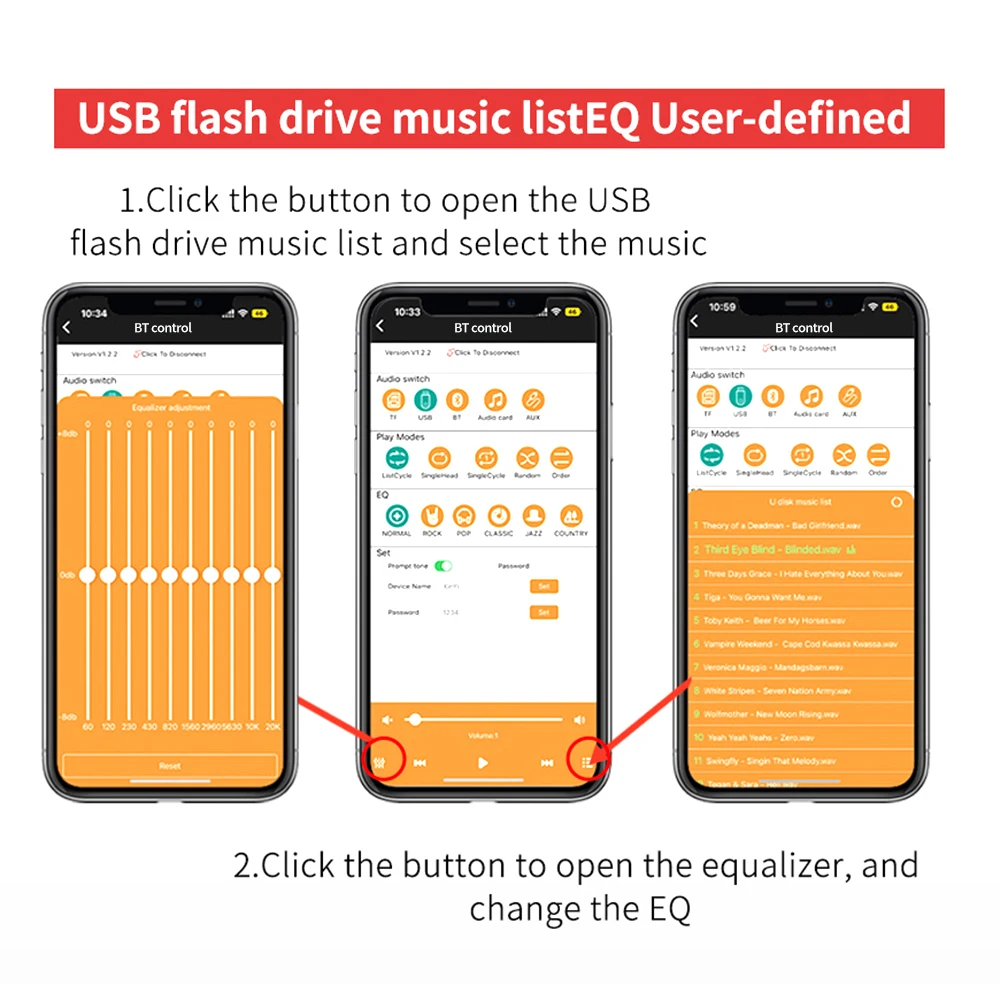

USB decoding: WAV FLAC APE MP3
Audio output: Stereo/2.0
Left and right channel output power:
2 * 10W @ 80 Ω/12VDC
2 * 20W @ 40 Ω/12VDC
2 * 35W @ 8 Ω/24VDC
2 * 70W @ 4 Ω/24VDC
2 * 80W @ 8 Ω/36VDC
2 * 160W @ 4 Ω/36VDC
2 * 220W @ 3 Ω/36VDC

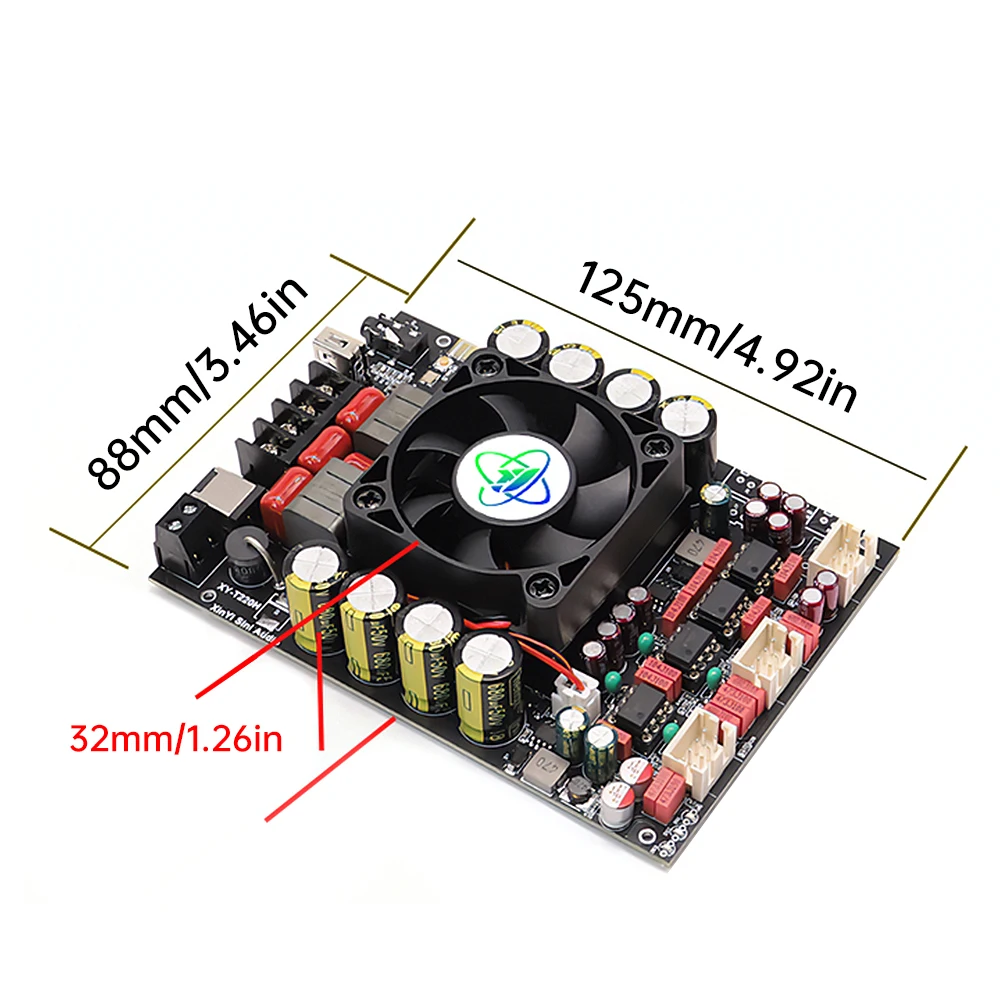

Size: 125mm * 88mm * 32mm

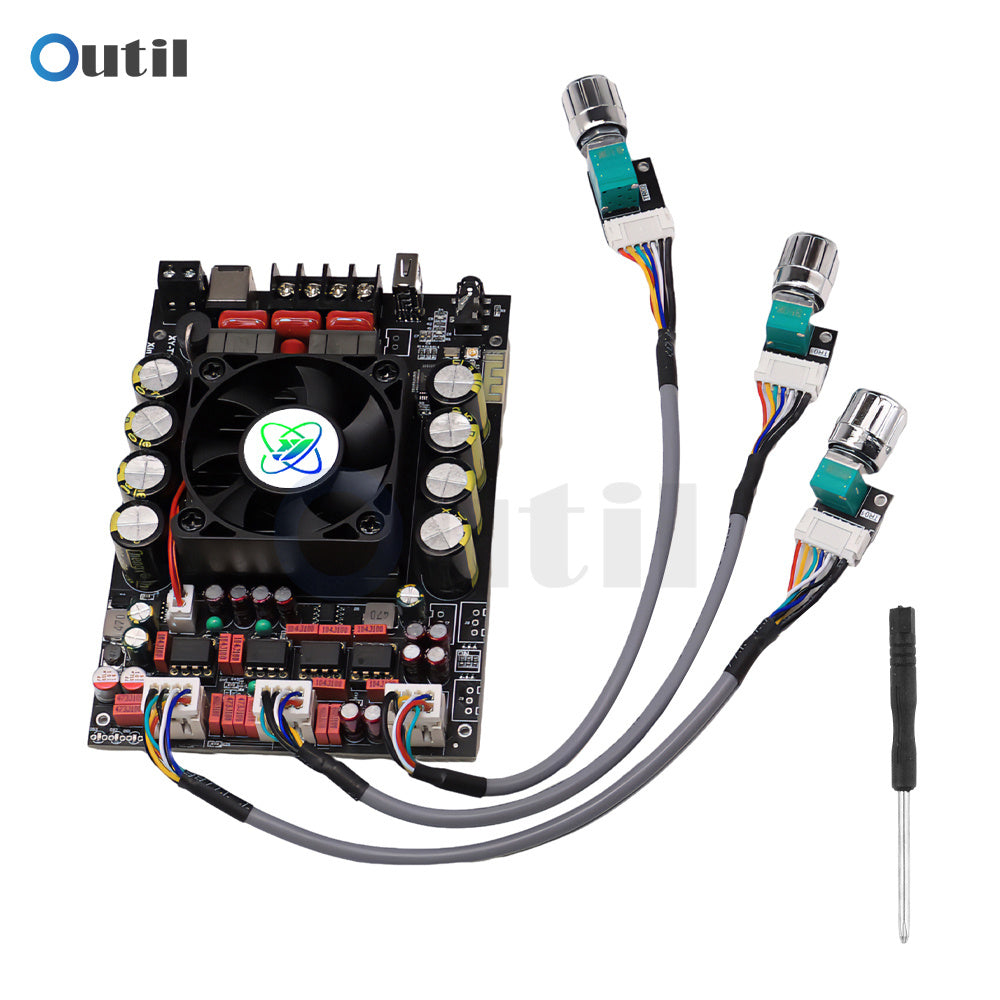

Package include:
1X amplifier board
3X knob cap
1X screwdriver
