YIHUA 8786DI Soldering Iron Digital Hot Air Gun Soldering Welding Rework Station Phone Repair BGA SMD Solder Tool Sleep Function
Technical Parameters
Model: 8786D-I upgraded version
Size: 148*99*134 mm
Weight: 2.5KG
Power: ≤700W
Working temperature: 0~40℃
Storage temperature/humidity: -20~80℃/35%~45%
Temperature stability: ±2℃
Air gun temperature range: 100~480℃
Soldering station temperature range: 200~480℃
Soldering iron power: 45W
Display mode: dual-screen LED digital display
Temperature control method: microcomputer PID
10 minutes fixed sleep function: Yes
Digital correction temperature: Yes

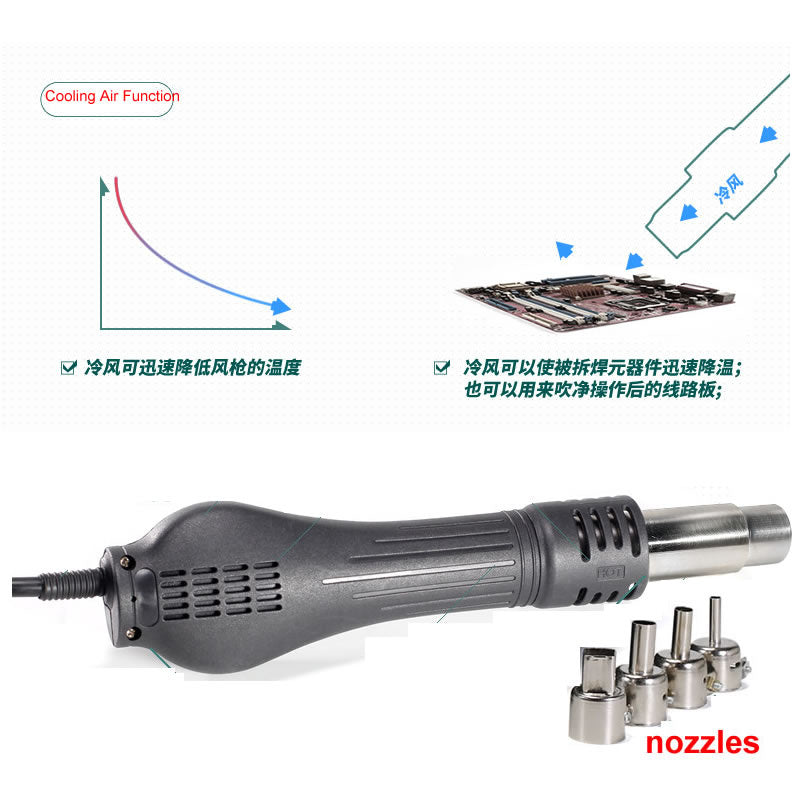

1 key switch between cold and hot air: Yes

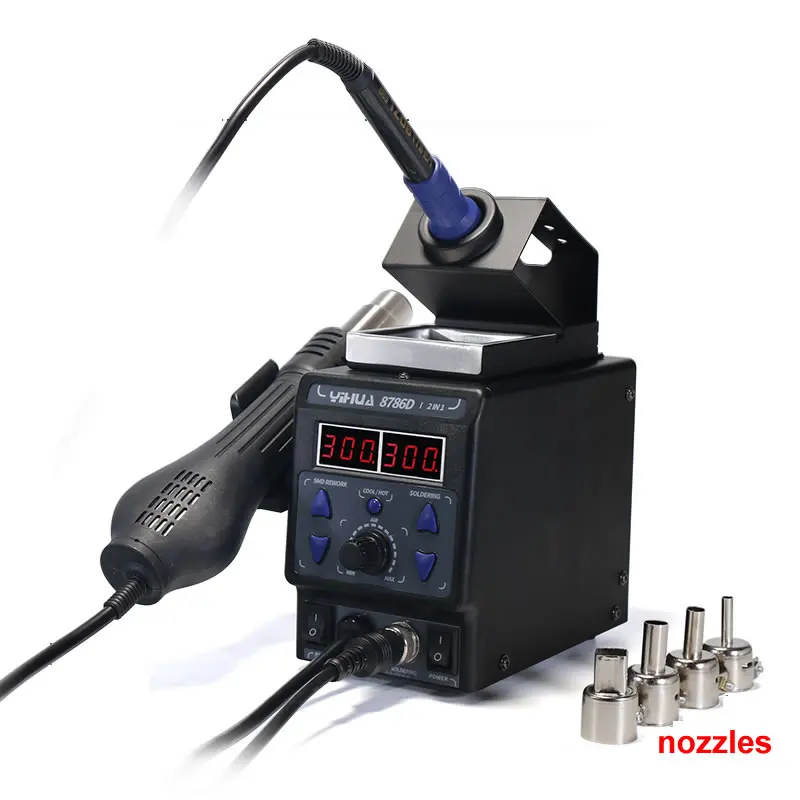

Nozzles: 4 pcs (5mm,8mm,10mm,13*13mm)
Application:
1. Suitable for a various kind of soldering or de-soldering (removals)purposes of the electronic components such as: SOIC, CHIP, QFP, PLCC, BGA, SMD, etc.
(Especially mobile phone’s cable).
2. Shrinking, paint drying, adhesive removal, thawing, warming, plastic welding.
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
