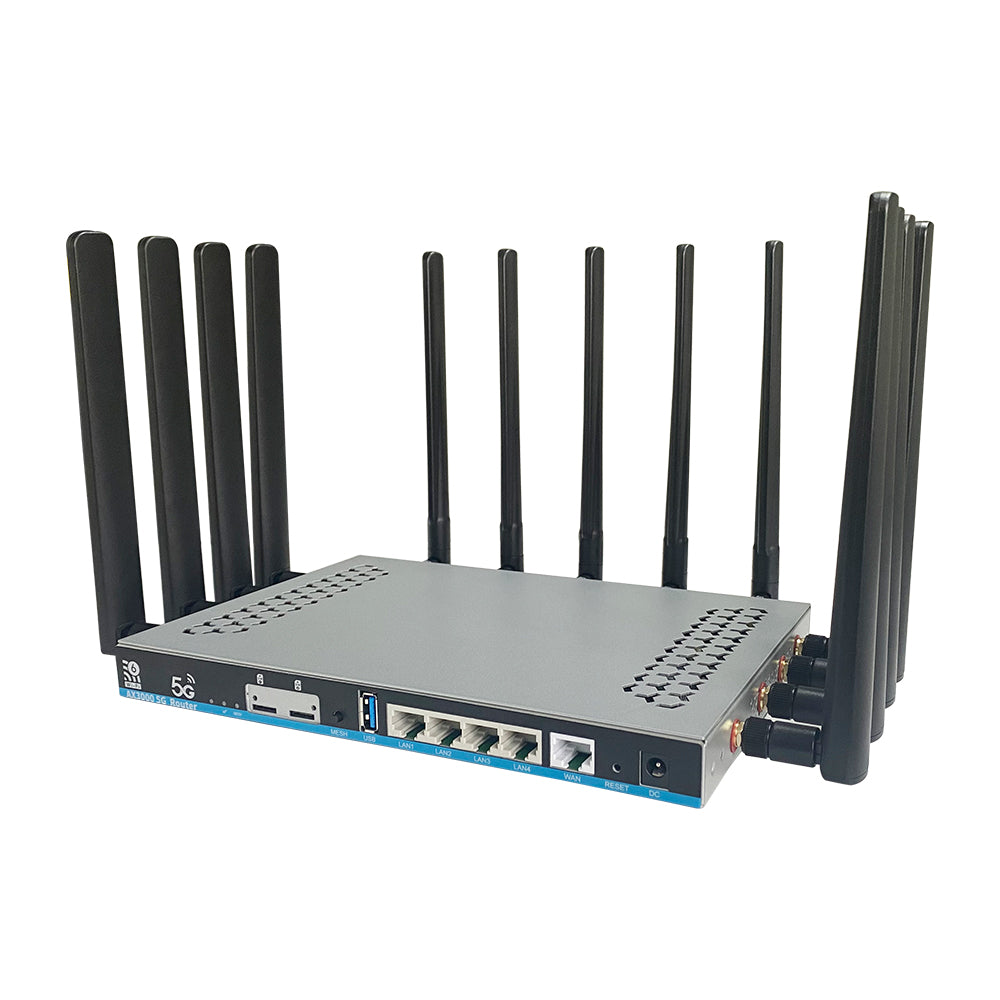

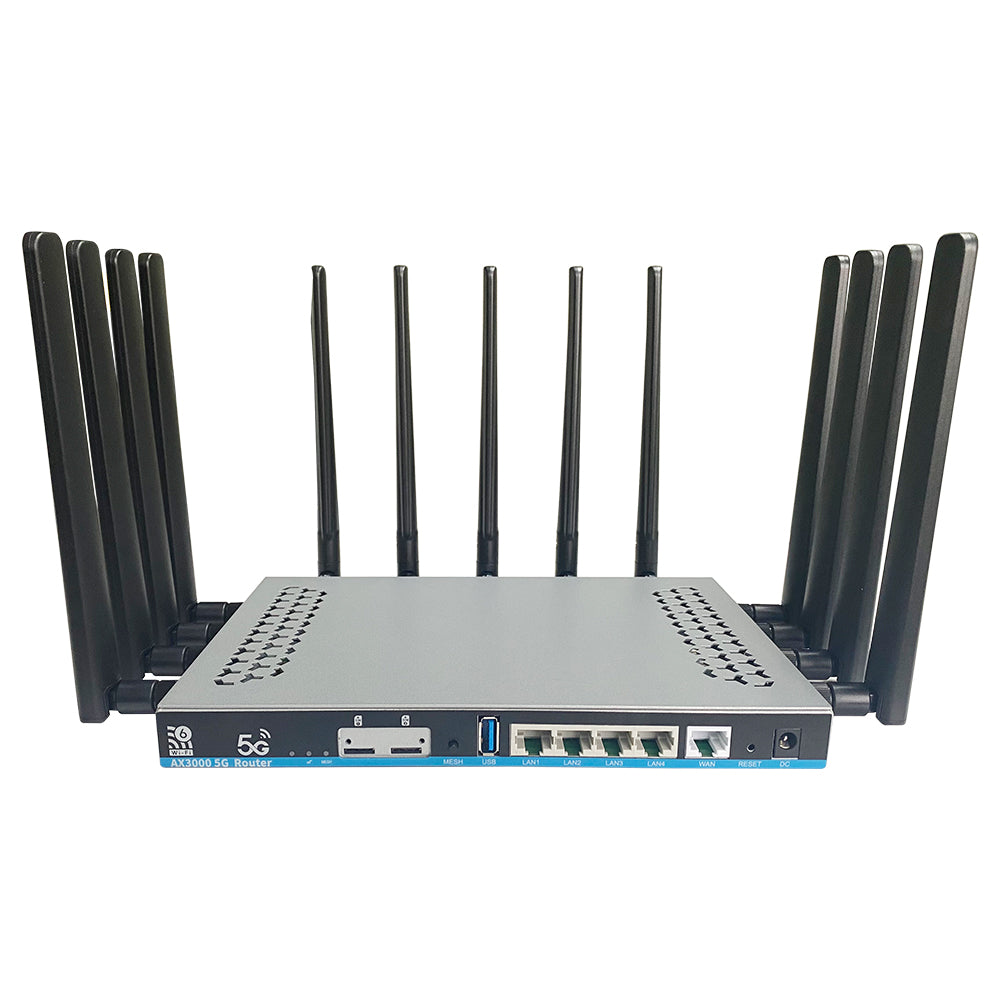

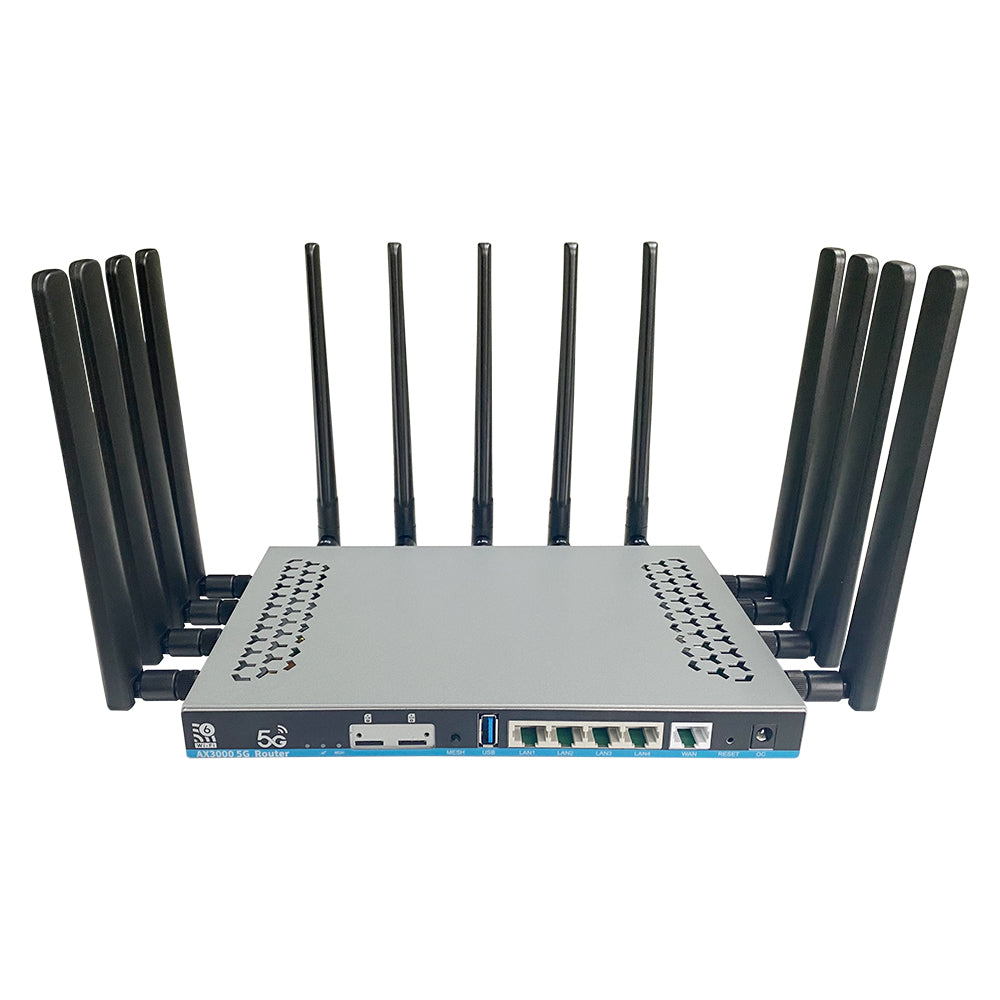

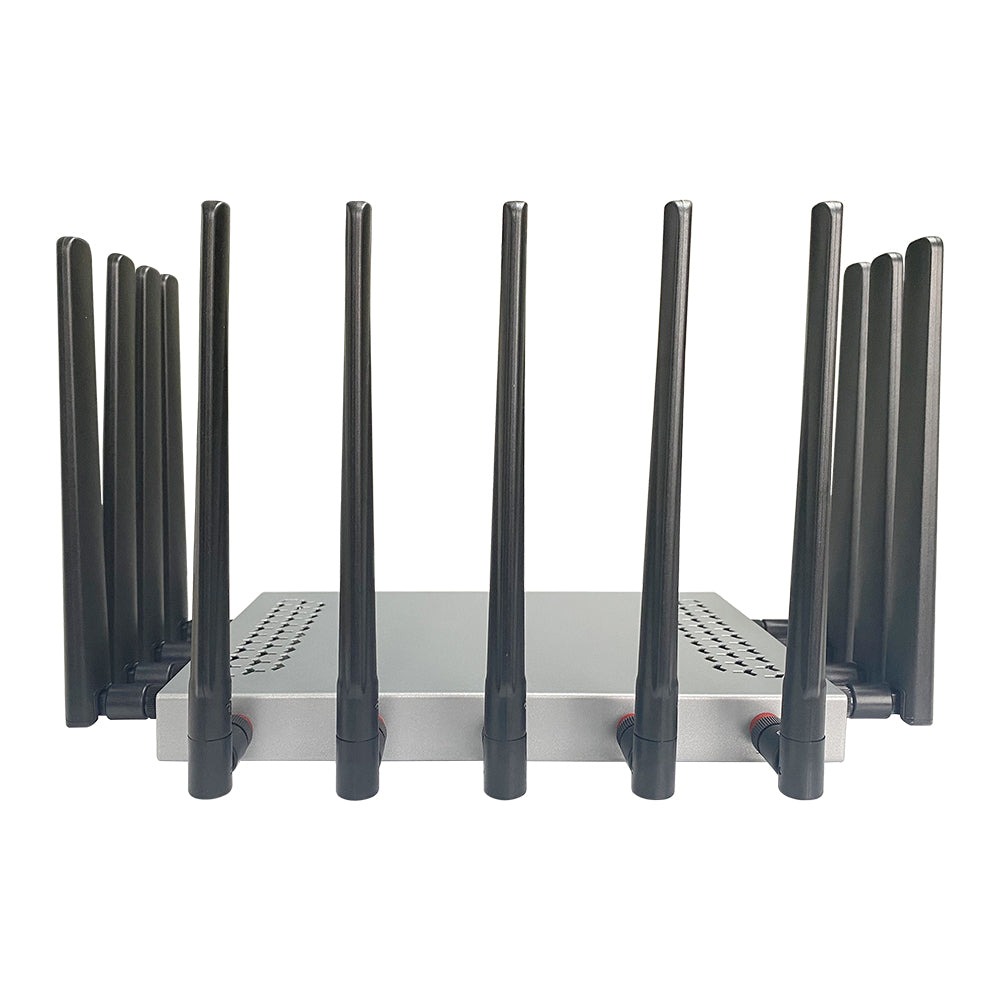

ZBT Z8102AX-T - Dual SIM LTE Router with MTK7981B Chipset 3000Mbps Wifi6 5G

ZBT Z8102AX-T - Dual SIM LTE Router with MTK7981B Chipset 3000Mbps Wifi6 5G

Name: ZBT Z8102AX-T - Dual SIM LTE Router with MTK7981B Chipset 3000Mbps Wifi6 5G
Brand: mickcara
SKU: 8e75e3-1-Black-Z8102AX-T
Price: 122.00 USD
Availability: InStock

2 sold in last 8 hours

Brand: mickcara

Product Code: 8e75e3-1-Black-Z8102AX-T

Availability: In stock

🔥BUY 3 GET 4th 50% OFF 🔥 CODE:MK50
🔥BUY 2 GET 3rd 35% OFF🔥 CODE: MK35
🔥BUY 1 GET 2nd 35% OFF🔥 CODE: MK20

$122.00

Quantity:

Subtotal: $122.00

283 customers are viewing this product

Tags:

Description

1 review

1.1 Brief overview This document describes the electrical characteristics, RF performance, dimensions and application environment of the Z8102AX-M2. With the introduction of this document, end users or developers can quickly understand the hardware functions of Z8102AX-M2. Z8102AX-M2 is a 5G/4G+WIFI6 home CPE router, which can access the Internet through 5G/4G mobile communication dial-up or 1000Mbps WAN port, and then share the Internet network through wireless WiFi 6 and 1000Mbps wired LAN.

1.2 Reference standards

Related standard specifications: 1)USB3.0/USB2.0 bus standard 2)PCI- Express bus standard 3)SIM/USIM interface standard 4)IEEE802.11n/g/b/a/ac/ax 5)IEEE802.3/802.3u/802.ab 6)PCI Express M.2 Specification Rev1.1 7)5G/4G mobile communication standard, specifically determined by the selected 5G/4G mobile communication module 8）5G dual sim router with both work same time Active-Active

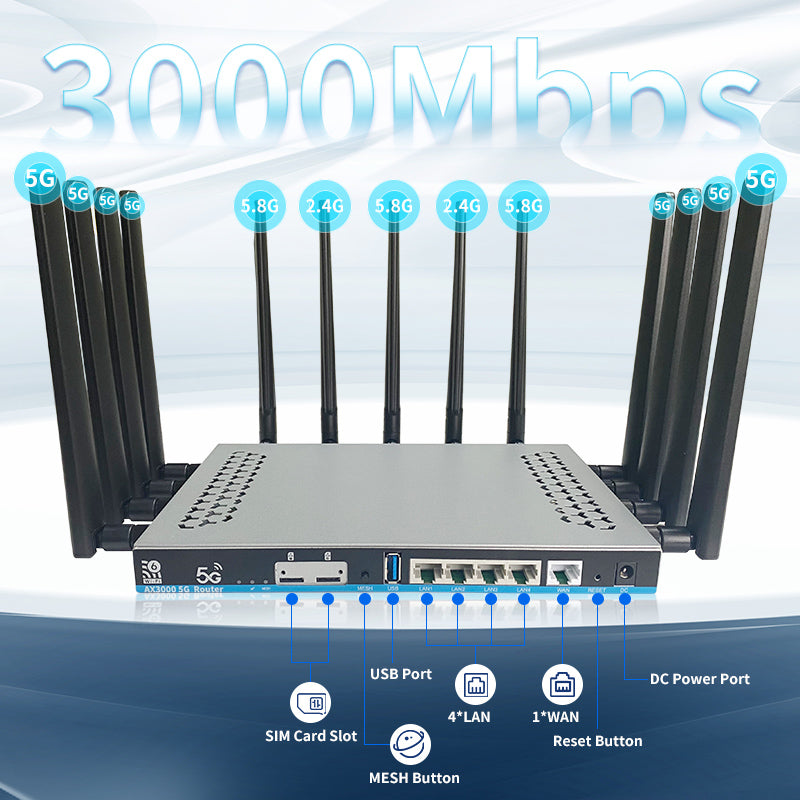

3 Product main features 1) Using MT7981B solution, ARM Cortext-A53 dual-core CPU, main frequency up to 1.3GHZ 2)Adopt independent WIFI6 chip, MT7976CN, the speed is up to 3000Mbps 3)High-speed 1GB DDR4, with 128MB SPI NAND Flash 4)1WAN+4LAN 1000M adaptive network port, support automatic flip (Auto MDI/MDIX).. 5)Support "one-key flashing mode", that is, long press the reset button to enter the rescue flashing mode... 6)Support "one-key" MESH networking... 7)Built-in 2 M.2/Mini-PCIE standard interfaces (choose one of the two), which can be used to connect to 5G/4G mobile communication modules 8)External standard Nano SIM card (small card) interface and built-in eSIM (QFN-8 6mmx5mm) card interface, support SIM/USIM card 9)External high-gain WIFI antenna, 360-degree wireless signal without dead angle 10）

Logistics information

Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
