Advantages:
1. USA standard 5-lock Tongue Structure Lock Core, hierarchical management;
2. Triple mute lock body;
3. Lock face has no artificial rivets and plastic parts
4. The board support anti-interference and error correction feature;
5. The circuit has been damp-proof and dust-proof processed before shipping;
6. The lock information will not loss when power off;
7. A clock inside the lock control the key card using time;
8, Anti-static support;
9, Low voltage warning;
10, Fit door thickness: 38-60 mm.
11, Fit door type: wooden door

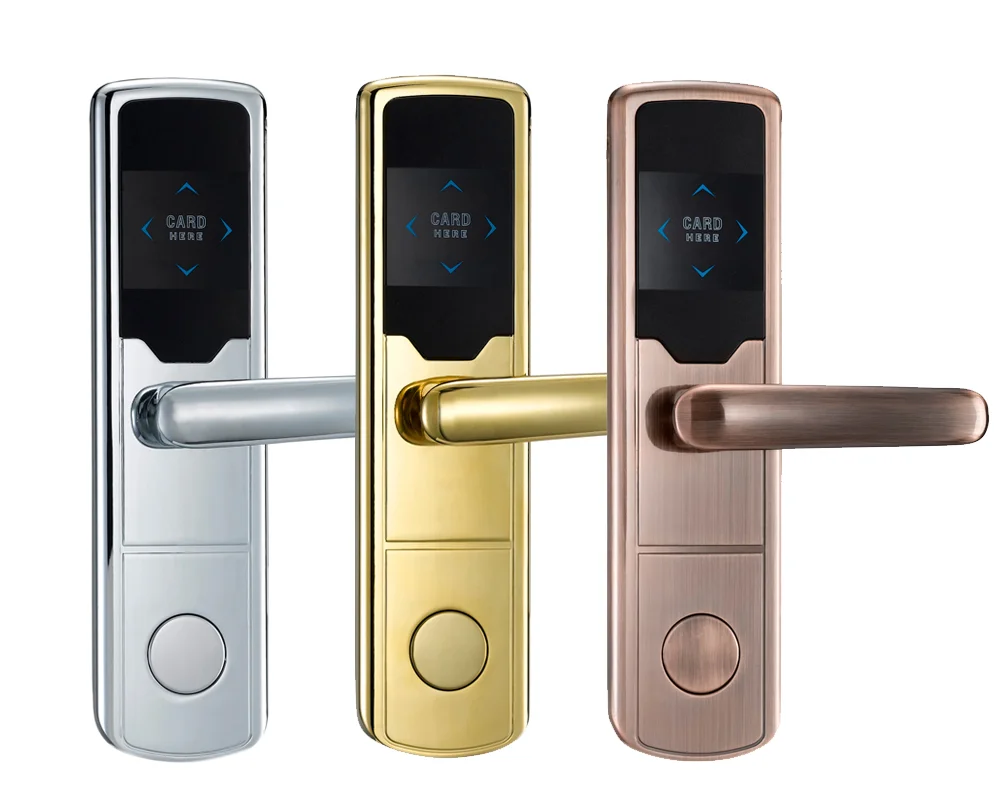

Color:

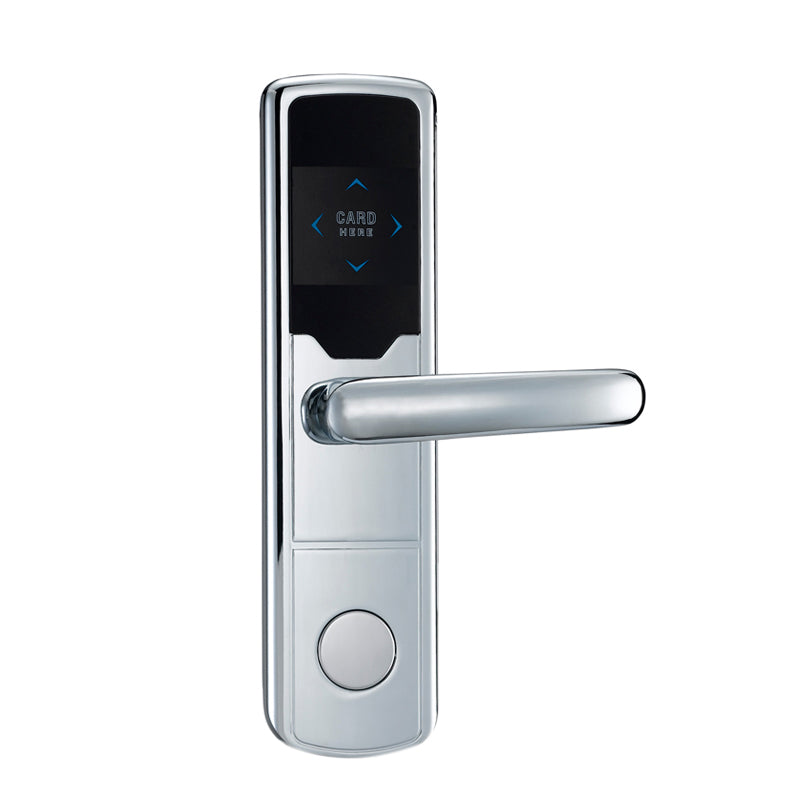

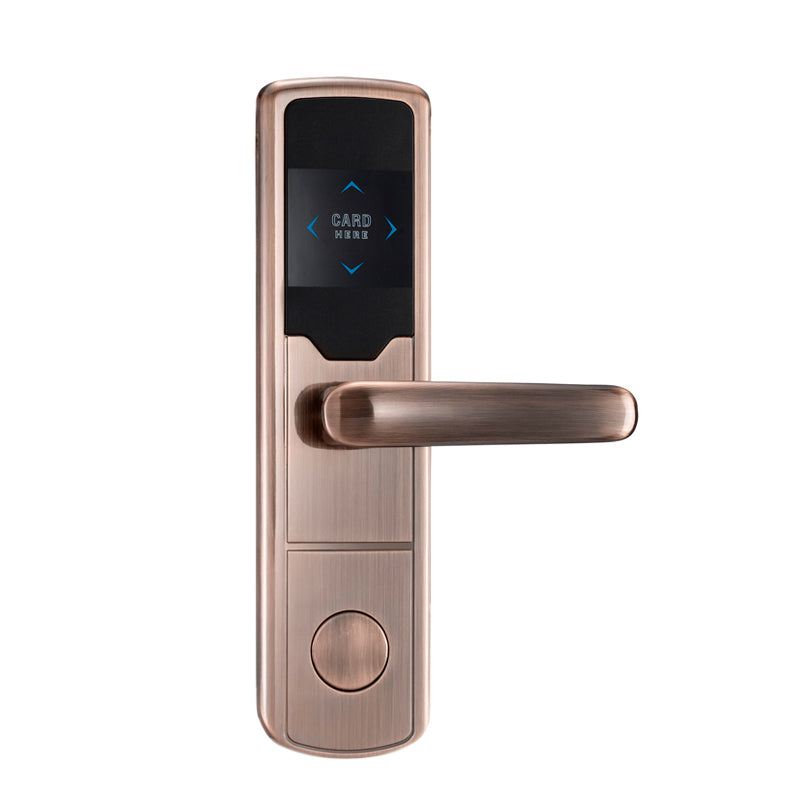

Silver, golden and copper color are optional.
The default color is copper when you ordered. If you need other color, please leave us message when ordered.

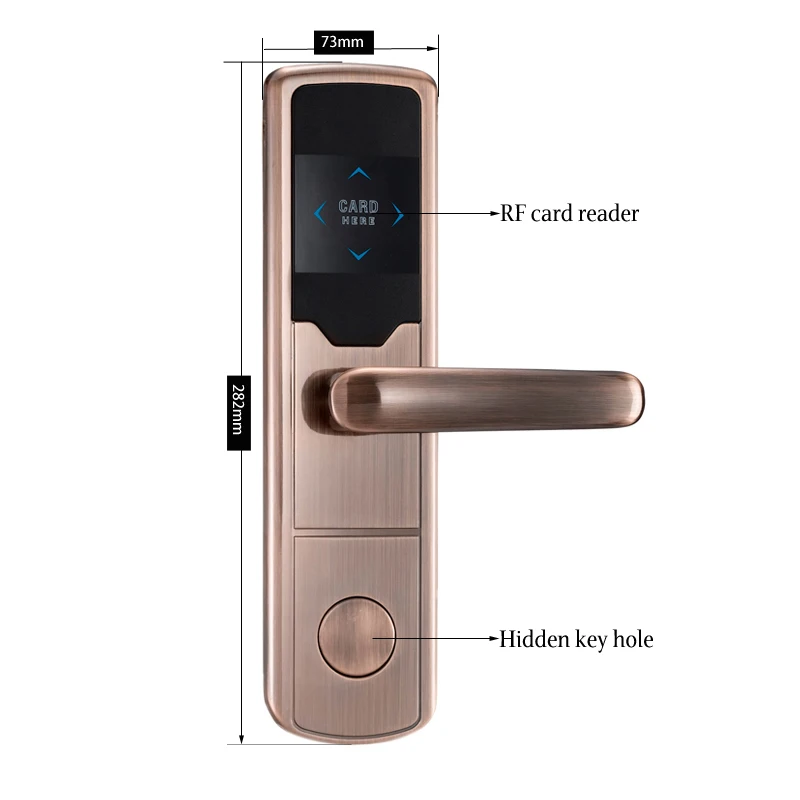

Specification
Material: zinc alloy
Unlock: RF card and keys
Reading card distance: ≤3cm
Working temperature: -20℃-70℃
Card type: 13.56mhz Mifare card
Unlock record: store latest 1000pcs
Application: Hotel, office, home, school, villa etc

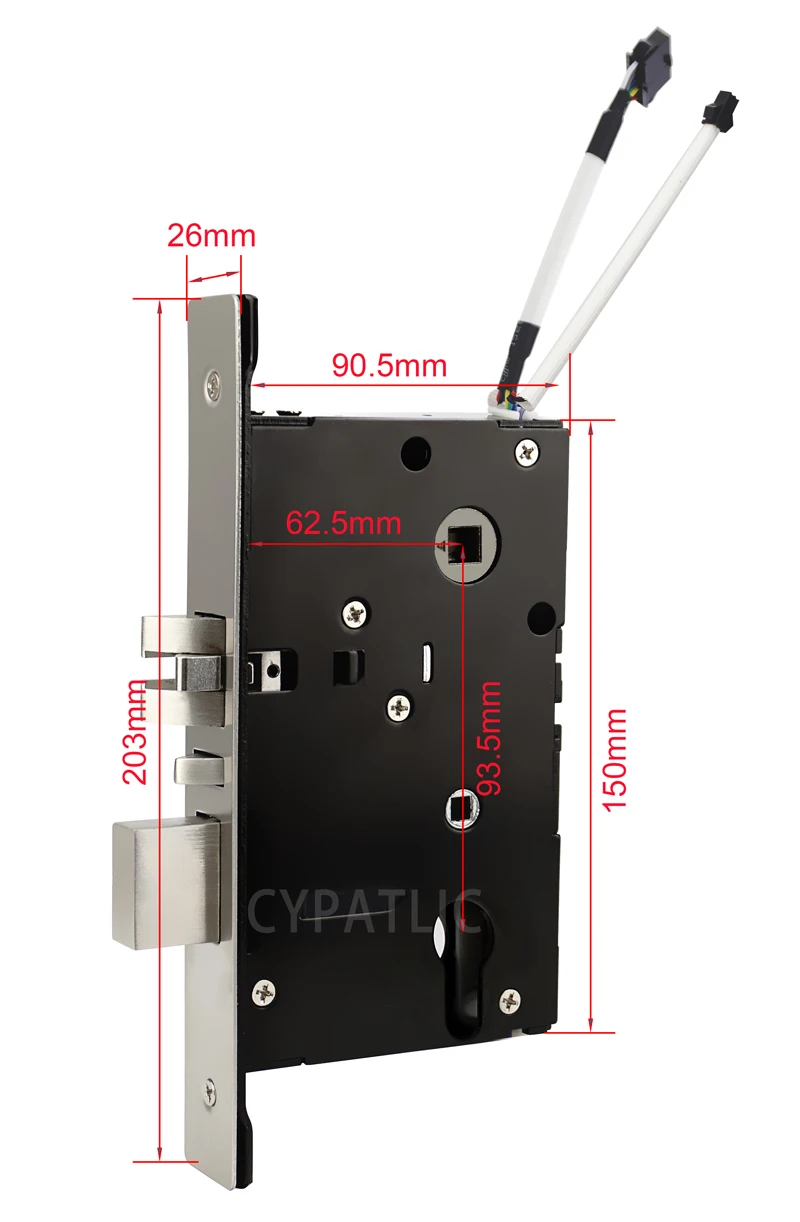

Lock Mortise Size

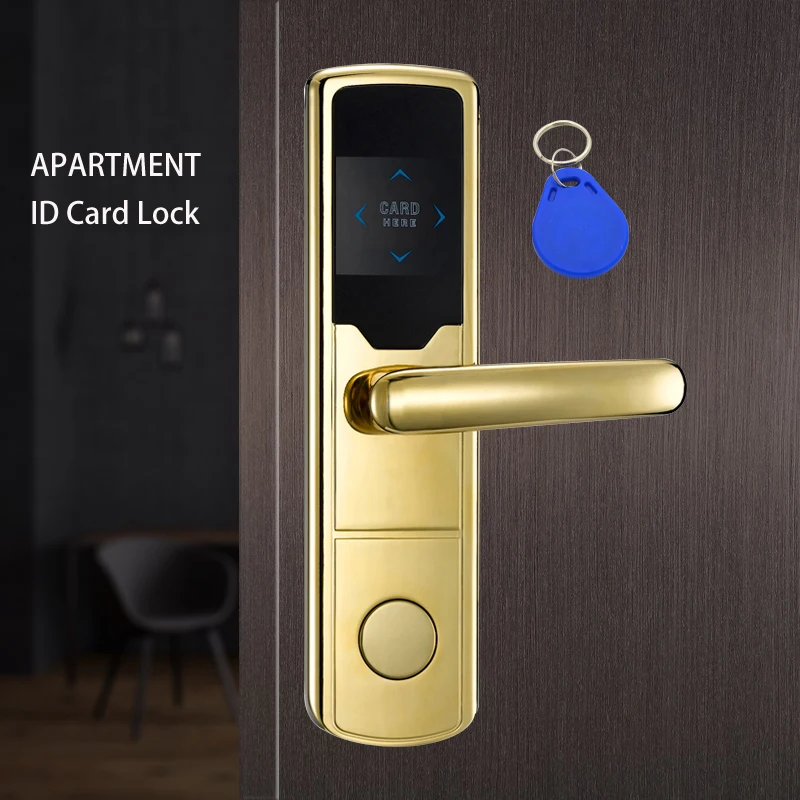

Home ID Card Lock
ID card lock is suitable for apartment, office, school etc.
No need software and card encoder.
Each lock packed with Master card and user cards.
You can use the Master card to add the new user card.
Hotel IC Card Lock System
ID card lock is suitable for apartment, office, school etc.
No need software and card encoder.
Each lock packed with Master card and user cards.
You can use the Master card to add the new user card.

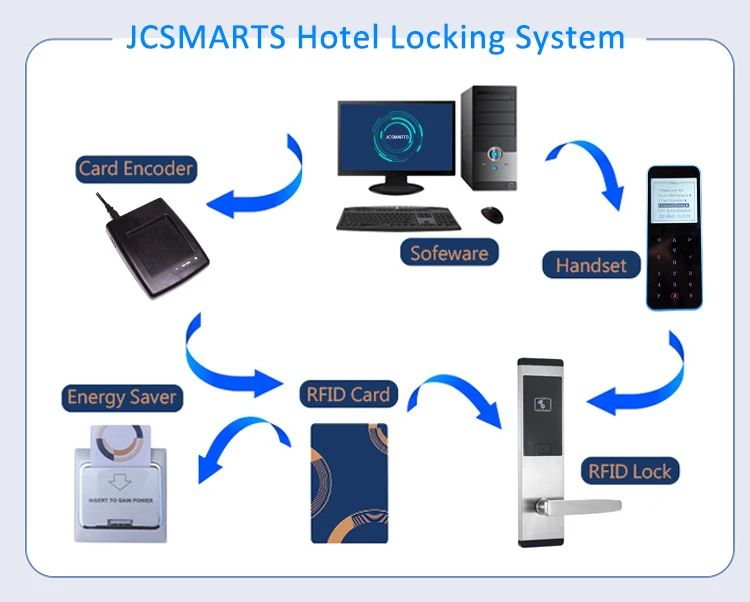

Basic needs of hotel lock system:
1, Software
The software support English and Thai languages for now. And we are delovping the Russian, Spanish, Portuguese and Vietnamese. Need more time.
We can provide the Win32 Dynamic Library for you to integrate with other software.
2, Card Encoder
It is necessary for hotel lock system, which is used to issue room card;
It support 2 or more encoders work at the same time, If your Reception has 2 or more computers, this one is perfect for your project.
3, Handset PDA
This one is optional, but helpful. Suggest to take 1 for 1 hotel project;
You can set all room information on PC first, then download all the room information to the handset PDA at once, and then install one by one, easy for lock installation;
Also it can Proofread the lock time, Operate check-out, read door opening records, upgrade lock firmware, Synchronize PC software information;
4, Door Lock
Please choose the door lock according to your door type and contact us to double confirm the installtion details;
5, RF Card
The card is necessary, which is not included in the lock standard packing list.
The card can be T5557 card or M1 card; The default is T5557 card;
The default card is white card;
If you need printing images/ logo/ hotel information on card, no problem!!!
Optional Needs of hotel lock system:
1, Energy Saving Switch
It is optional, but helpful to save power.
When guest insert the room card, then the room will get electricity.
2, Public Door Access Reader
It is optional;
With the public door access reader, the guests room card can unlock the gate public door;
3, Elevator controller
It is optional, for hotel security, some hotels will use it;
The guests need to swipe the room card to active the elevator, without the card, the elevator will not active;
Contact:
Please contact us at whatsapp +86 17727439775 for more details. We will help you to understand our hotel system.
Software Screenshot:
Hotel Receptionist Management
Simulating the hotel receptionist management, with preconcert room, check-in, extend room, exchange room, quit room, key card loss report etc functions. It support query all kinds of data and generate report.
Hotel Room Information
Issue Multistage key cards
Multistage key cards: Can set managment card, building card, floor card, clearning card and room card;
Card Lost Report Function
Key card lossing report function: when the key card lost, can cancel the card in the receptionist management and issue a new one.
Queries and Reports
You can find the "Check-in information, issue card record, card usage, unlocking records,
Data Maintenance
You can easy to backup the data if you need to change the computer
Order Details Confirmation:
1, Please confirm the lock color: sliver or golden

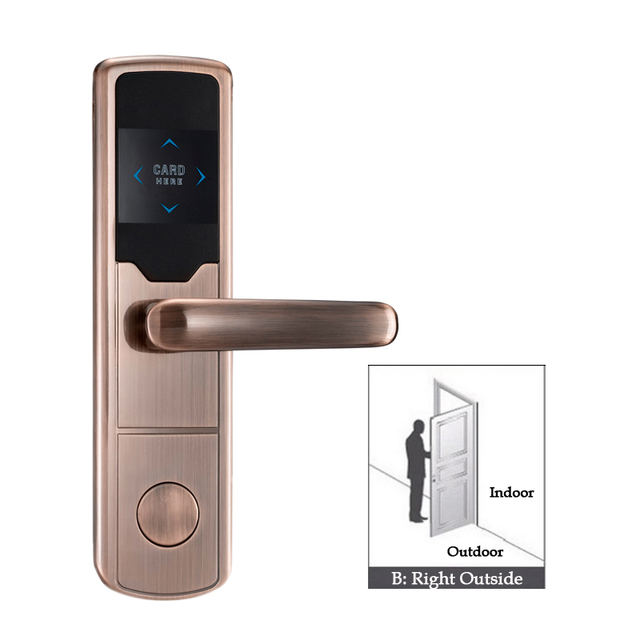

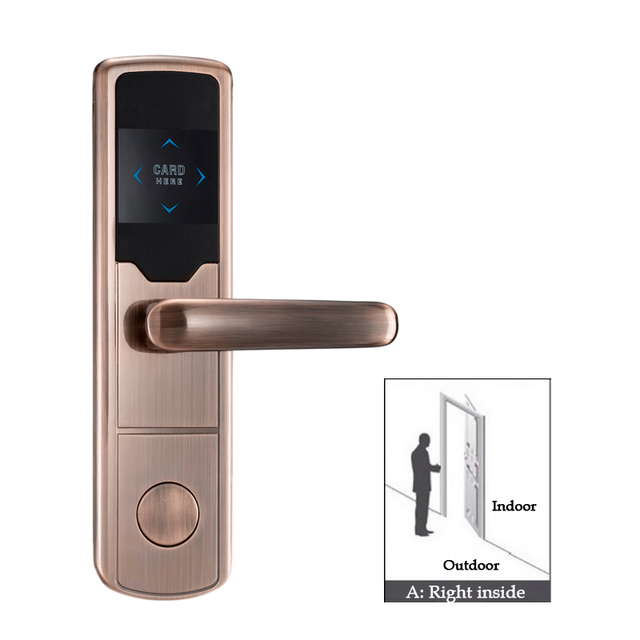

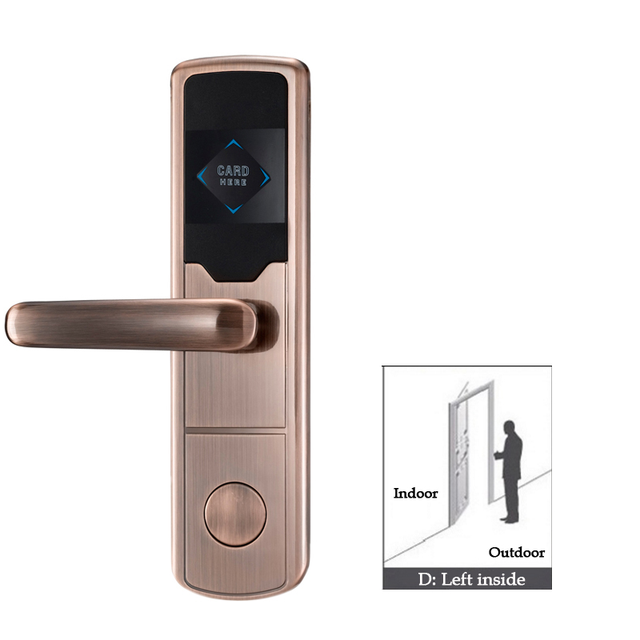

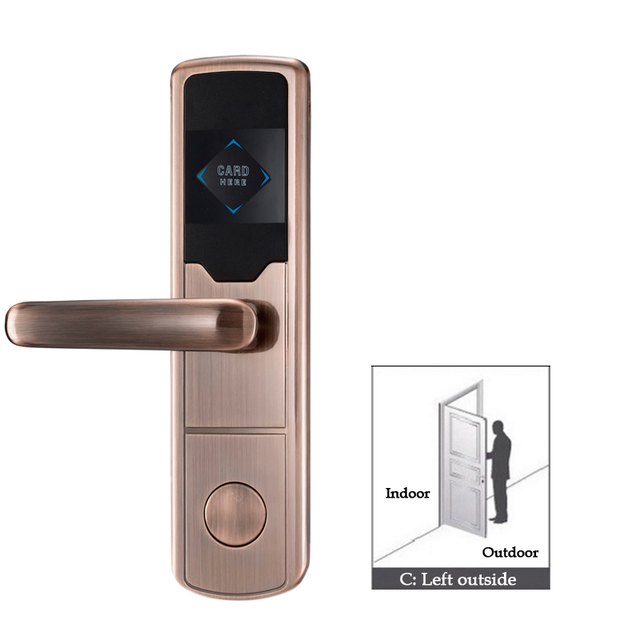

2, Please confirm the door opening direction according to the following picture:
3, If your door is old and already drilled hole on it, please contact us first to confirm the size.
Please check the length and width of side bar.
Installation showing:
Logistics information
Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
