Zishan MD4 CS43198 HiFi DSD Digital Player Bluetooth DAC 192K DSD256 Coaxial Optical Fiber Signal Output RCA/3.5mm Headphone

Zishan MD4 CS43198 HiFi DSD Digital Player Bluetooth DAC 192K DSD256 Coaxial Optical Fiber Signal Output RCA/3.5mm Headphone

Name: Zishan MD4 CS43198 HiFi DSD Digital Player Bluetooth DAC 192K DSD256 Coaxial Optical Fiber Signal Output RCA/3.5mm Headphone
Brand: mickcara
SKU: cawd0a0076
Price: 268.57 USD
Availability: InStock

2 sold in last 8 hours

Brand: mickcara

Product Code: cawd0a0076

Availability: In stock

🔥BUY 3 GET 4th 50% OFF 🔥 CODE:MK50
🔥BUY 2 GET 3rd 35% OFF🔥 CODE: MK35
🔥BUY 1 GET 2nd 35% OFF🔥 CODE: MK20

$234.78

Quantity:

Subtotal: $268.57

283 customers are viewing this product

Tags:

Description

1. Compatible with most music formats and USB disk file systems on the market

APE, FLAC, WAV, MP3, M4A, WMA, AIFF, AAC, DSF, DFF, ISO, CUE, and even multi-channel DTS5.1. It supports multiple partitions, file systems NTFS, EXFAT, FAT32, and hard disk U disk without capacity limit,

Fast Analyze CUE and ISO

PCM up to 384k 32bit

DSD hard solution up to DSD256

It supports common file systems such as NTFS, EXFAT, FAT32, and multiple partitions

2. Adopt self-developed Bluetooth module

Employ the ESP 32 Bluetooth module developed by Zishan, Bluetooth version 4.2, and support SBC, APTX, APTX-HD, LDAC protocols. The LDAC protocol can reach a maximum of 96k 24b.

3. Support USB DAC function

Support UAC2.0 protocol, connect computer win10 and win11 systems without driver, and realize the highest PCM 348K 32b and DSD128 playback.

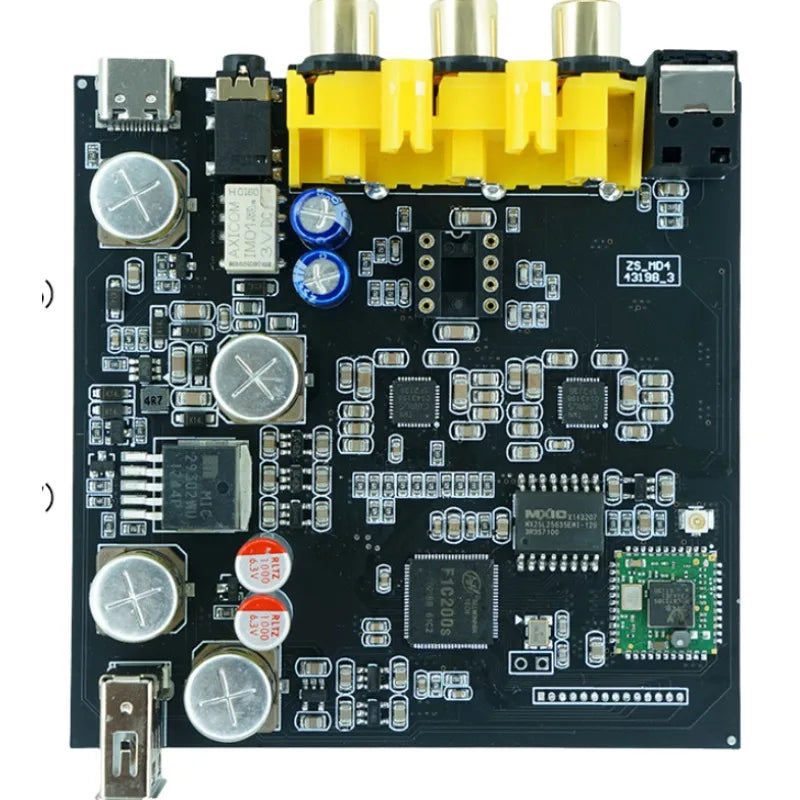

4. NO PLL and ALL Signal comes from CPLD

Zishan's dual crystal oscillator+CPLD I2S solution. All signals come from CPLD and there is no frequency doubling phase-locked loop. The audio crystal oscillator is divided by CPLD until DAC

CPLD takes over I2S of master control and Bluetooth, and simultaneously synthesizes SPDIF signal output in real time

5. Single CS43198

The single CS43198 configuration includes an CS43198 chip. Although it is a single DAC chip, it has a very high cost performance ratio. At the same time, it provides a plug and socket op amp socket for buyers to replace their favorite op amp. Currently, the standard op amp JRC2068

6. The simplest DAC ->LPF design

Thanks to the dual power supply design, the whole machine does not have a coupling capacitor, and the DAC is connected with the necessary LPF to provide a standard 2Vrms level

The physical relay suppresses switch popping without any audio switch or mute tube

Multiple censers and ghosts. I believe that the simplest design can bring most of DAC into play

7. Coaxial support DoP

In short, it means that DSD signals are transmitted through the coaxial line. But at the same time, the decoder needs to support DoP function. If your decoder DAC is ES9038 or mojo or other decoder that supports DoP, when you use coaxial fiber to connect MD1 to play DSD music, you can realize real DSD signal transmission and playback

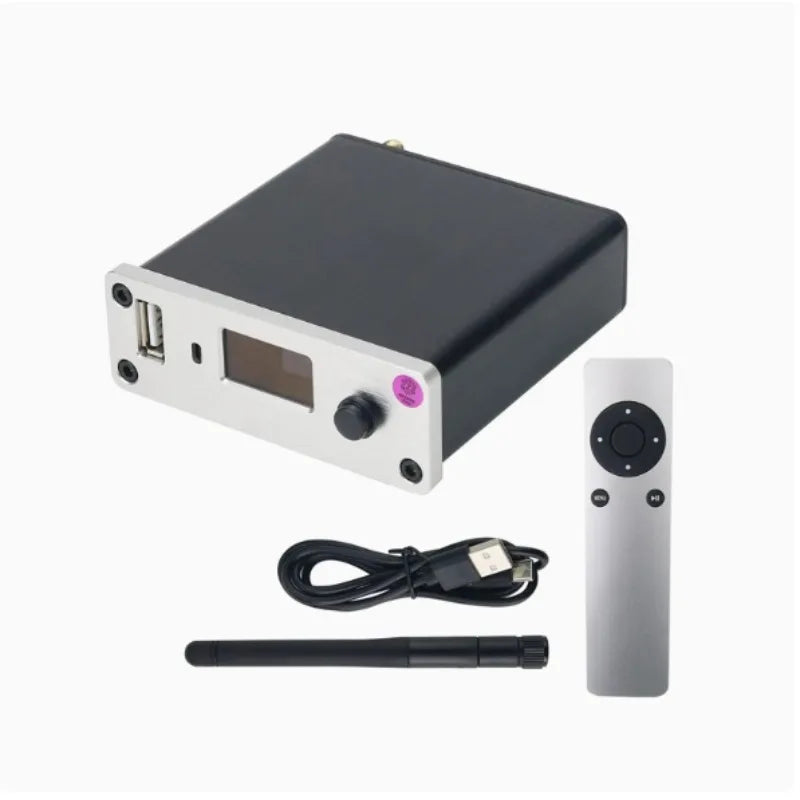

8. Equipped with a remote control

It is equipped with a remote control to facilitate remote song cutting. All functions can also be operated through the five way keys on the front panel of the remote control.

Logistics information

Our products are located in Hong Kong, China, and the logistics speed depends on your specific location. According to our experience, it usually takes about 15-20 days of transportation time
