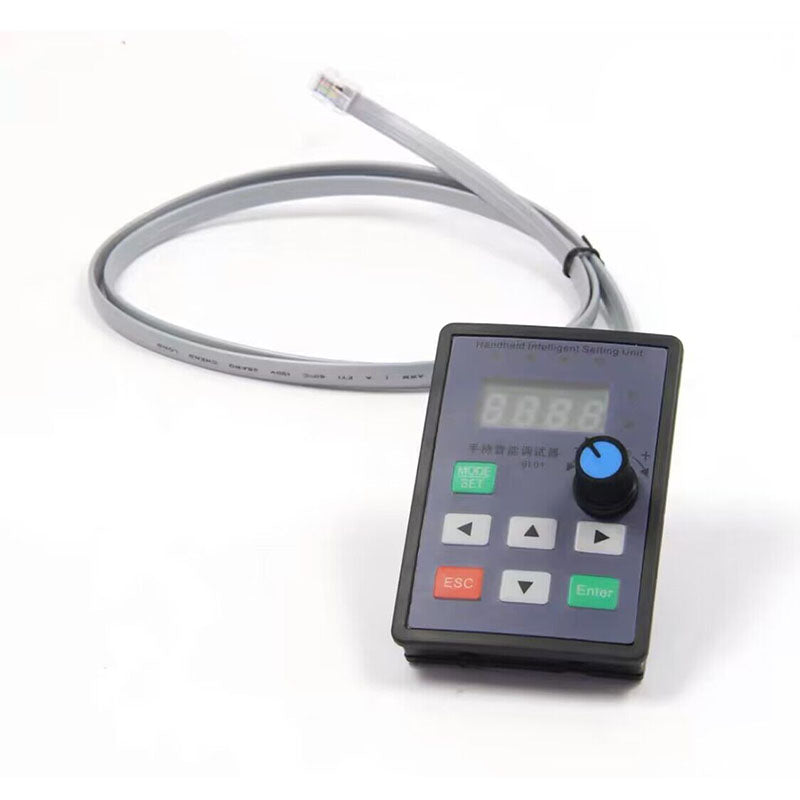

ZM-7205 5A 1100W with Handheld Smart Setting Tool ZM-7205 310V High Voltage High Power DC Brushless Motor Driver 220V AC Max

  describe:

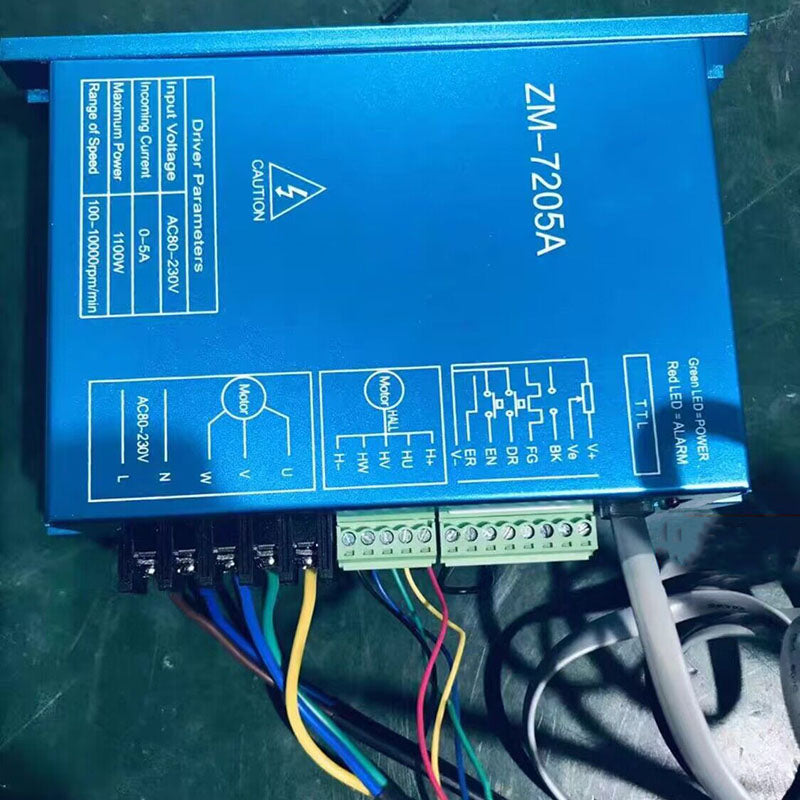

ZM-7205A brushless DC motor driver is the latest product launched by our company. It is a high-tech product aimed at the field of medium power motor drive. This product uses large-scale integrated circuits to replace the original hardware design, which has higher anti-interference and quick response performance. This product is suitable for driving the input current below 5A, the power supply voltage is AC70V~230V (the panel is nominally AC80V~220V) or three-phase Hallless DC brushless motor, and has the characteristics of low temperature when working with high current.

application:

The products are used in a series of electrical automation controls such as knitting equipment, medical equipment, food packaging machinery, and electric tools.

feature:

1. External speed display board to display the speed; it can also be connected to a computer to set the driver parameters;

2. Double closed-loop current speed regulation design, low speed and high torque, stable operation;

3. High torque, high speed output, the maximum speed is 20000rpm/min; (according to the user's motor)

4. Speed regulation mode: external PWM speed regulation or external potentiometer speed regulation;

5. EN (enable), DIR (direction), X1 (brake) signal control terminals;

6. Can output speed pulse FG, (photoelectric isolation, gate output);

7. Can output alarm signal ALM for user detection (photoelectric isolation, gate output);

8. It has protection functions such as overcurrent, overvoltage, undervoltage, fan control, Hall sensor phase error, motor stall protection, etc.

9.70-220VAC input, 5A current, can drive brushless DC motor with power below 1100W

The main function:

This product can realize the following functions: (the standard factory default setting is square wave Hall open-loop mode)

1. Square wave has hall speed open loop operation

2. Square wave has Hall speed closed-loop operation

3. Square wave Hall-free speed open-loop operation

4. Square wave Hall-free speed closed-loop operation

5. Constant torque open-loop operation (long-term overload operation is strictly prohibited)

6. Constant torque closed-loop mode operation (long-term overload operation is prohibited)

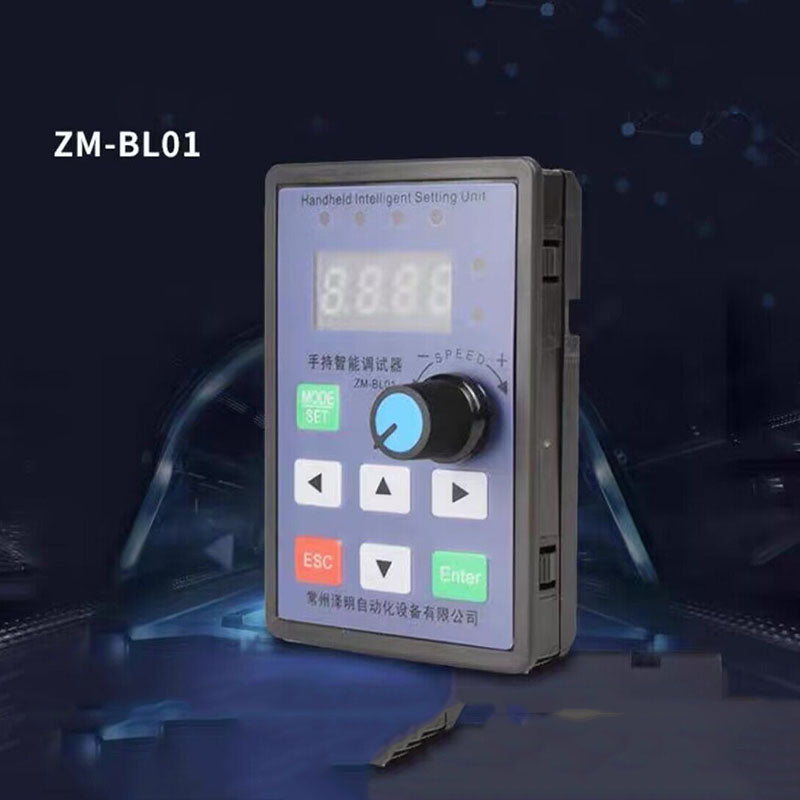

The above functions can be set according to the host computer software or handheld debugger provided by our company.

notes:

When there is no Hall operation, there is no direction control function;
