THE ZOOM F-CONTROL

MIXING CONTROL SURFACE FOR THE ZOOM F8N PRO, F8N, F8, F6, AND F4

MIX AND RECORD

The Zoom F-Control is an essential piece of gear for everyone who uses an F8n Pro, F8n, F8, F6, or F4 Multitrack Field Recorder. With F-Control, you can have total command of your recording experience.

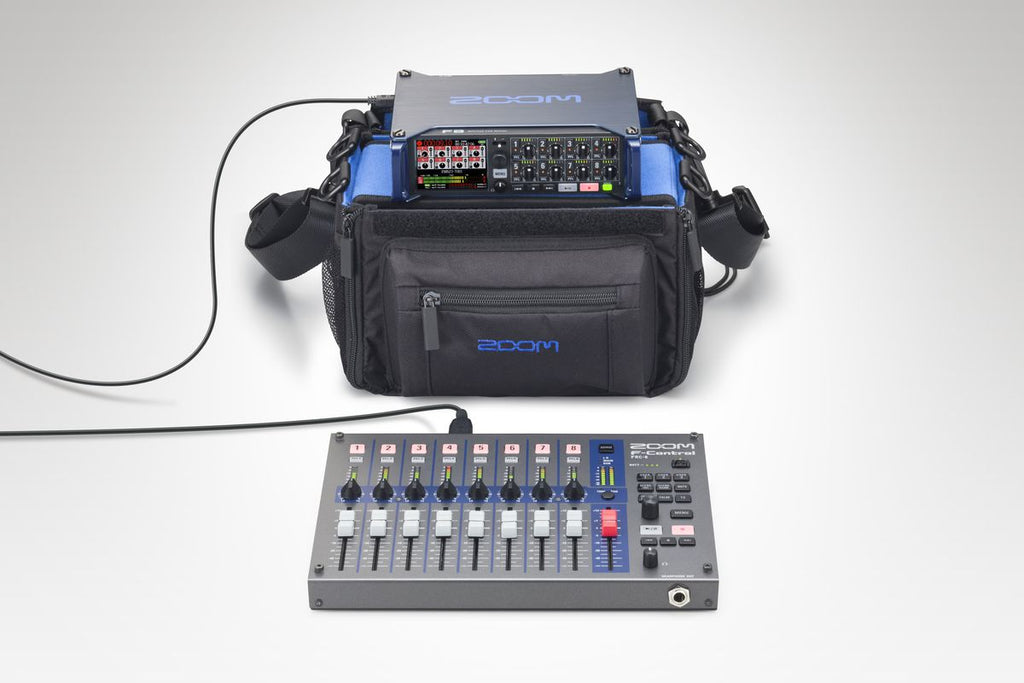

F-Control is a mixing control surface that gives filmmakers more control and flexibility when recording in the field. It works alongside the Zoom F-series Multitrack Field Recorder to create a complete and professional on-location audio rig.

MAXIMIZE YOUR F-SERIES RECORDER

F-Control works intuitively with the F8n Pro, F8n and F6 to give you additional mastery over sound design and mixing, as well as broaden your creative possibilities. It connects to your Zoom F-series with a single USB cable, so you can keep your setup clutter-free and be ready to record in seconds.

RECORDING ESSENTIALS AT YOUR FINGERTIPS

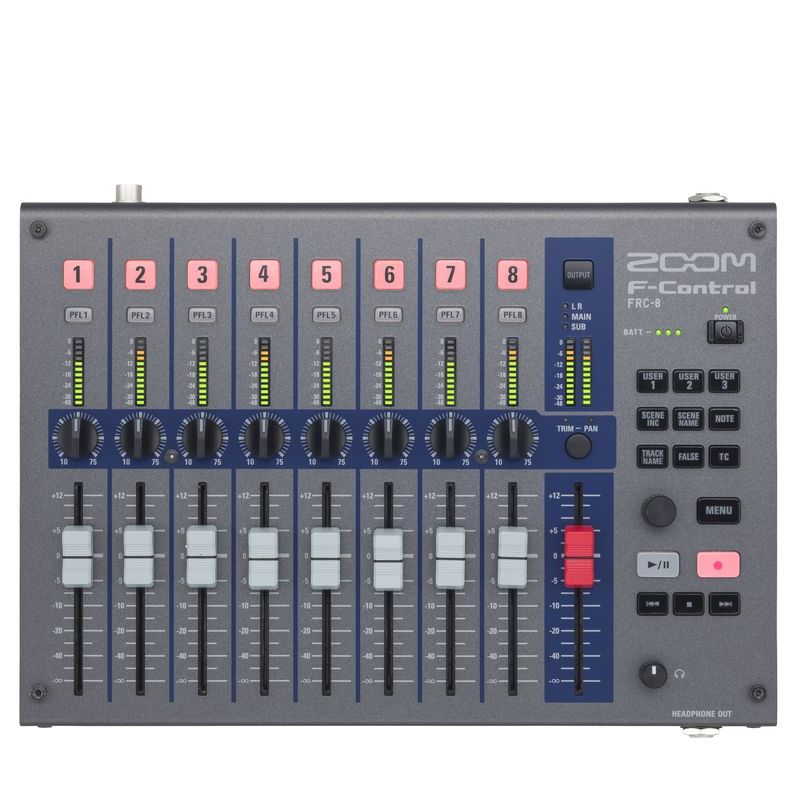

F-Control makes recording and mixing easy with nine 60 mm faders (eight + Master) and hands-on input/output control for trim, pan, track arming, and PFL. Monitoring channel and output levels is simple with 12-segment LED meters, three user-programmable buttons, and a dedicated time code button.

You can also organize recordings using the Track Scene edit buttons for metadata entry. F-Control gives you the option to connect an external USB keyboard so you can enter information for “Track Name”, “Scene Increment”, “Scene Name”, “Notes”, and “False Take.”

CONNECT YOUR FIELD RECORDING GEAR

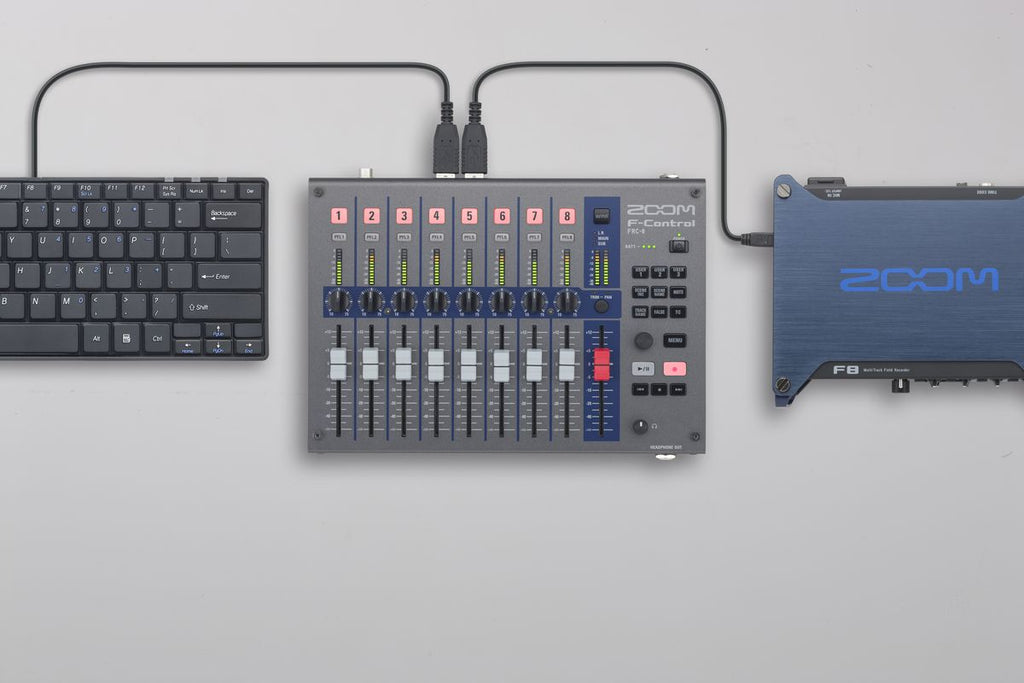

Connect your F8n Pro, F8n, F8, F6, or F4 to F-Control via one of two USB ports. The Keyboard USB port lets you connect an external keyboard so you can quickly enter metadata when you’re out in the field.

A 1/4” stereo cable connects the Zoom F-series recorder's headphone out to F-Control's headphone in, so you can monitor audio via F-Control’s headphone jack.

POWER ANYWHERE YOU GO

F-Control has two main power options: four AA batteries (for up to 9 hours of operation) or power it with a 4-pin HIROSE connector with an external battery pack. An additional USB bus power option is available when using the F8n Pro, F8n, F6, and F4 (not available with the F8).

BUILT FOR THE TOUGHEST PRODUCTIONS

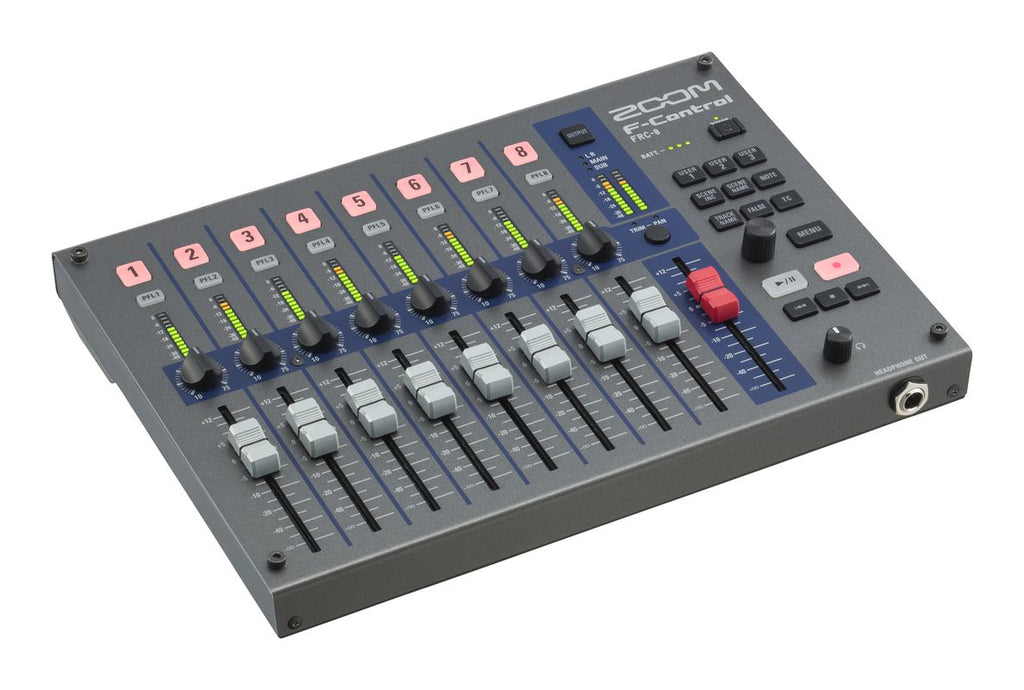

Its metal chassis makes F-Control suitable for all production locations. Plus, the F-Control is small and light enough to fit into your gear bag or backpack, so you can take it on any shoot.

TAKE CHARGE OF YOUR CREATIVITY

F-Control takes sound recording and mixing to the next level. Its simple and hands-on design gives you complete authority over your workflow, so you can fully focus on capturing great audio.

Featured: Paula Fairfield, Sound Designer/Sound Effects Editor

 WHAT'S IN THE BOX

      WHAT'S INCLUDED:

       F-Control (FRC-8)

    1.5m stereo cable

    1.5m USB cable

FEATURES OF THE F-CONTROL

   9 faders (eight + Master), each 60mm

  1/4" Headphone jack

  USB port for external keyboard connection

  Hands-on input/output control for trim, pan,

and track arming

  12-segment LED meters for monitoring channel

and output levels

  Dedicated time code buttons

  Track Scene edit buttons: Shortcut commands

to Track Name, Scene Increment, Scene Name,

Notes, and False Take screens

  Power options: 4 x AA batteries, 4-pin HIROSE

connector with external battery pack, and USB

bus power via the F4 (not available with the F8)

  Durable metal chassis

  Compatible with Zoom F8n Pro, F8n, F8, F6, or F4 MultiTrack Field Recorders

SPECS

          POWER REQUIREMENTS:

    AA size (LR6) battery x 4

    External DC power supply 9–16 V

          BATTERY OPERATION TIME:

    <When using 8 channels at once, LED Brightness=60, without keyboard>

    Alkaline batteries: 8.5 hours or more

    NiMH (2450mAh): 12 hours or more

    Lithium batteries: 16.5 hours or more

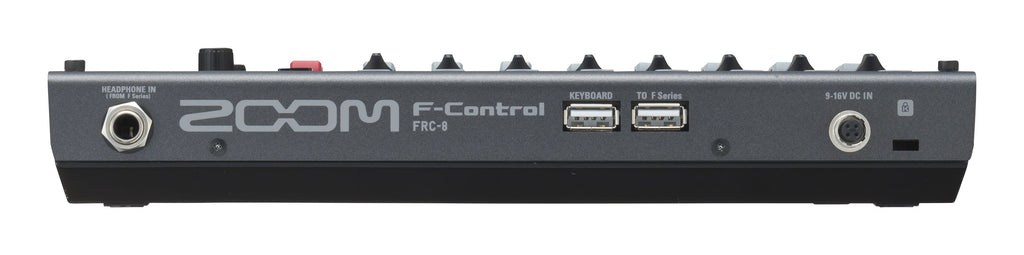

          CONNECTORS:

    TO F Series: USB (Type A)

    Keyboard: USB (Type A)

    From F-Series Headphone: 1/4" unbalanced stereo phone

    Headphone: 1/4" unbalanced stereo phone

    9-16V DC IN: HIROSE HR10A-7R-4S 4-pin connector (1 pin: −, 4 pin: +)

          POWER CONSUMPTION:

    2.5 W

          DIMENSIONS:

    9.6 in (W) x 7.11 in (D) x 1.8 in (H)

          WEIGHT:

    2.16 lbs (without batteries)
