WHAT’S IN THE BOX

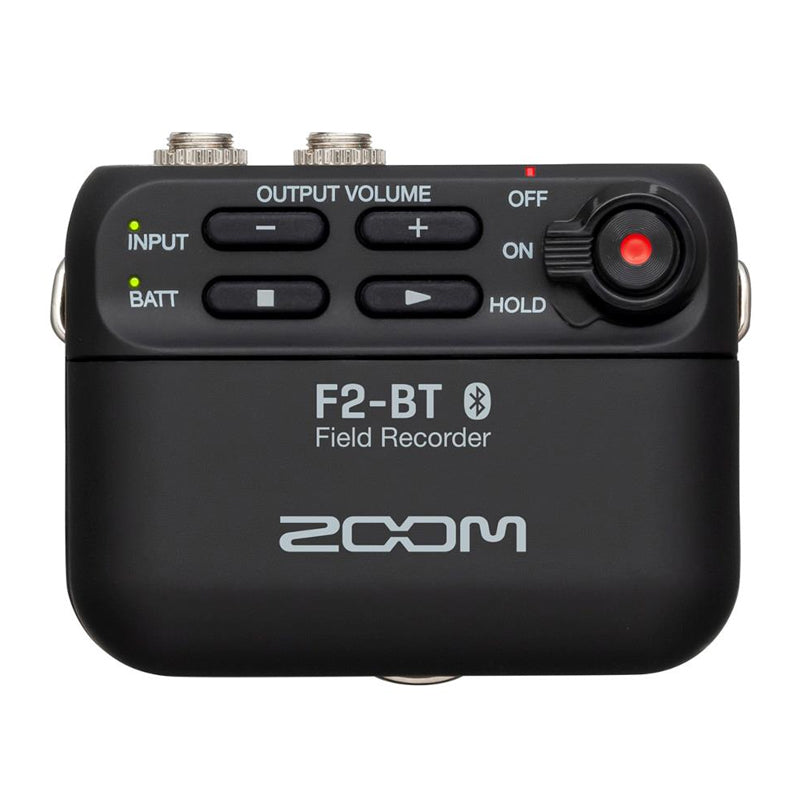

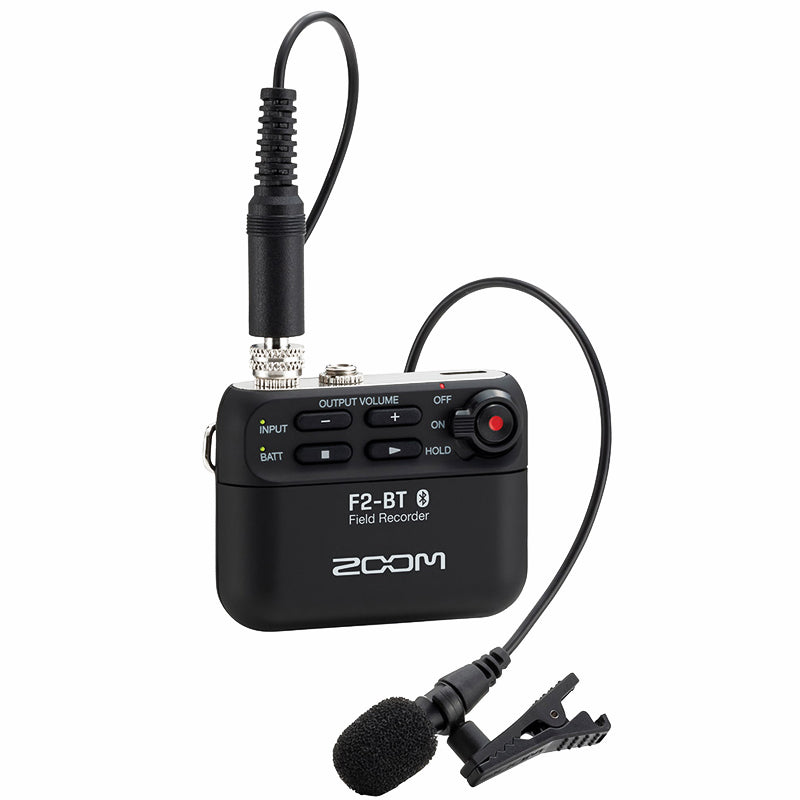

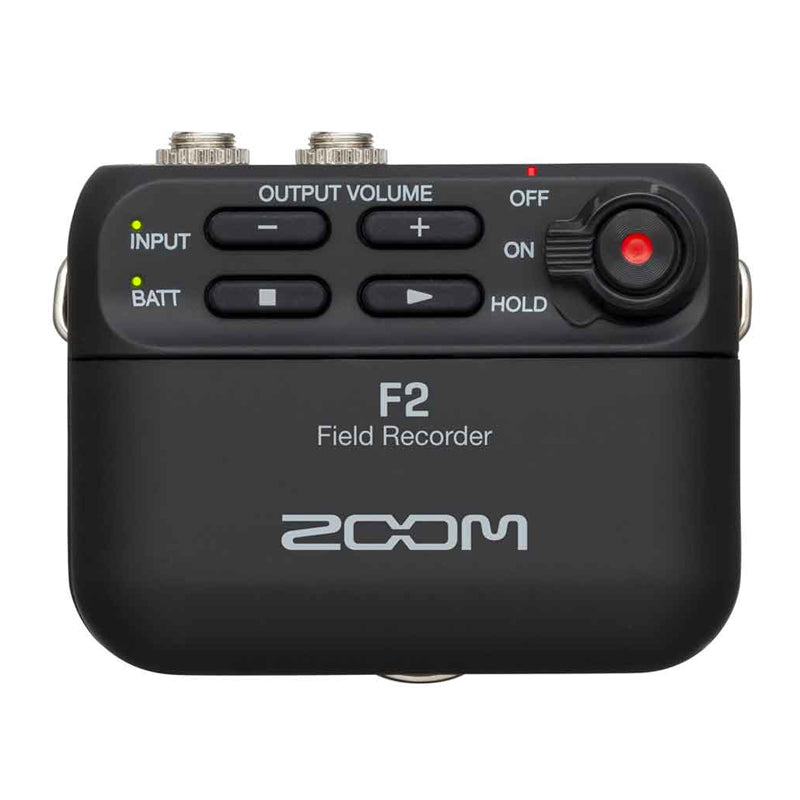

 F2 or F2-BT Field Recorder

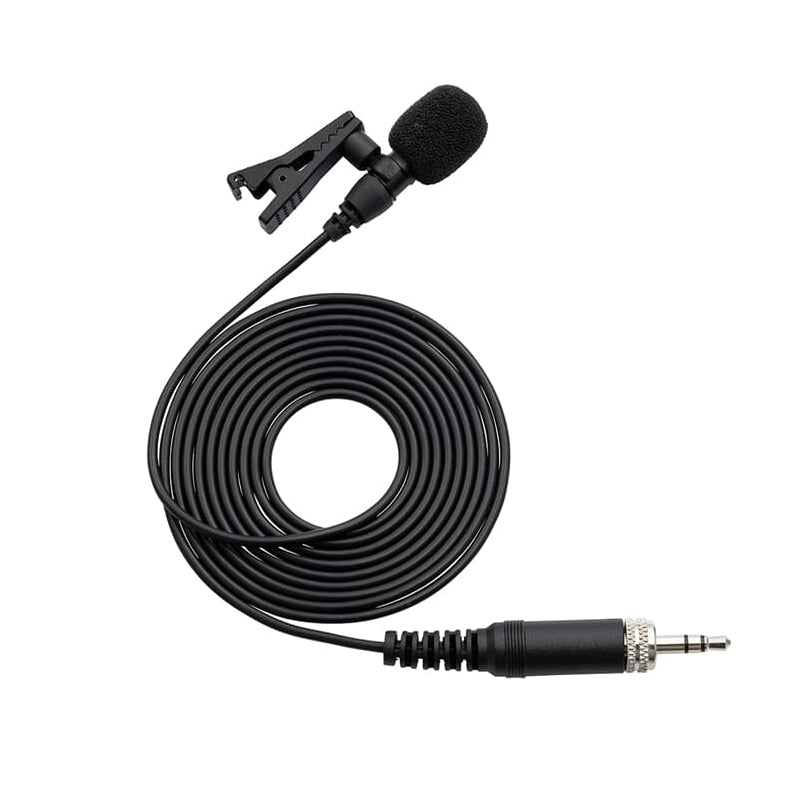

 LMF-2 Lavalier Microphone

 3 - WSL-1 Windscreen

 MCL-1 Mic Clip

 2 - AAA Batteries

 WaveLab Cast Software

 F2/F2-BT Operation Manual

   F2 FEATURES

         Light and compact audio recorder

    32-Bit Float recording for full dynamic range and clip free recording

    No gain adjustment necessary

    Records 44.1kHz/32-bit float or 48kHz/32-bit float audio files

    Rec Hold function to avoid accidental operation of buttons

    1/8" Mic In mini phone jack with Plug-in power (2.5V)

    Stereo ⅛" Phone/Line Output jack with dedicated volume control

    80 Hz low cut filter

    High precision internal clock to avoid audio and video syncing issues

    Wireless timecode synchronization (F2-BT model only)*

    Records directly to micro SD and SDHC cards up to 512 GB

    USB-C for connection to F2 Editor for settings

    Built-in Bluetooth for connection to the F2 Control app for settings adjustment and remote transport control (F2-BT model only)

    Runs on only 2 standard AAA alkaline, Lithium, or NiMH rechargeable batteries, or AC adapter (AD-17)

    Up to 15 hours of operation (14 hours on the F2-BT) with two AAA alkaline batteries

   *F2-BT connection to UltraSync BLUE device by Timecode Systems is required.

   SPECS

   F2/F2-BT

   INPUT

                  CONNECTOR:

      3.5 mm stereo mini (with screw lock) Supports plug-in power (2.5 V)

                INPUT GAIN:

      None (dual AD conversion system)

                INPUT IMPEDANCE:

      2 kΩ or more

                MAXIMUM INPUT LEVEL:

      −5.5 dBu

   OUTPUT

                  CONNECTOR:

      3.5 mm stereo mini (with screw lock)

                MAXIMUM OUTPUT LEVEL:

      20 mW + 20 mW (into 32Ω load)

   RECORDING MEDIA

                  CARDS COMPATIBLE WITH MICROSD/MICROSDHC/MICROSDXC SPECIFICATIONS

(CLASS 4 OR HIGHER, 512 GB MAXIMUM)

   RECORDING FORMAT

                  WAV:

      44.1kHz/32-bit float, 48kHz/32-bit float Mono,

BWF format supported

   USB

                  USB TYPE-C

                MASS STORAGE OPERATION

      USB 2.0 High Speed

                PC APP OPERATION

      USB 2.0 High Speed

   POWER

                  2 AAA BATTERIES (ALKALINE, LITHIUM OR RECHARGEABLE NIMH BATTERIES) AC ADAPTER (ZOOM AD-17): DC 5 V/1 A

   MISCELLANEOUS

                  BLUETOOTH:

      Bluetooth Ver4.2 (F2-BT only)

                CONTINUOUS RECORDING TIME WHEN USING LAVALIER MIC (48KHZ/32-BIT FLOAT):

      Alkaline batteries: about 14 hours

      NiMH batteries (750 mAh): about 10 hours Lithium batteries:

about 18 hours

      • The above values are approximate.

                EXTERNAL DIMENSIONS:

      57.5 mm (W) × 46.4 mm (H) × 22.4 mm (D)

                WEIGHT (MAIN UNIT ONLY):

      32 g

   LMF-2

   LAVALIER MIC

                  CONNECTOR:

      3.5 mm stereo mini (with screw lock)

                DIRECTIONALITY:

      Omnidirectional

                SENSITIVITY:

      –32 dB/Pa at 1 kHz

                MAXIMUM SOUND PRESSURE INPUT:

      115 dB SPL

                CABLE LENGTH:

      160 cm
